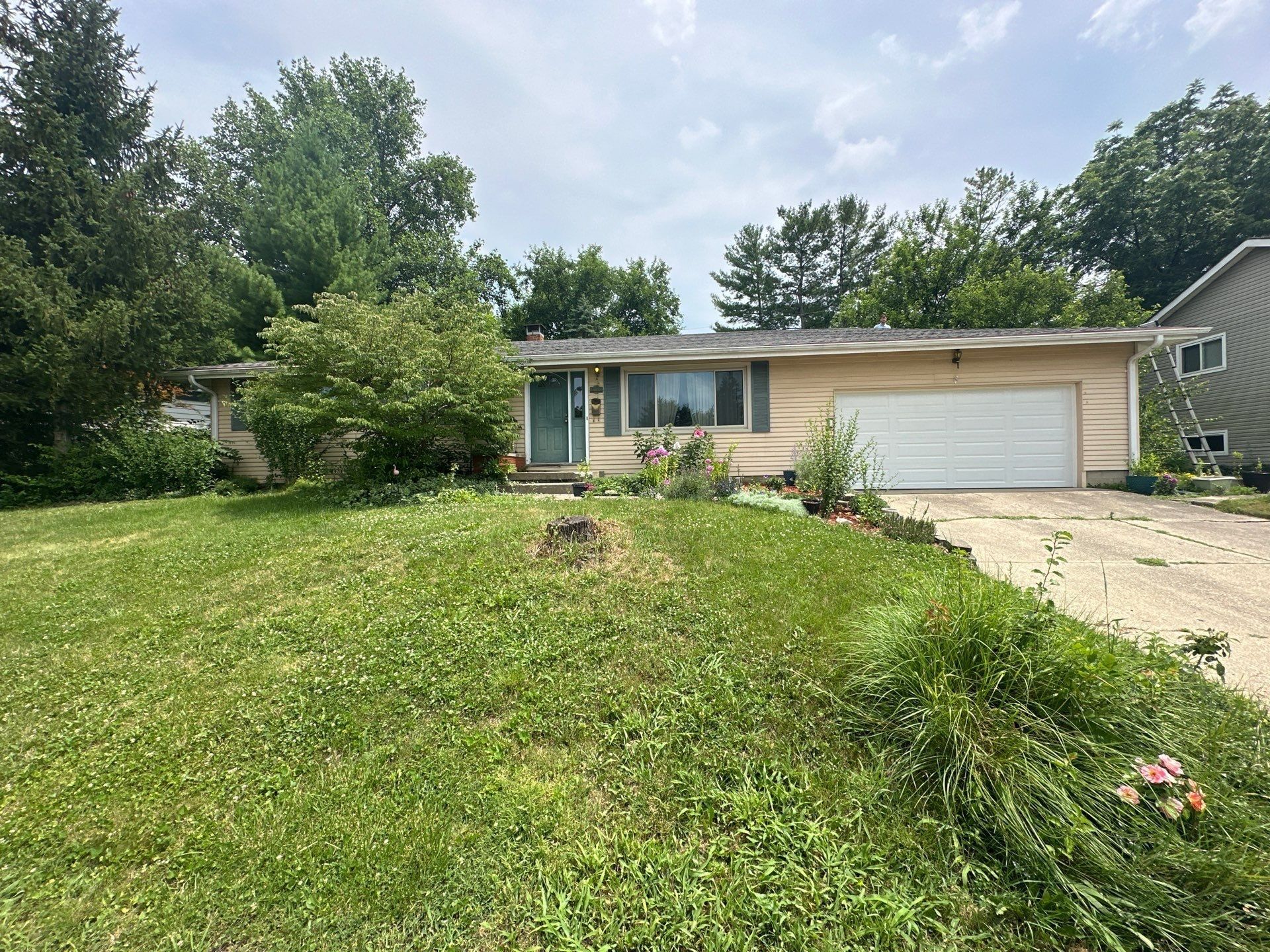

The front of the ranch house and its garage from the lawn, Fairborn, Ohio.

Completed project · Fairborn, Ohio

Roof Replacement After a Chimney Leak in Fairborn, Ohio

Helping Hands Roofing completed this project in Fairborn, Ohio. Every photograph below is our own.

Location
Fairborn, Ohio
Services
Roof Replacement

See roofing in Fairborn, OH.

Free Inspection

Book your Free Inspection

We use your details to answer your request. Privacy Policy

About this project

The homeowner on Kevin Dr called about water coming into the kitchen, right below the faux chimney. The architectural shingles weren't old; the leak was at the chimney.

Roof-deck condition

We tore off two layers of shingles down to a 1x board deck, with the boards laid tight, and cleaned it to bare wood.

The boards around the faux chimney had rotted, and that's where the water was getting in.

What we did

We protected the yard and house before tear-off, and the Owens Corning Duration shingles were delivered to the site.

We replaced the rotted boards, then built the roof to the Helping Hands Roofing Standard: two rows of ice and water shield at the eaves, ice and water shield around the chimney and the plumbing stack, and two layers of synthetic underlayment overlapped 24 inches. This roof has no valleys or wall transitions.

We put new flashing on the chimney and wrapped the hips, and the finished roof came out beautiful.

Materials and system used: new 1x boards where the deck had rotted, two rows of ice and water shield at the eaves, ice and water shield around the chimney and plumbing stack, two layers of synthetic underlayment, Owens Corning Duration shingles, new chimney flashing

The front of the ranch house and its garage from the lawn, Fairborn, Ohio.

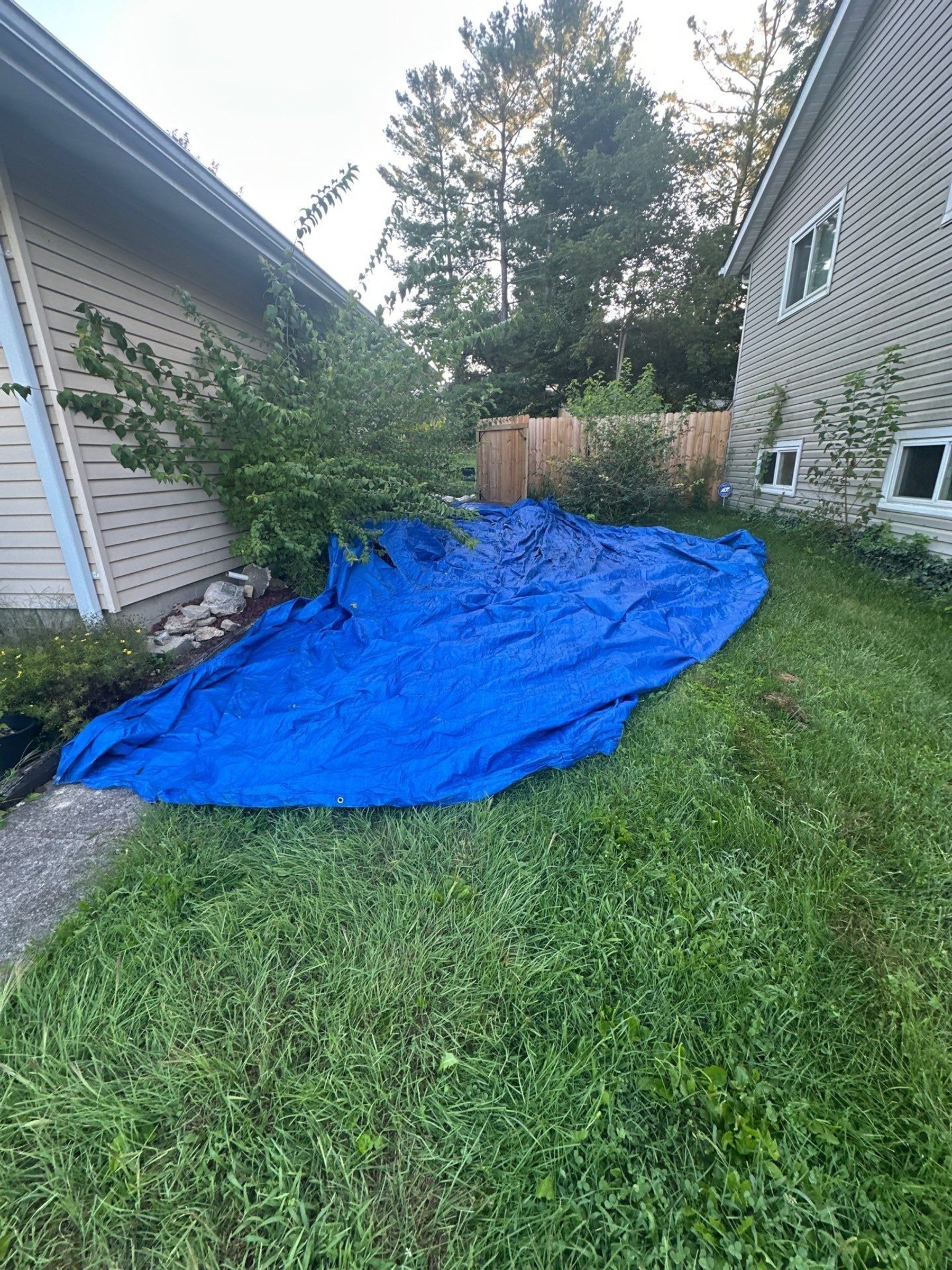

A blue tarp spread over the beds at the side of the house before tear-off, Fairborn, Ohio.

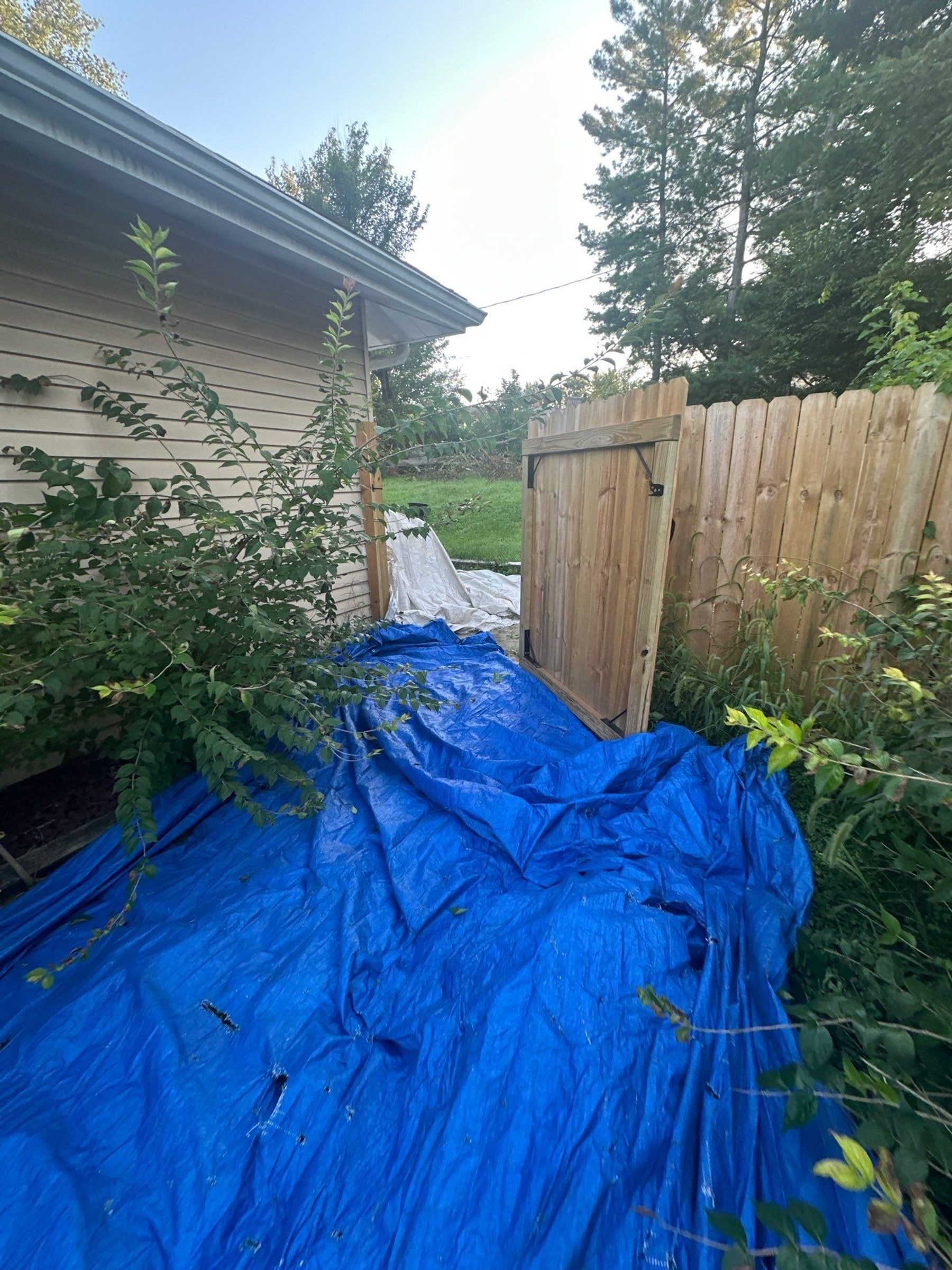

A blue tarp covering the plants beside the fence gate, Fairborn, Ohio.

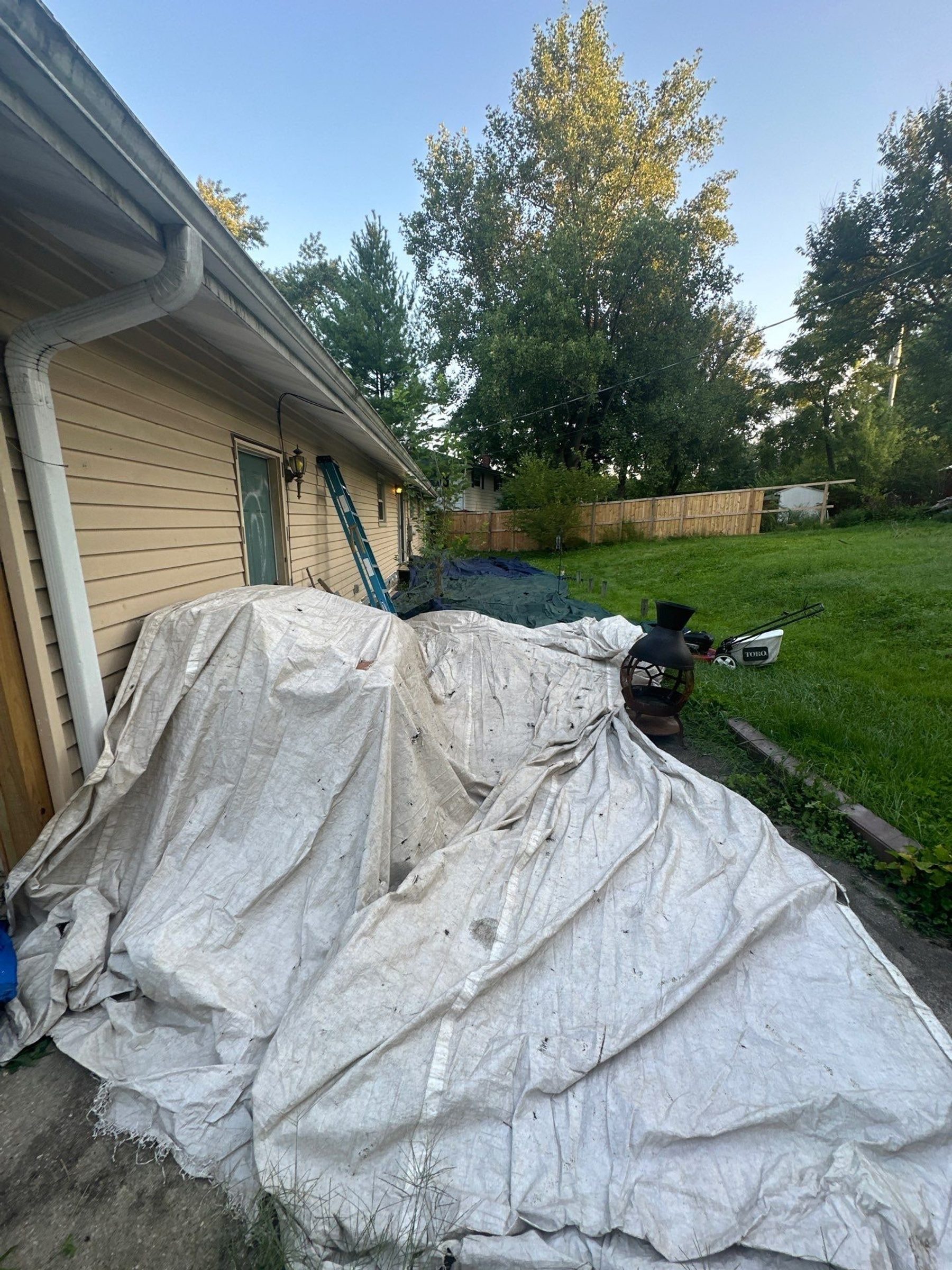

White tarps covering the patio and yard along the back of the house, Fairborn, Ohio.

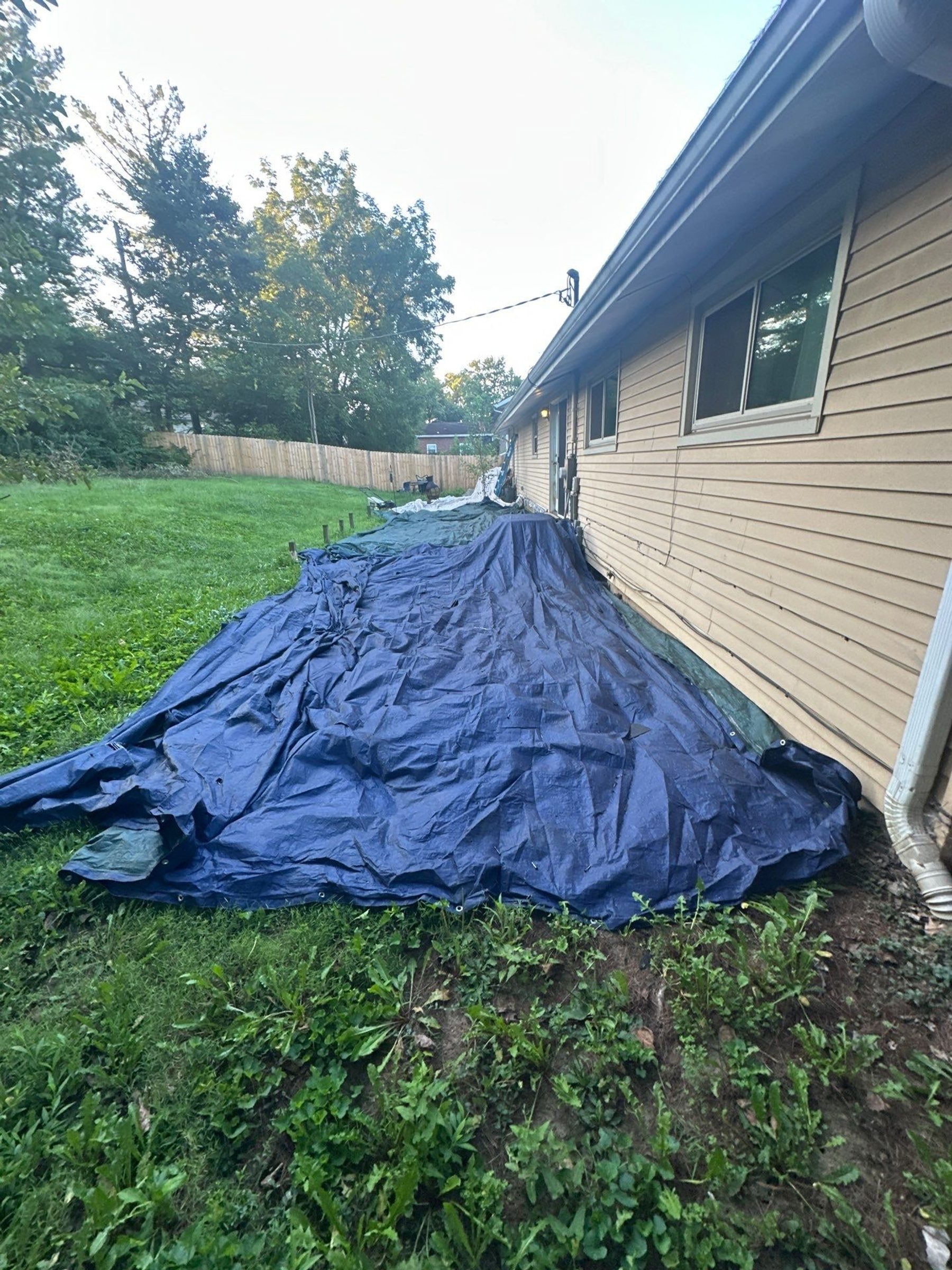

A blue tarp laid along the back wall of the house over the lawn, Fairborn, Ohio.

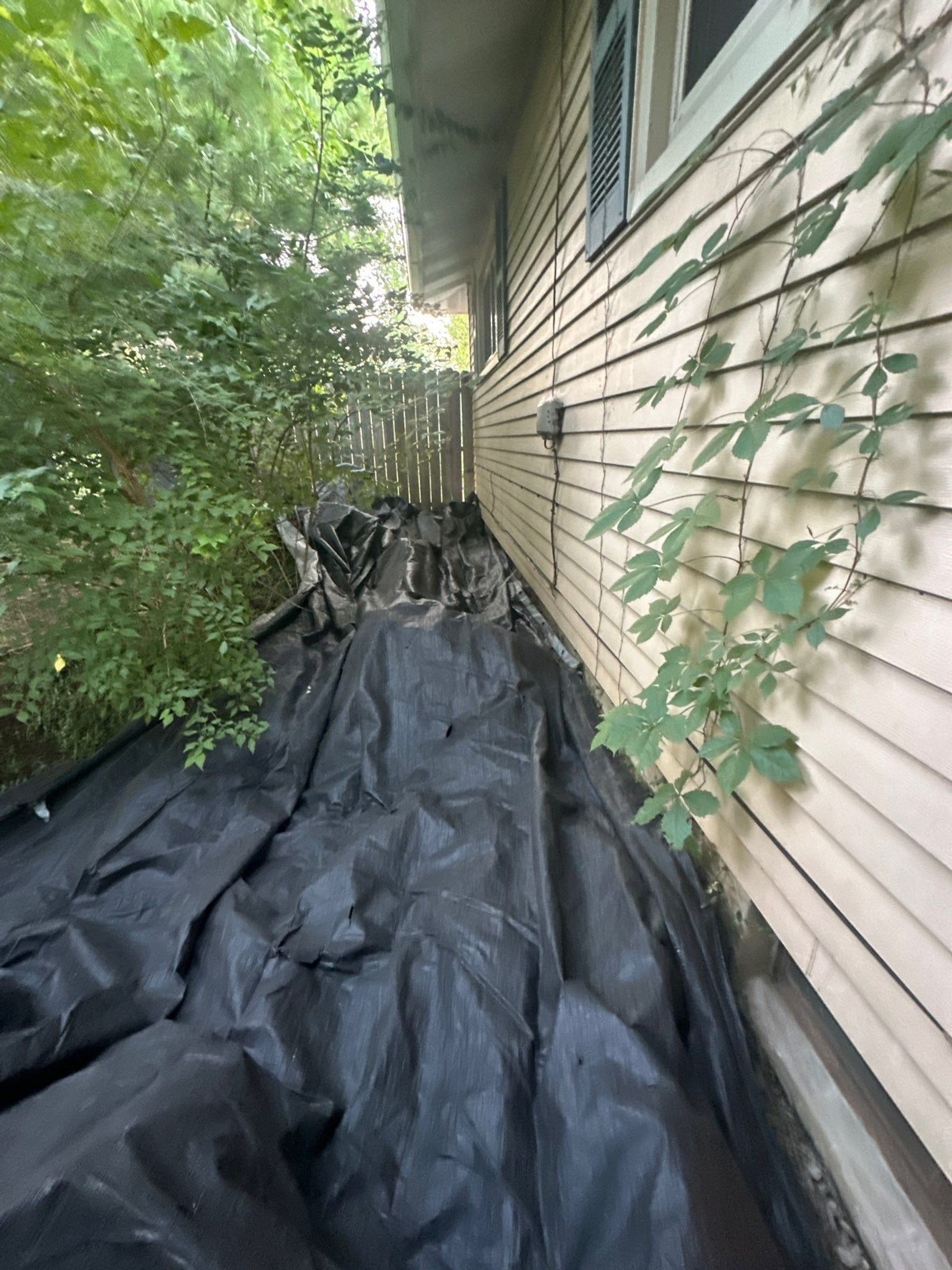

A black tarp laid down the narrow side yard beside the house, Fairborn, Ohio.

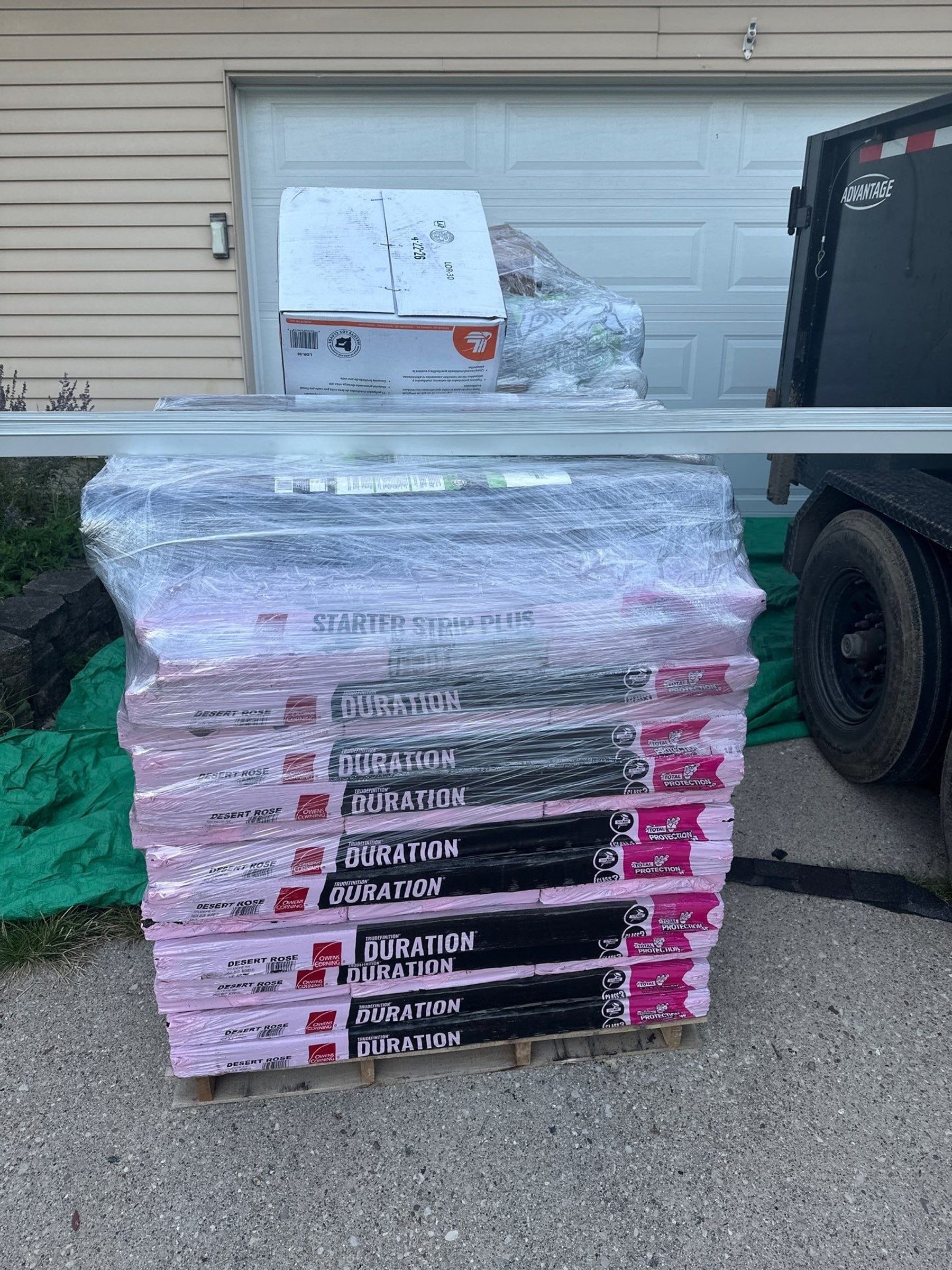

A pallet of Owens Corning Duration shingles and starter strip on the driveway, Fairborn, Ohio.

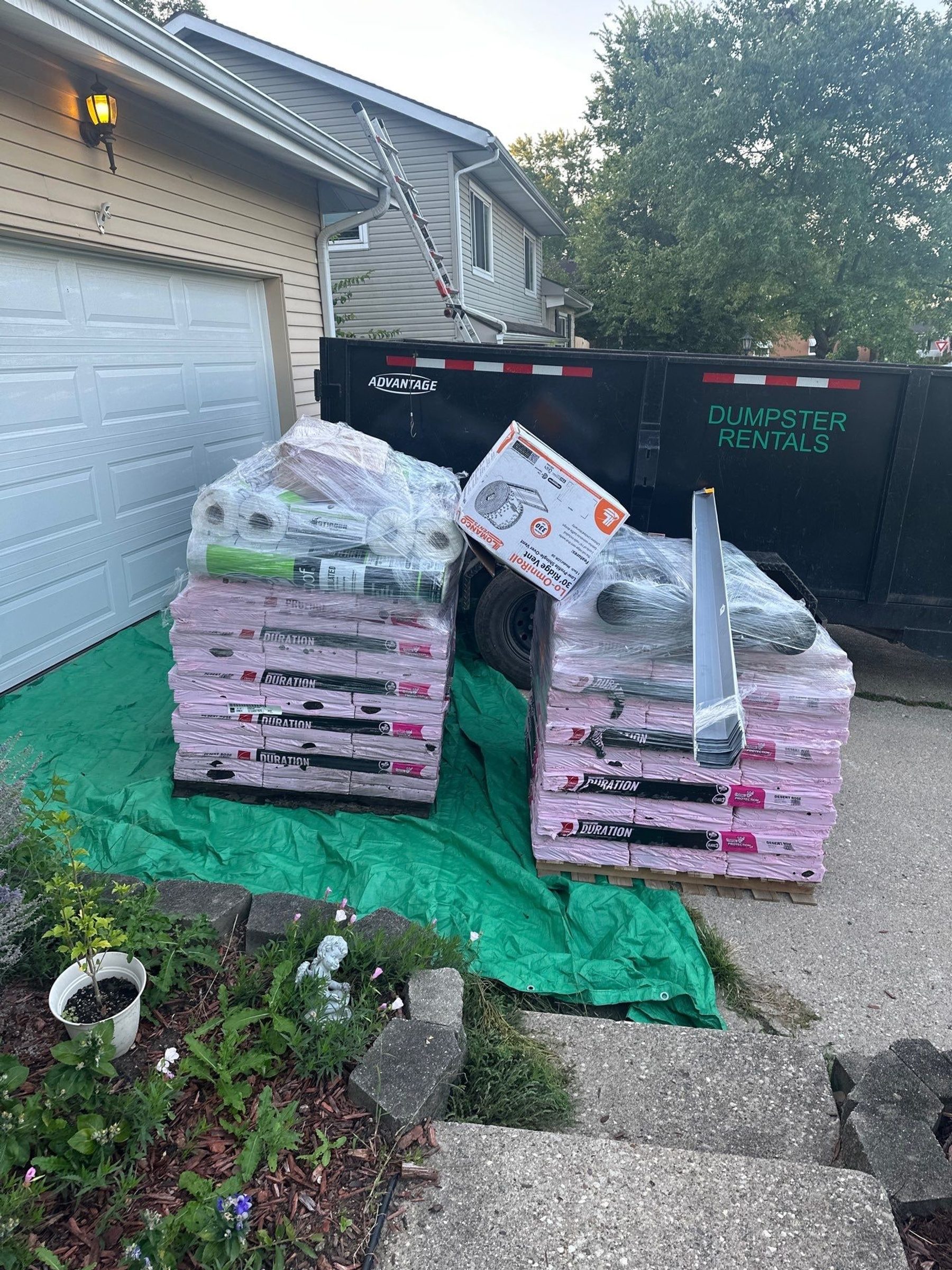

Two pallets of Duration shingles and supplies in front of the garage, Fairborn, Ohio.

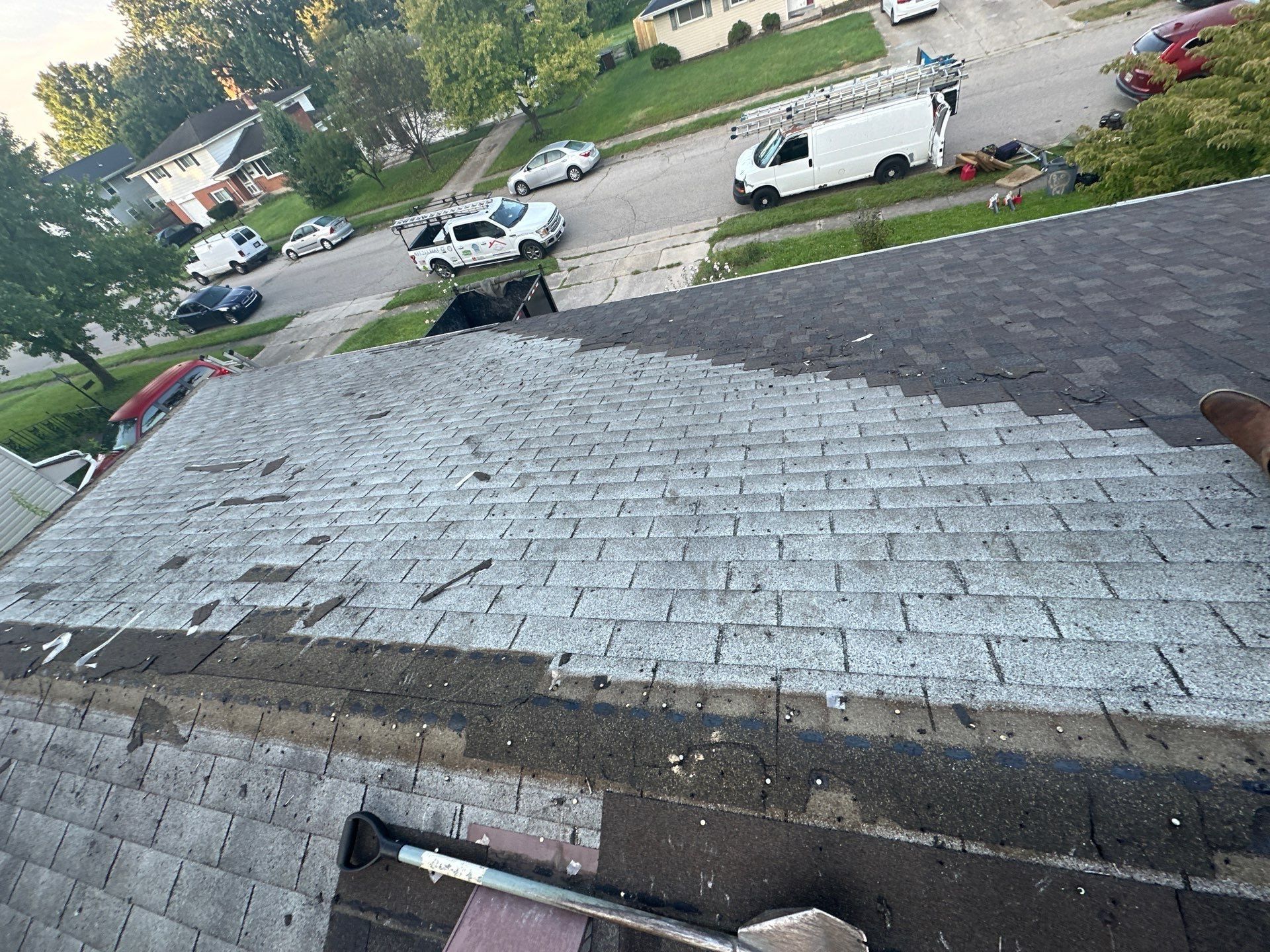

Two layers of old shingles showing where tear-off has started, above the street, Fairborn, Ohio.

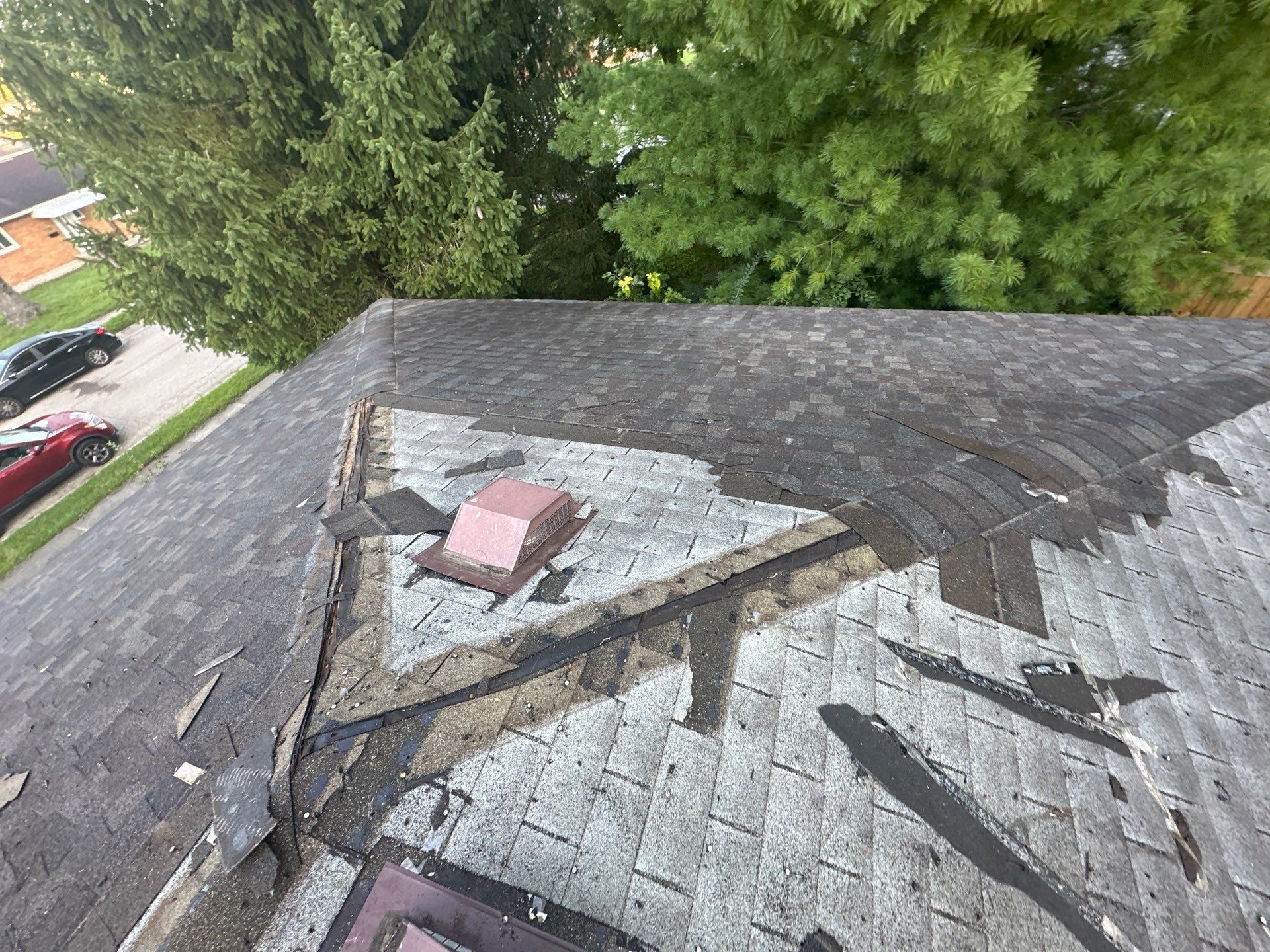

Tear-off around a roof vent showing the second layer of shingles underneath, Fairborn, Ohio.

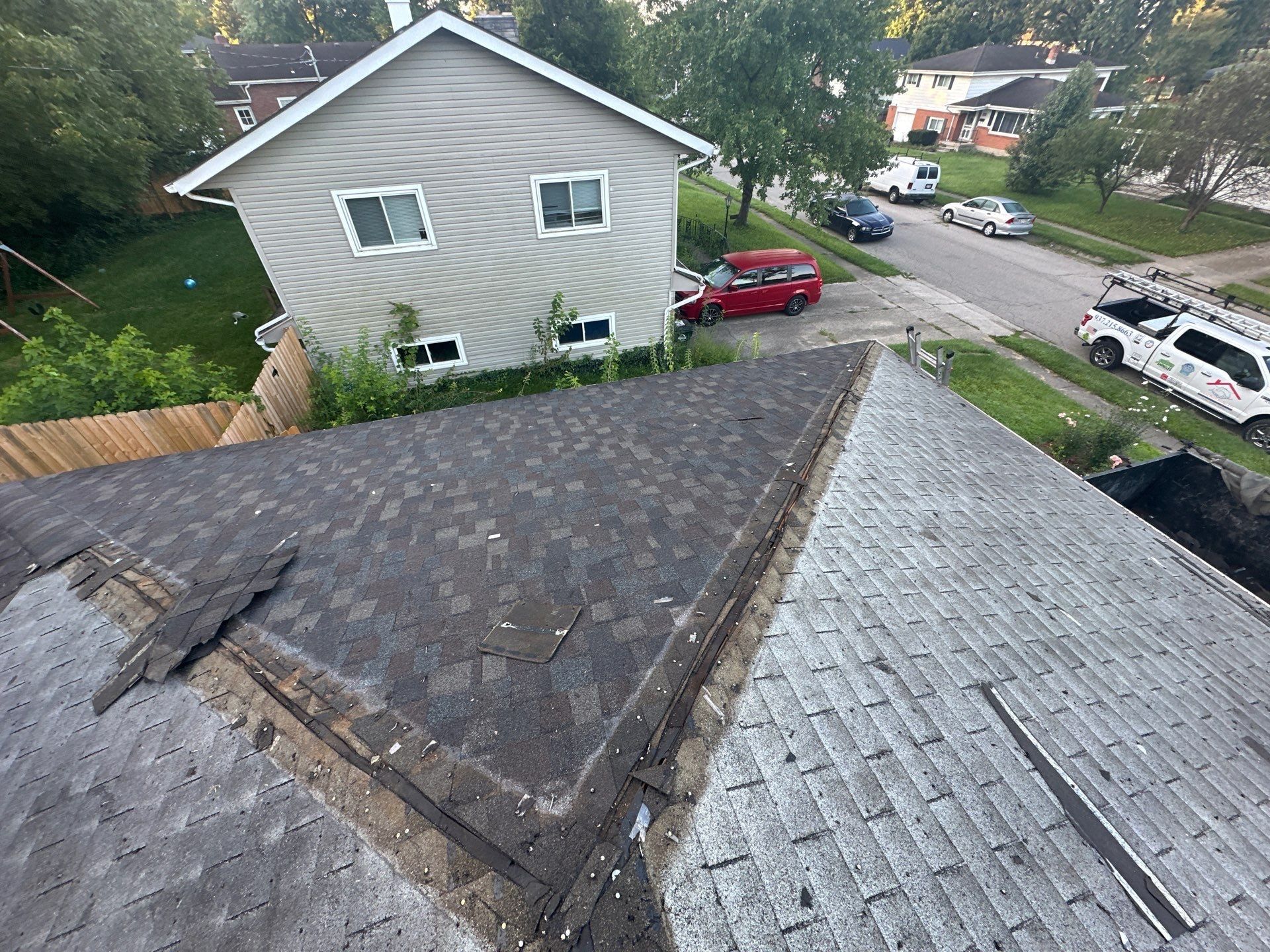

The top layer of shingles stripped along a hip, with the older layer below, Fairborn, Ohio.

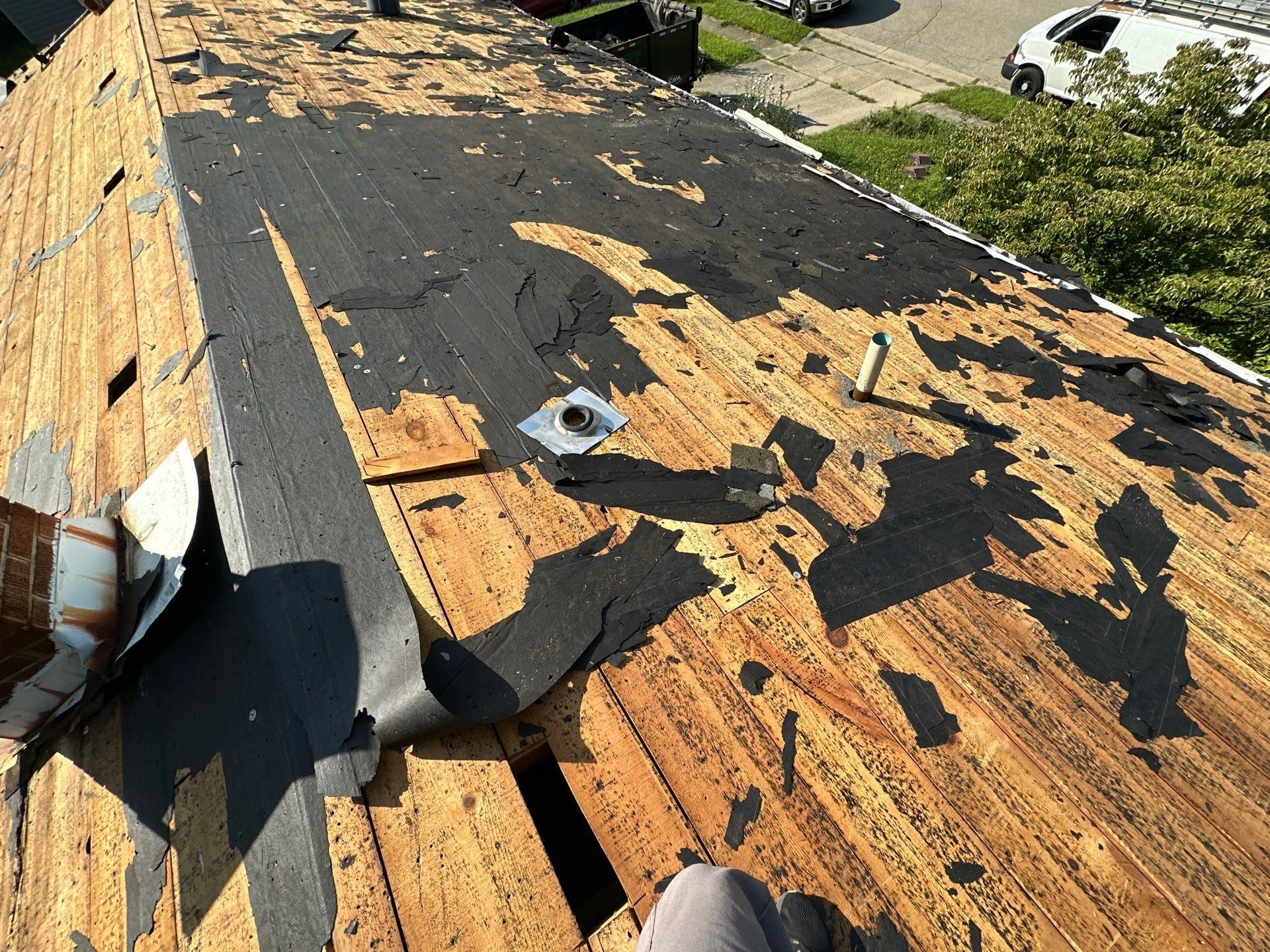

Old shingles and paper stripped back to the board deck around a plumbing pipe, Fairborn, Ohio.

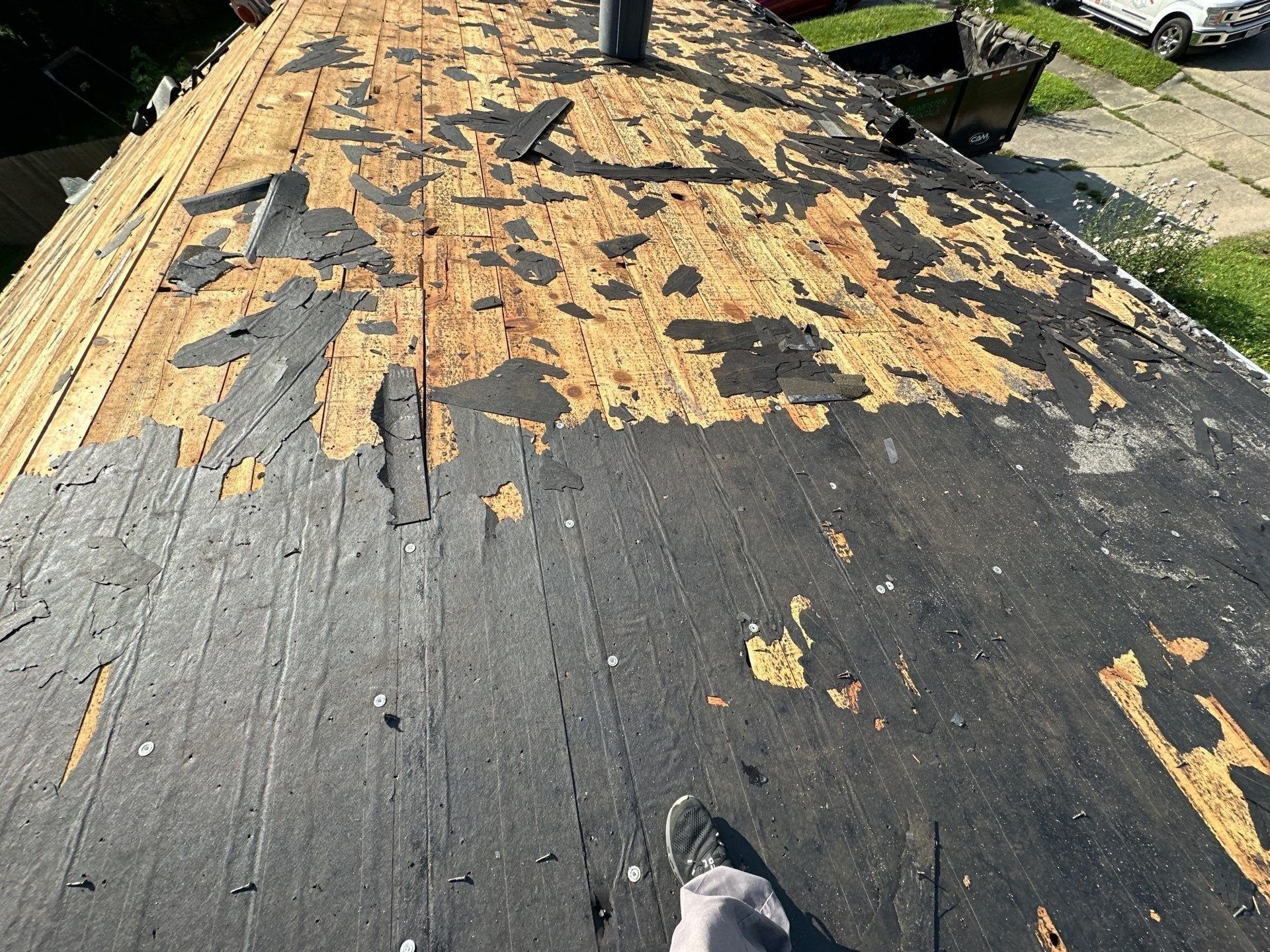

Scraps of old roofing paper still on the board deck during tear-off, Fairborn, Ohio.

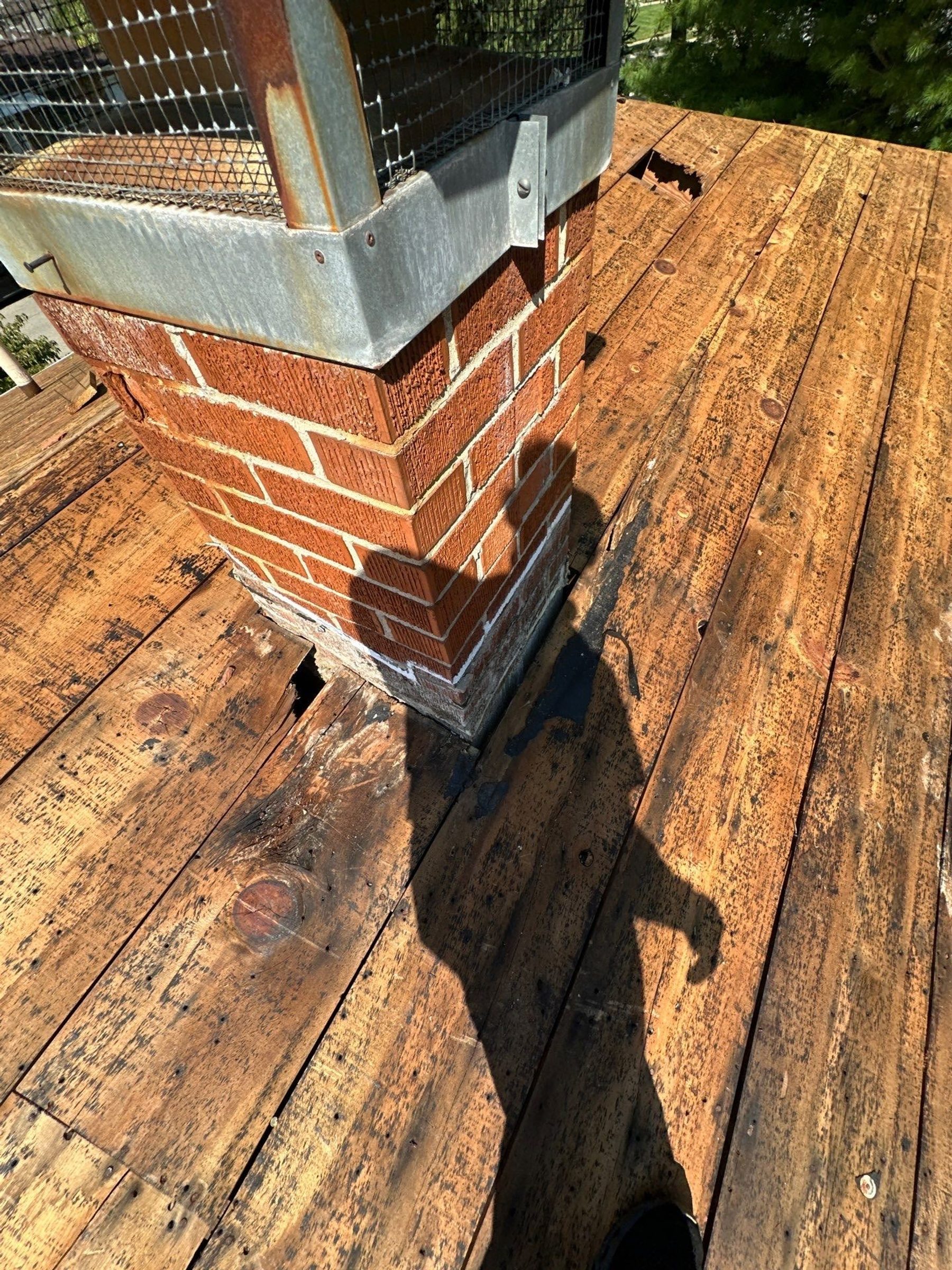

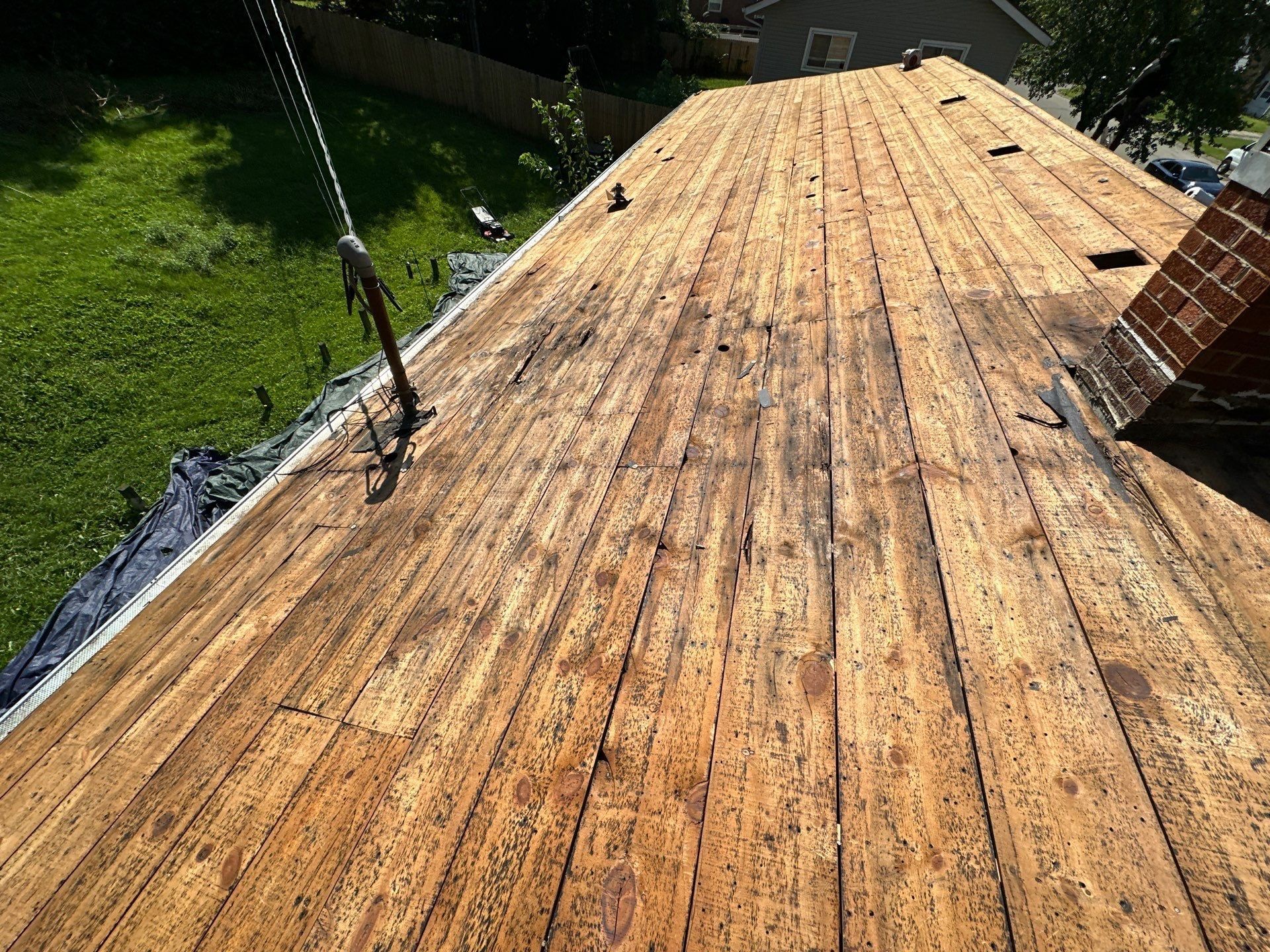

The 1x board deck cleaned to bare wood beside the brick chimney, Fairborn, Ohio.

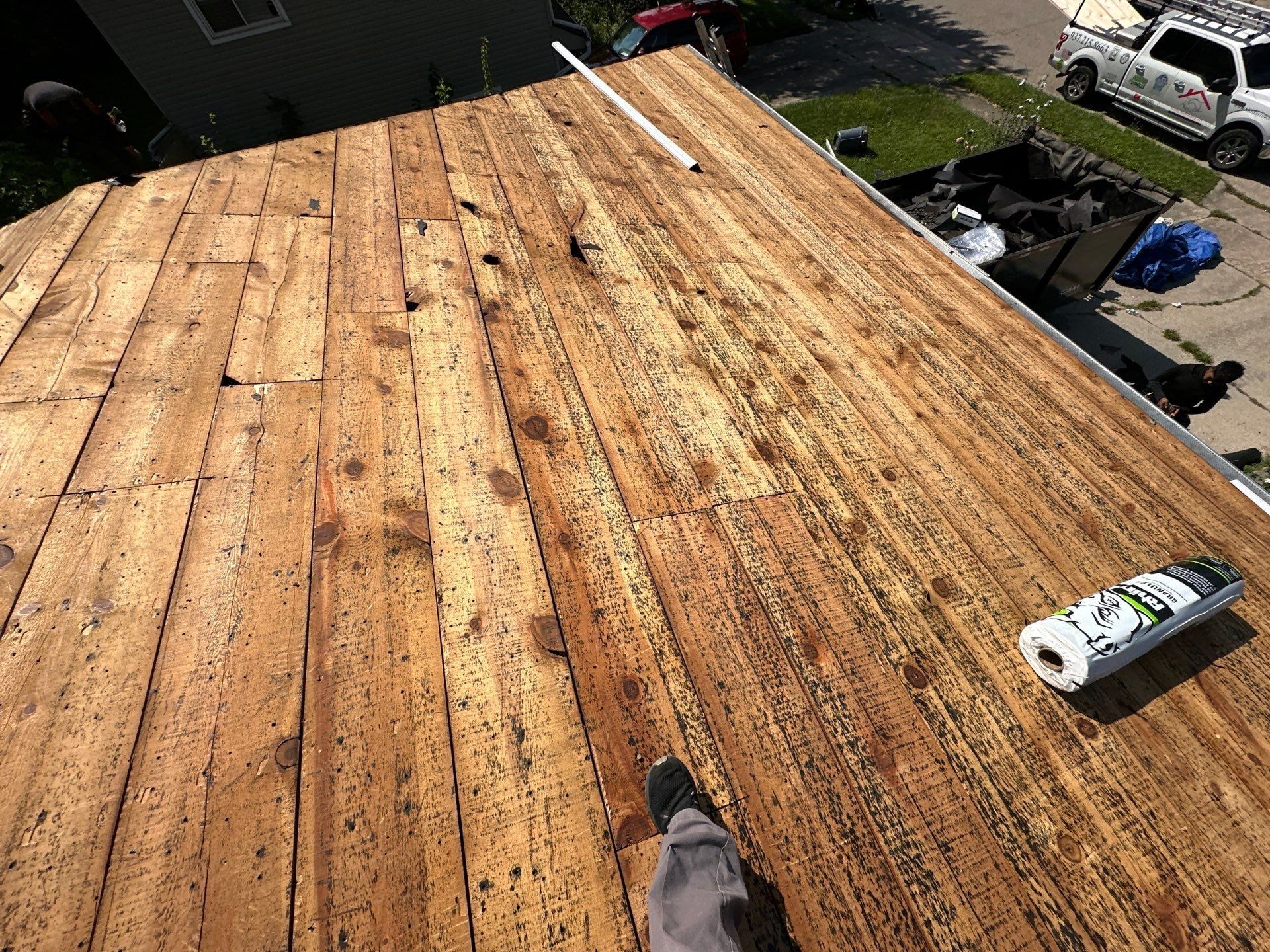

Tight 1x boards cleaned to bare wood above the driveway, Fairborn, Ohio.

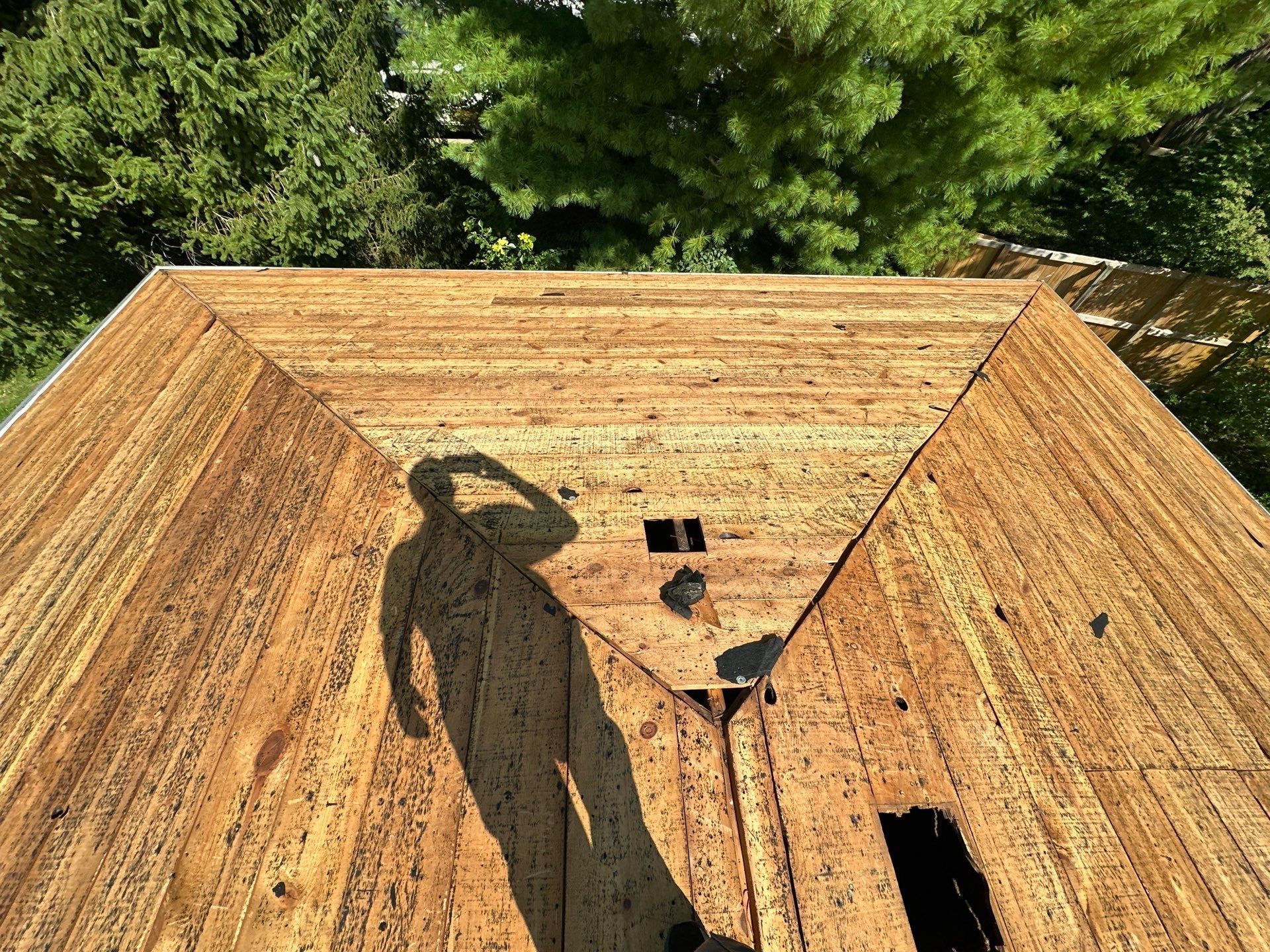

Bare board deck on the hip end of the roof, with open vent holes, Fairborn, Ohio.

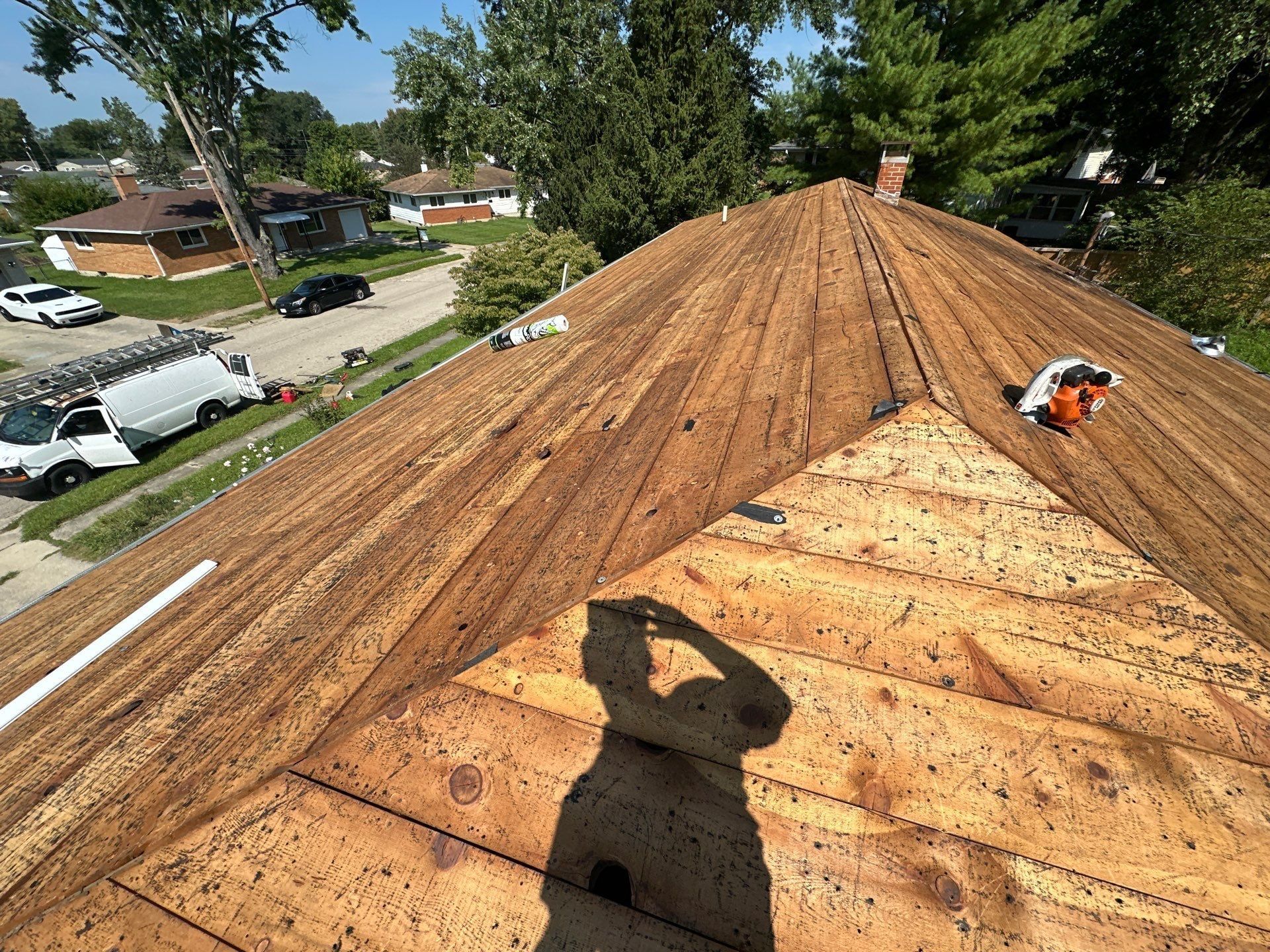

The cleaned board deck along the ridge, with the street below, Fairborn, Ohio.

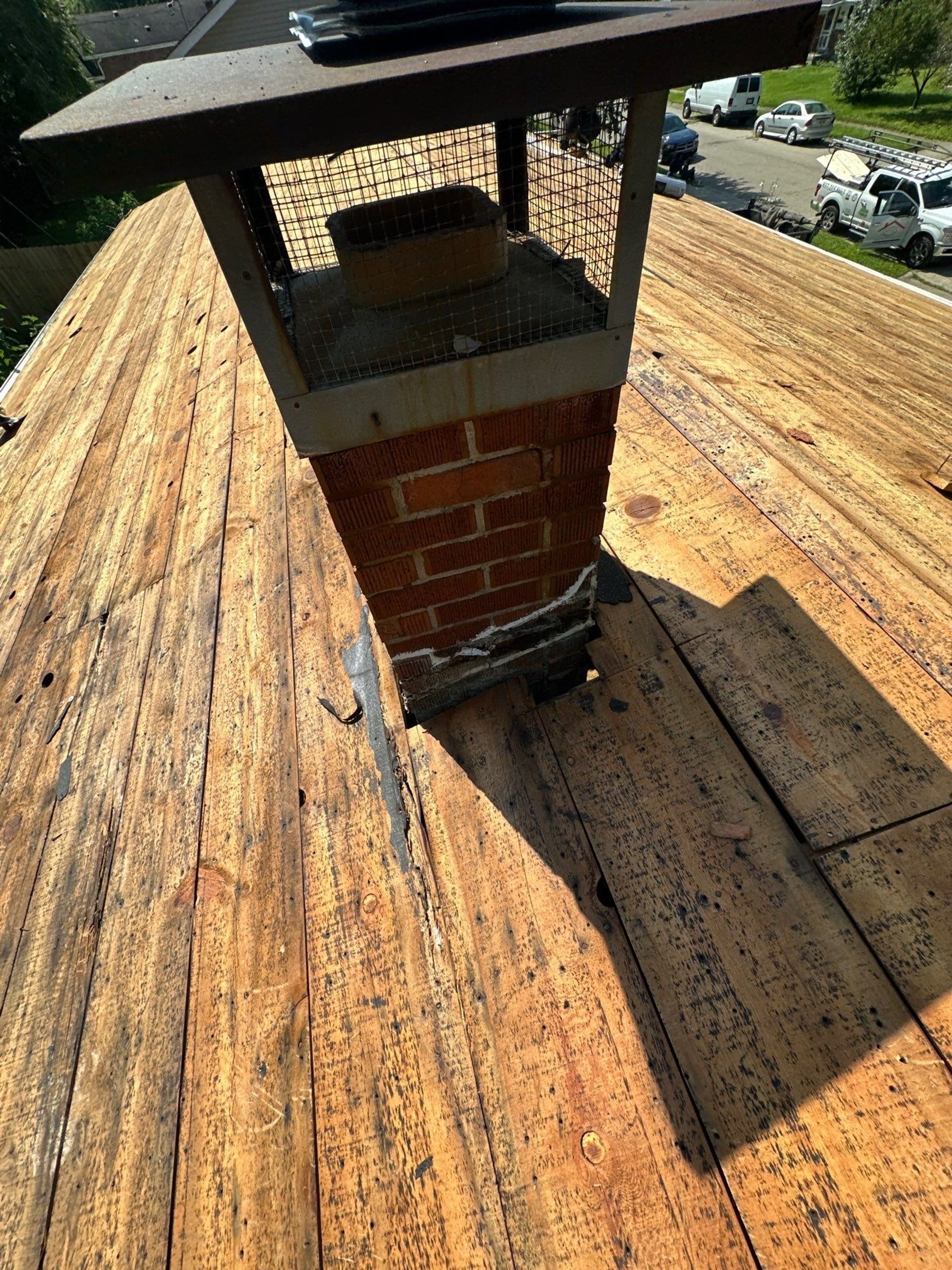

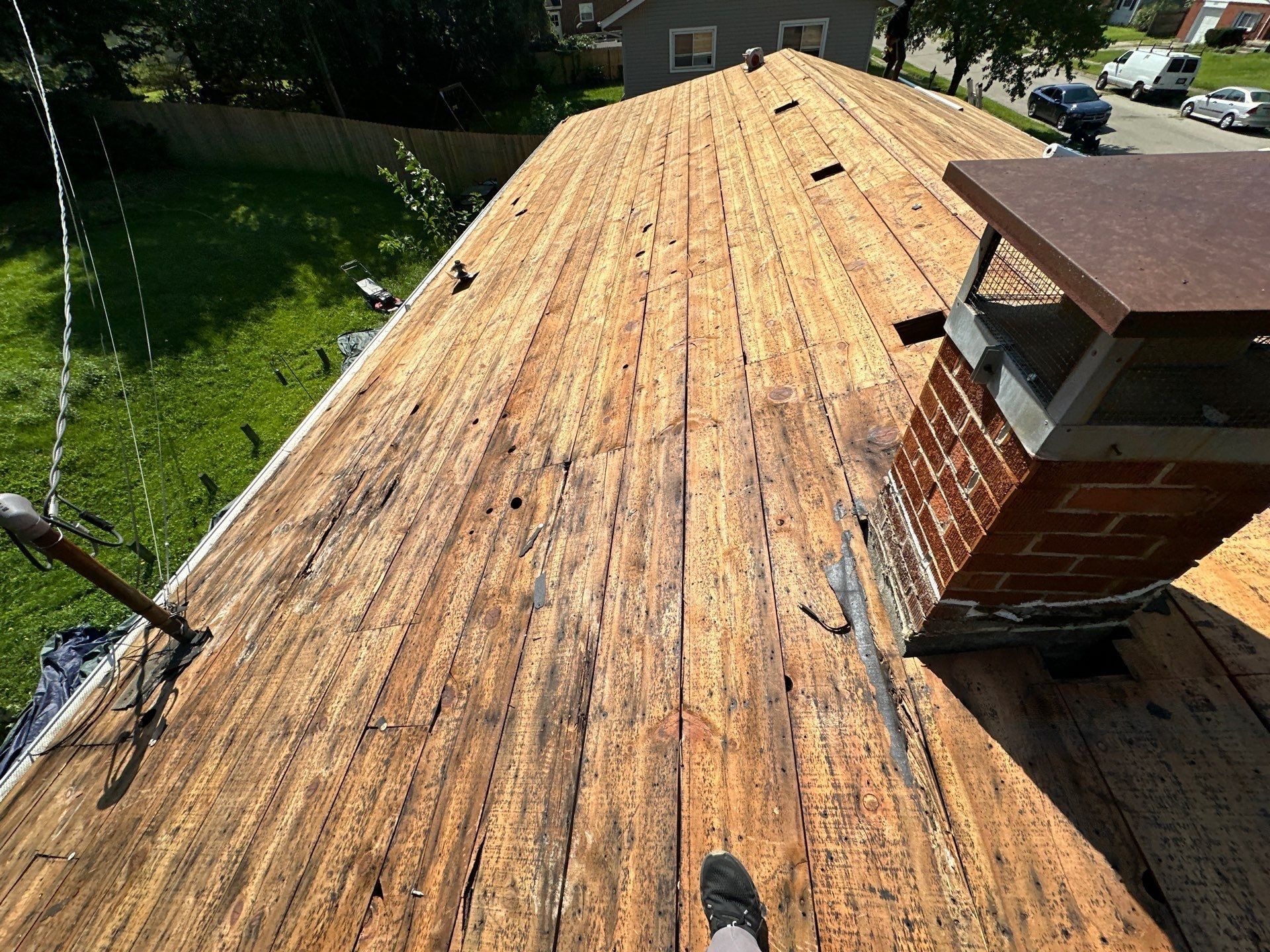

The board deck cleaned around the chimney and its cap, Fairborn, Ohio.

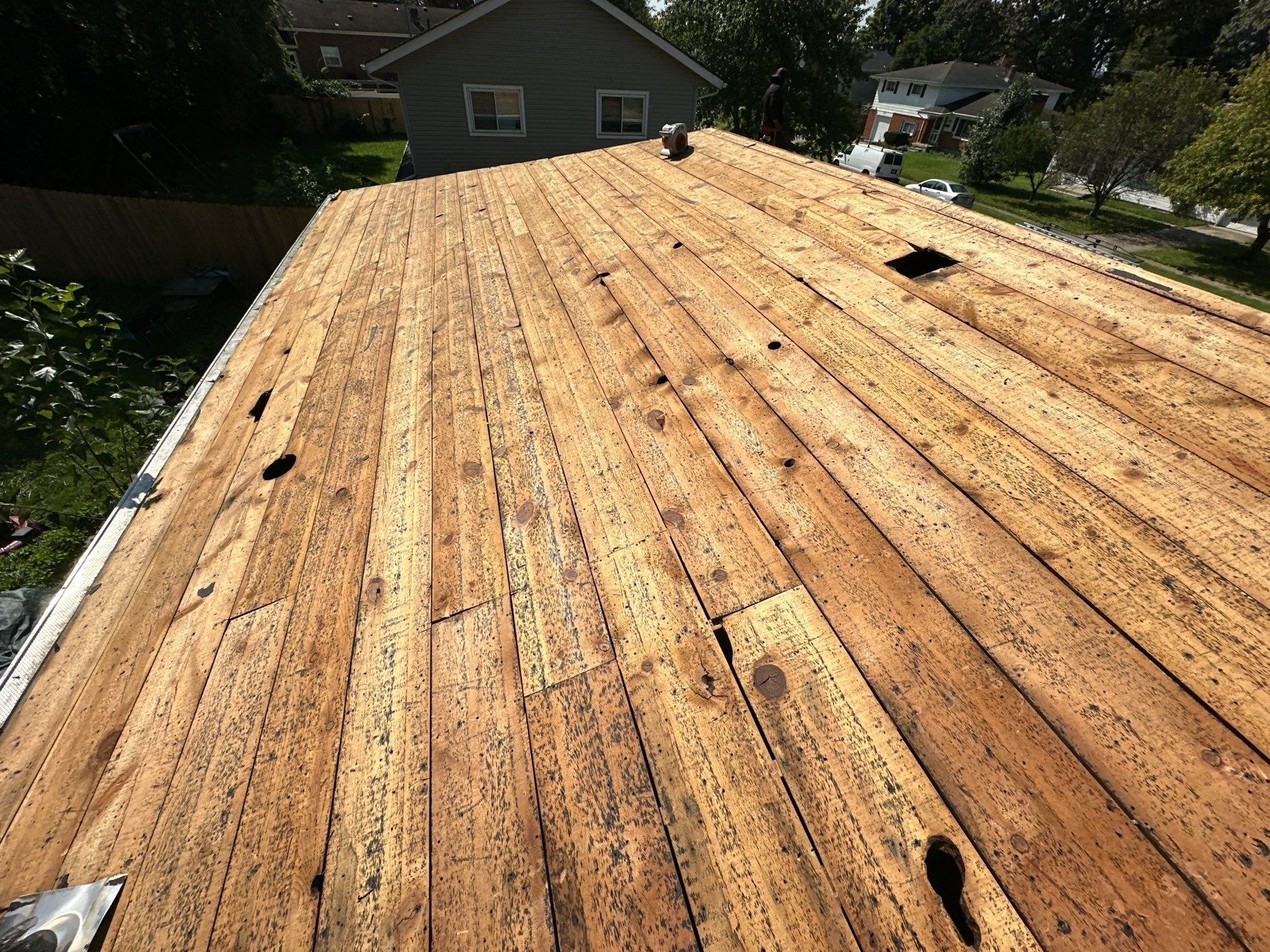

The full board deck cleaned to bare wood, looking along the roof, Fairborn, Ohio.
Darkened, rotted boards at the base of the faux chimney where the leak came in, Fairborn, Ohio.
Rot and old patching around the faux chimney on the bare board deck, Fairborn, Ohio.

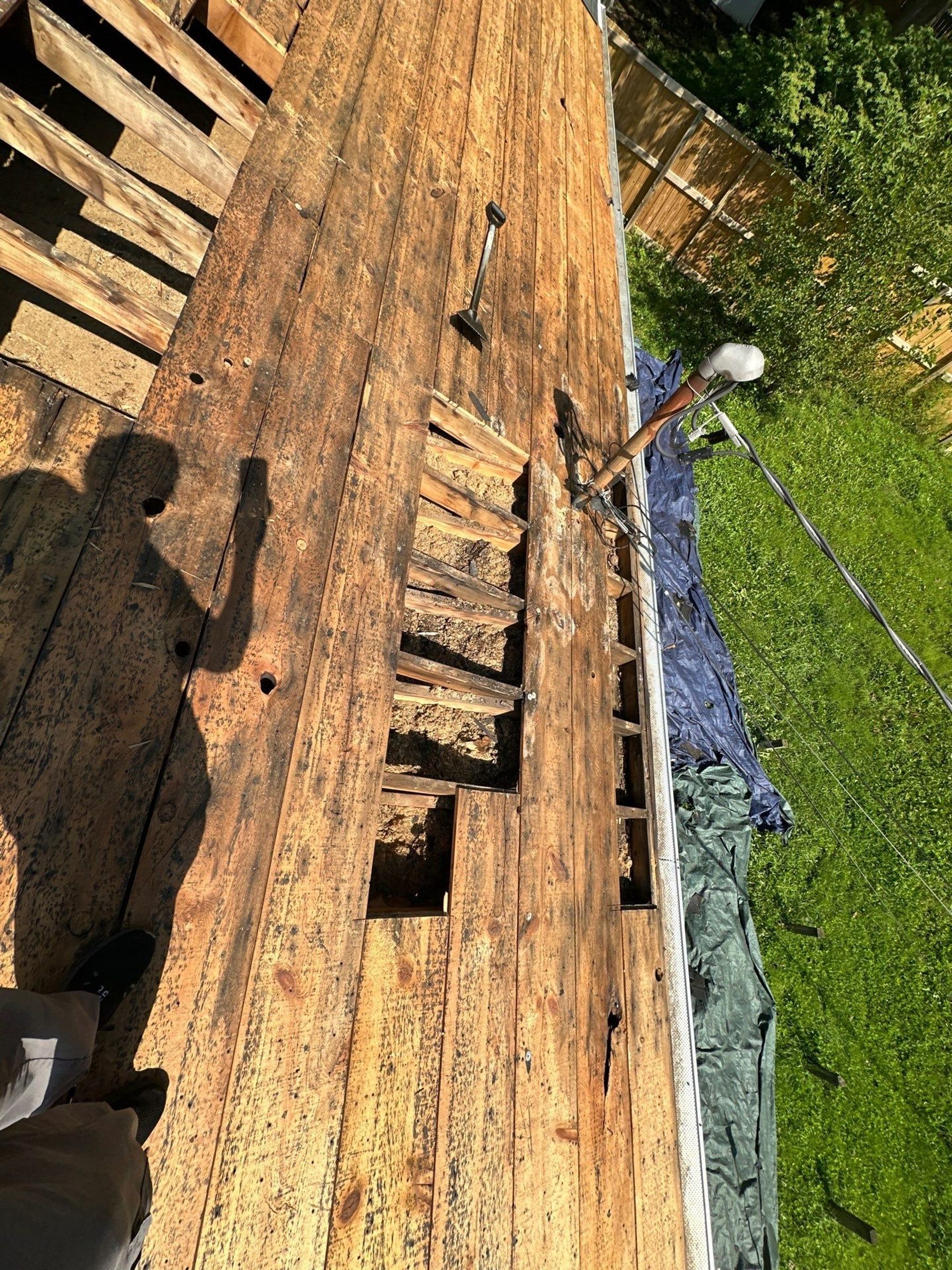

Rotted deck boards cut out near the roof edge above the back yard, Fairborn, Ohio.

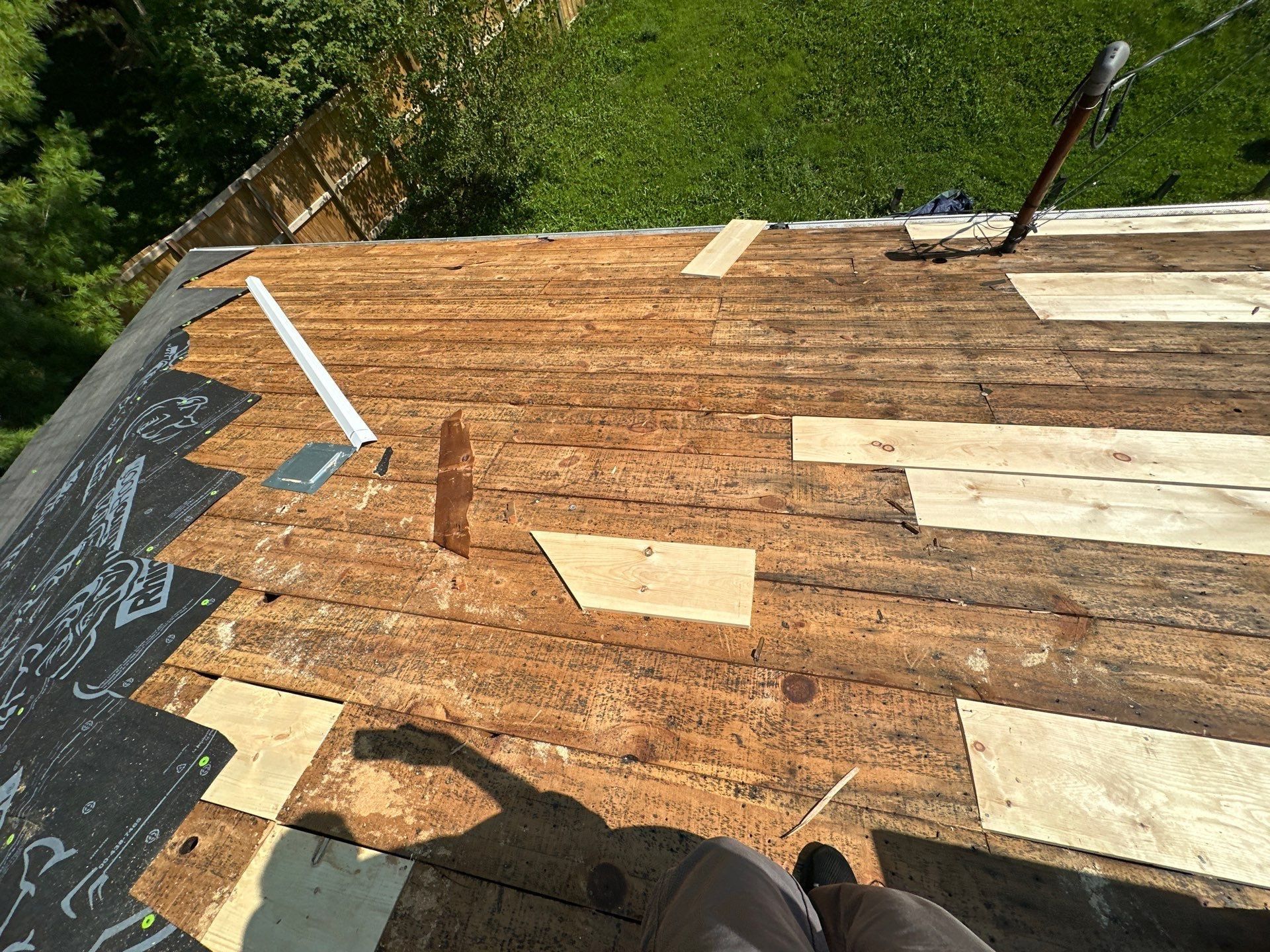

New boards set in where rotted boards came out, beside the old deck, Fairborn, Ohio.

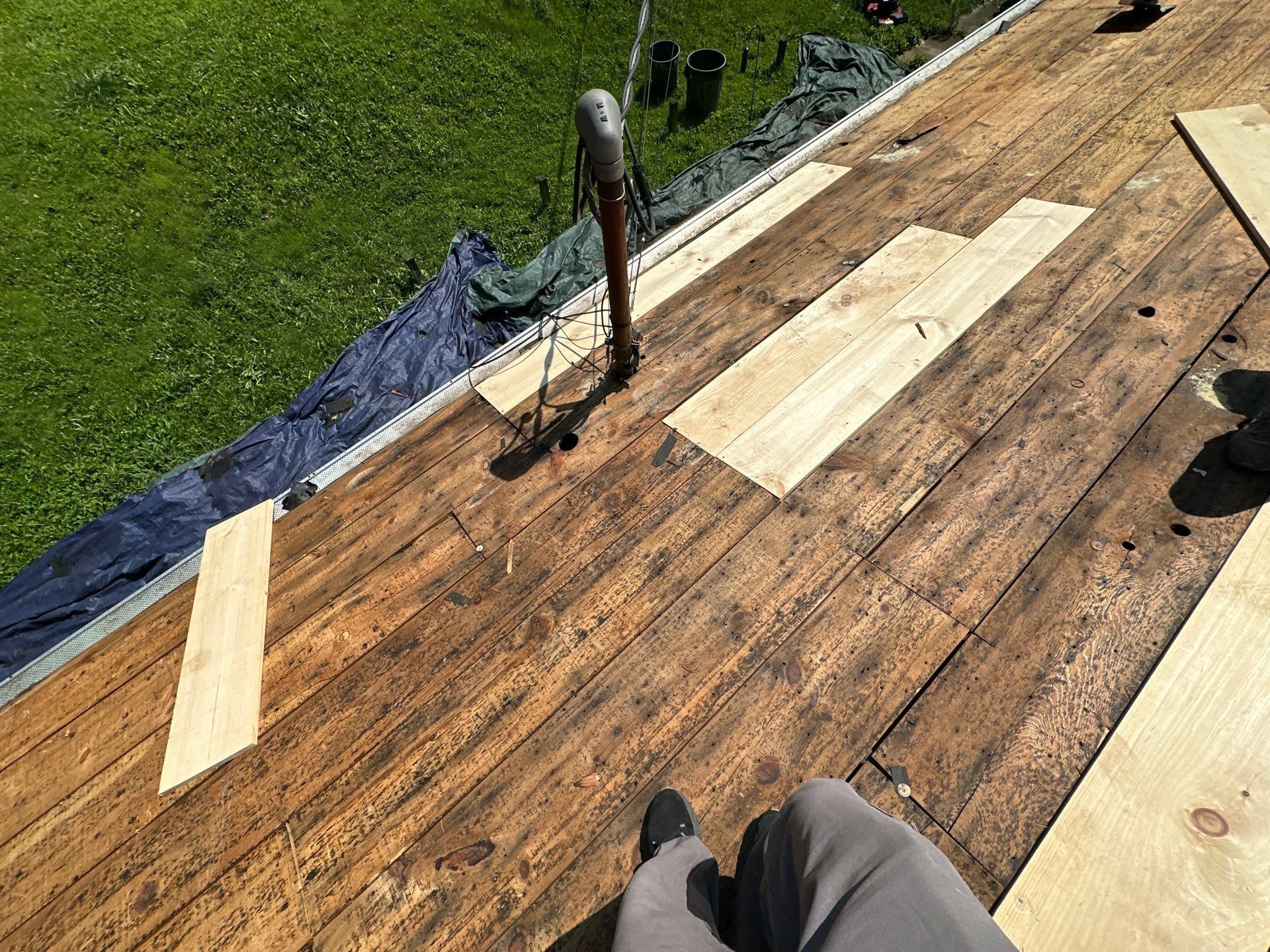

New pine boards patched into the deck near a vent pipe, Fairborn, Ohio.

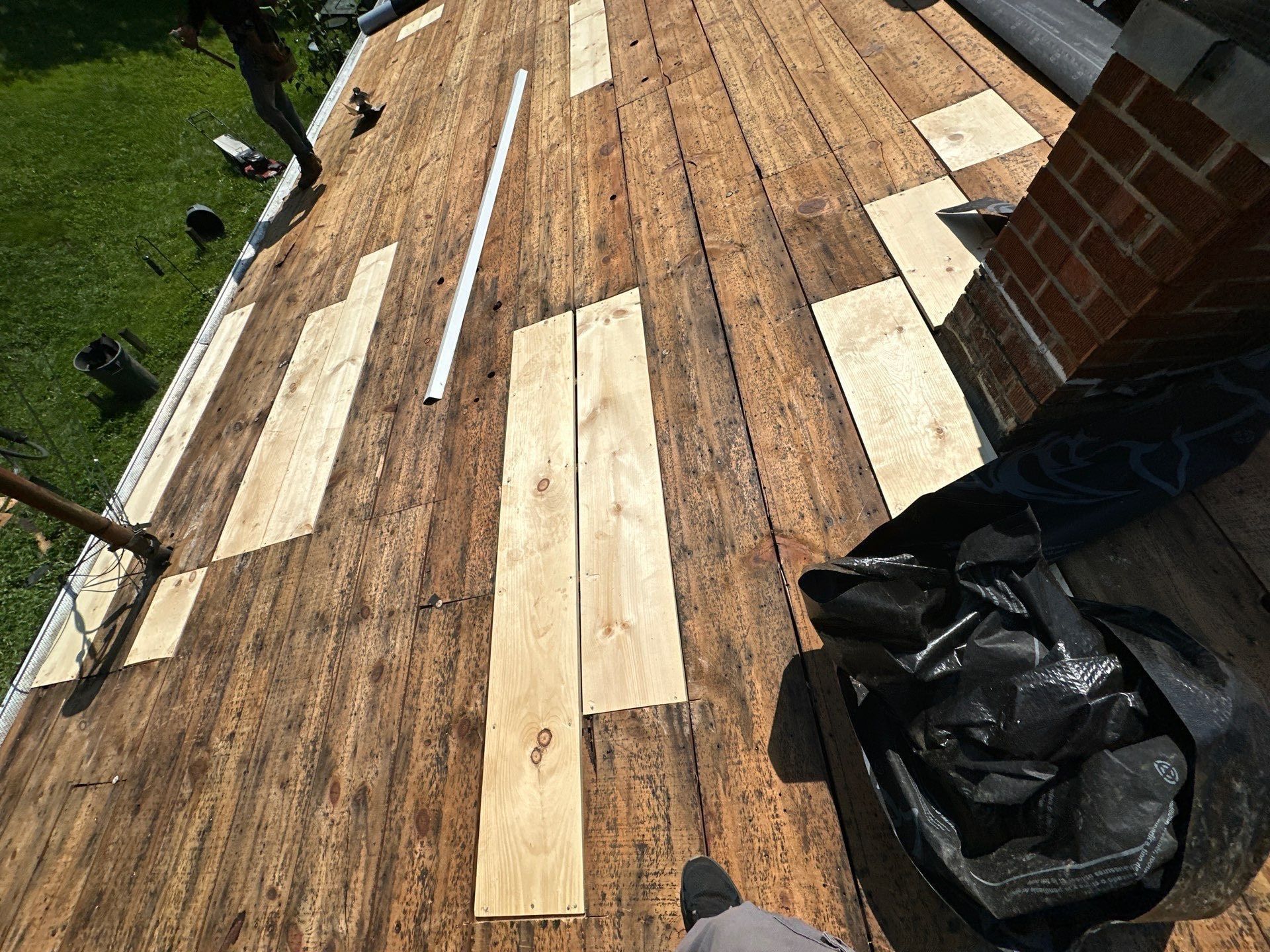

New boards patched into the deck along the chimney, Fairborn, Ohio.

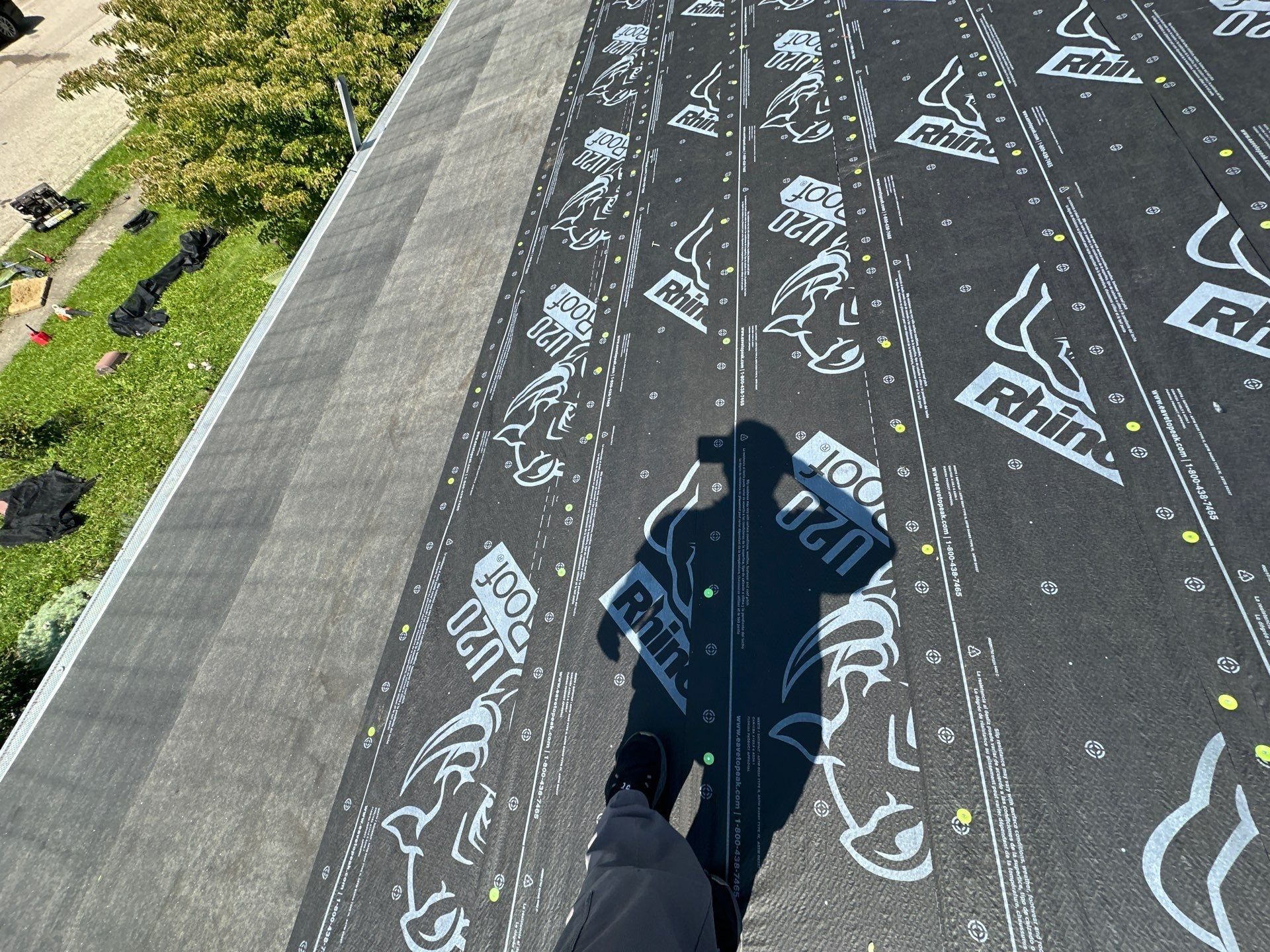

Two rows of ice and water shield at the eave with RhinoRoof synthetic underlayment above, Fairborn, Ohio.

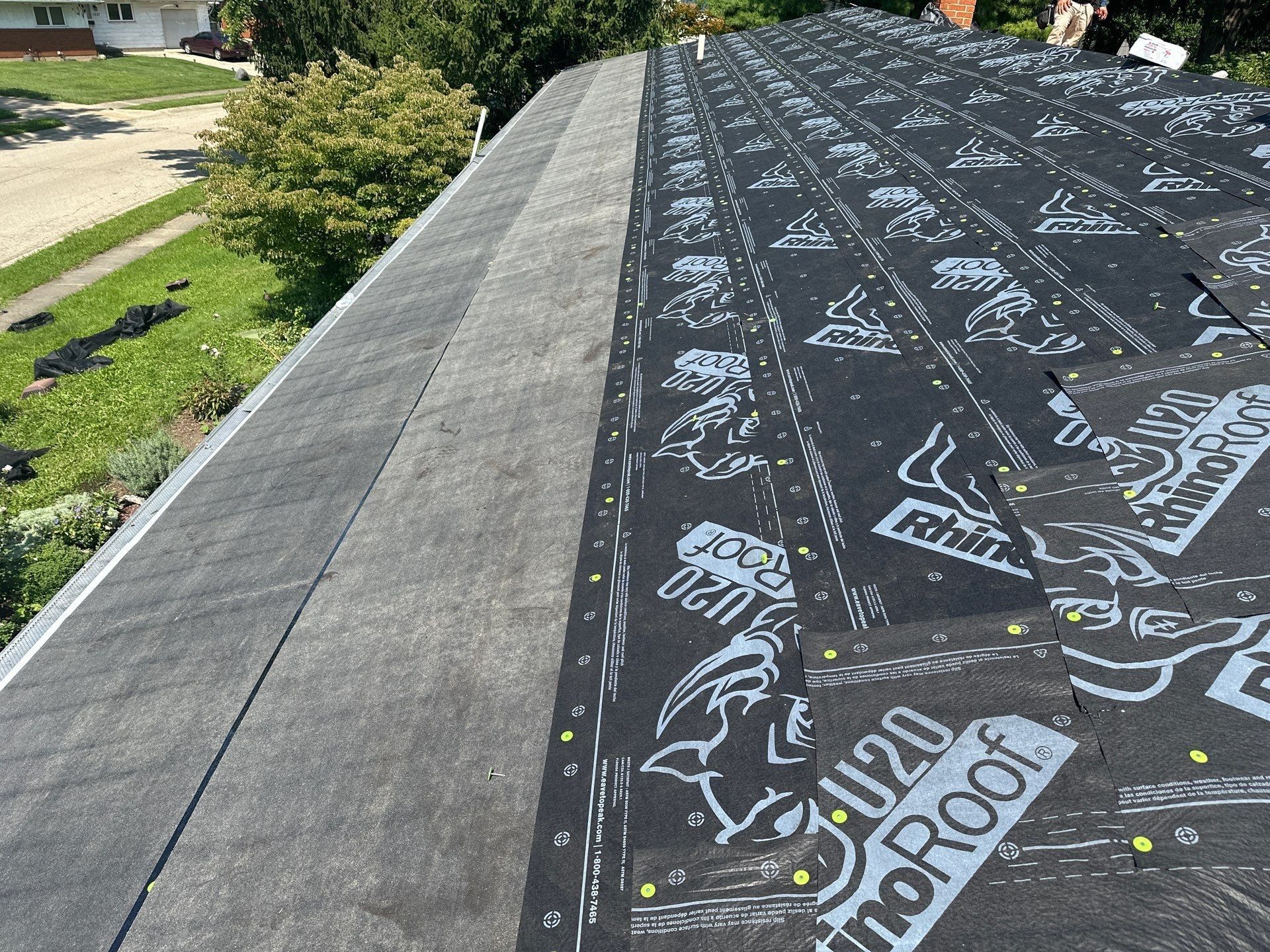

RhinoRoof synthetic underlayment over the ice and water shield along the front of the roof, Fairborn, Ohio.

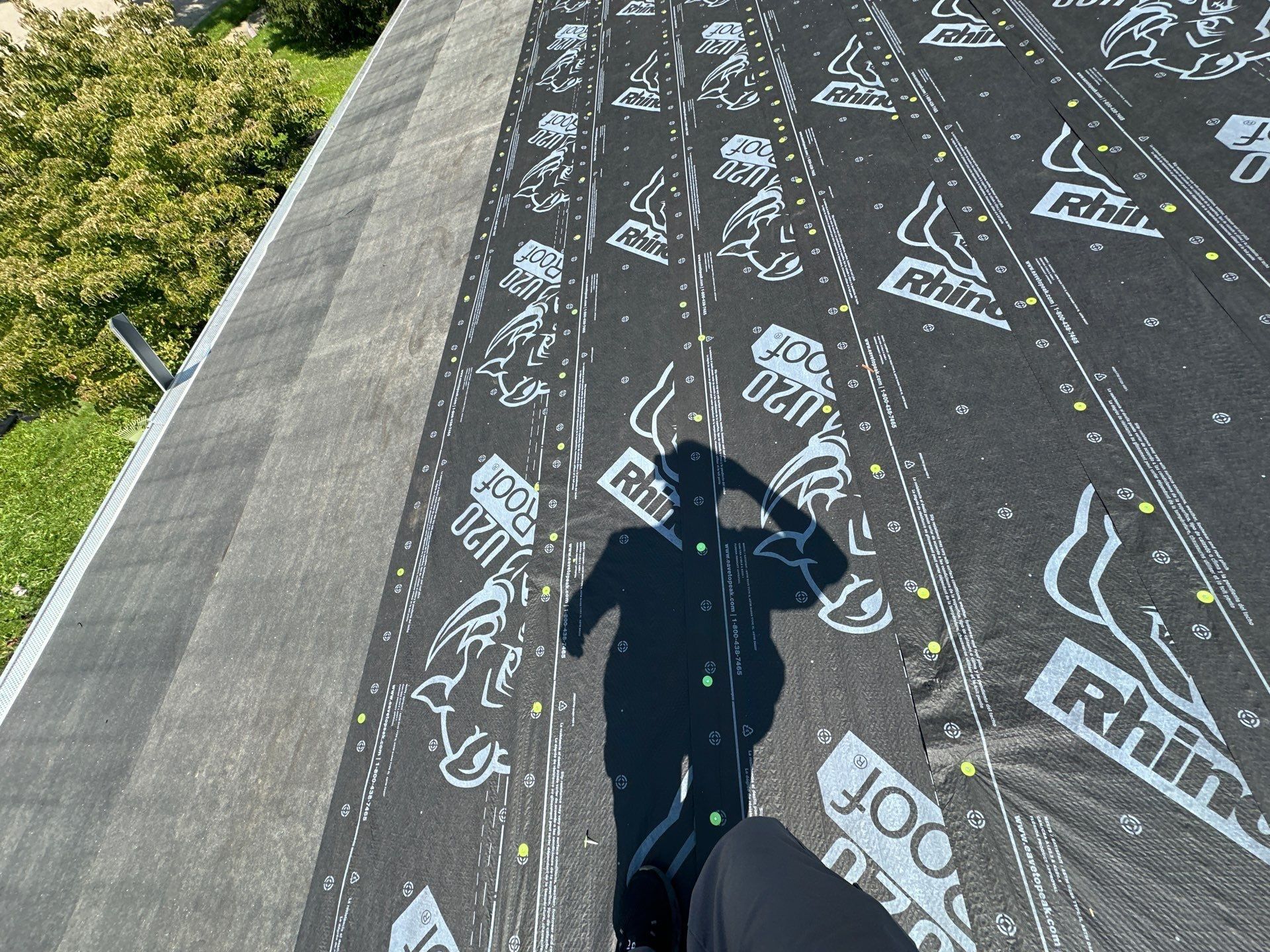

Overlapping courses of RhinoRoof synthetic underlayment, Fairborn, Ohio.

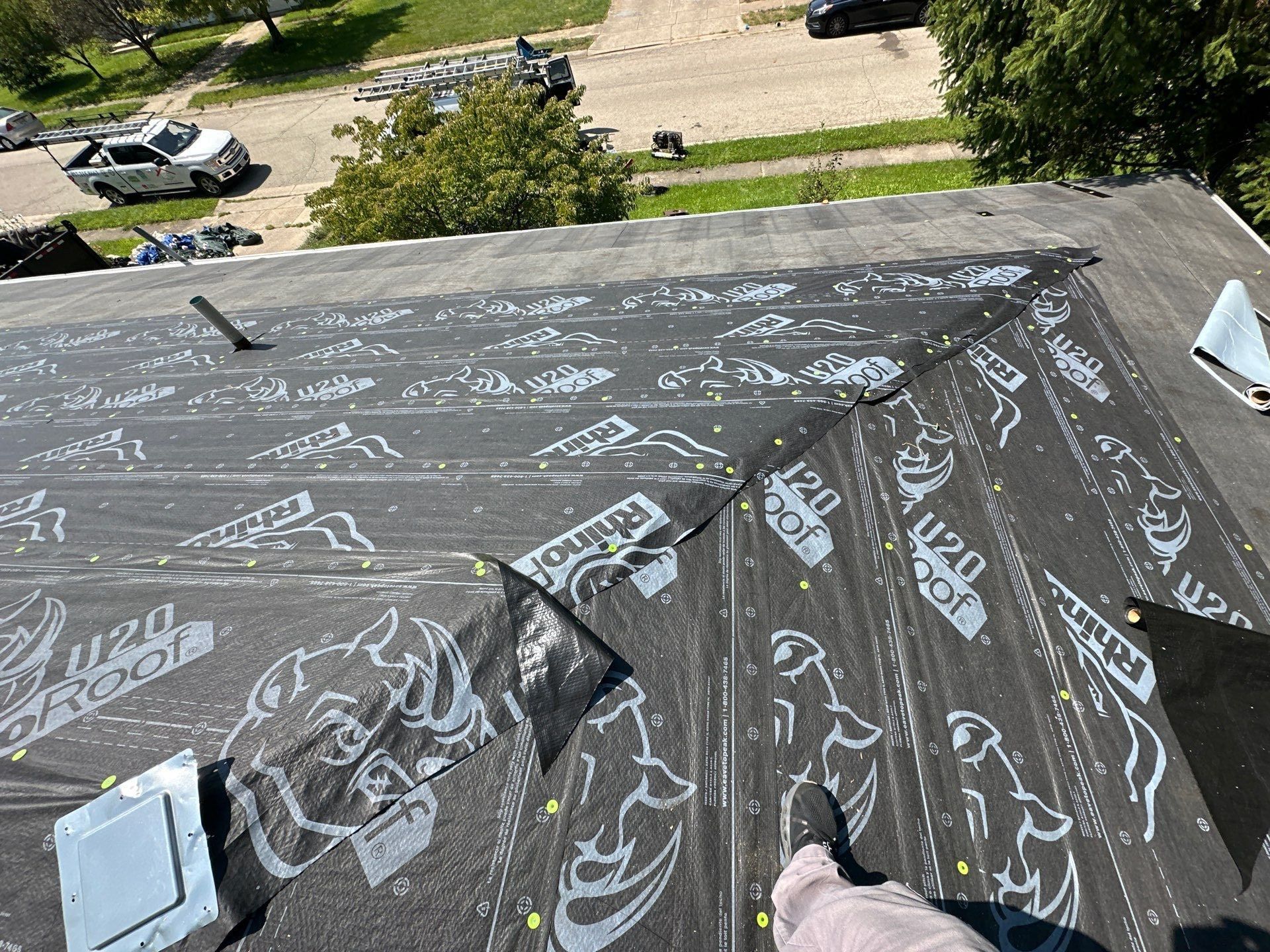

Synthetic underlayment wrapped over the hip, Fairborn, Ohio.

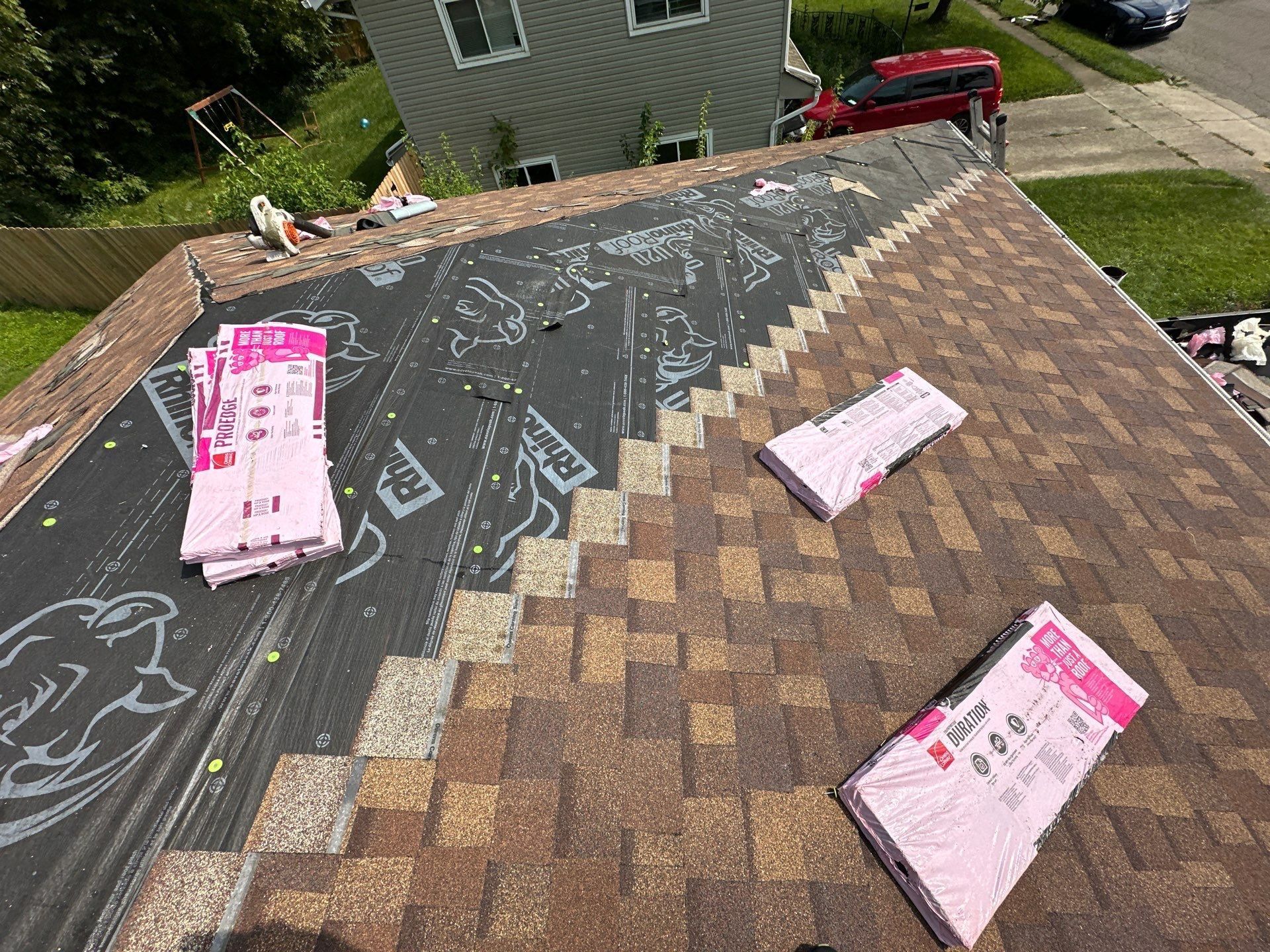

Duration shingles going on from the eave, with bundles staged above, Fairborn, Ohio.

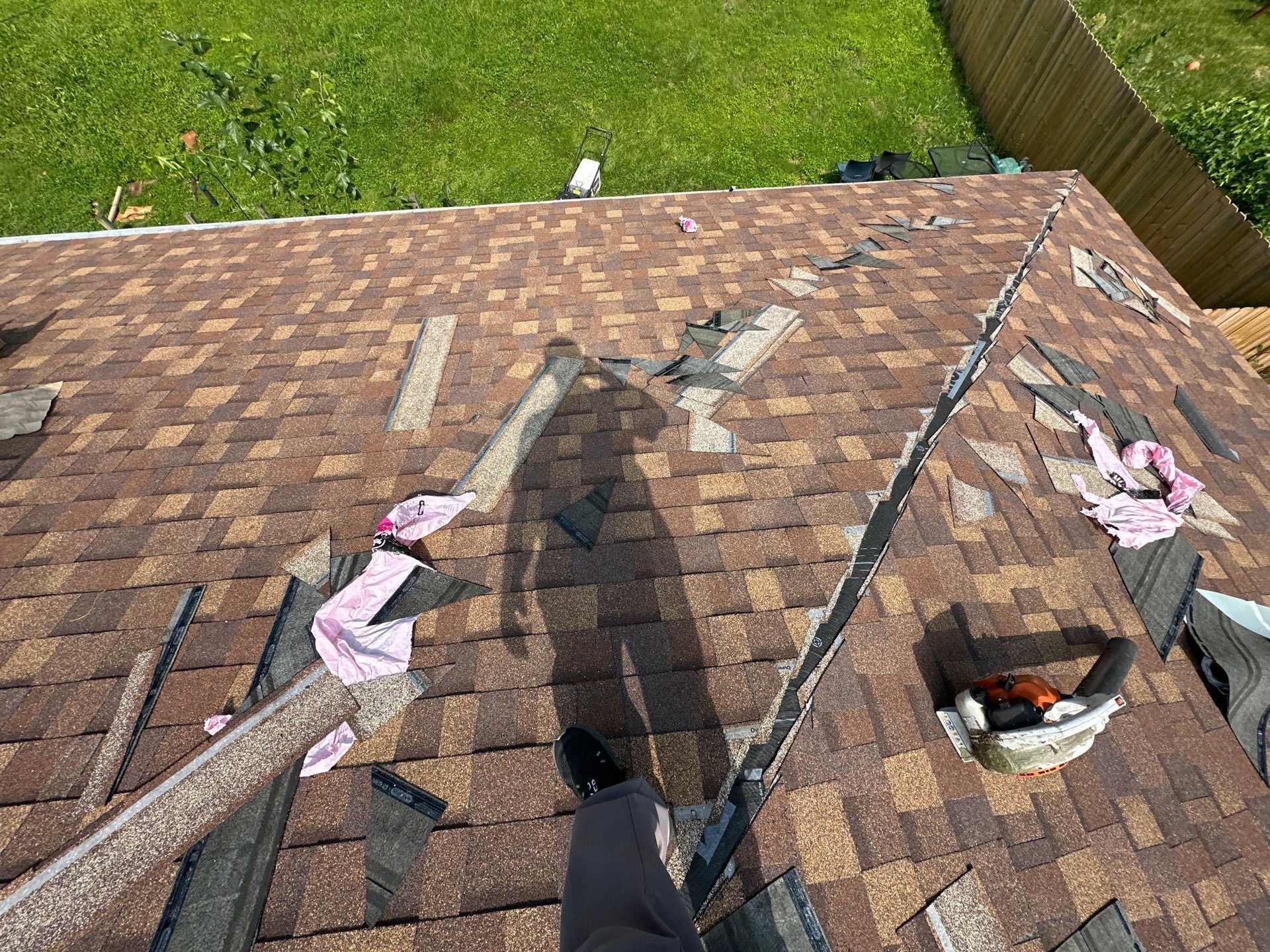

New shingles going on up to a hip, with cut pieces on the roof, Fairborn, Ohio.

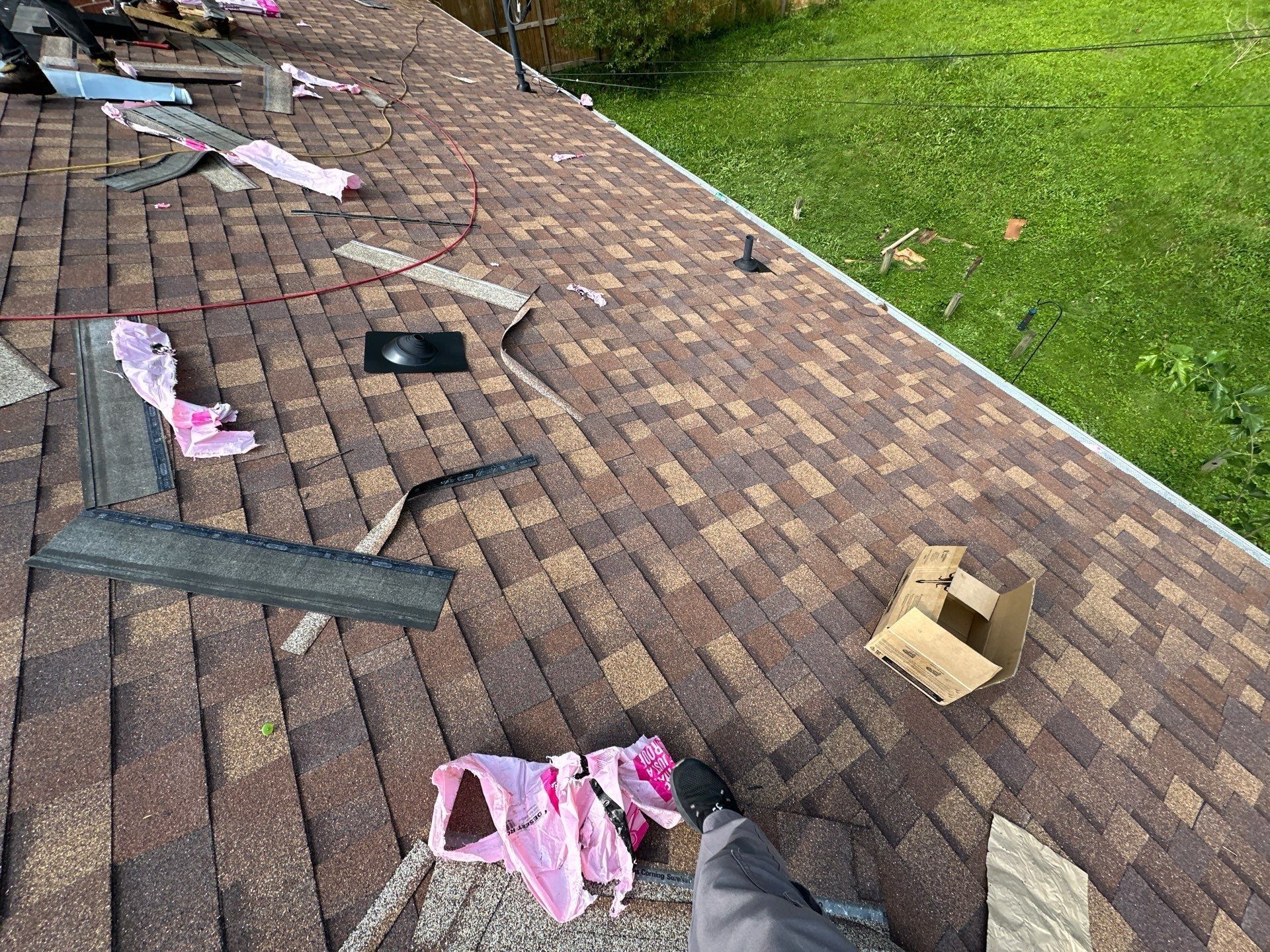

New shingles laid around a vent pipe, with starter strip offcuts nearby, Fairborn, Ohio.

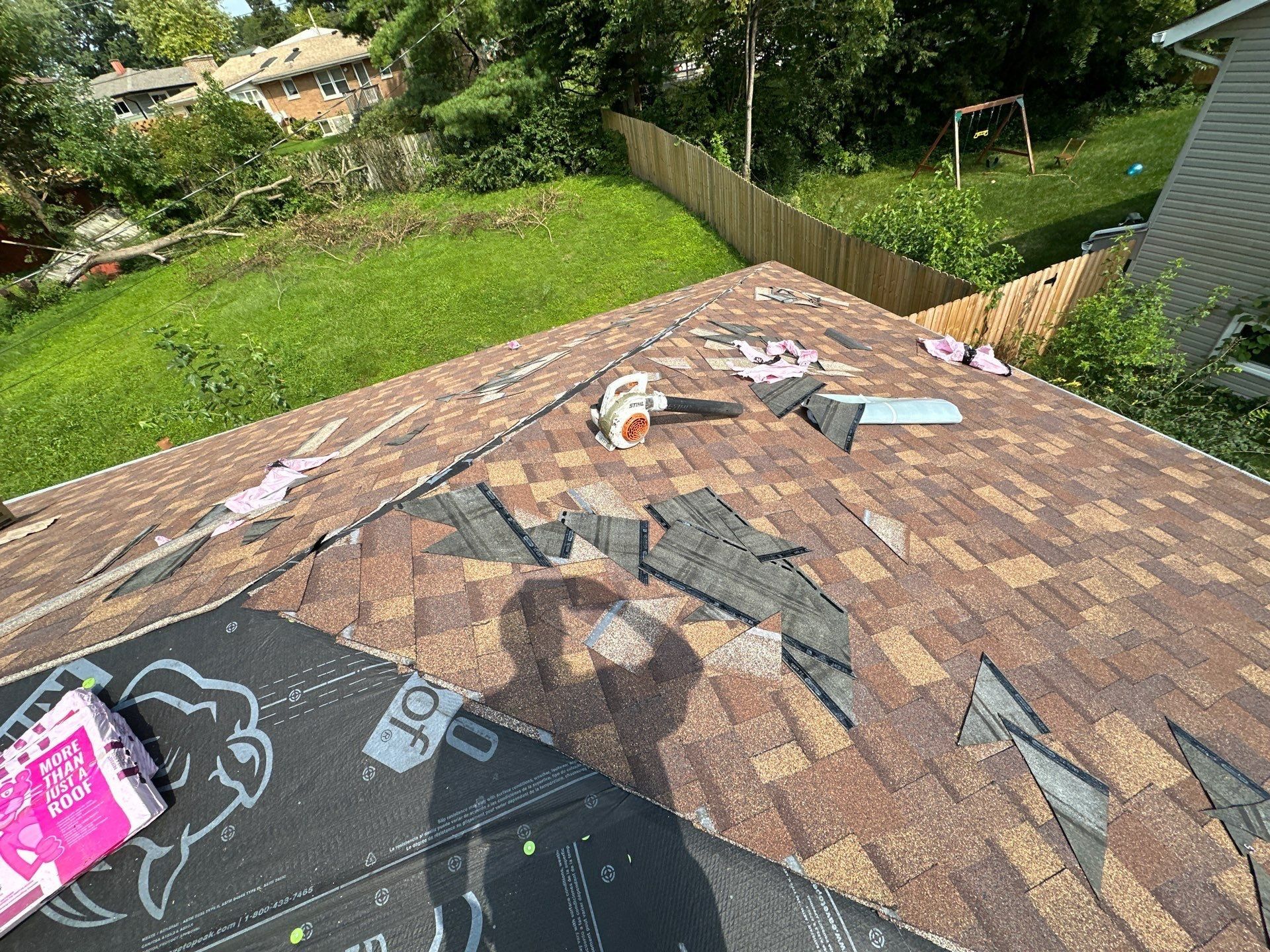

New shingles reaching the hip, with underlayment still showing at the end, Fairborn, Ohio.

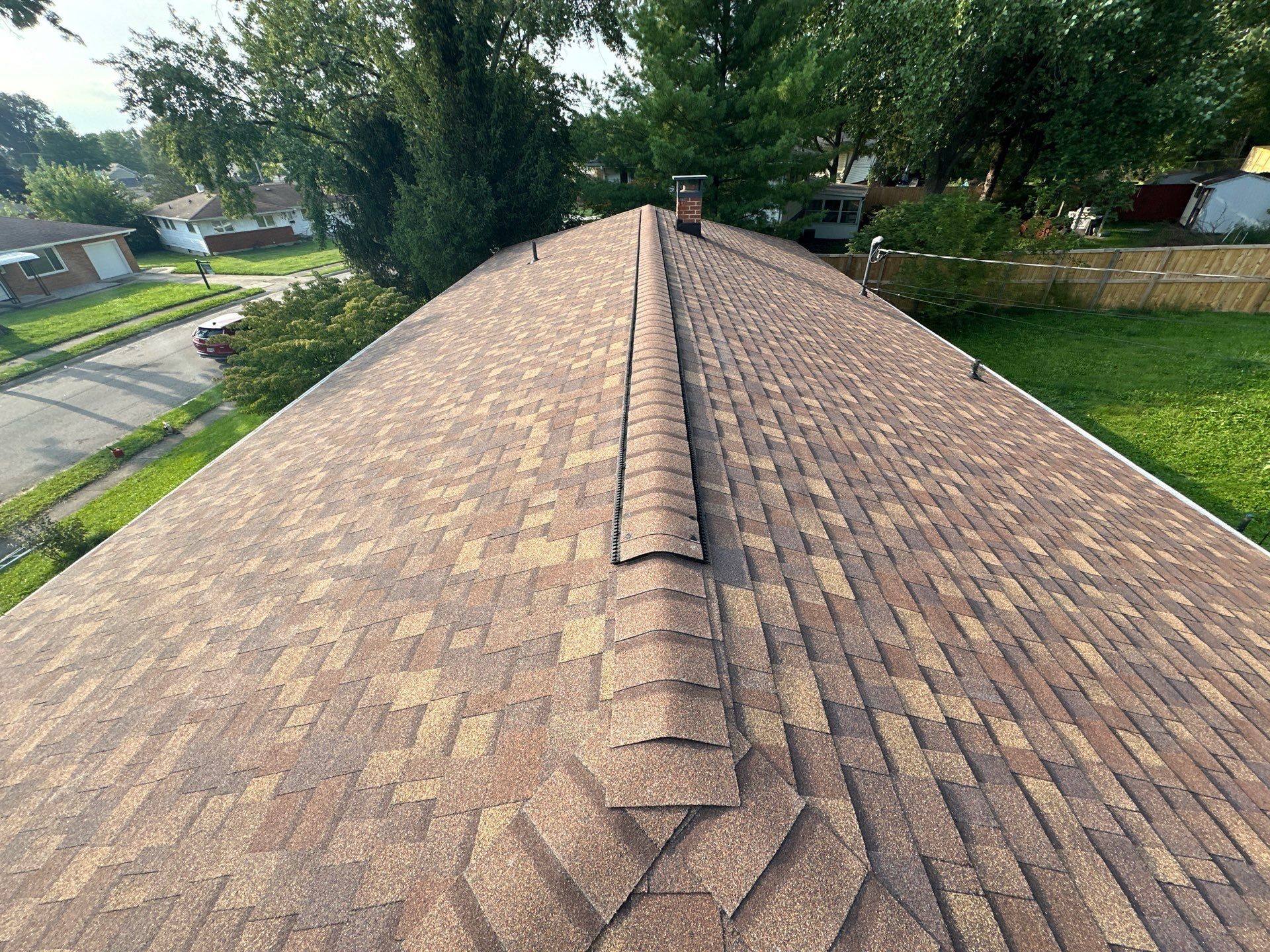

The finished roof and ridge cap running toward the brick chimney, Fairborn, Ohio.

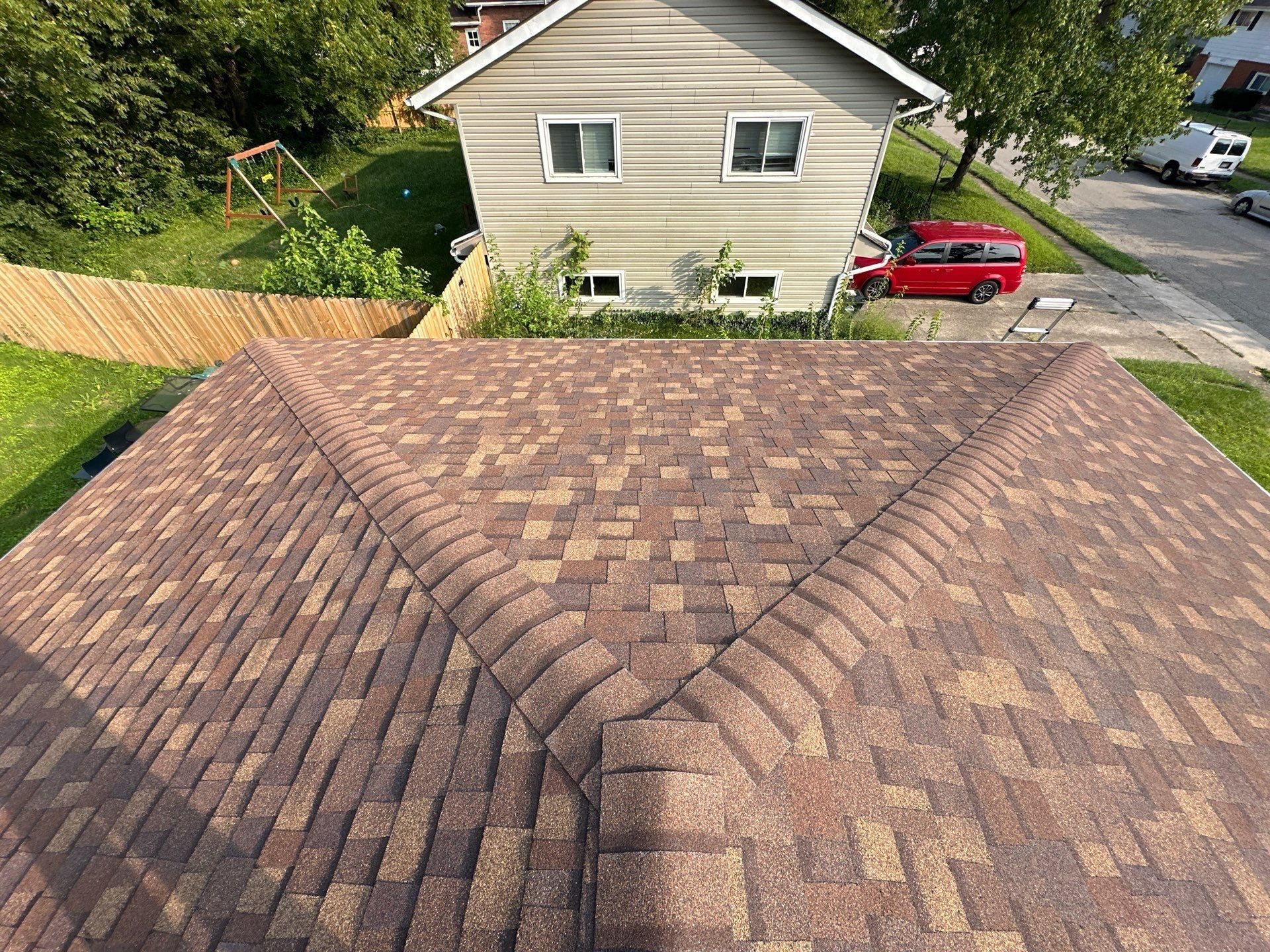

Two finished hips meeting at the end of the roof, Fairborn, Ohio.

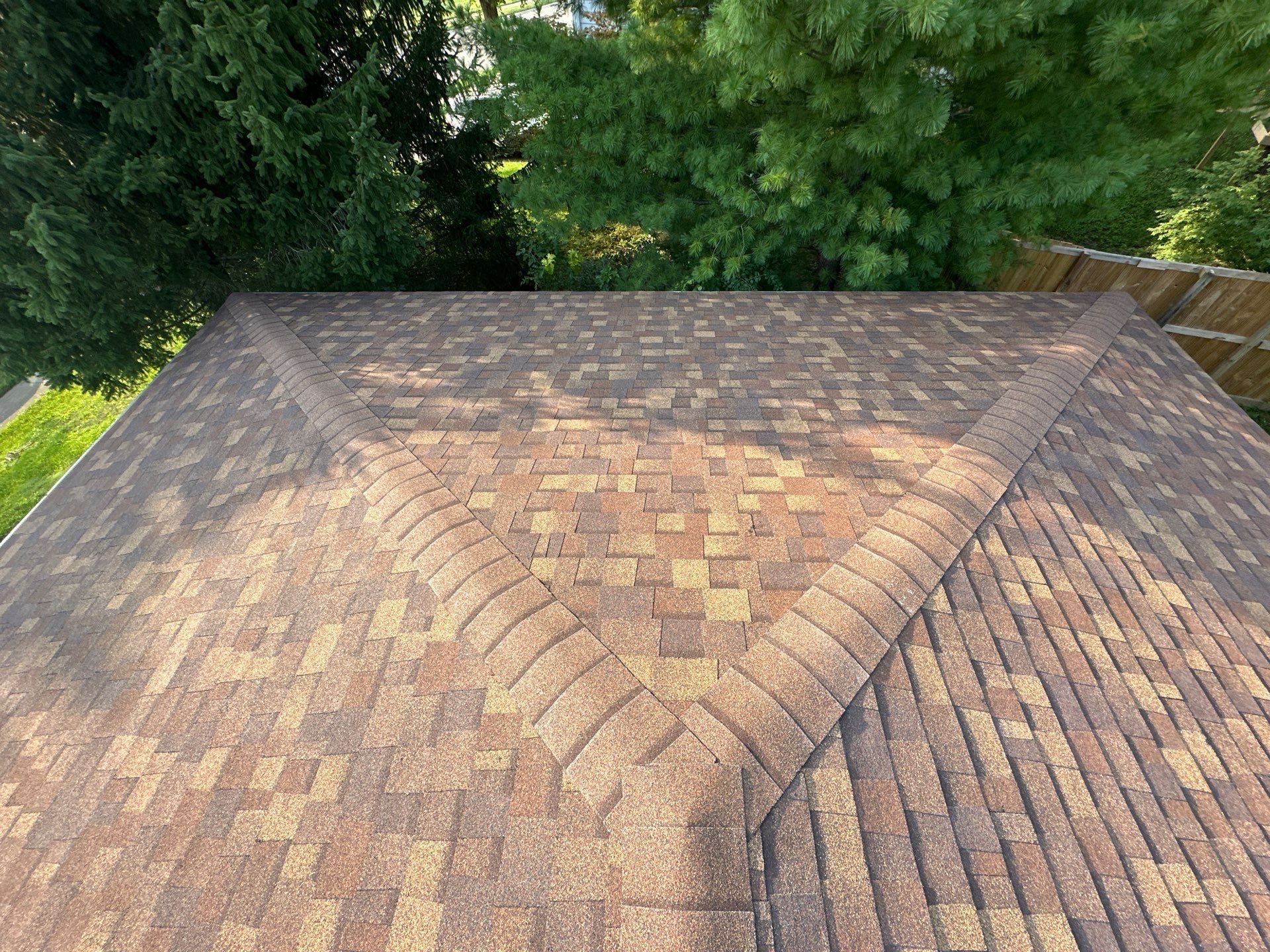

The finished hip end of the roof with the trees behind, Fairborn, Ohio.

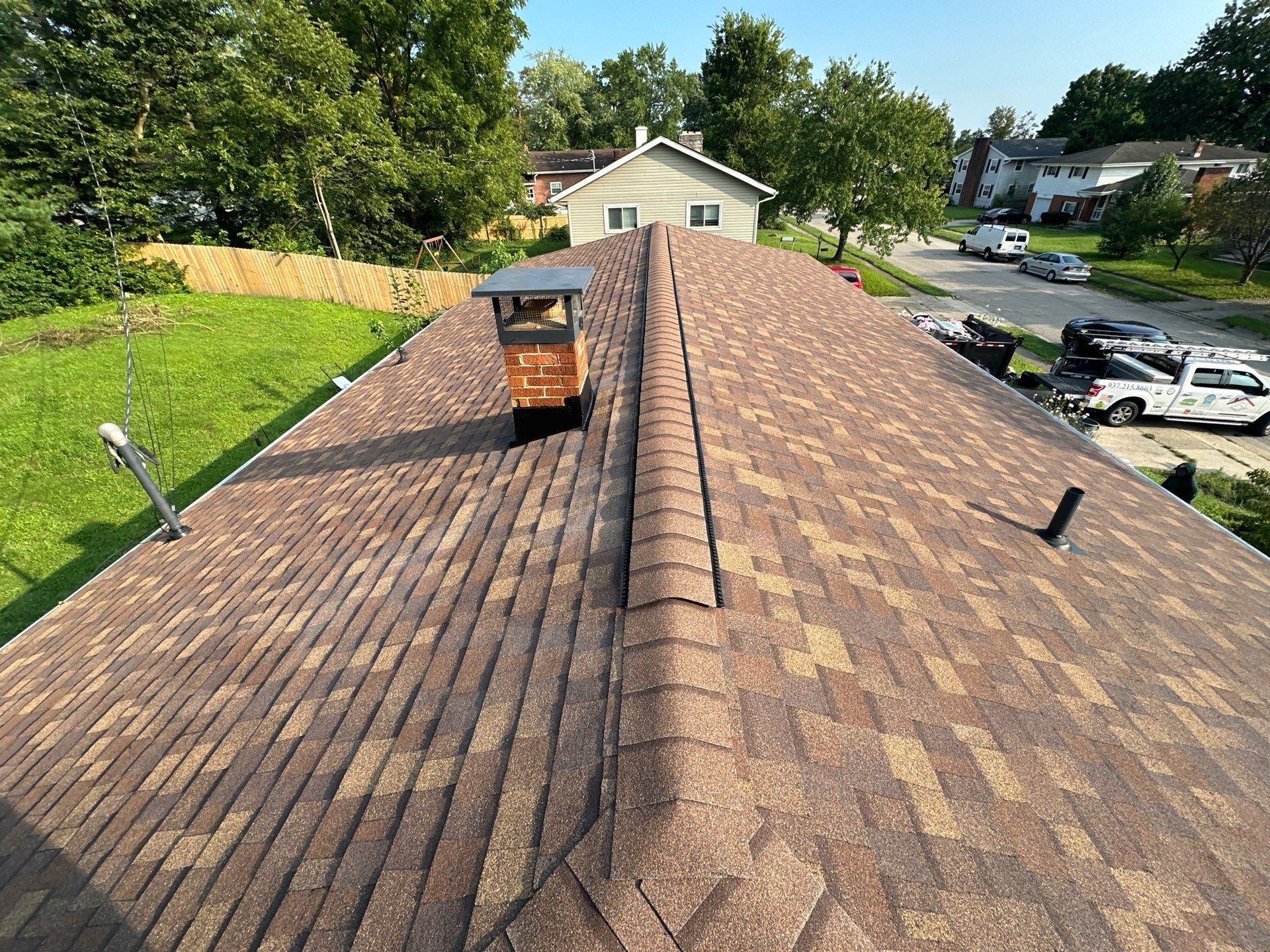

The finished roof, ridge, chimney and vent pipe above the street, Fairborn, Ohio.

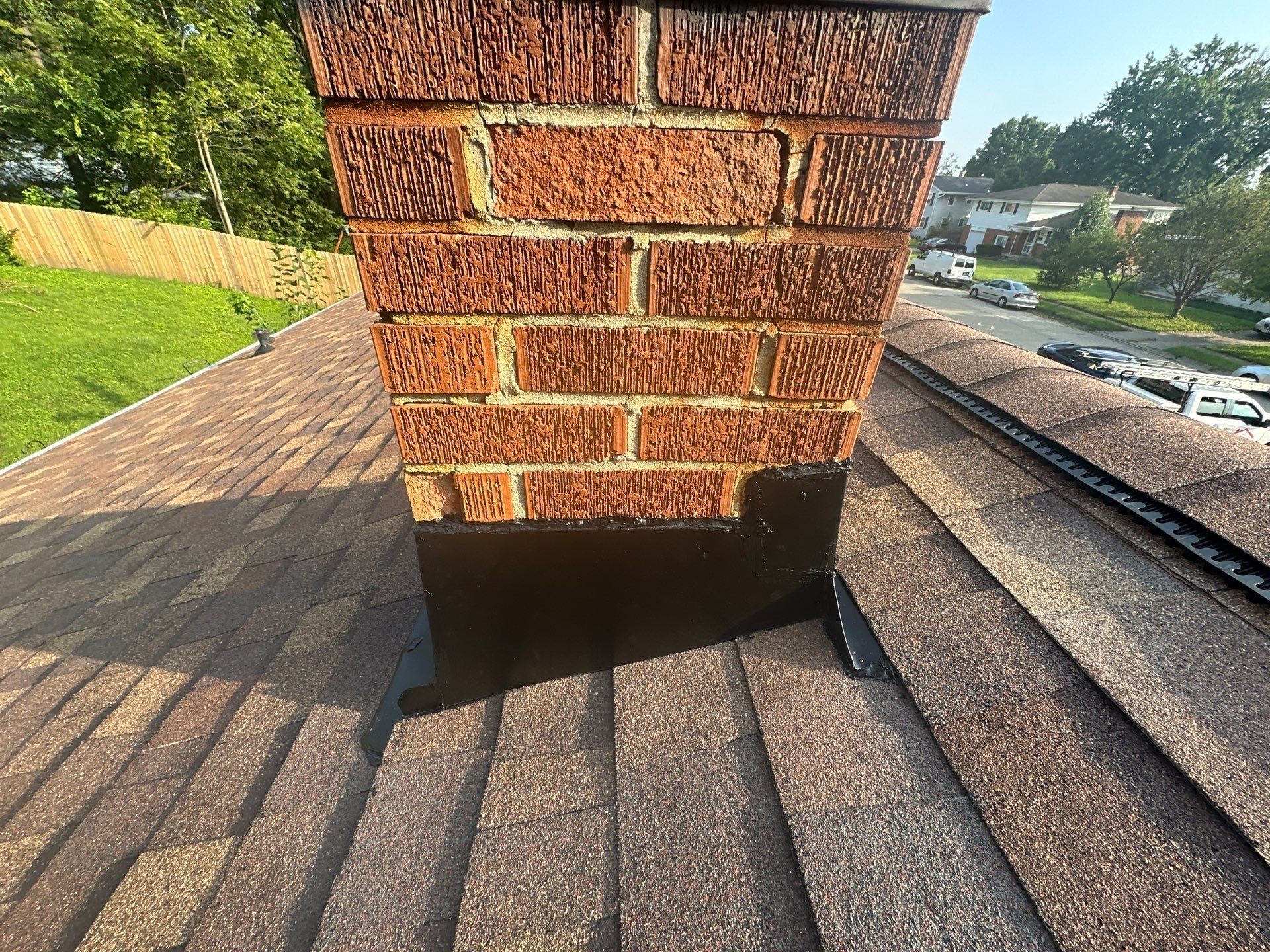

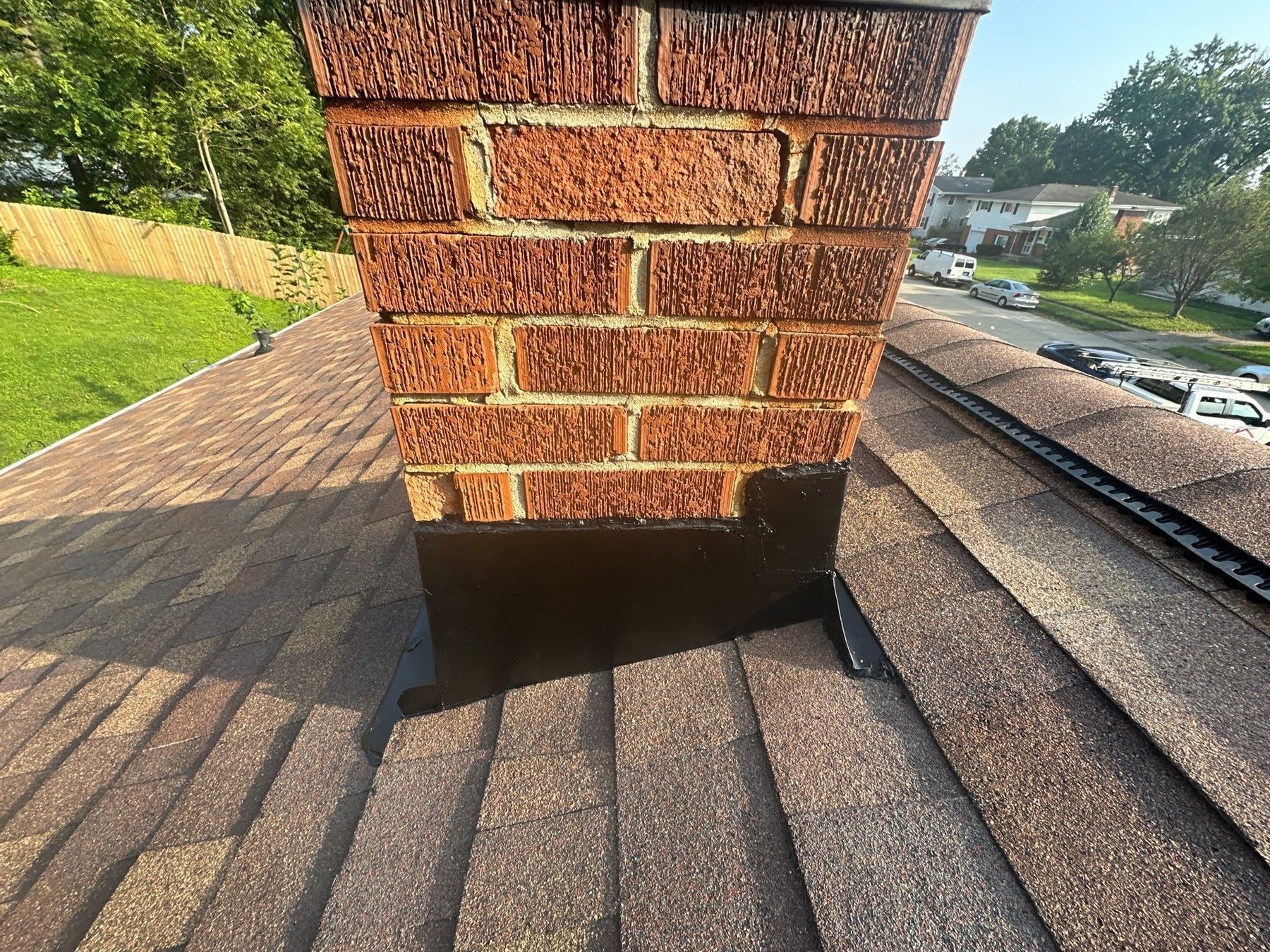

New black flashing at the base of the brick chimney on the finished roof, Fairborn, Ohio.

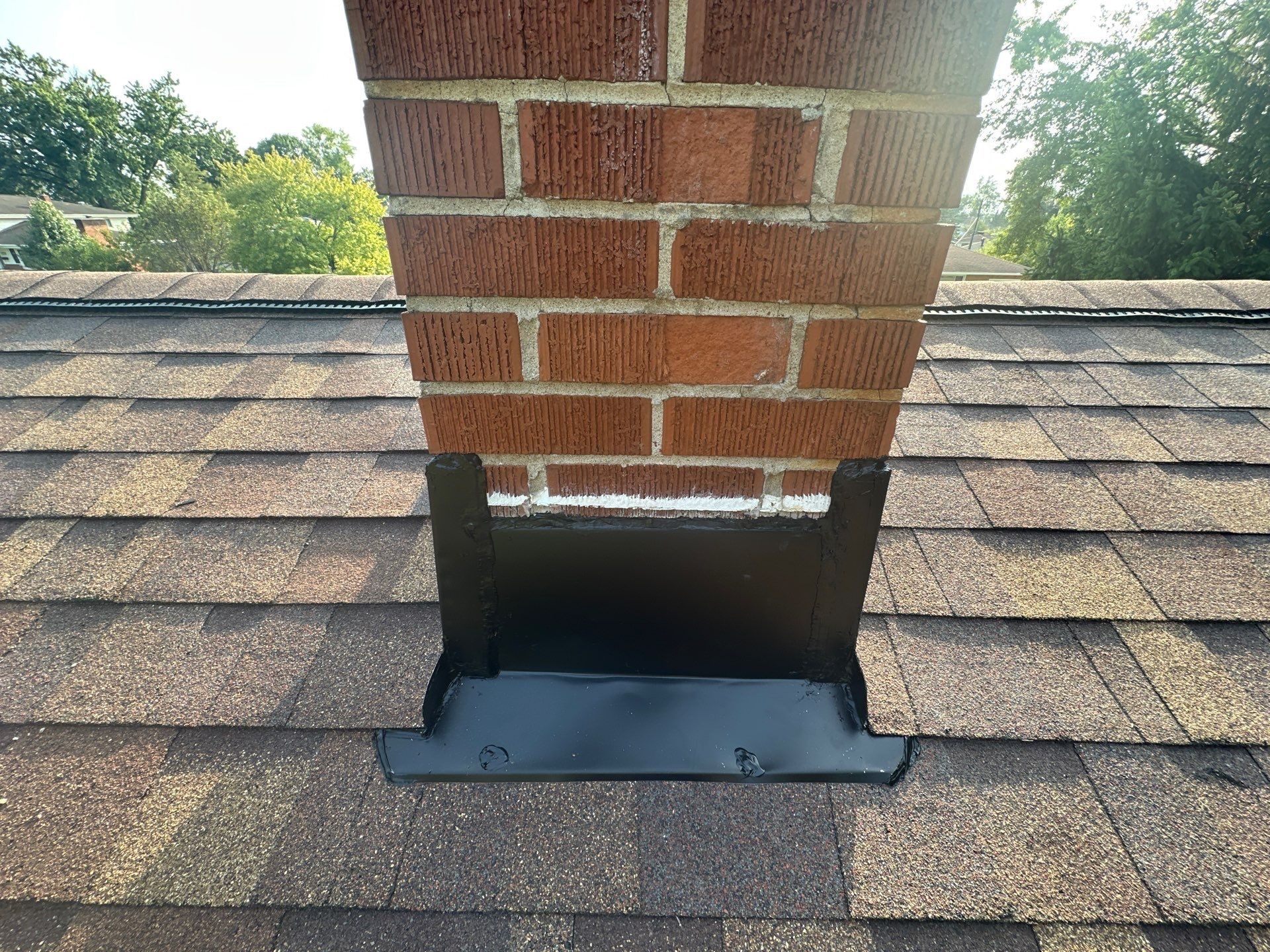

New chimney flashing fitted below the brick, Fairborn, Ohio.

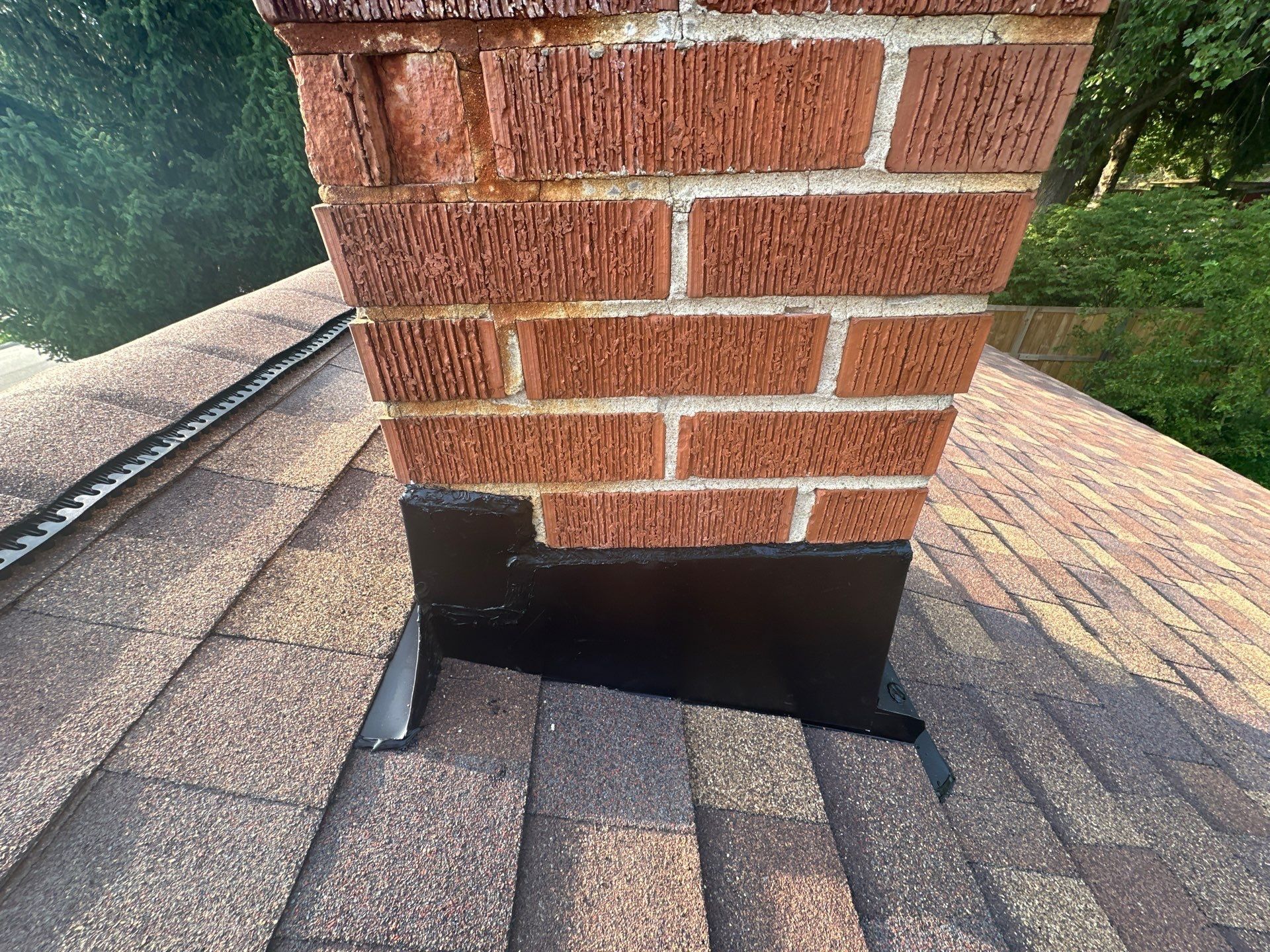

The new flashing wrapped around the chimney corner, Fairborn, Ohio.

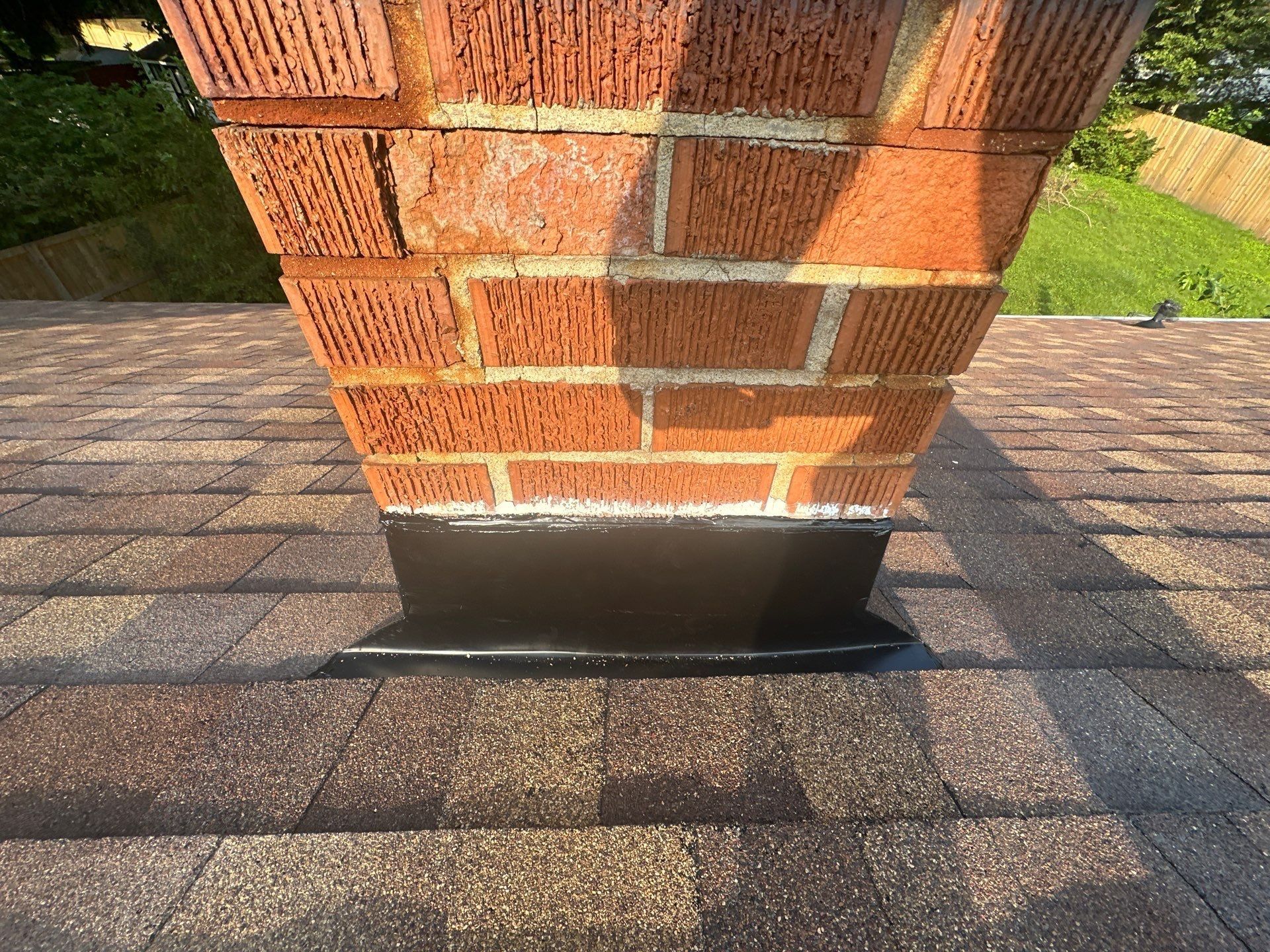

The new flashing along the low side of the chimney, Fairborn, Ohio.

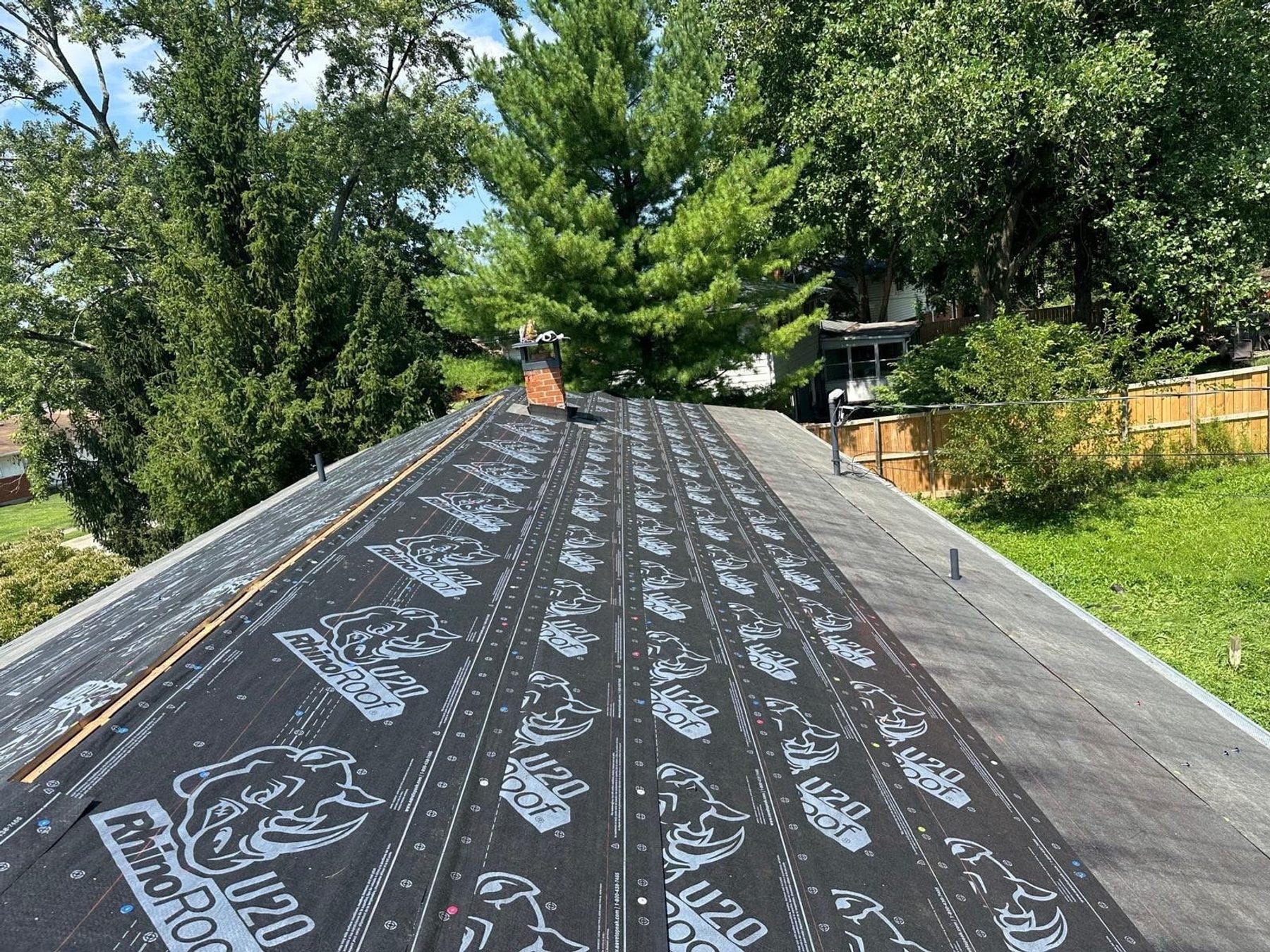

RhinoRoof synthetic underlayment covering the roof up to the chimney, Fairborn, Ohio.

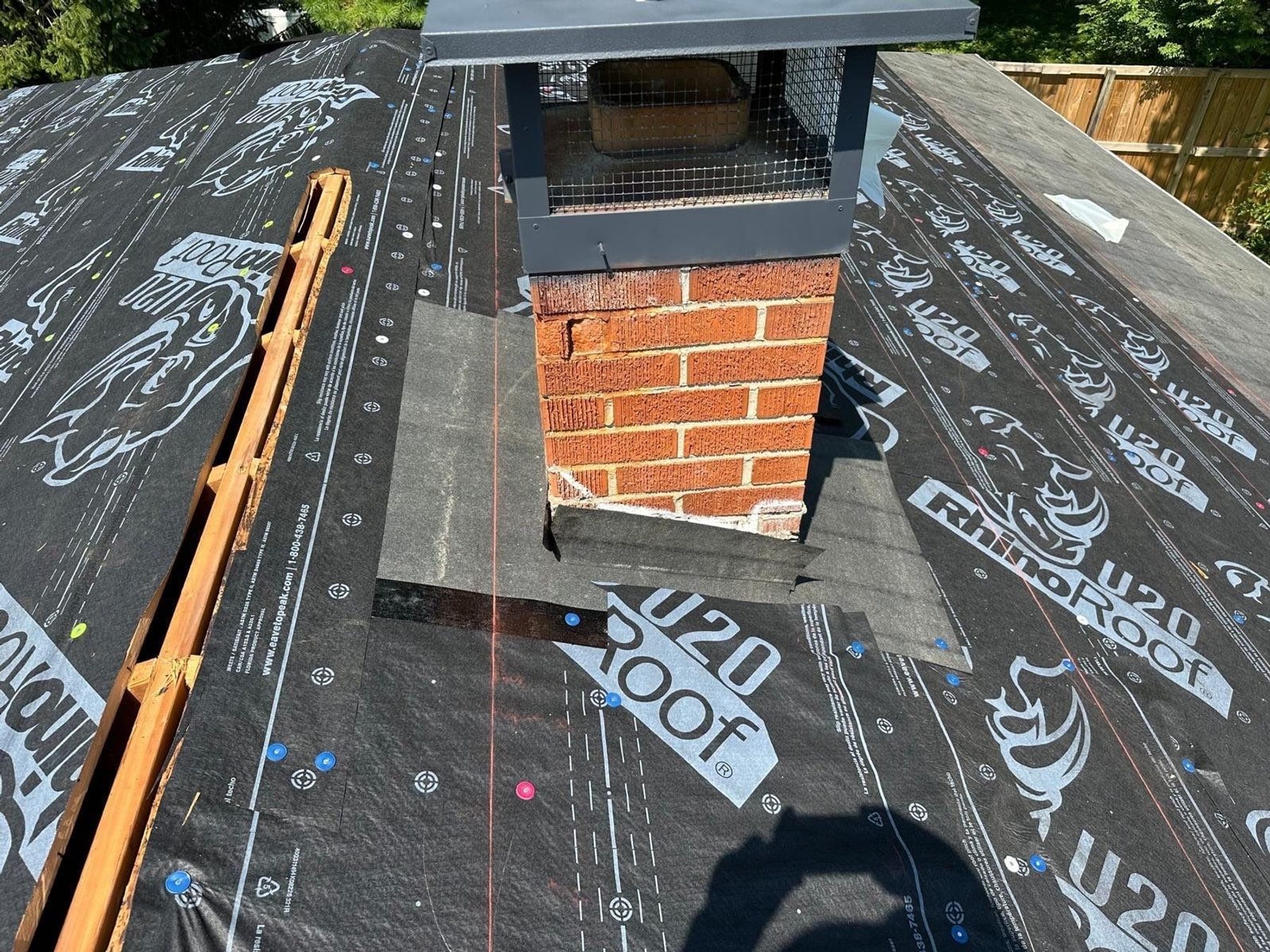

Ice and water shield wrapped around the base of the chimney, Fairborn, Ohio.

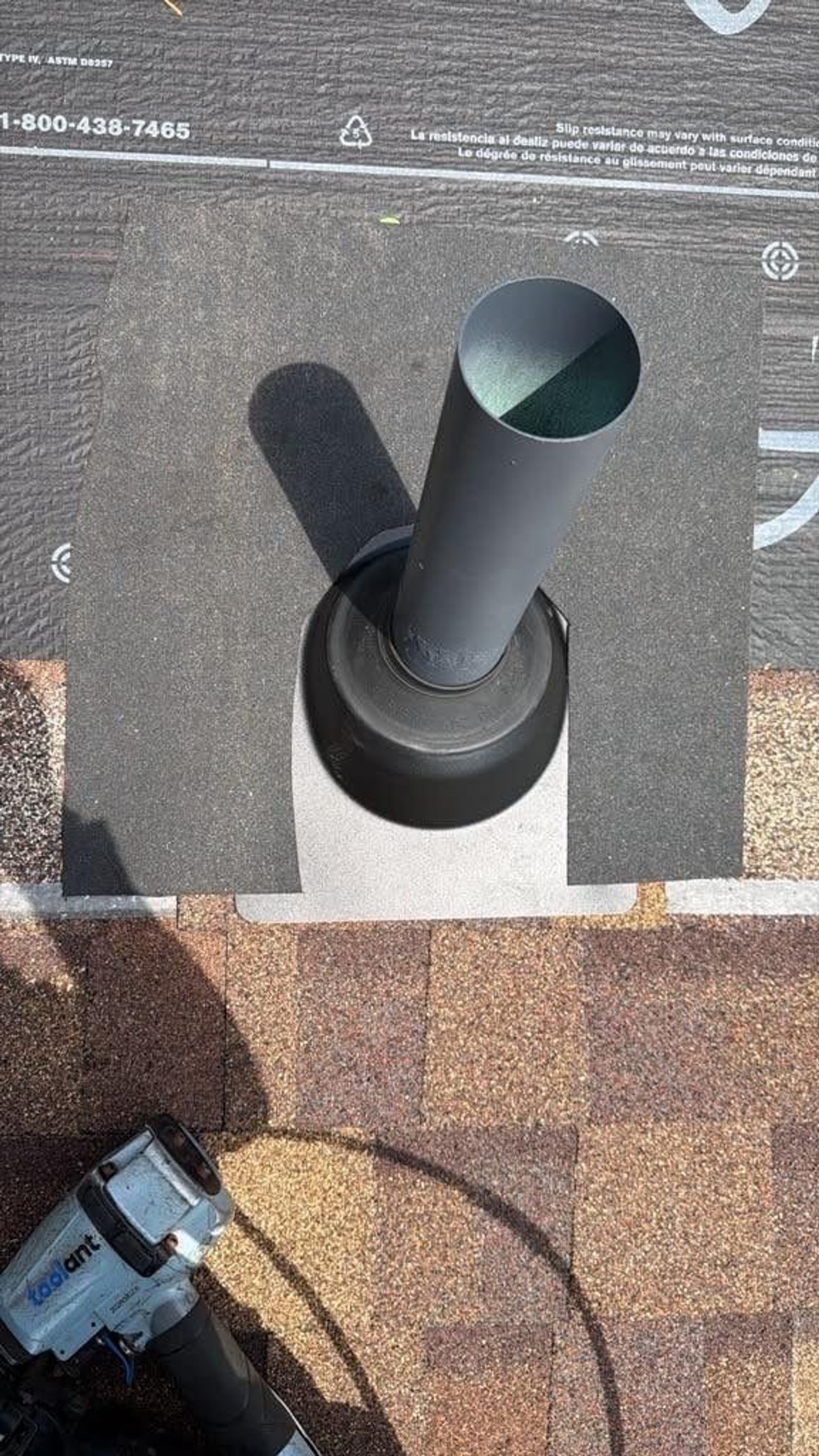

Ice and water shield cut around the plumbing vent pipe, Fairborn, Ohio.

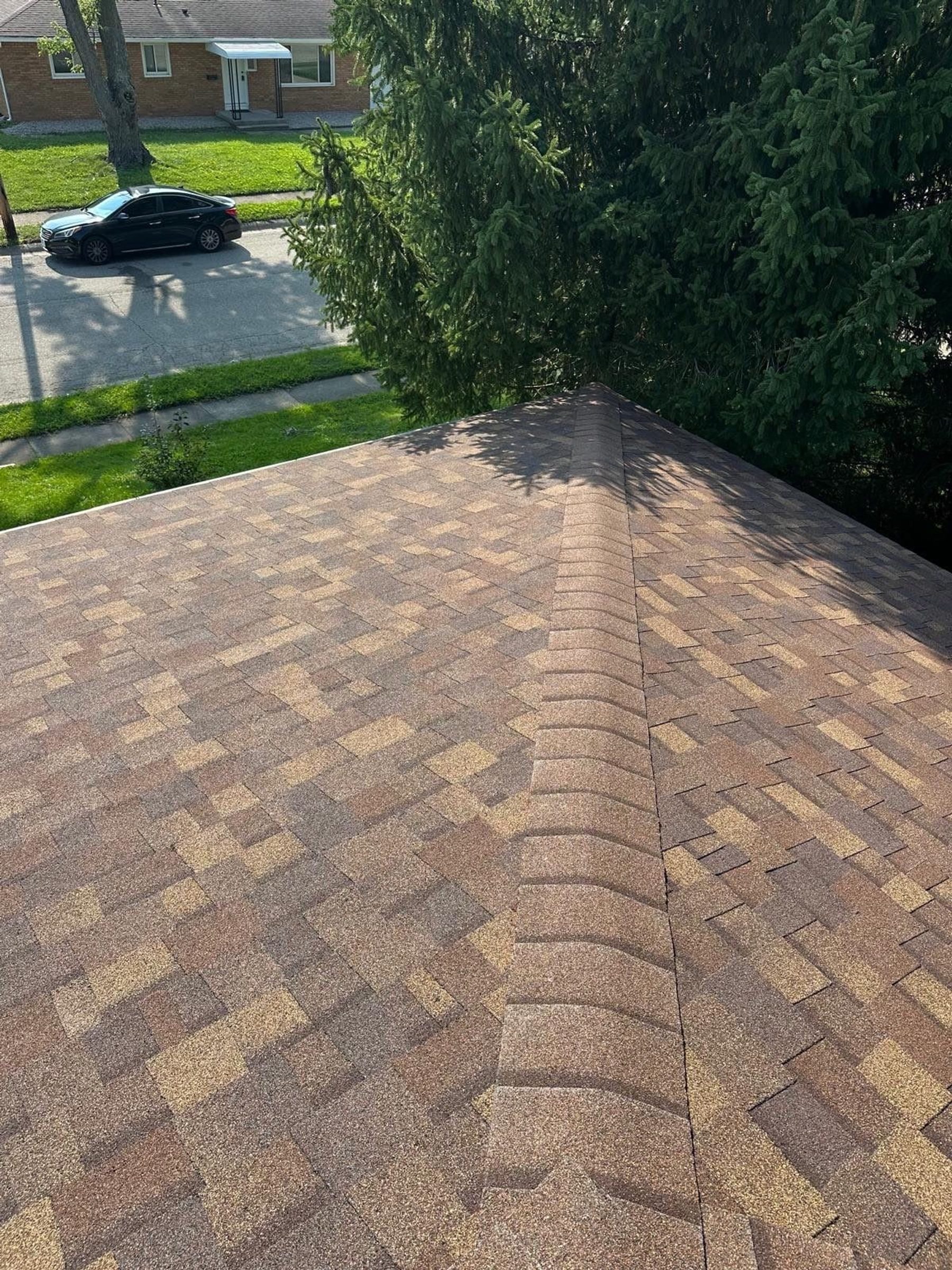

The finished hip running up from the eave above the street, Fairborn, Ohio.

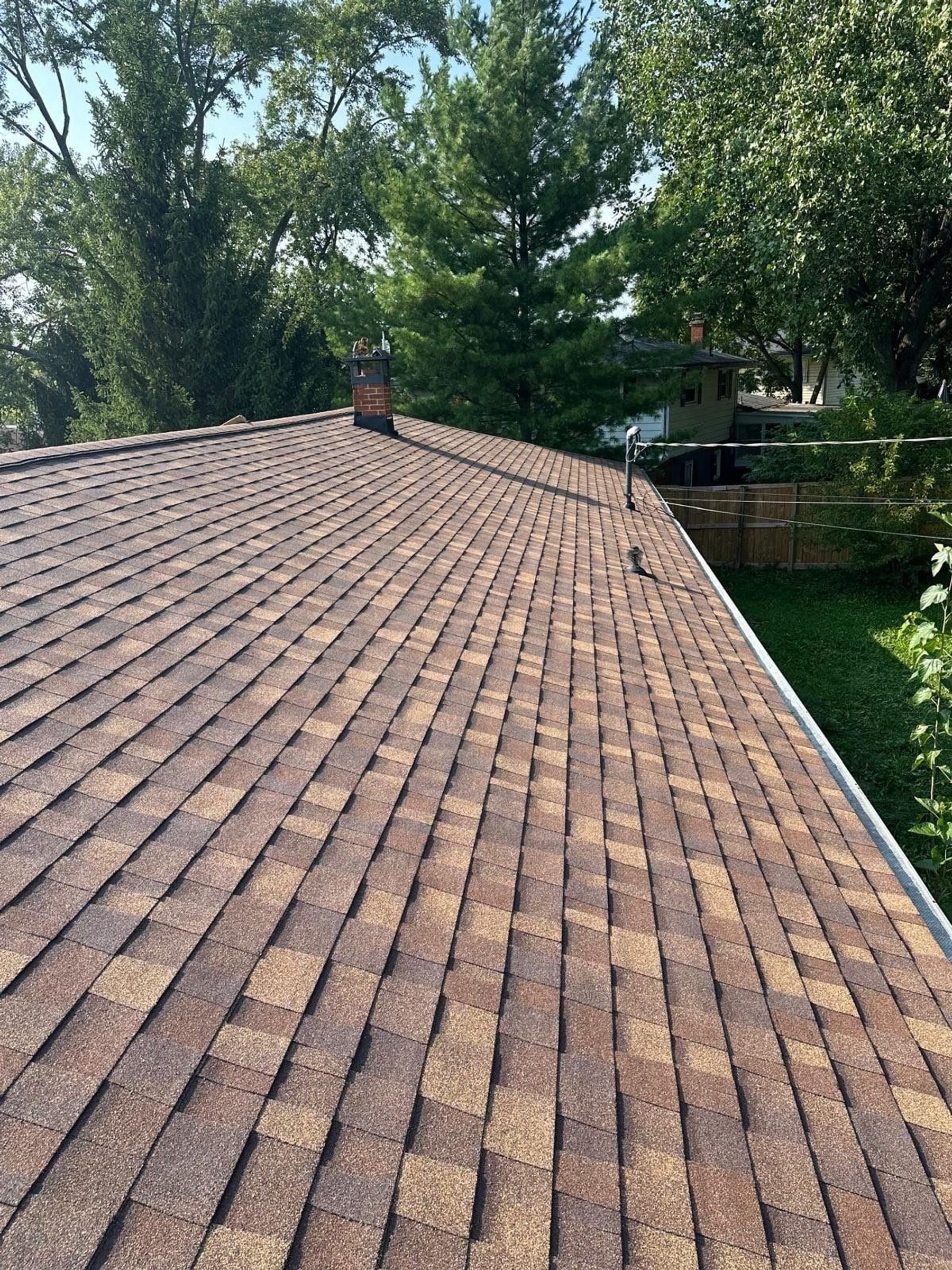

The finished slope running toward the chimney, Fairborn, Ohio.

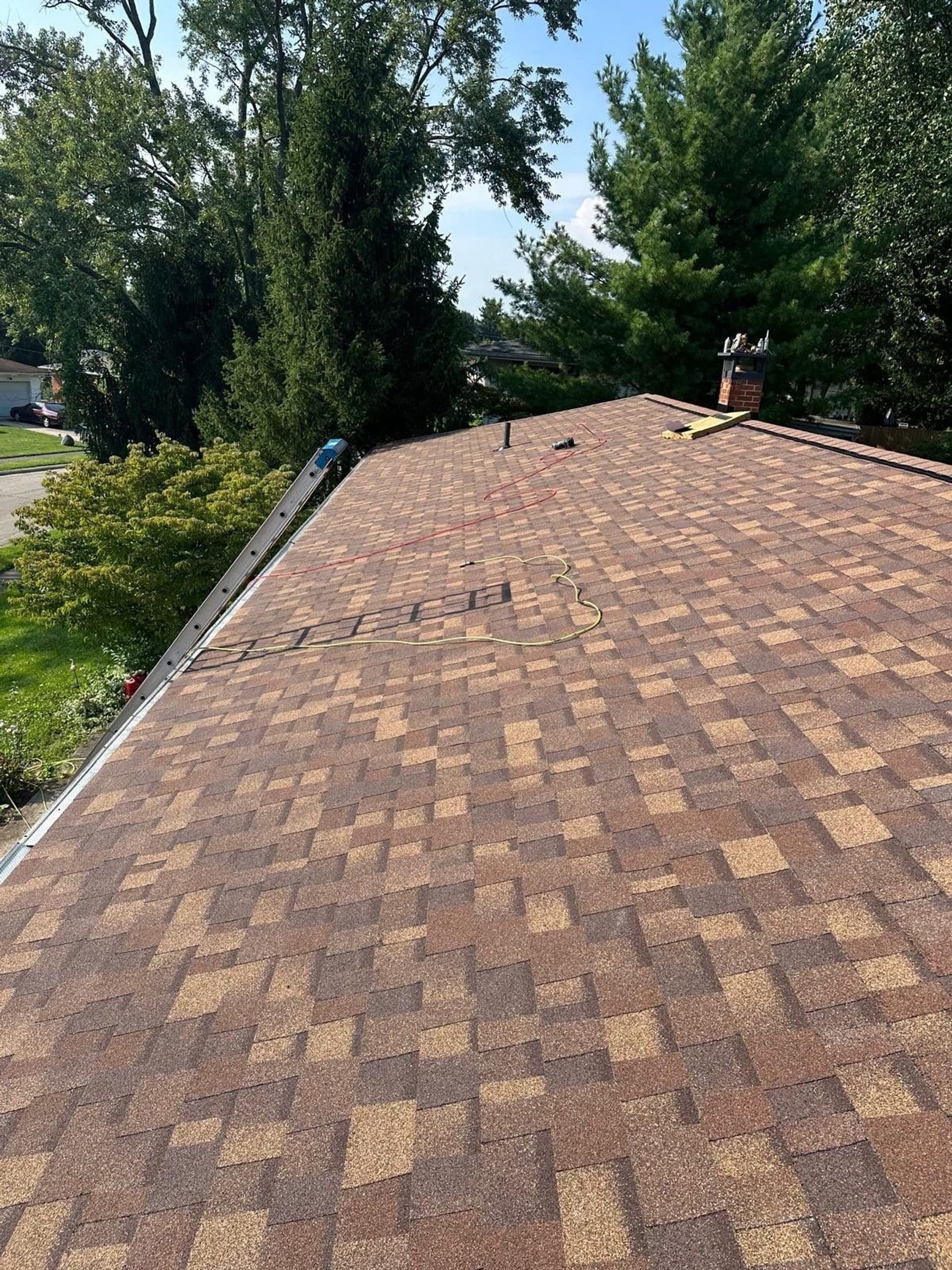

The finished roof with the ladder at the eave and the chimney beyond, Fairborn, Ohio.

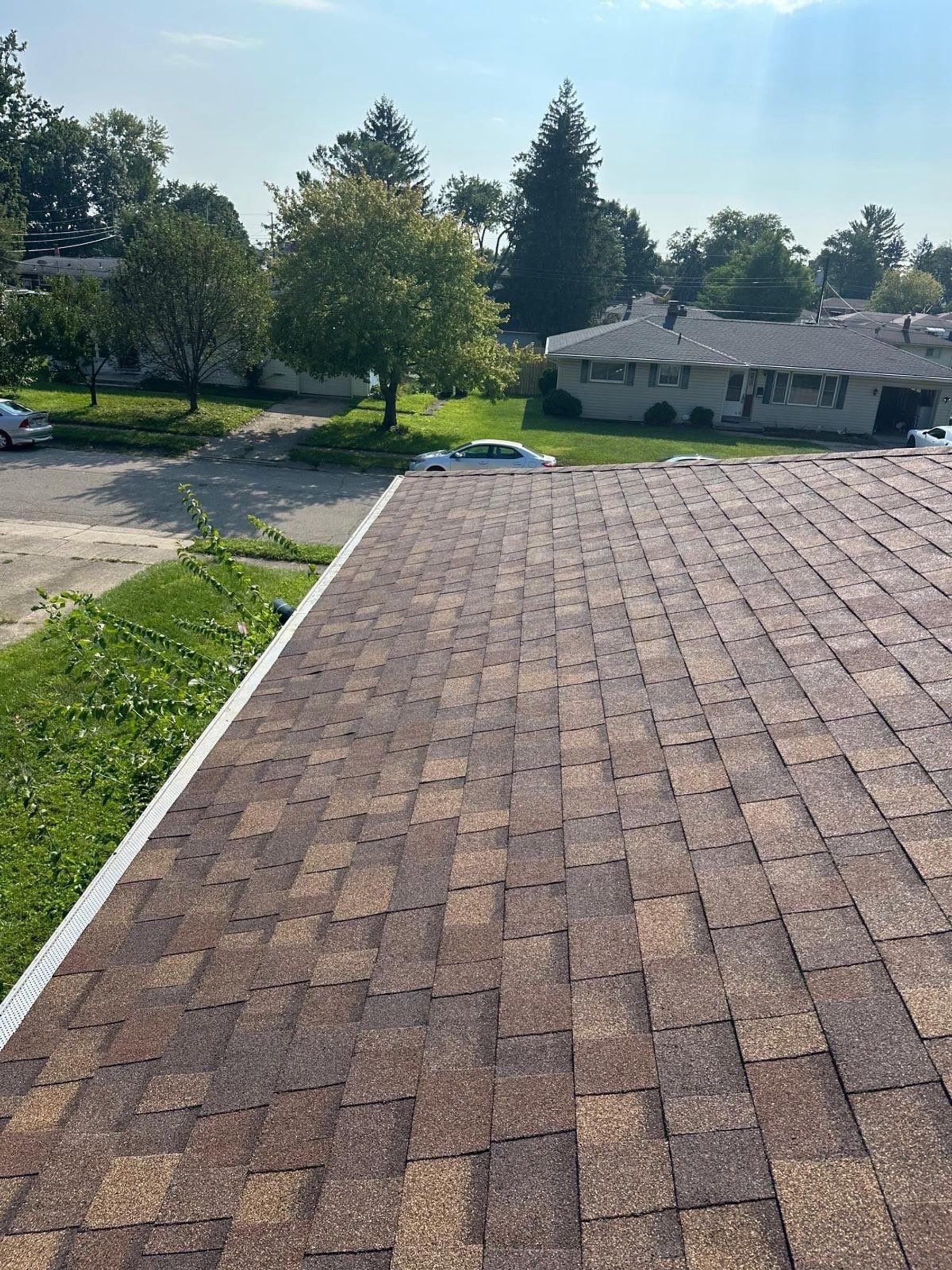

The finished front slope above the street and the houses across it, Fairborn, Ohio.

Backed by the Lifetime Workmanship Warranty

The qualifying installation work on this project is covered by the Helping Hands Roofing Lifetime Workmanship Warranty. If a covered problem results from our workmanship, we come back and correct it according to the warranty terms.
