The finished roof on the house, seen from the front lawn, Dayton, Ohio.

Completed project · Dayton, Ohio

Roof and Sheathing Replacement, House and Garage, in Dayton, Ohio

Helping Hands Roofing completed this project in Dayton, Ohio. Every photograph below is our own.

Location
Dayton, Ohio
Services
Roof ReplacementRoof Insurance Claim AssistanceStorm Damage Roofing

See roofing in Dayton, OH.

Free Inspection

Book your Free Inspection

We use your details to answer your request. Privacy Policy

About this project

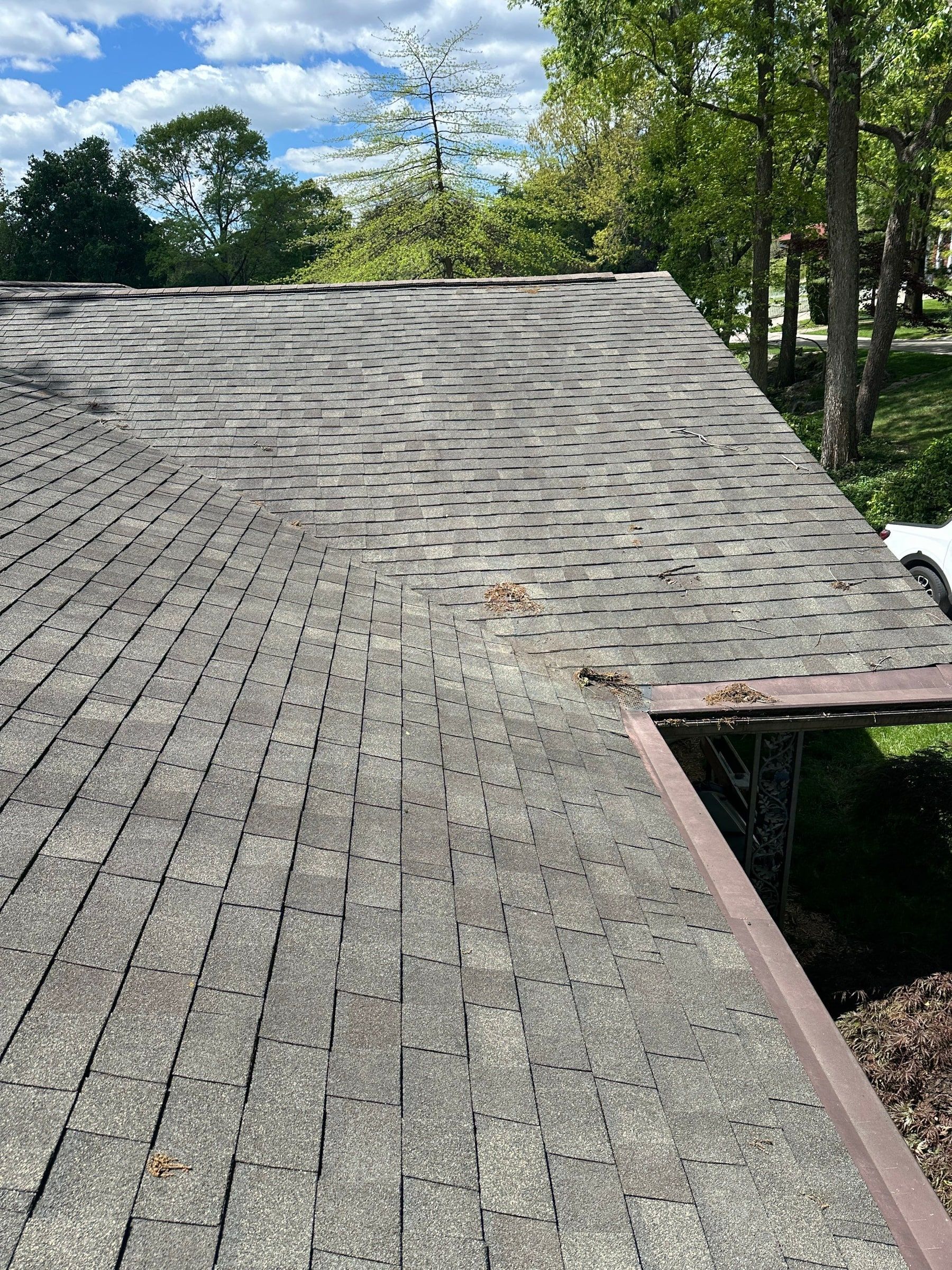

The house had an old three-tab roof with wind damage. Under it were two more layers of shingles, three in all.

What we found

Wind had creased shingles on both the house and the garage.

The insurance company approved a full replacement of both roofs, and new sheathing on the house.

Why it mattered

With three layers on it, the tear-off was a mess. Ohio's residential code does not allow a new roof over two or more existing layers (Residential Code of Ohio, section R908.3.1.1), so all three had to come off.

Underneath, the house's plywood sheathing was delaminating: the layers were coming apart and pulling off with the shingles.

Owens Corning requires plywood decking at least three-eighths of an inch thick under Duration shingles. We measured these boards, and they were too thin.

The box that looked like a chimney was only a cover over the furnace vent.

What we did

We tore off all three layers, removed the old sheathing on the house, and resheeted it with new OSB.

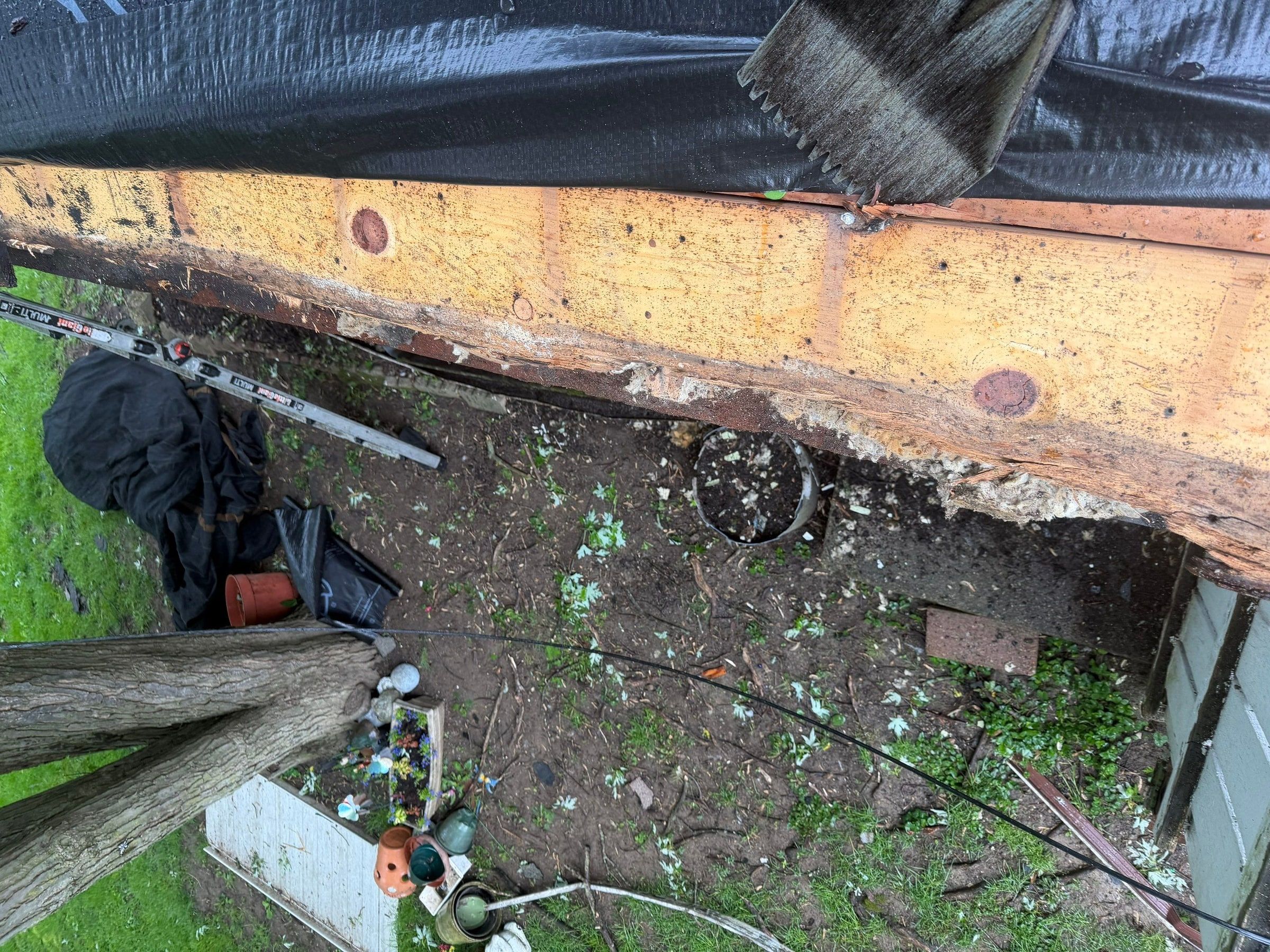

On the garage, we replaced sheathing only where it needed it.

Both roofs got ice and water shield at the eaves, RhinoRoof synthetic underlayment, and Owens Corning Duration shingles.

We removed the fake chimney box, known as a faux chimney, and painted the furnace vent.

Materials and system used: new OSB sheathing on the house, ice and water shield at the eaves, RhinoRoof synthetic underlayment, Owens Corning Duration shingles

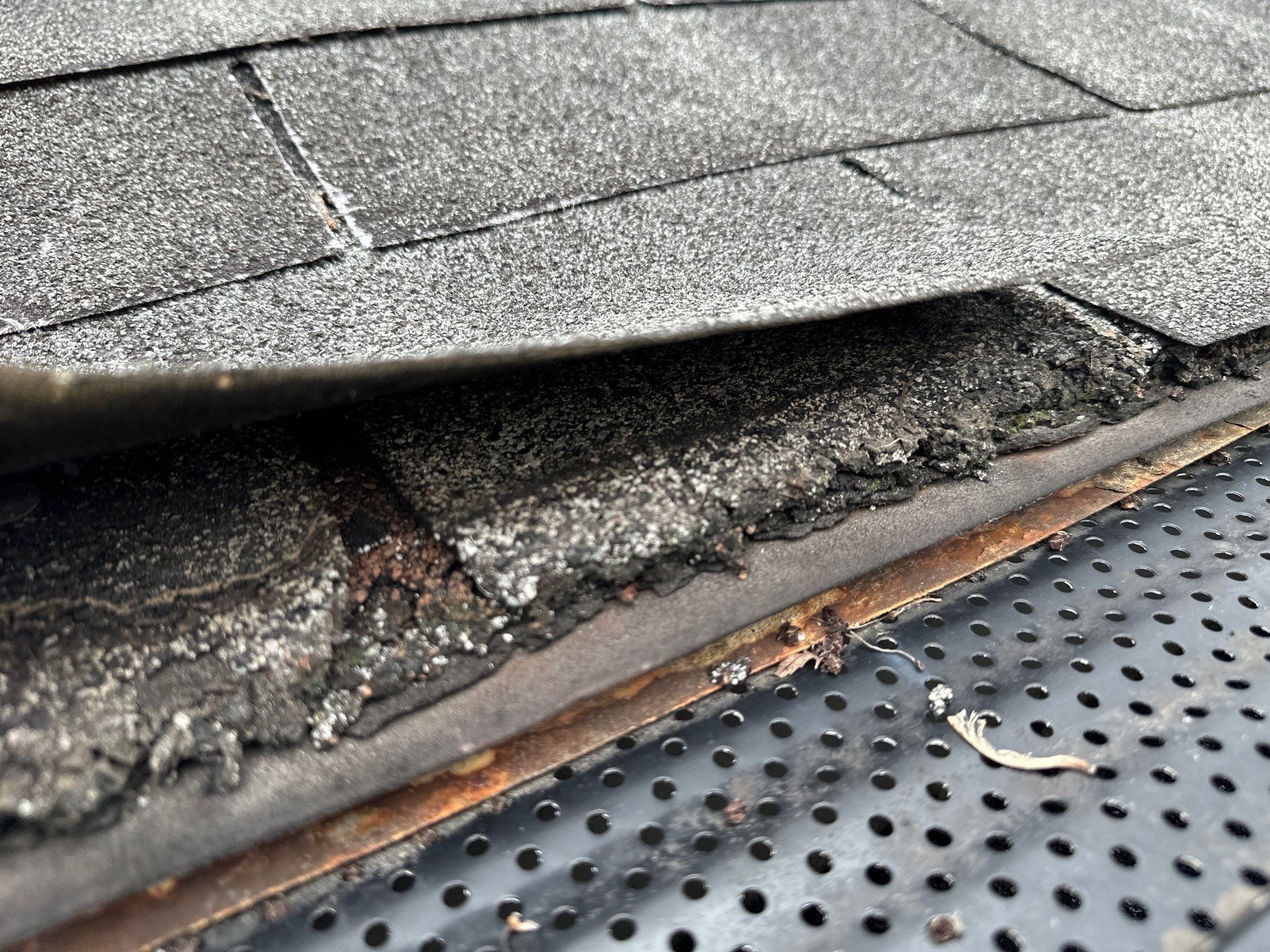

Old shingles curling over a rusted drip edge above the gutter, Dayton, Ohio.

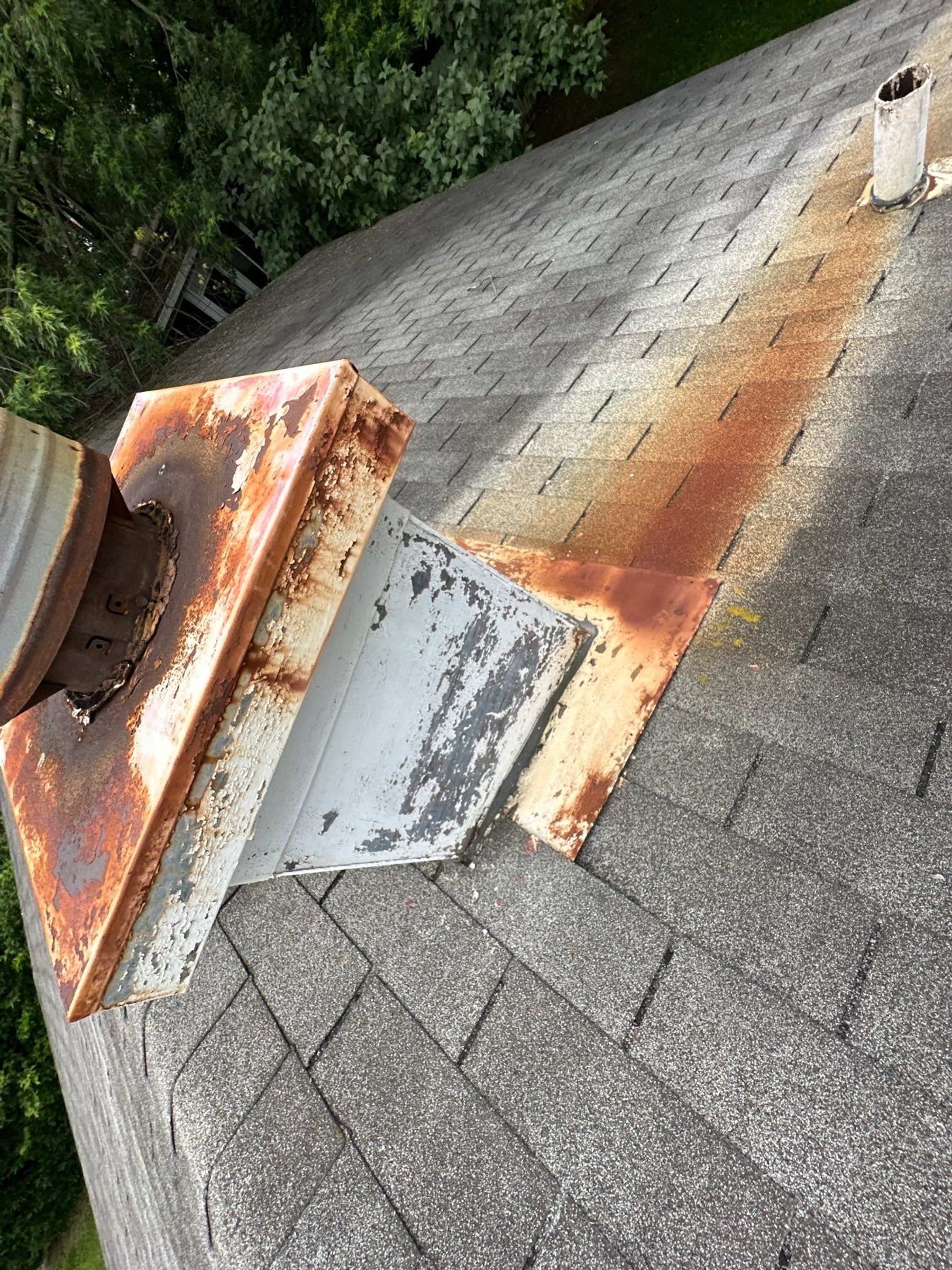

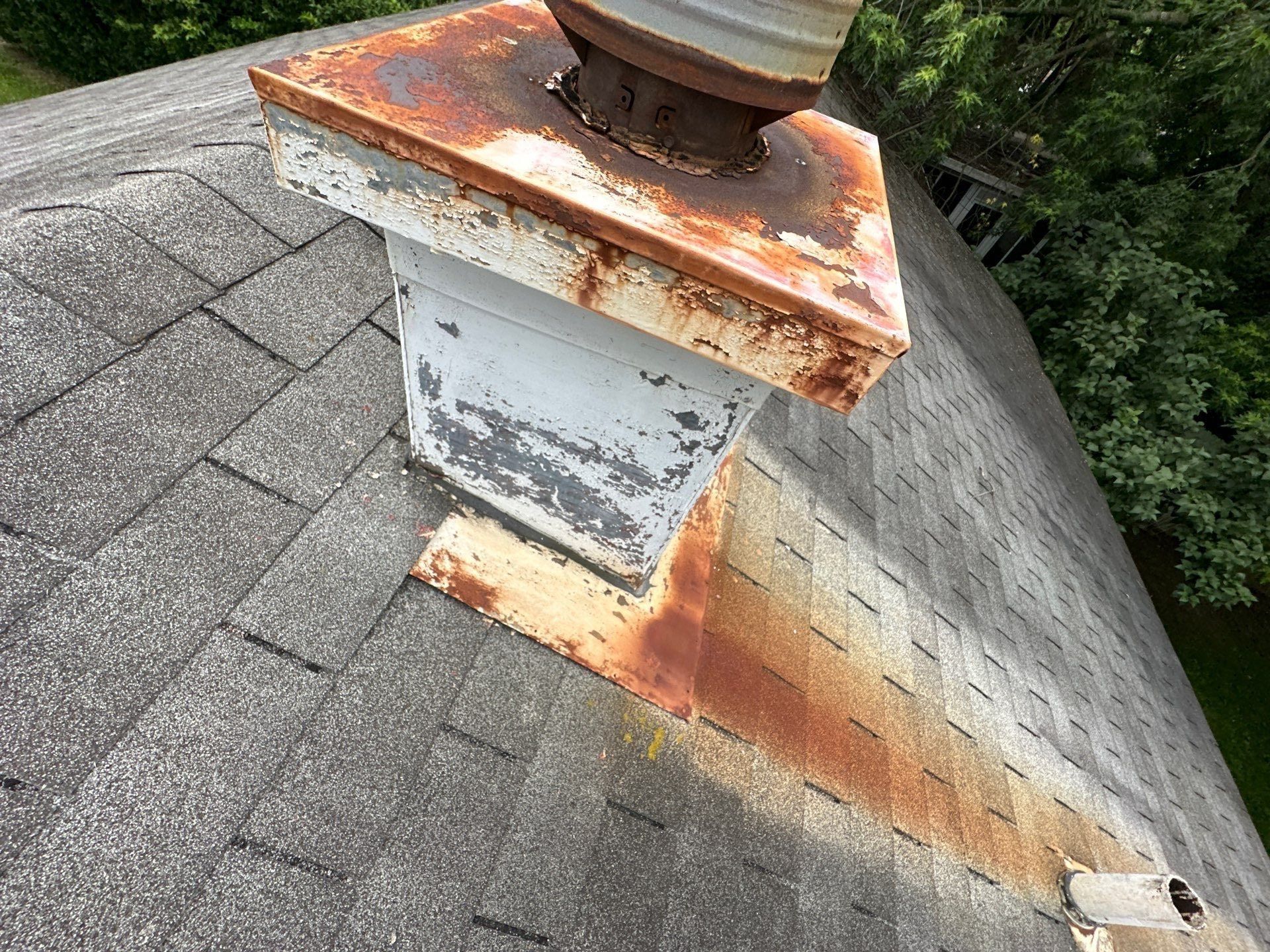

The rusted metal box built to look like a chimney, on the old roof, Dayton, Ohio.

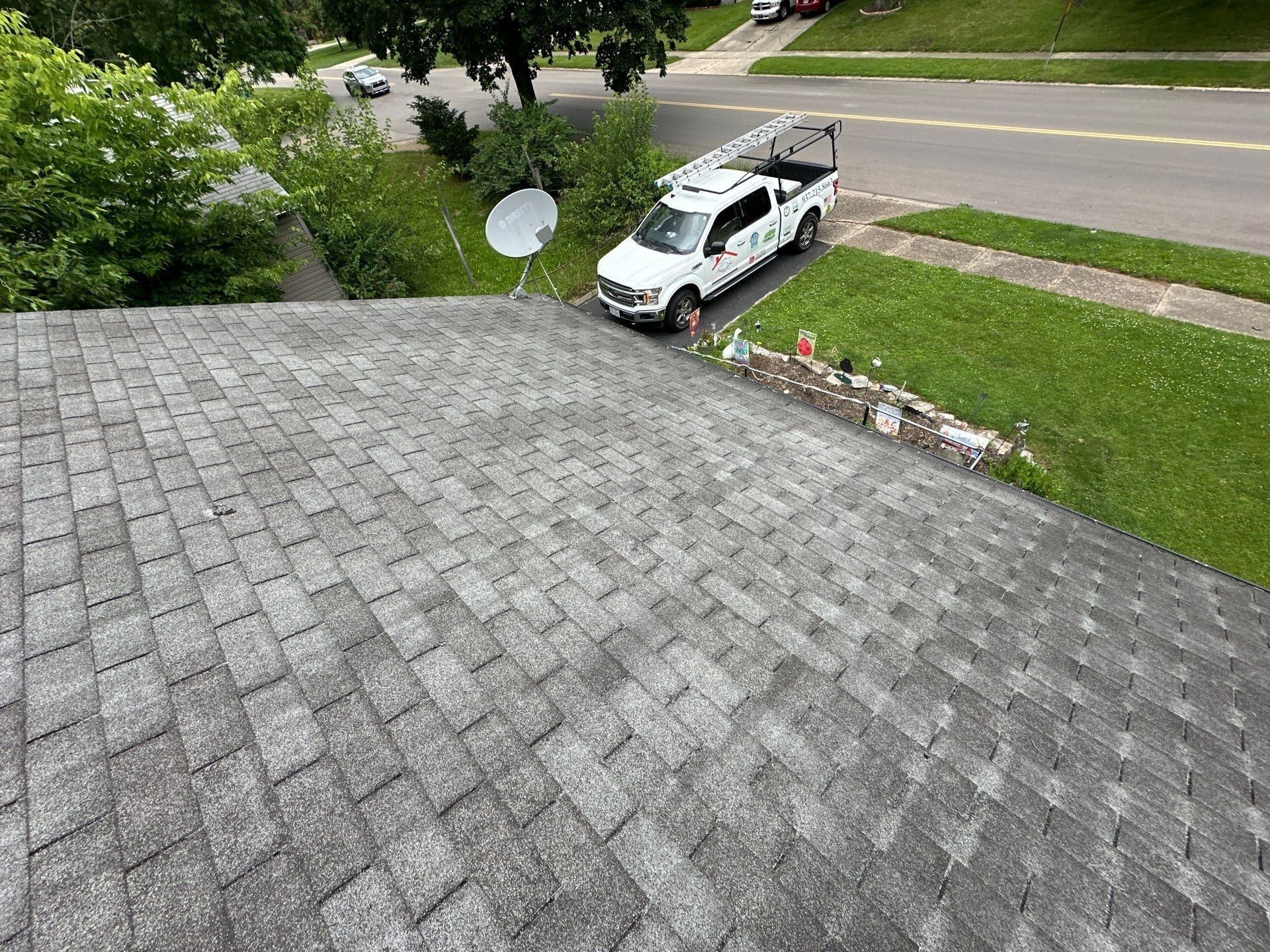

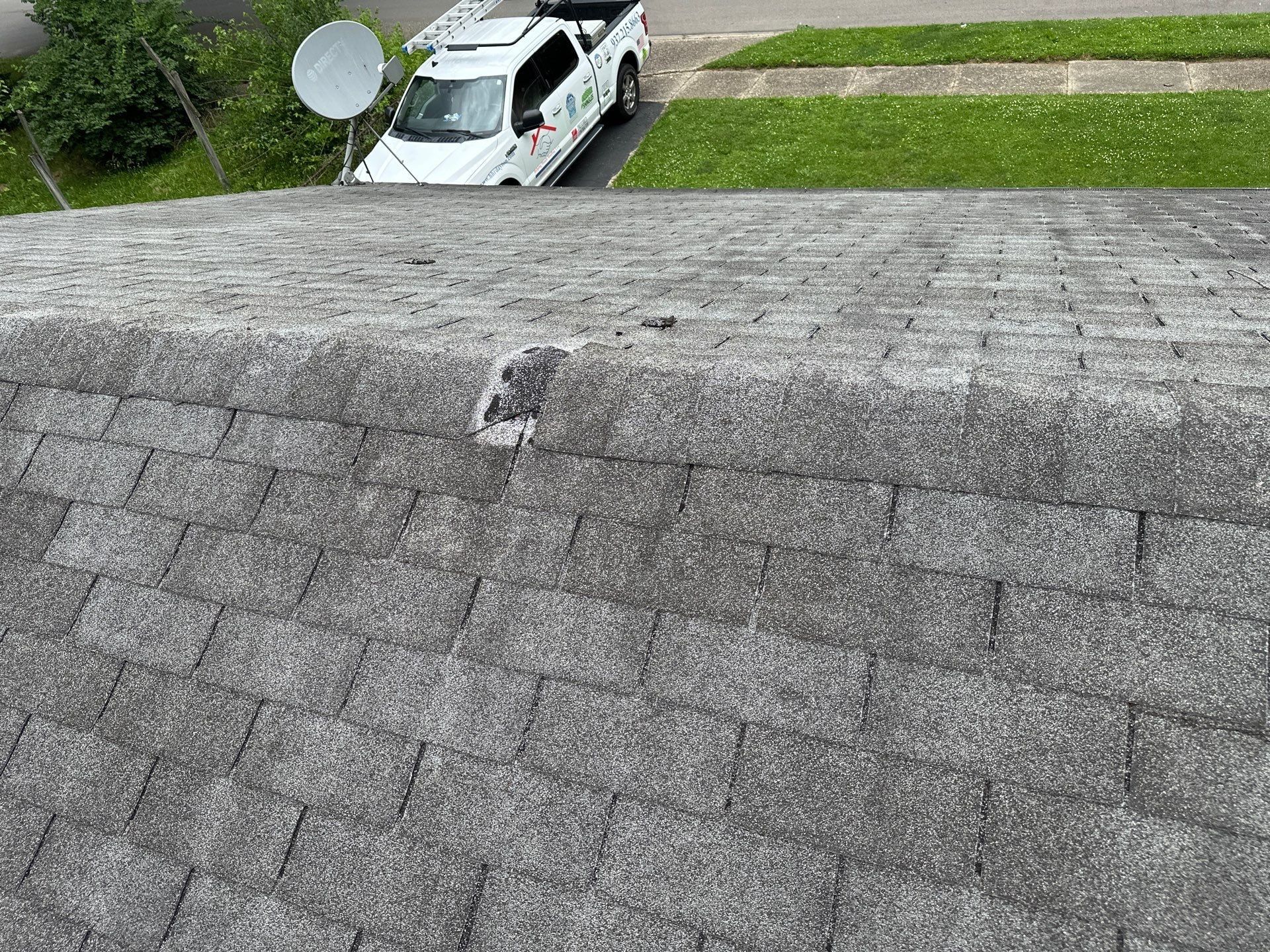

A wind-damaged shingle missing from the ridge, with the work truck below, Dayton, Ohio.

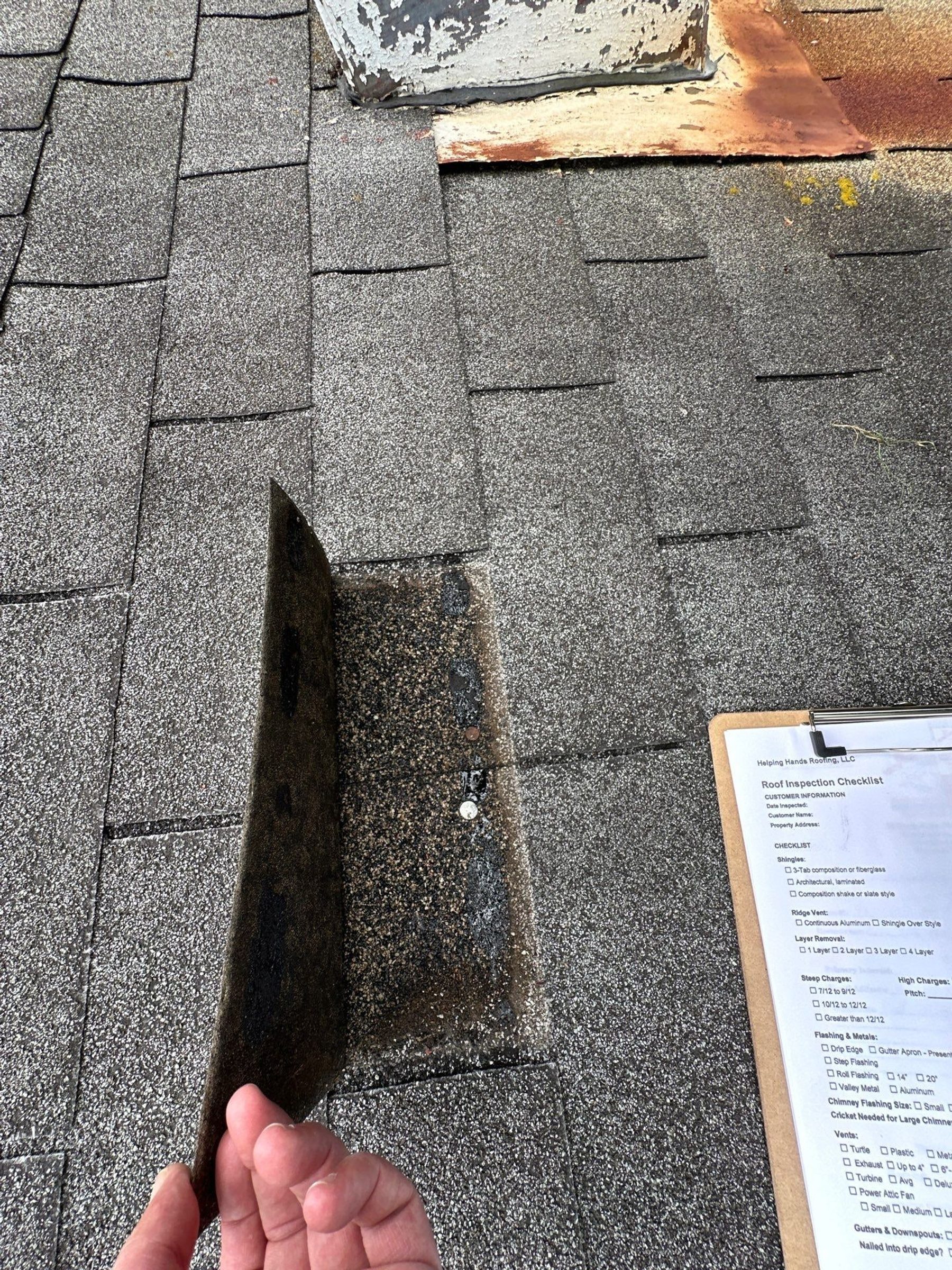

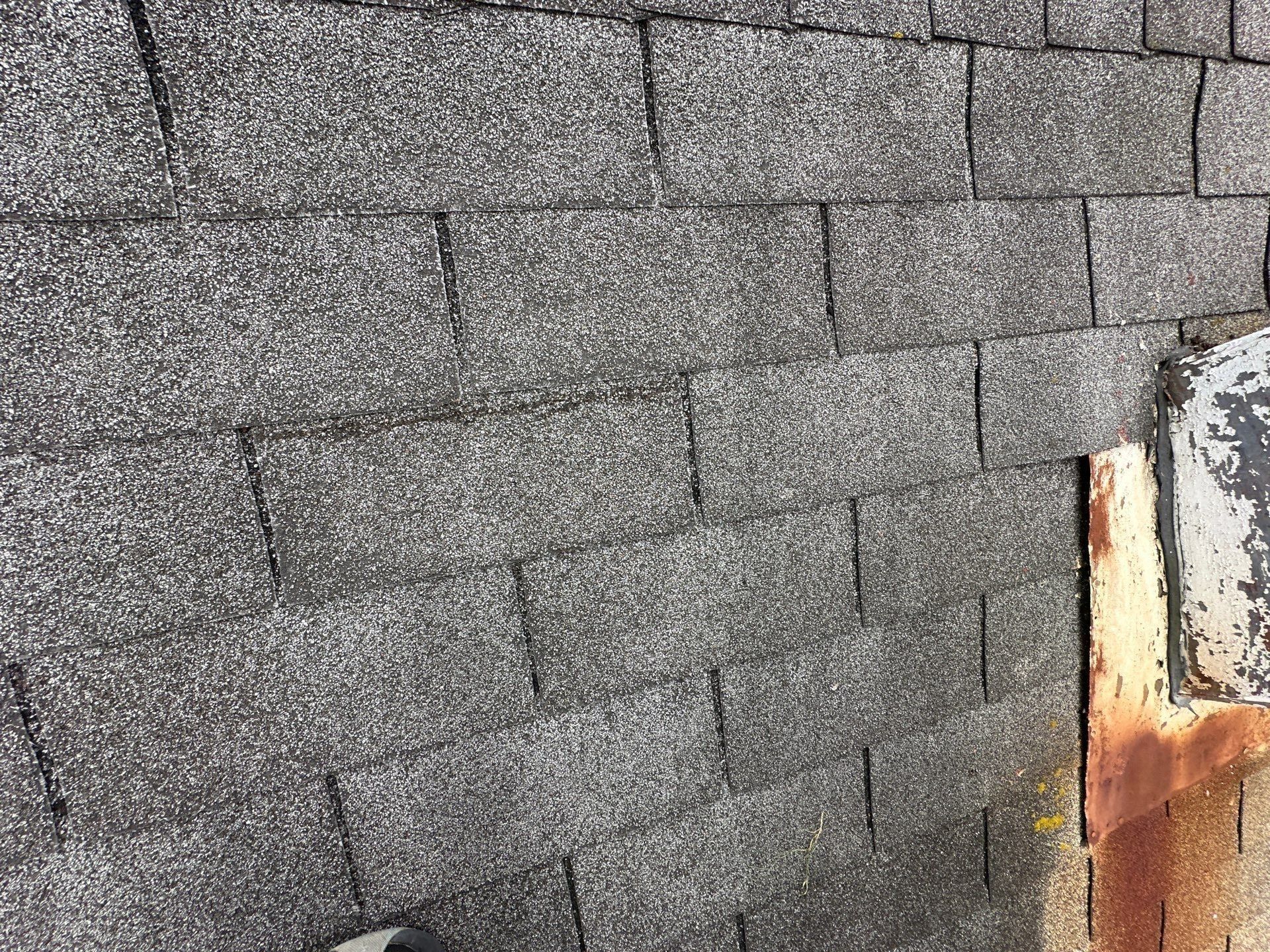

Wind-creased shingles beside the rusted faux chimney flashing, Dayton, Ohio.

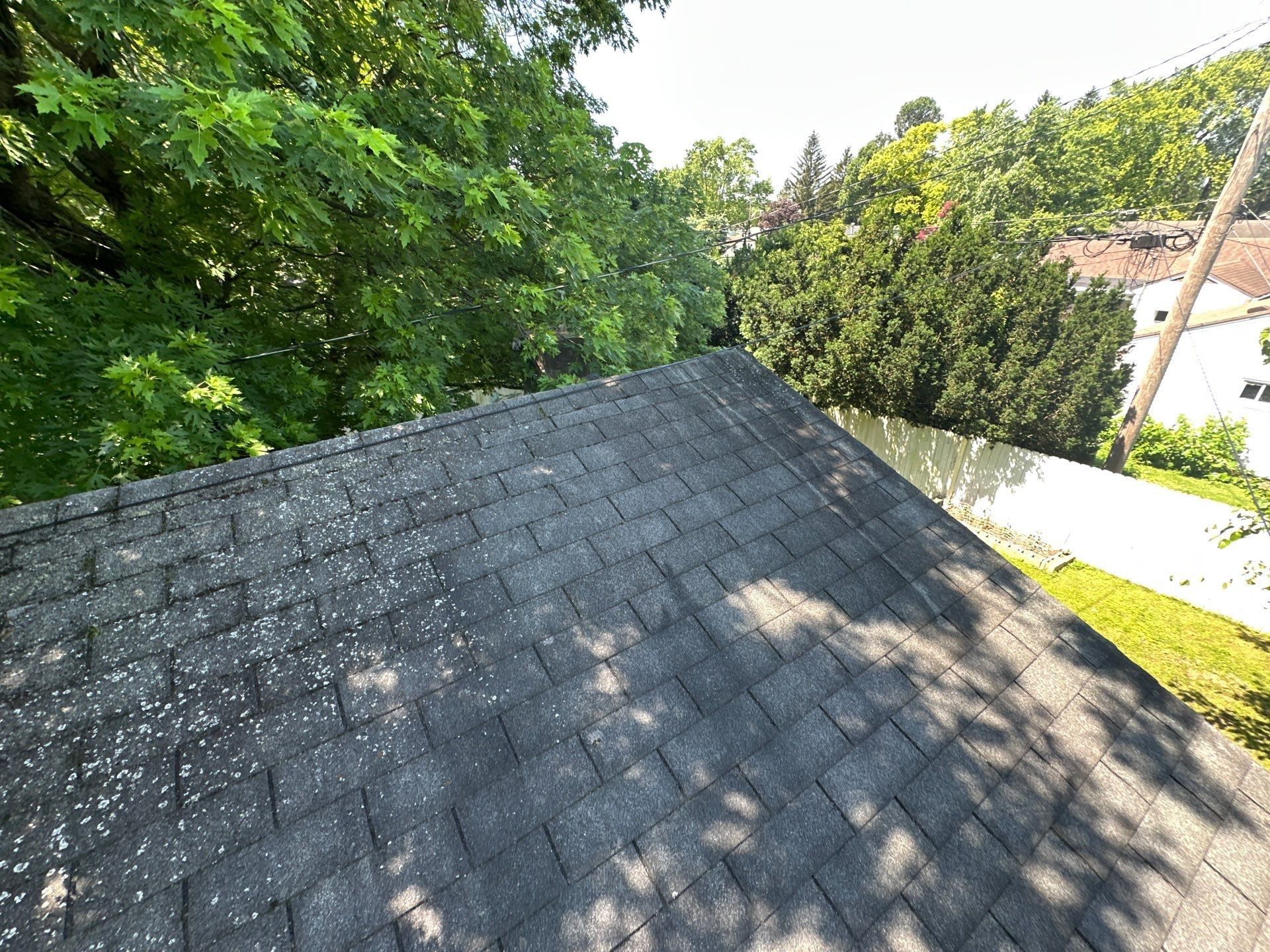

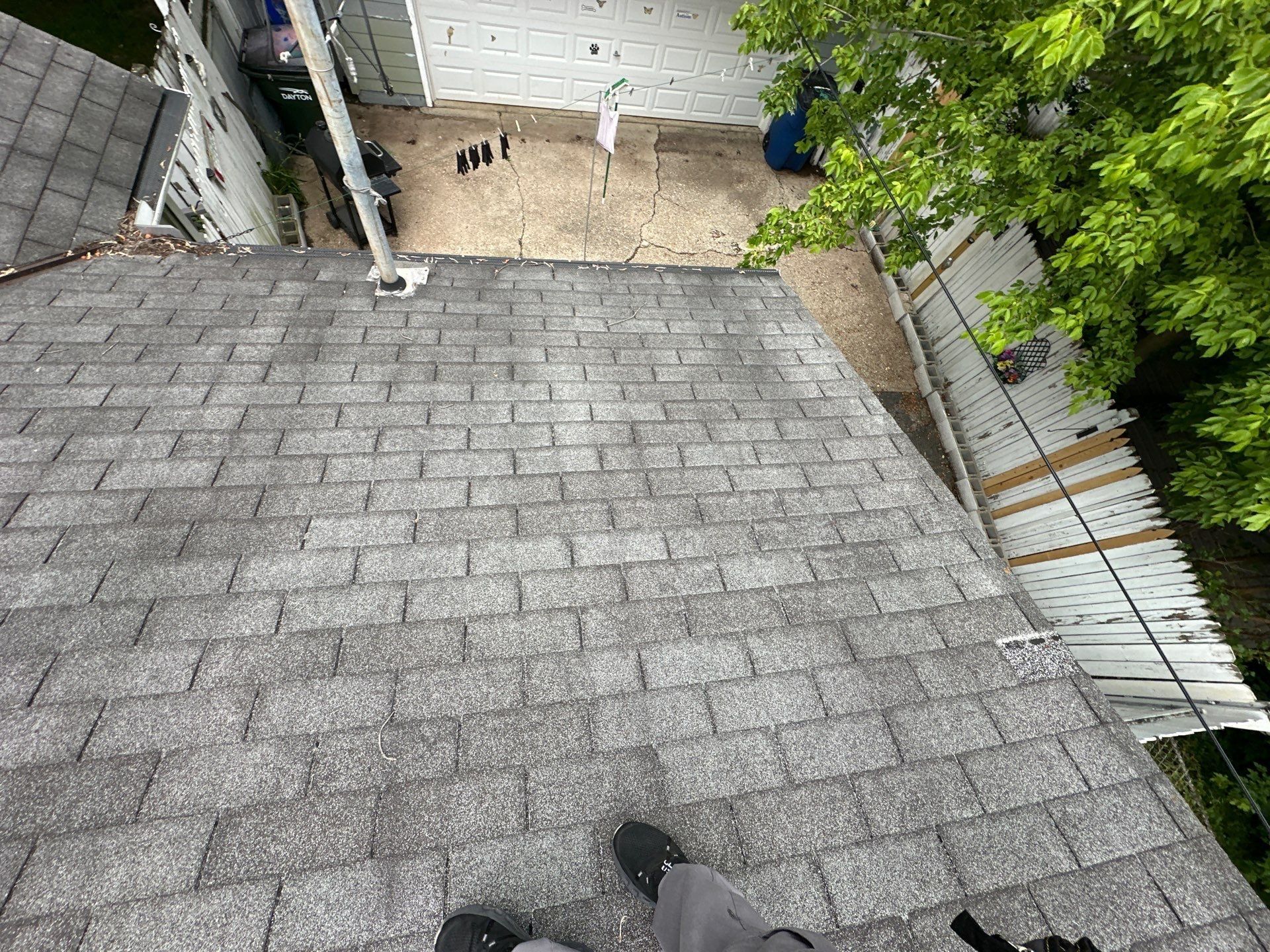

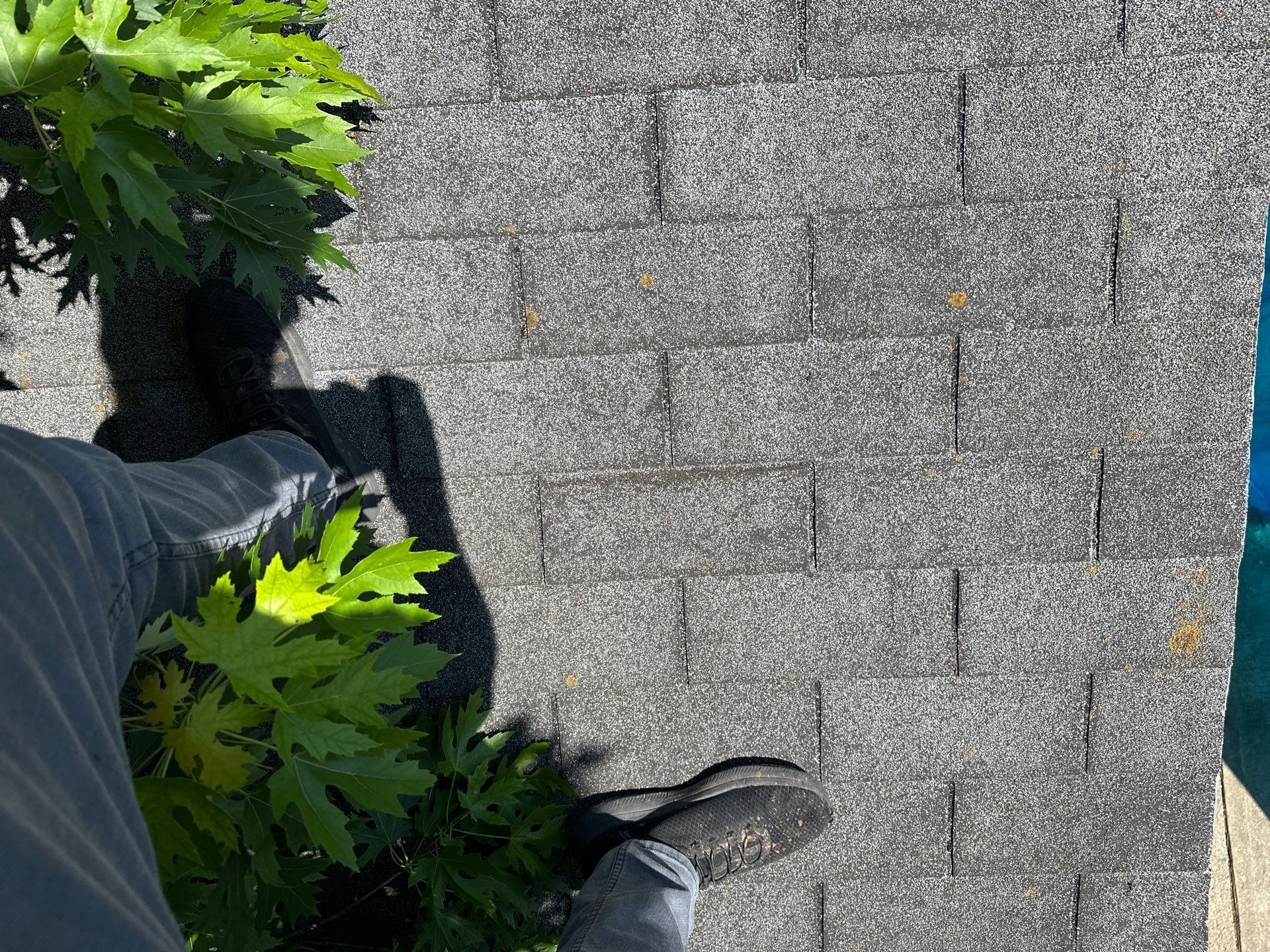

Creased three-tab shingles on the garage roof, Dayton, Ohio.

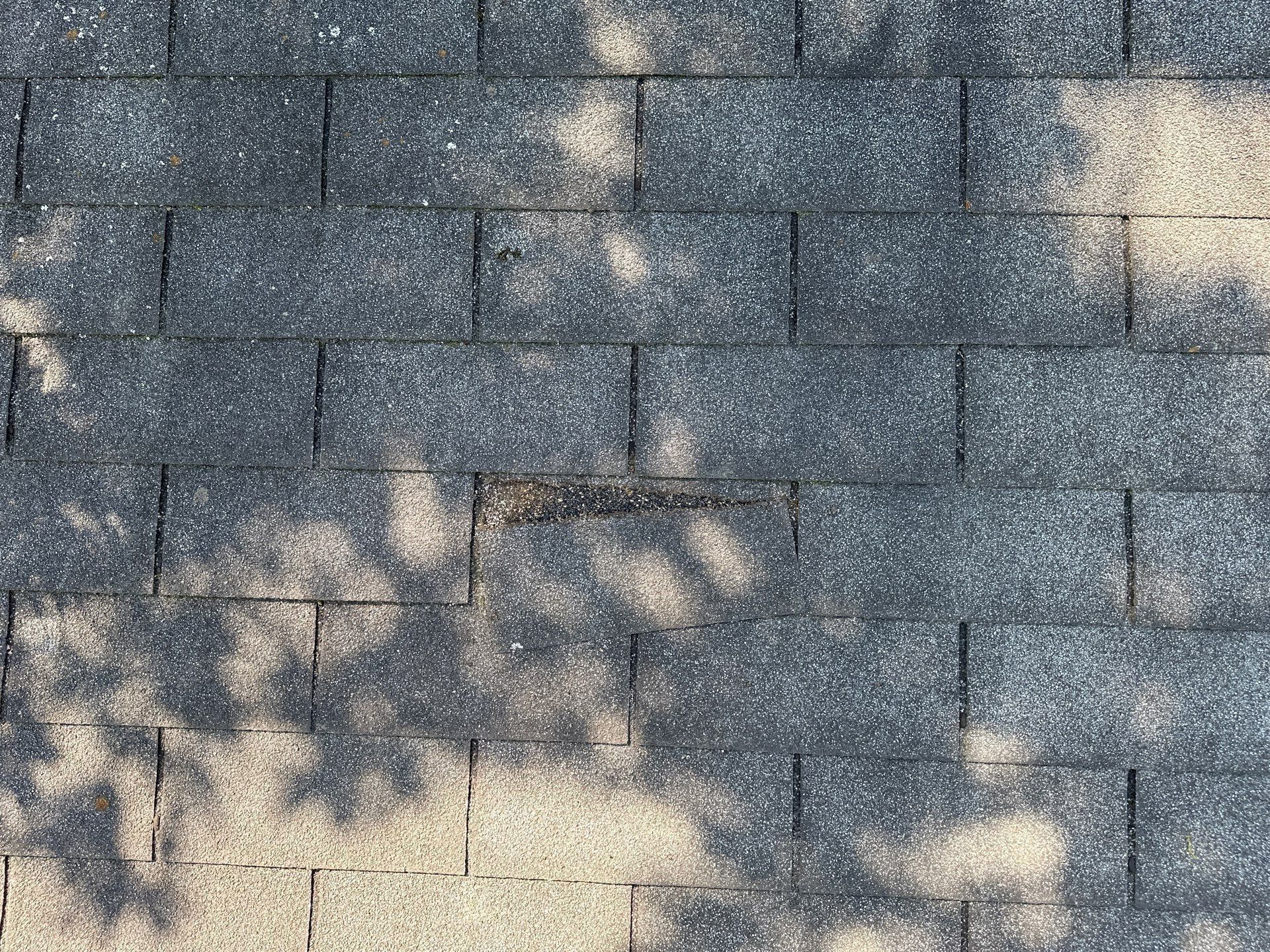

Wind-creased shingles on the garage roof in tree shade, Dayton, Ohio.

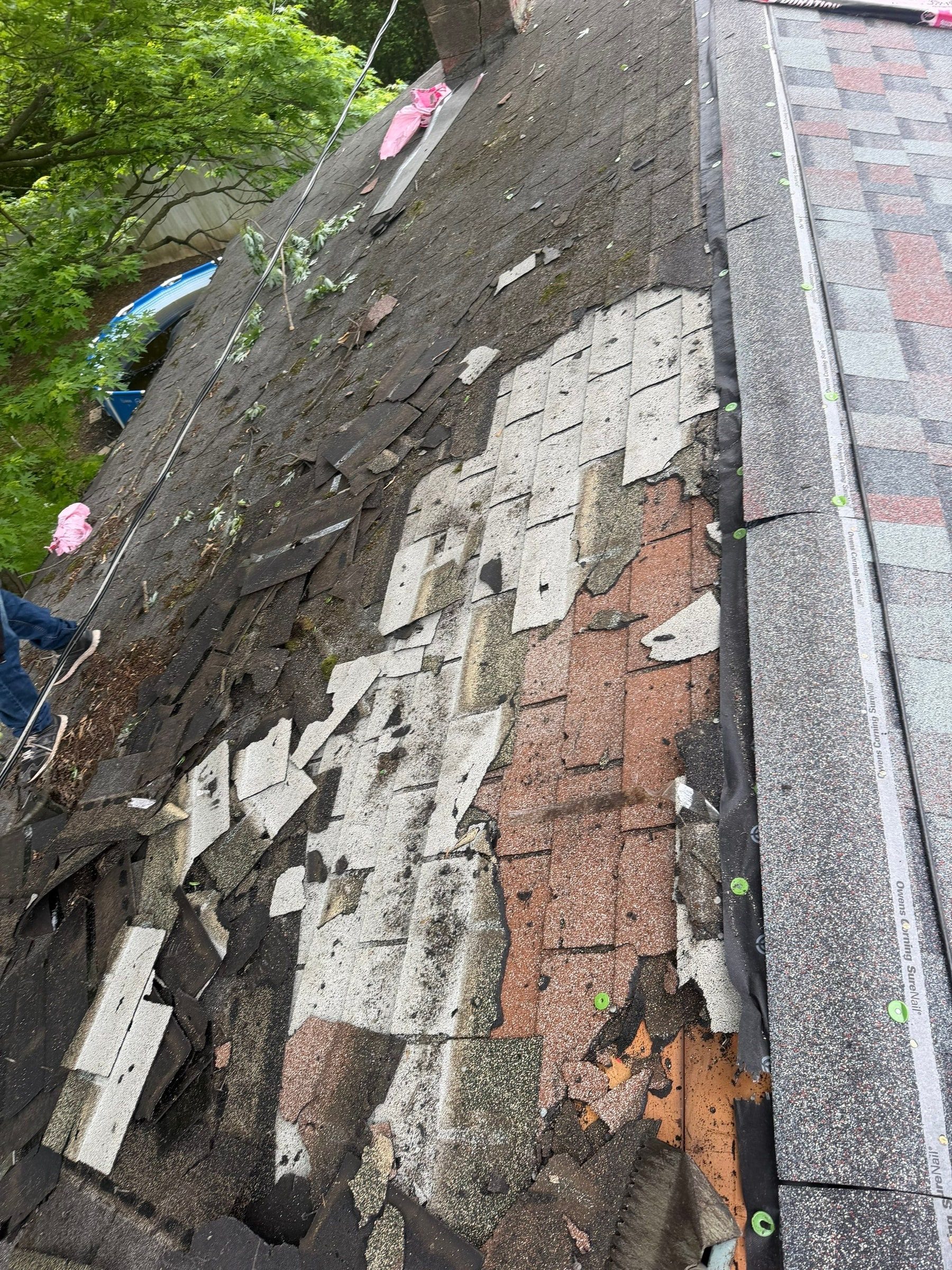

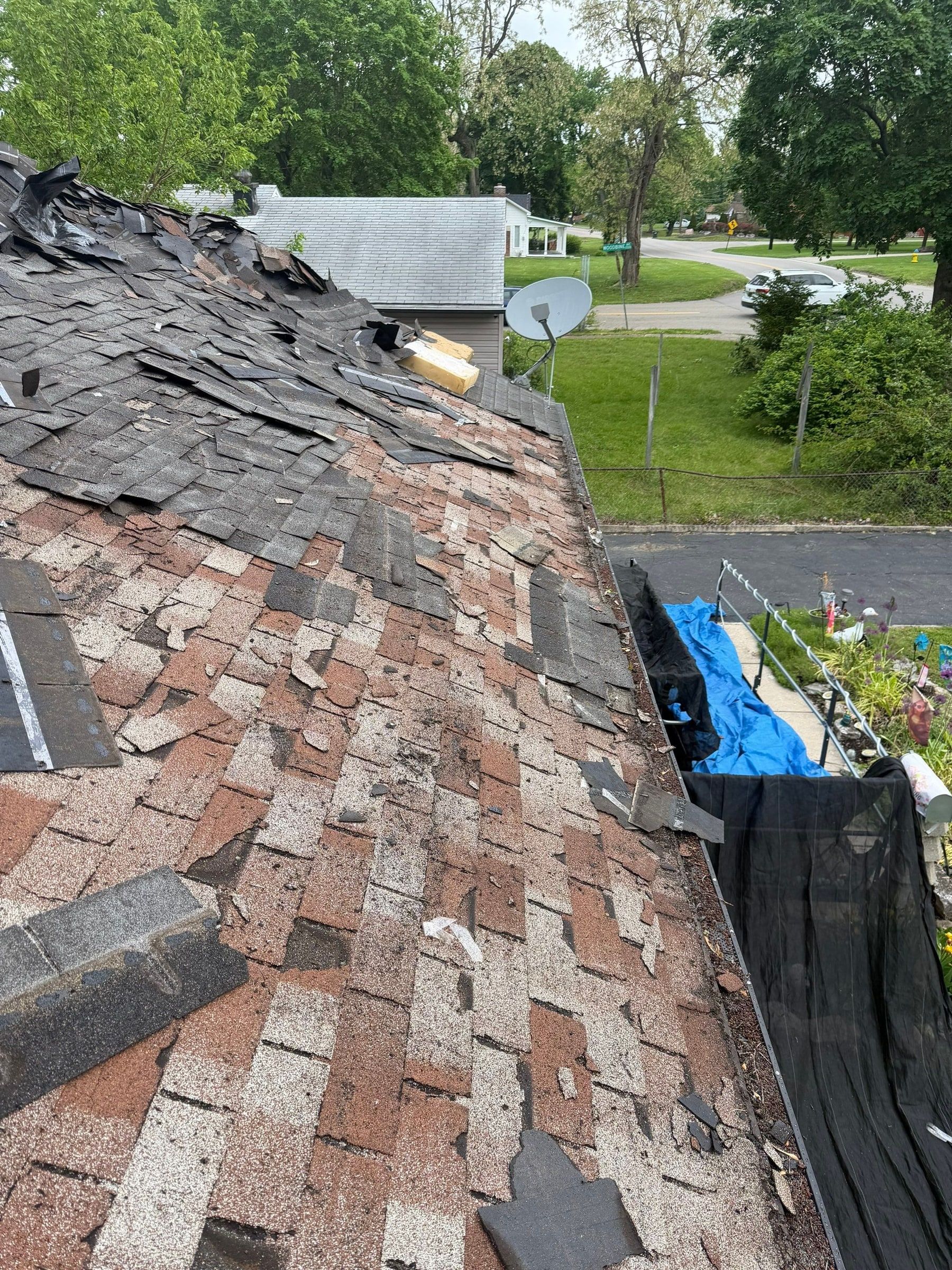

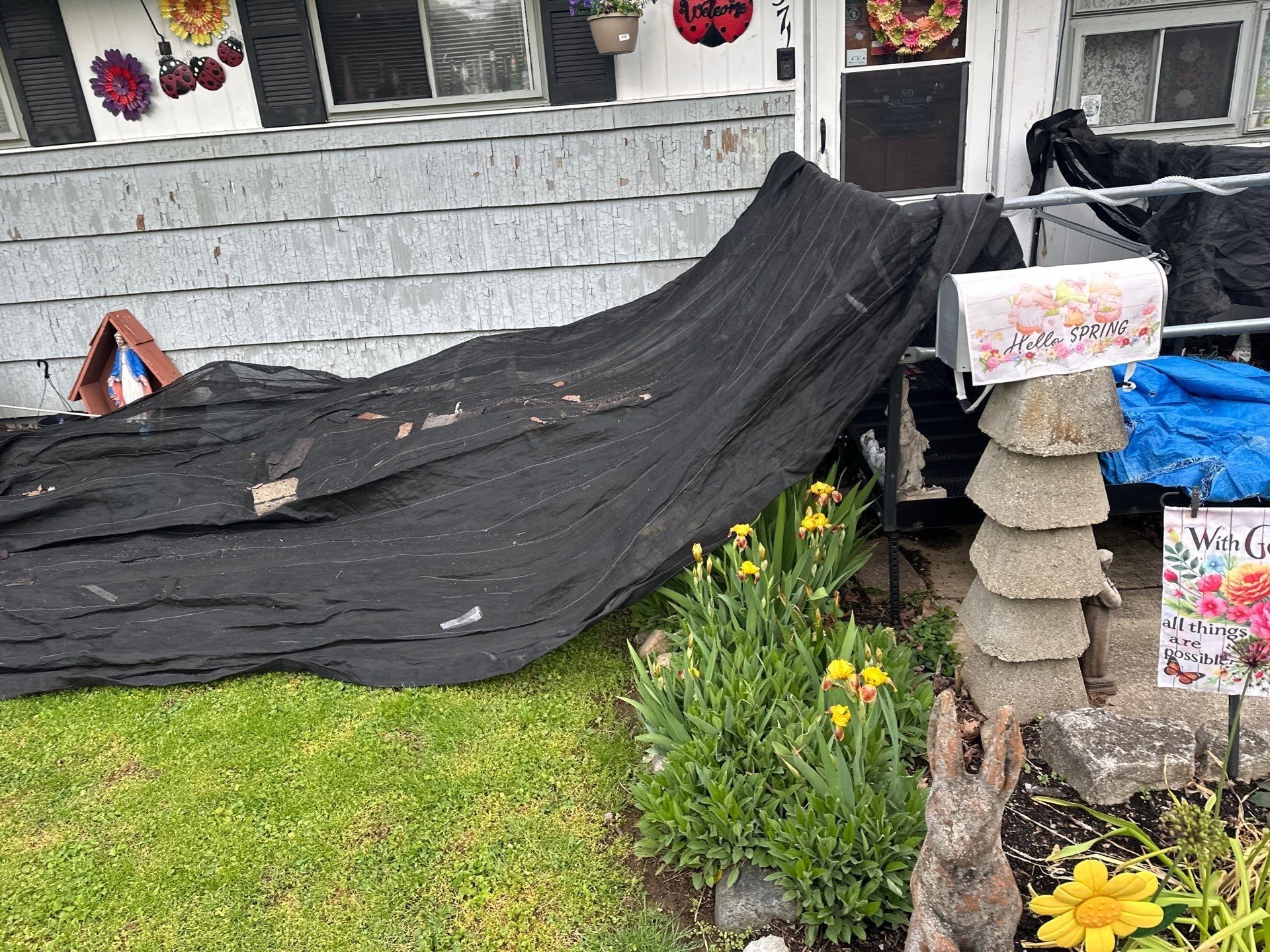

Three layers of old shingles half torn off, with tarps along the house below, Dayton, Ohio.

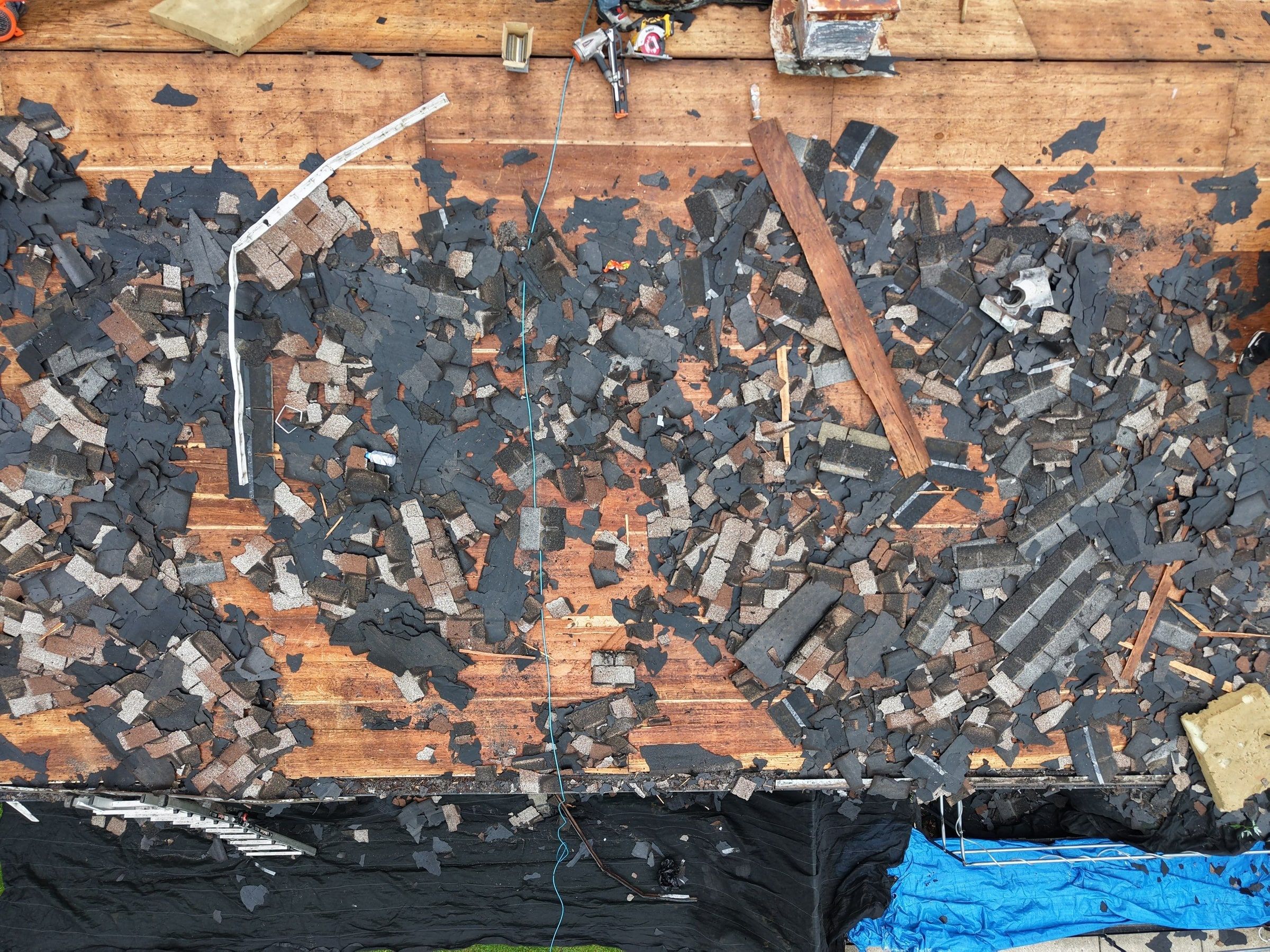

Straight down from the drone on the torn-up roof, with tarps along the front of the house, Dayton, Ohio.

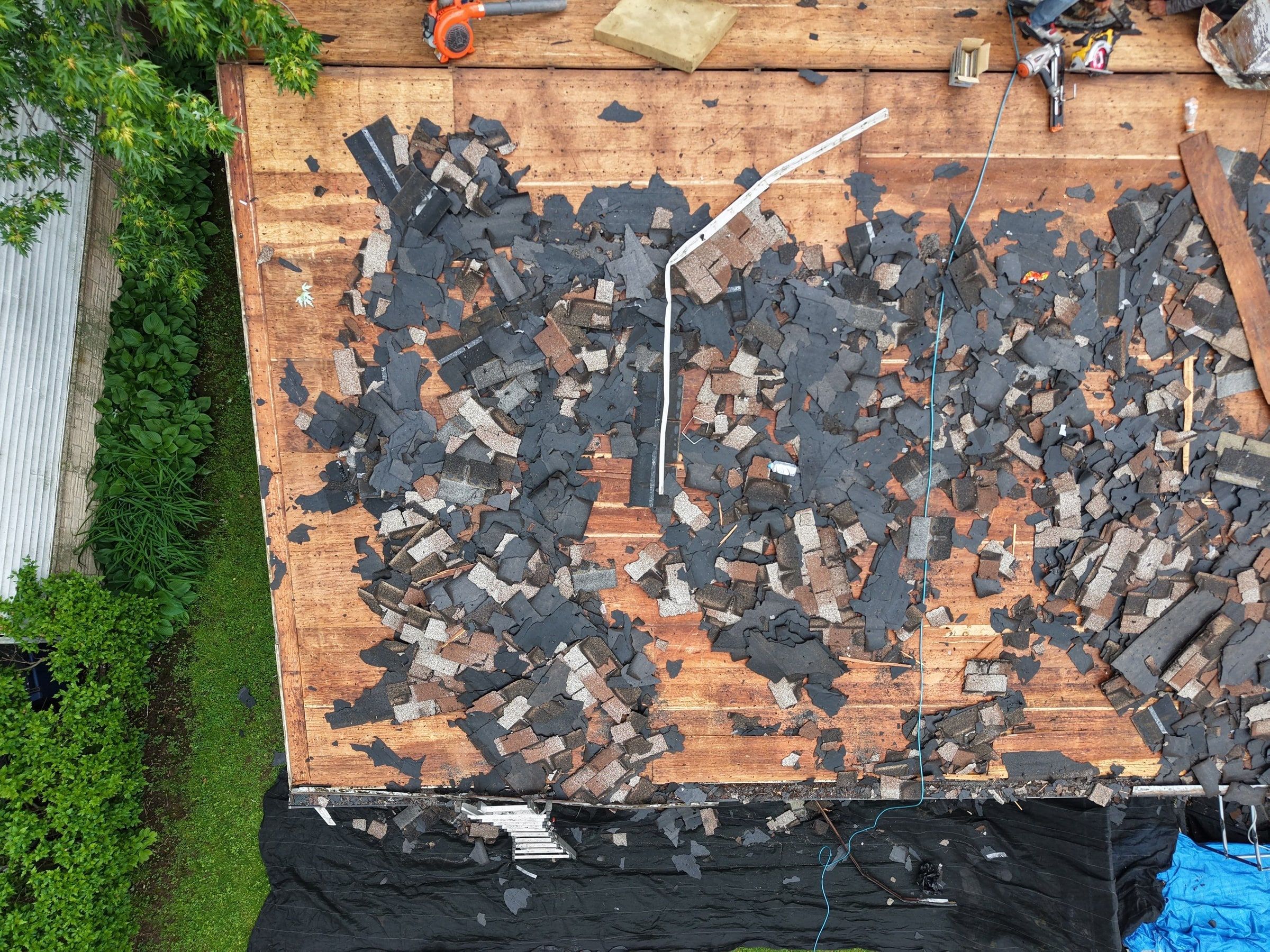

The whole roof from above during tear-off, Dayton, Ohio.

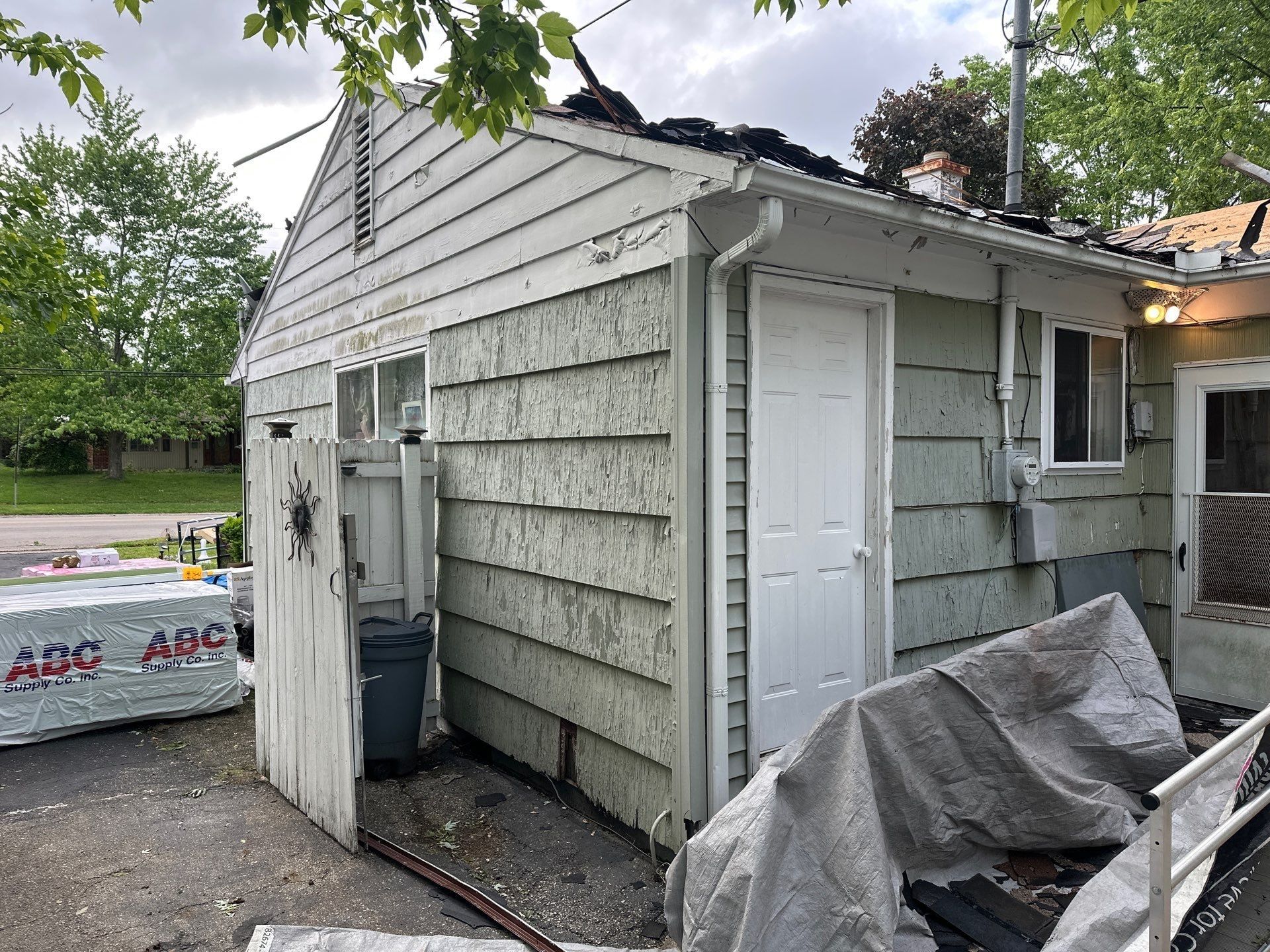

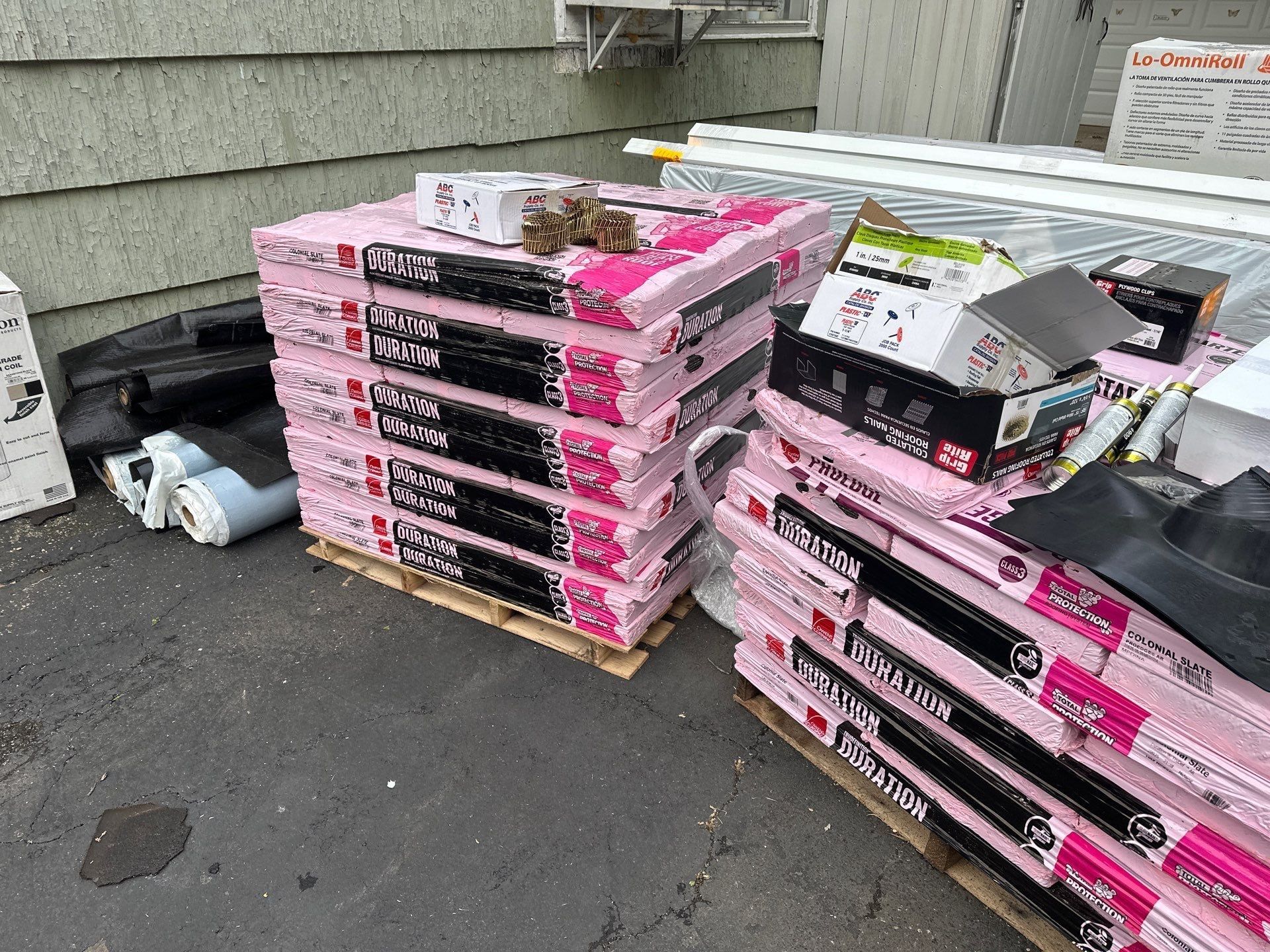

Pallets of Owens Corning Duration shingles delivered to the driveway, Dayton, Ohio.

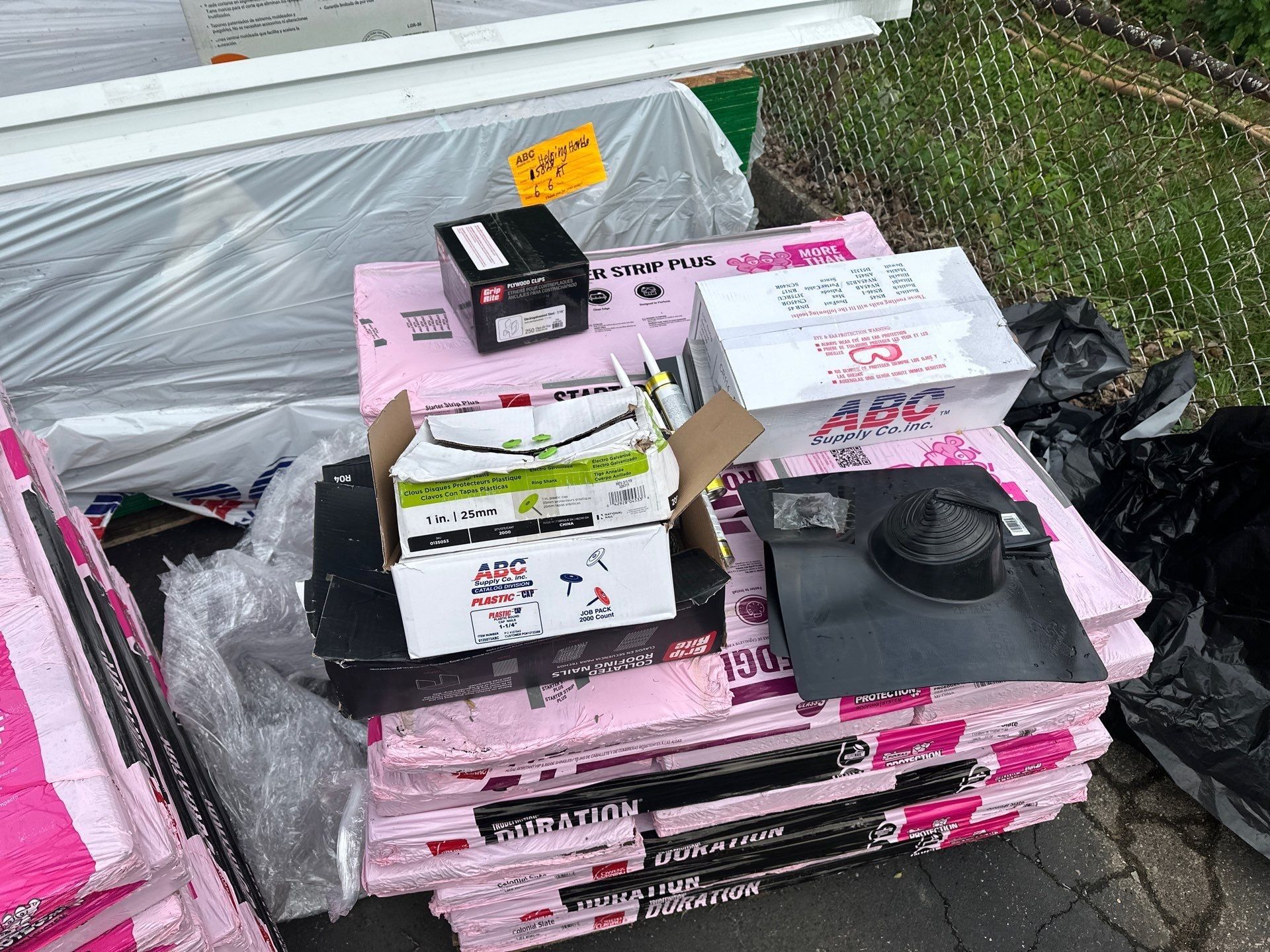

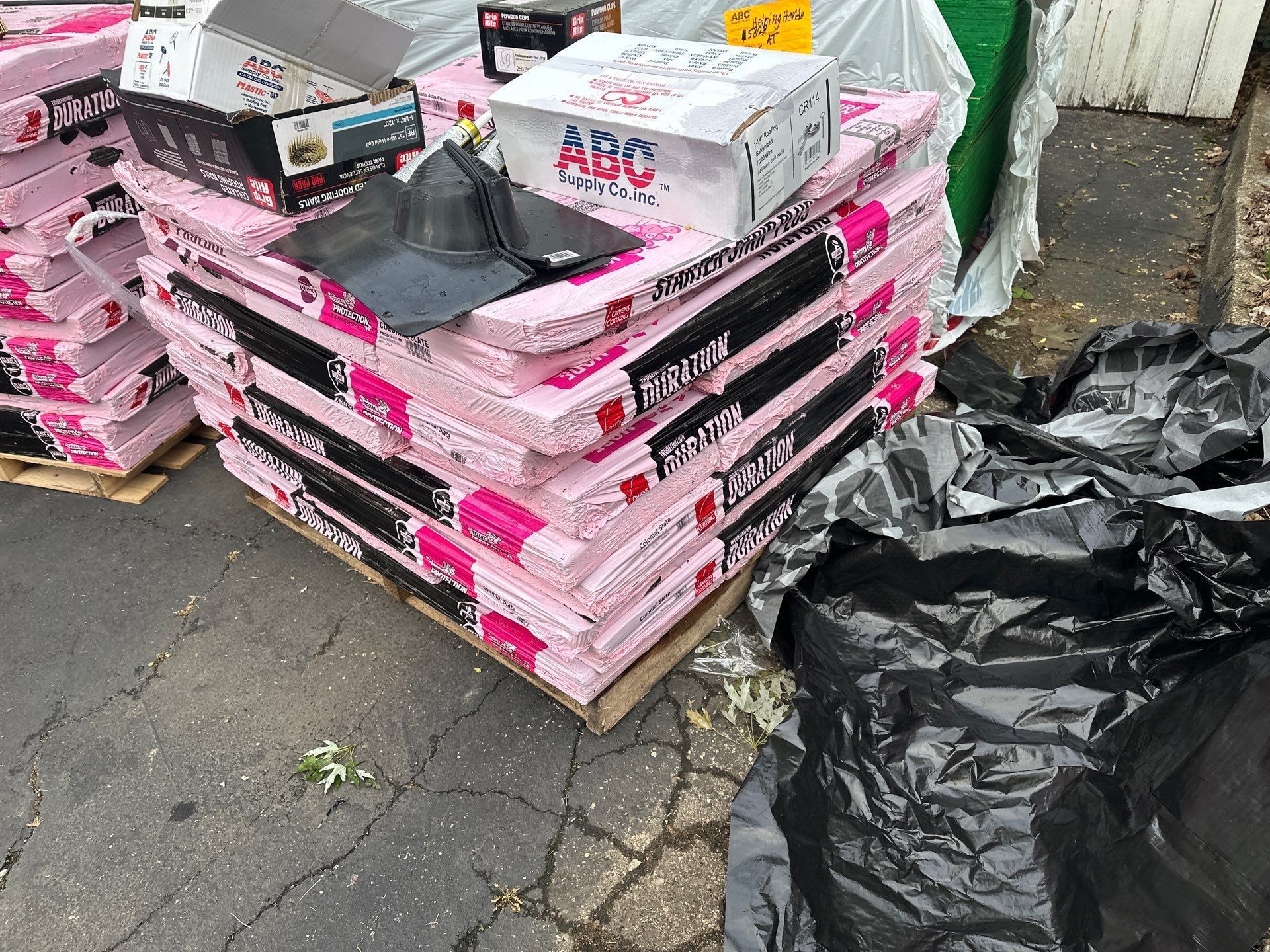

Duration shingles, flashing and vent boots stacked in the driveway, Dayton, Ohio.

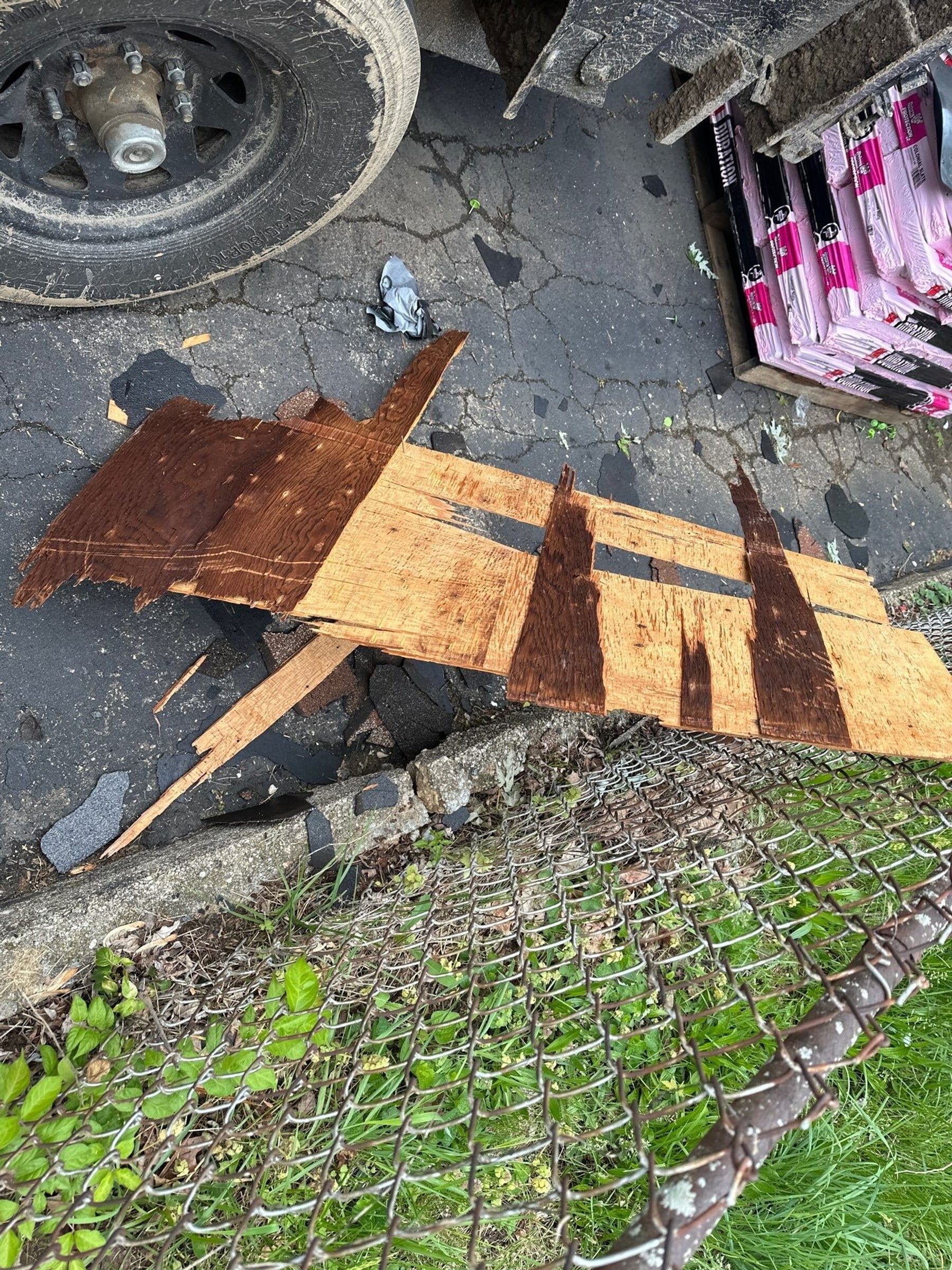

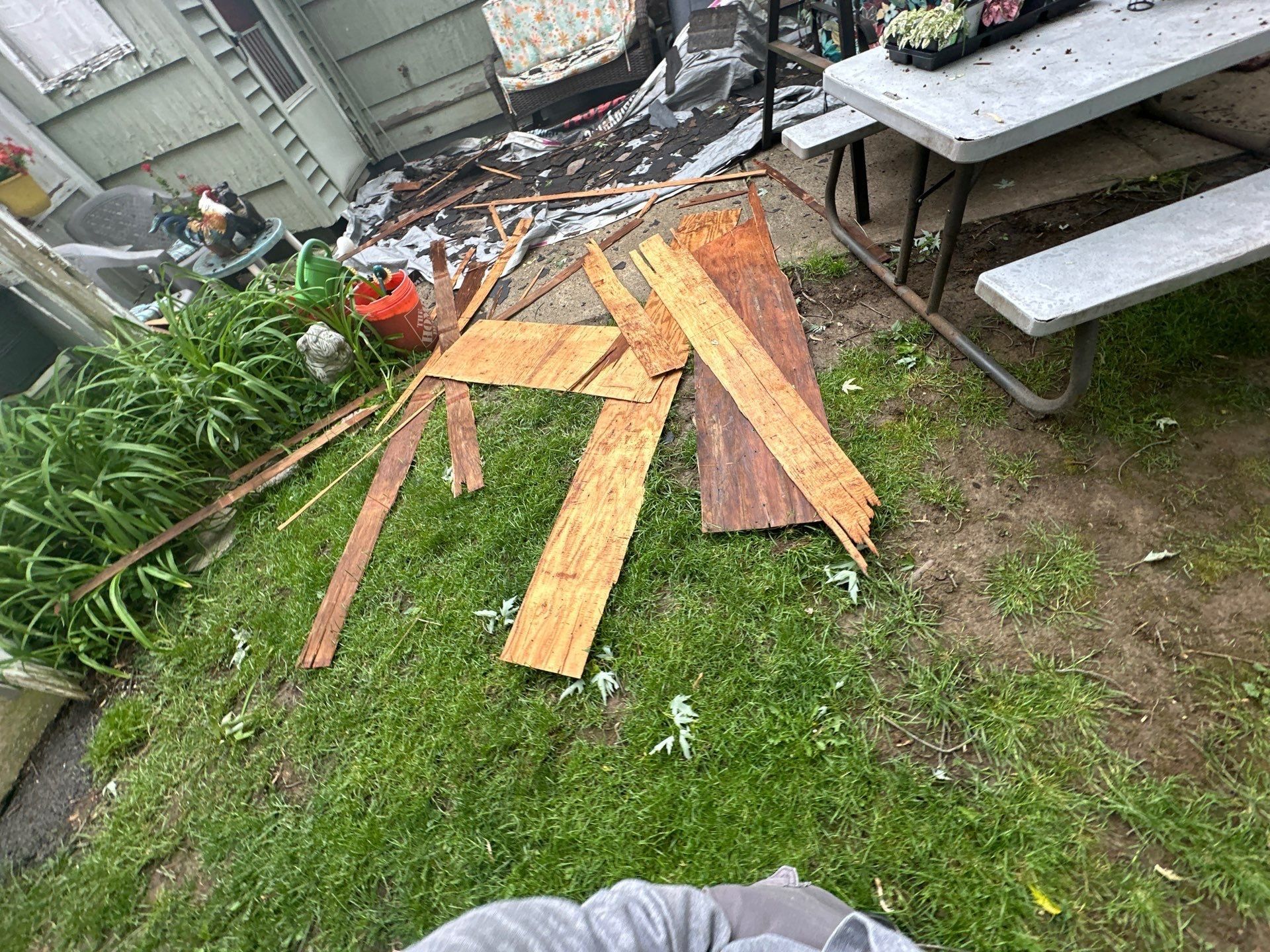

A piece of the old plywood sheathing coming apart in layers, Dayton, Ohio.

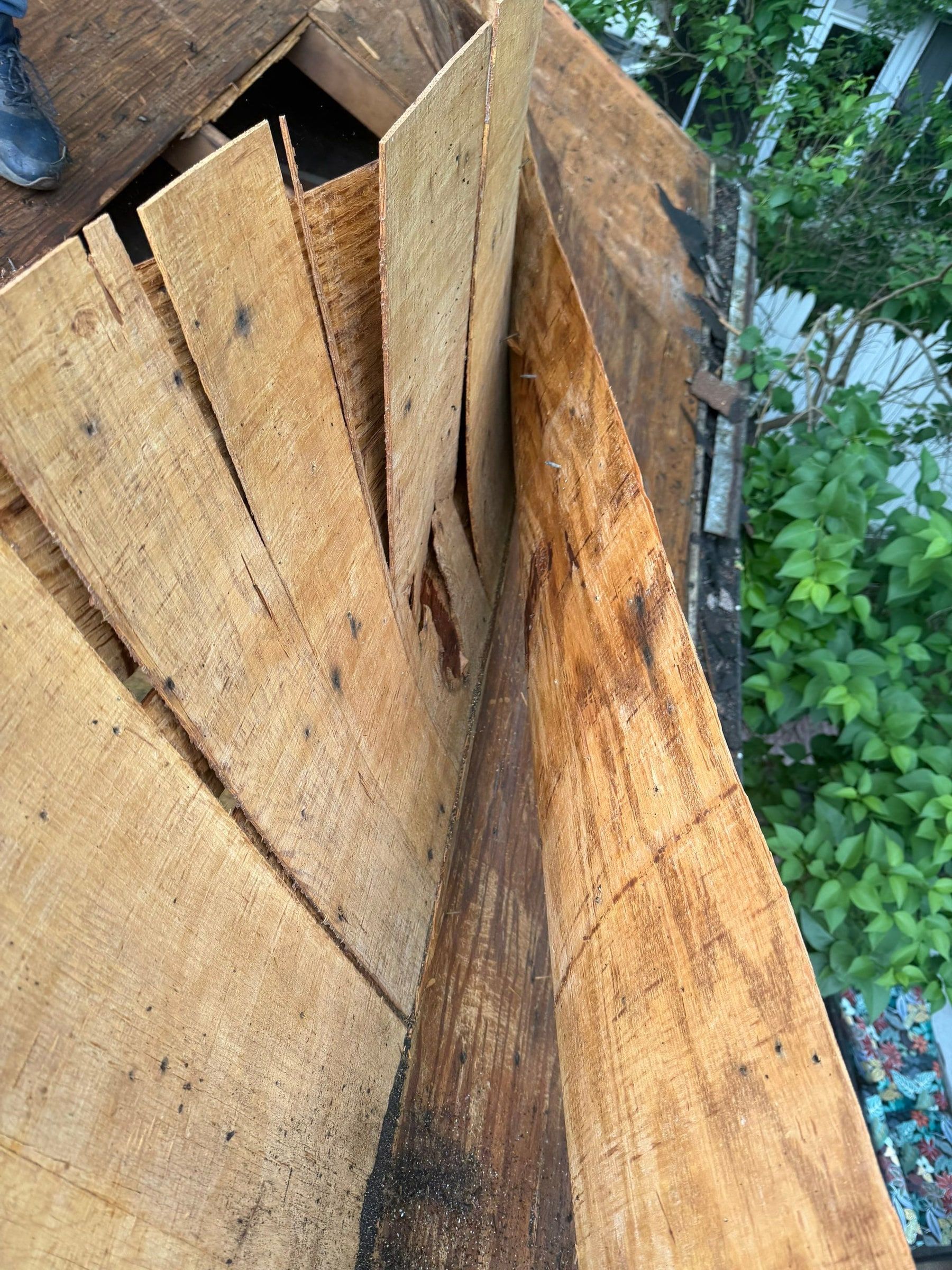

Old plywood sheathing splitting into thin layers as it comes off the roof, Dayton, Ohio.

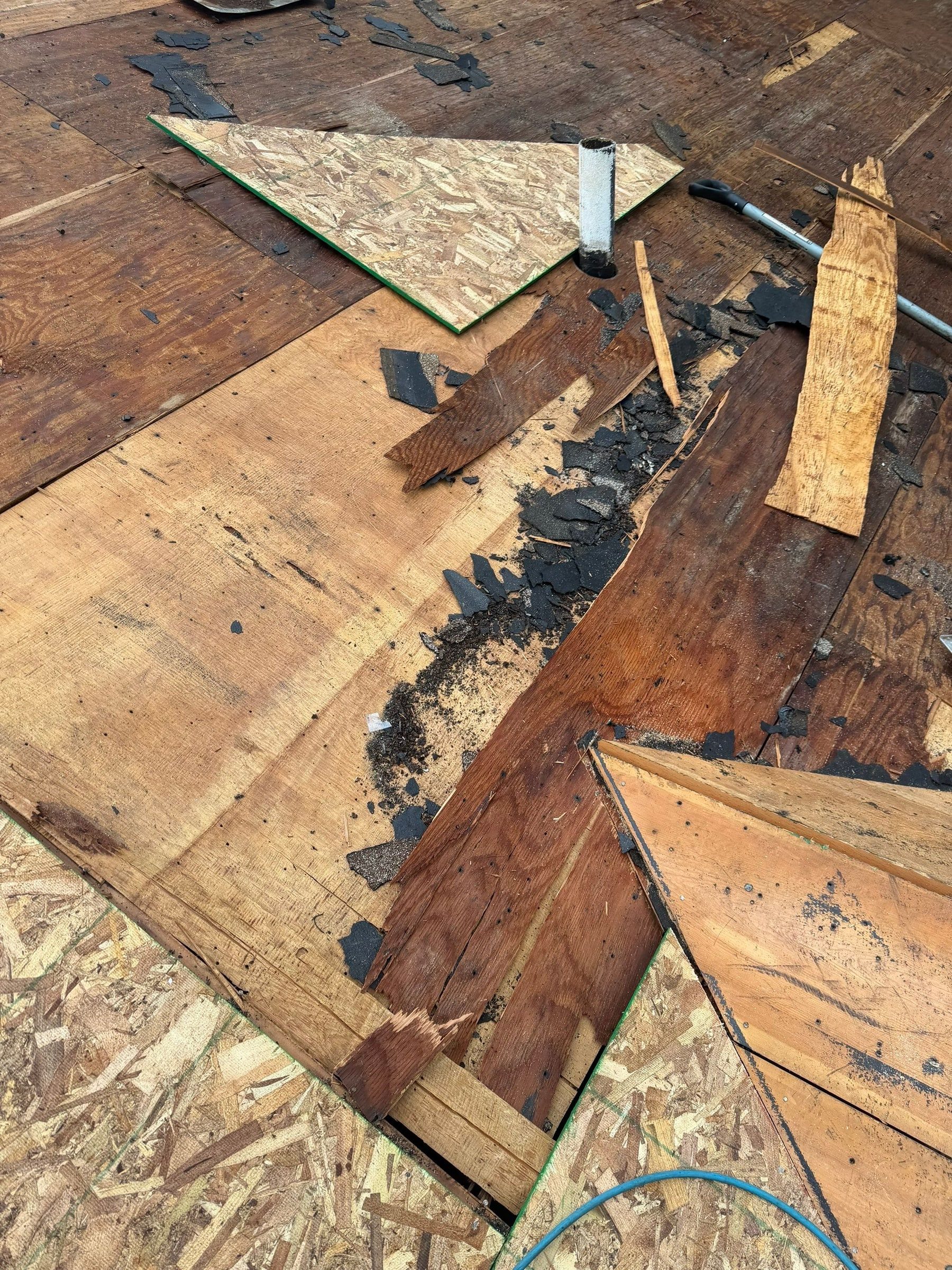

Delaminated plywood peeling off the roof beside the first new OSB, Dayton, Ohio.

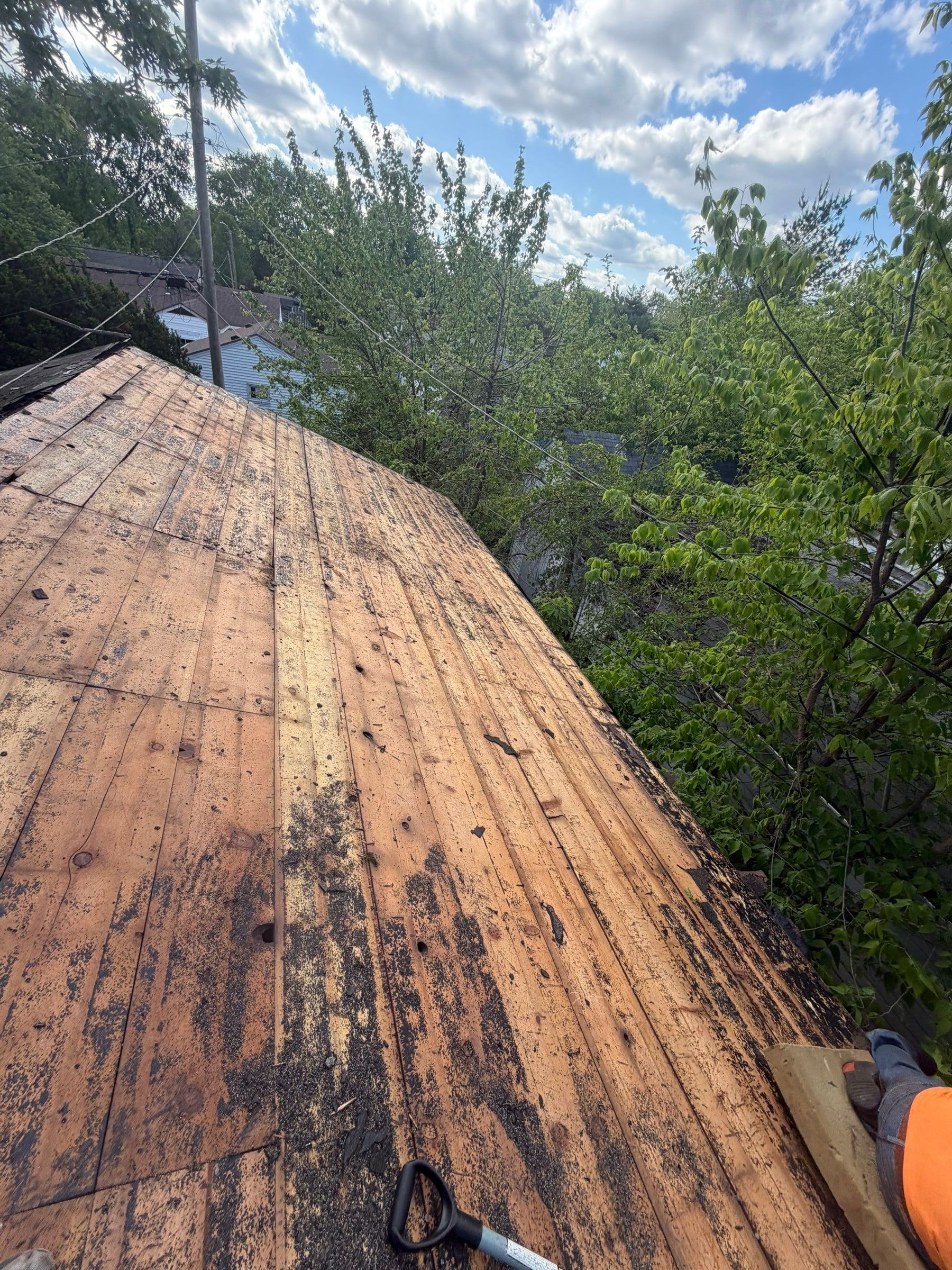

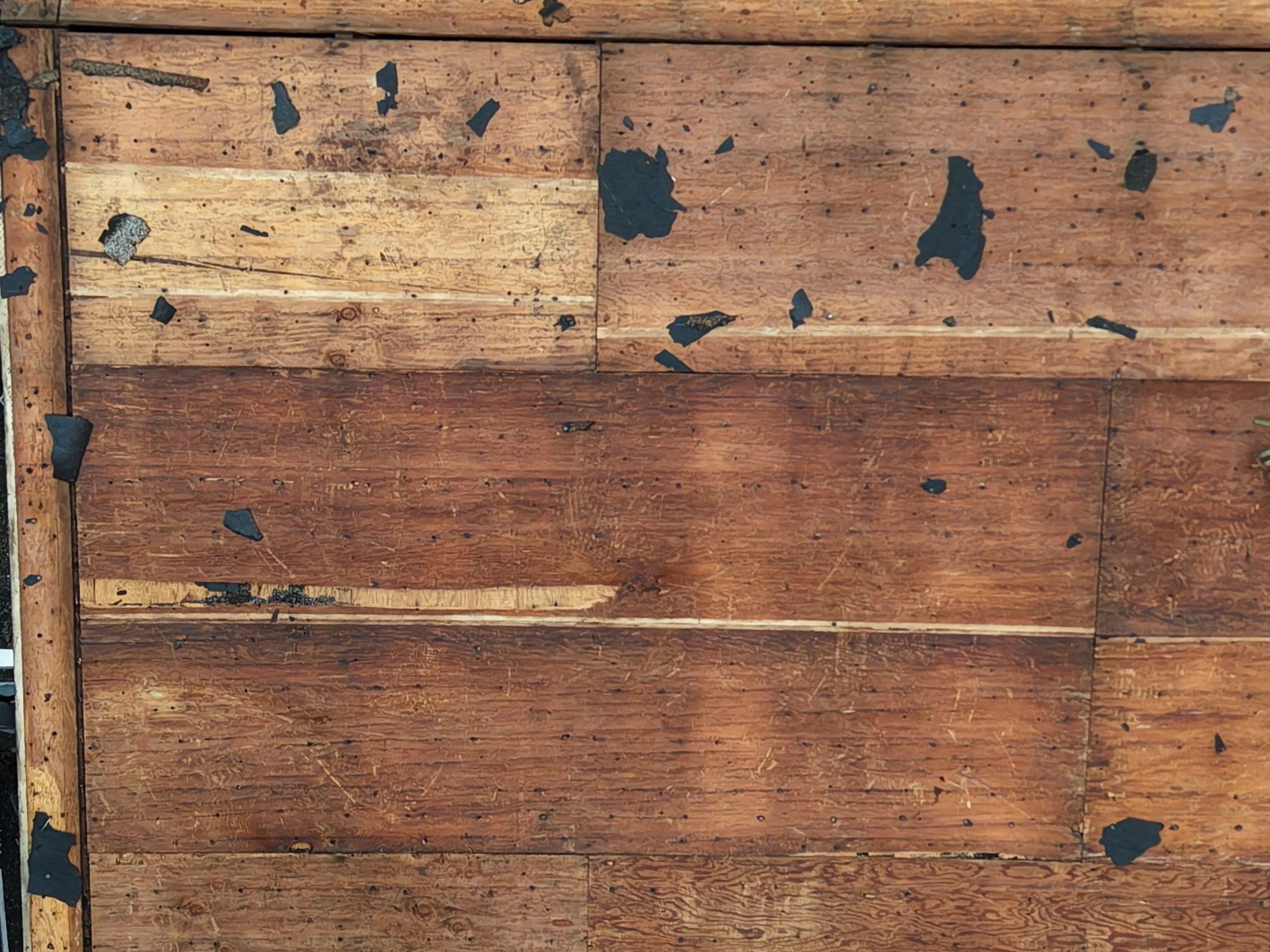

The old plywood deck after tear-off, its surface layers pulling away, Dayton, Ohio.

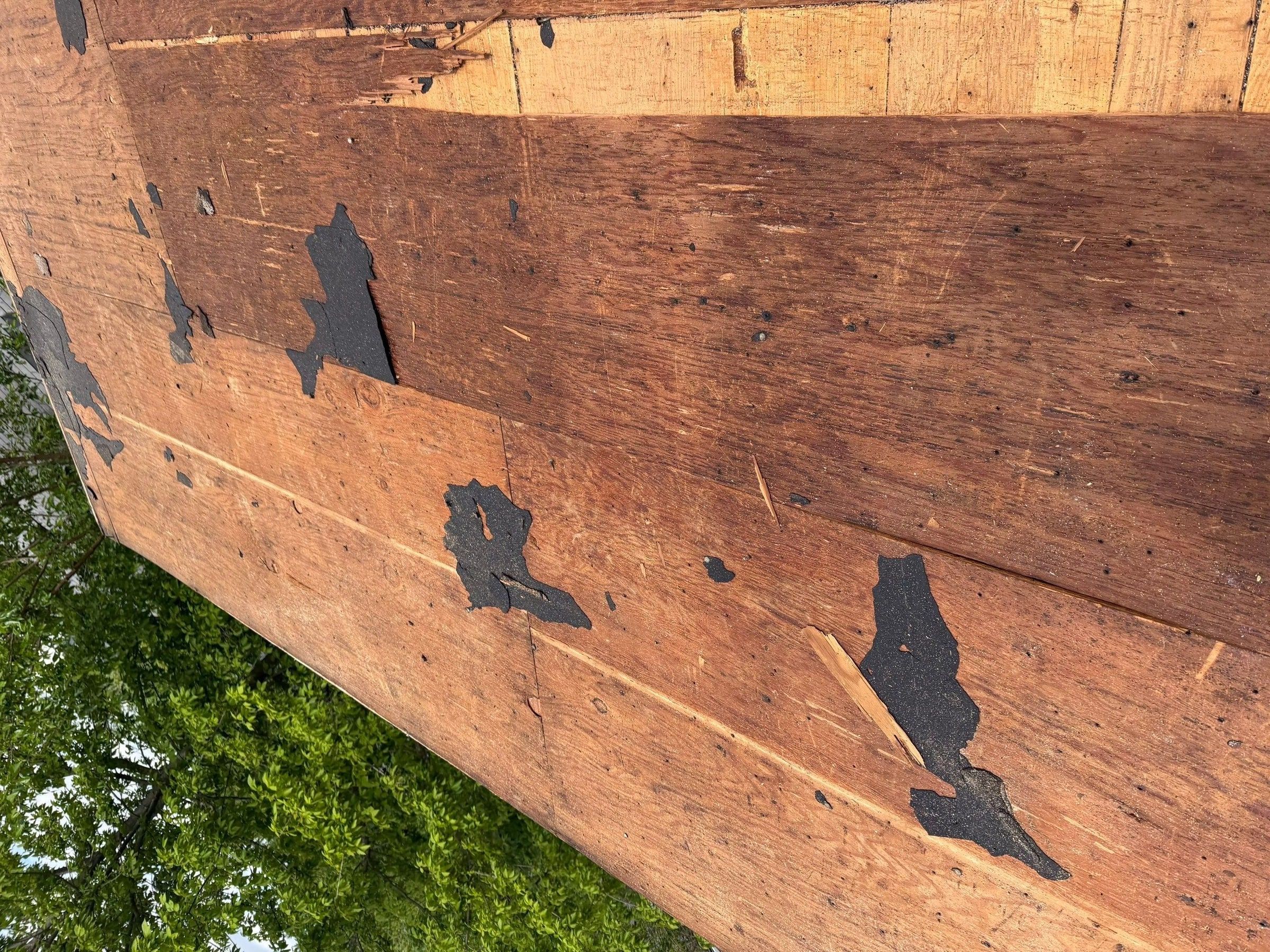

The old plywood roof deck with layers lifting and torn, Dayton, Ohio.

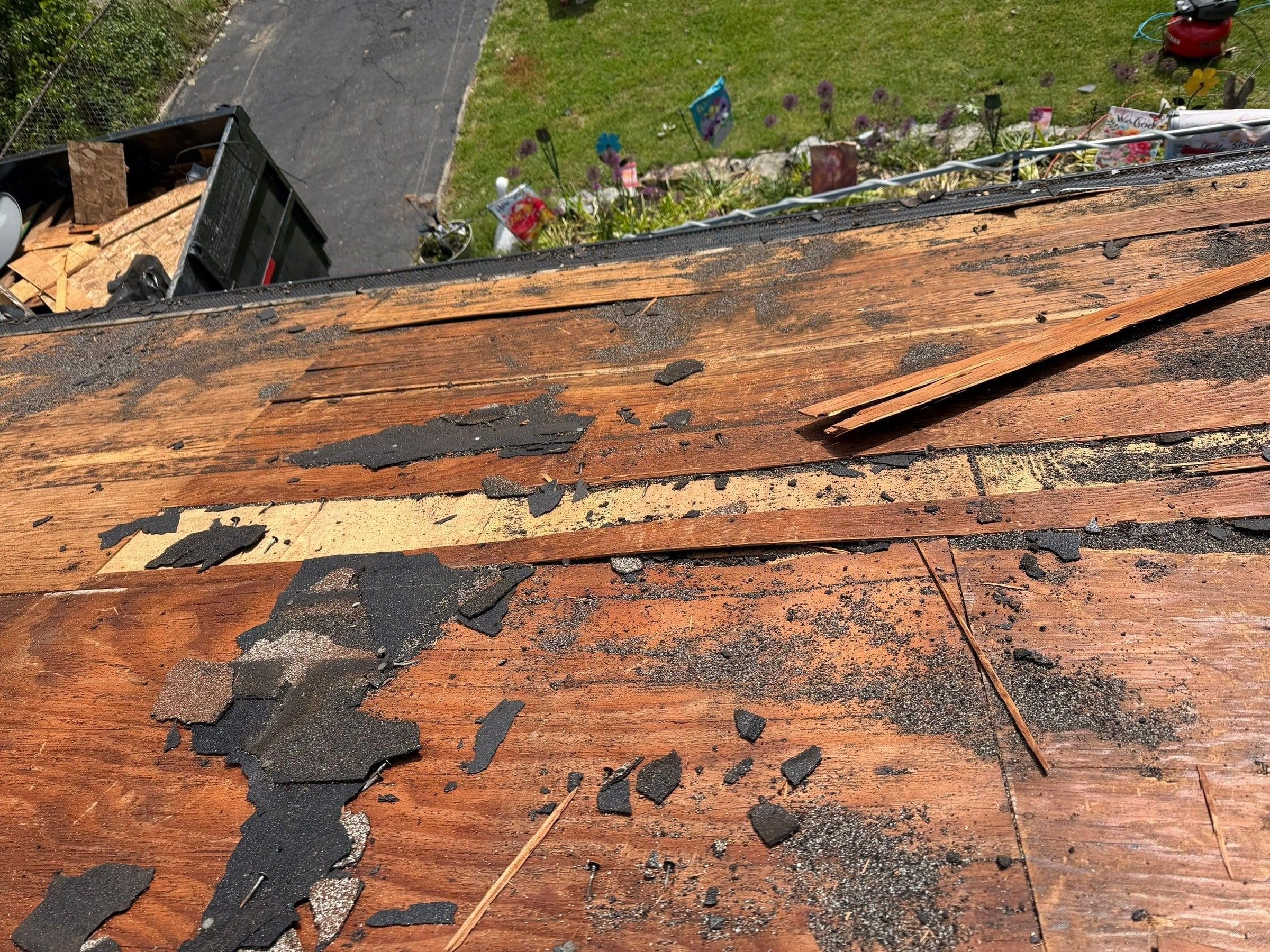

Delaminating plywood at the roof edge above the yard, Dayton, Ohio.

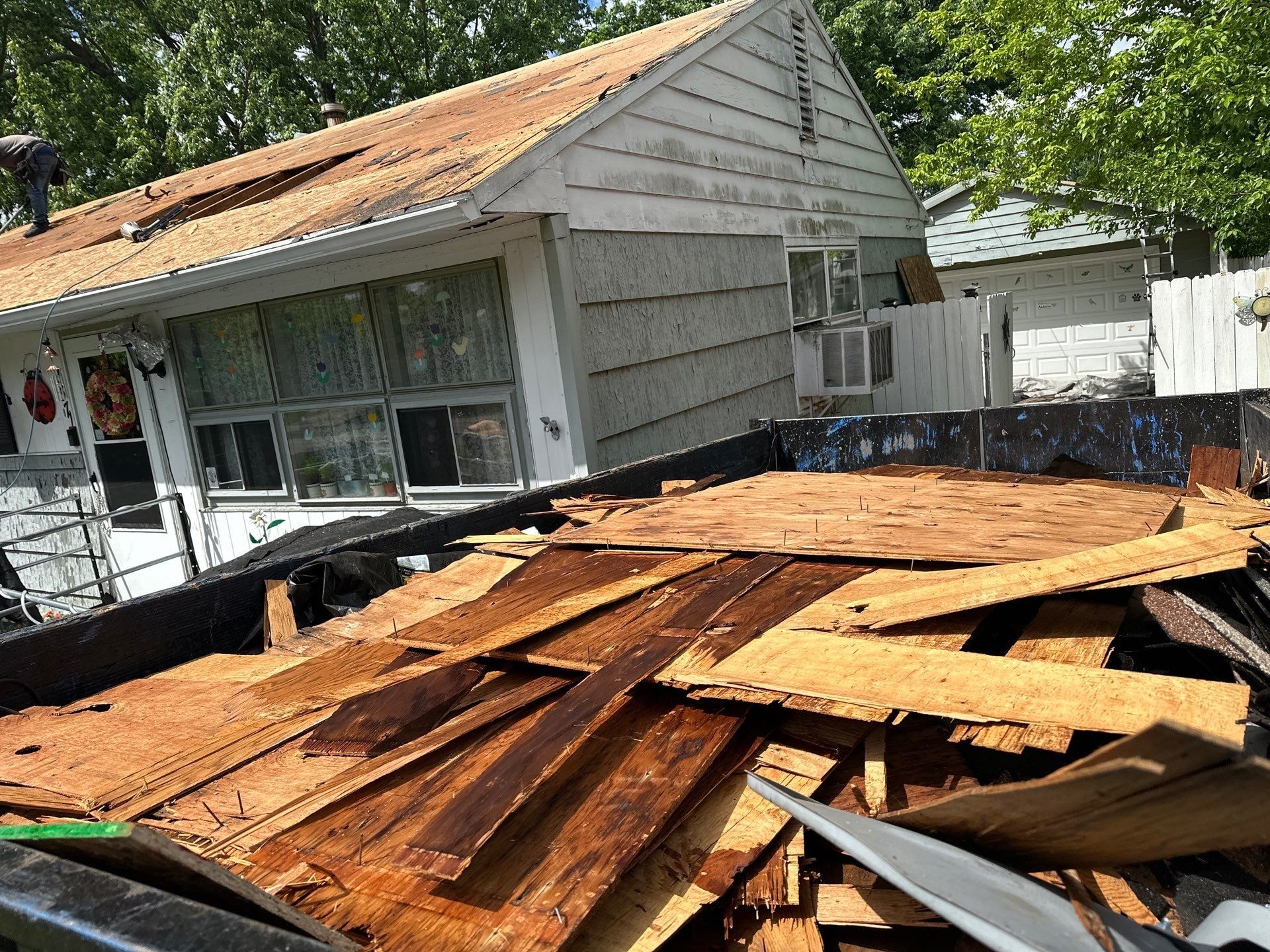

The old roof sheathing piled in the dumpster beside the house, Dayton, Ohio.

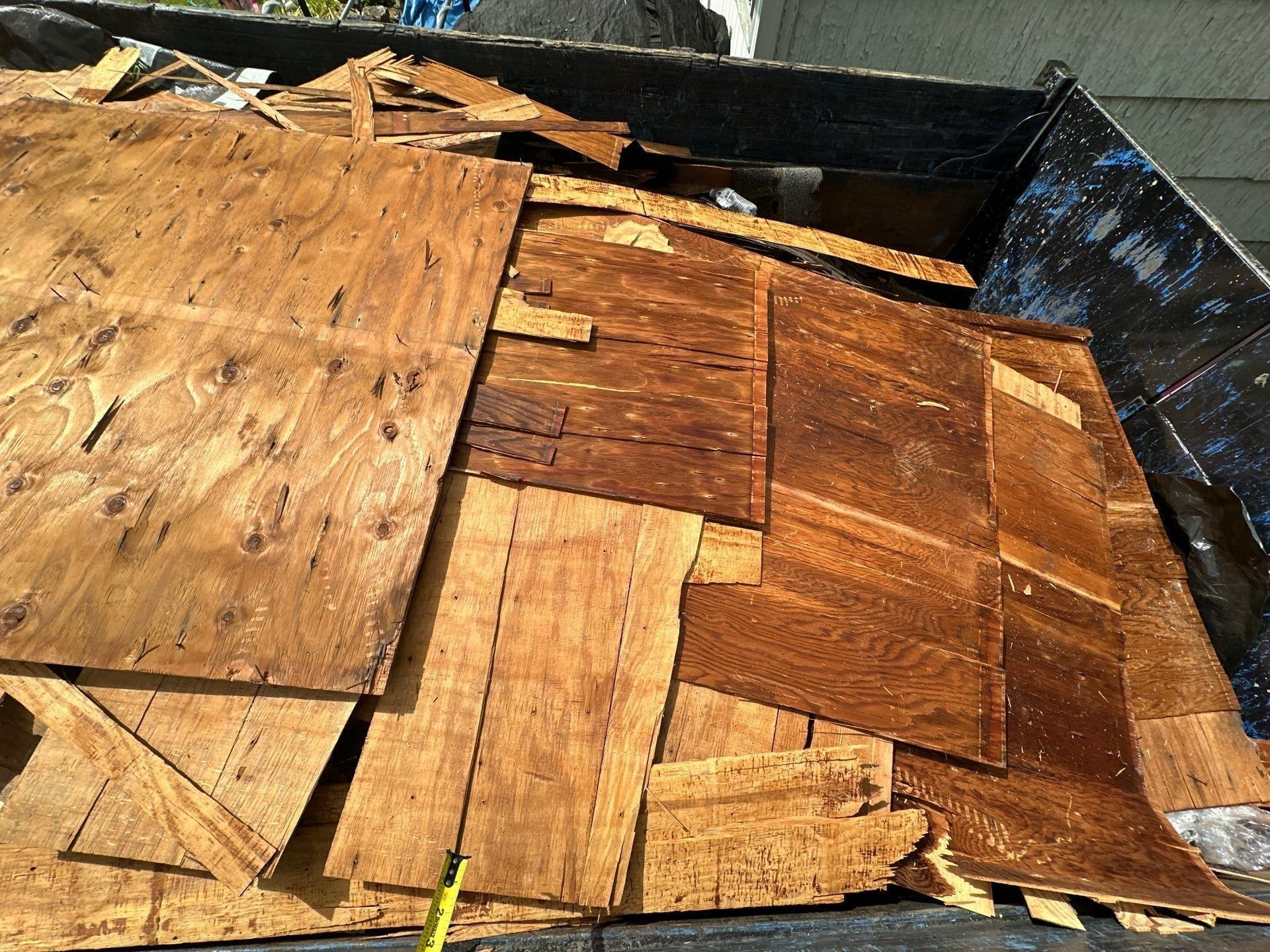

Torn-off plywood sheathing heaped in the dumpster, Dayton, Ohio.

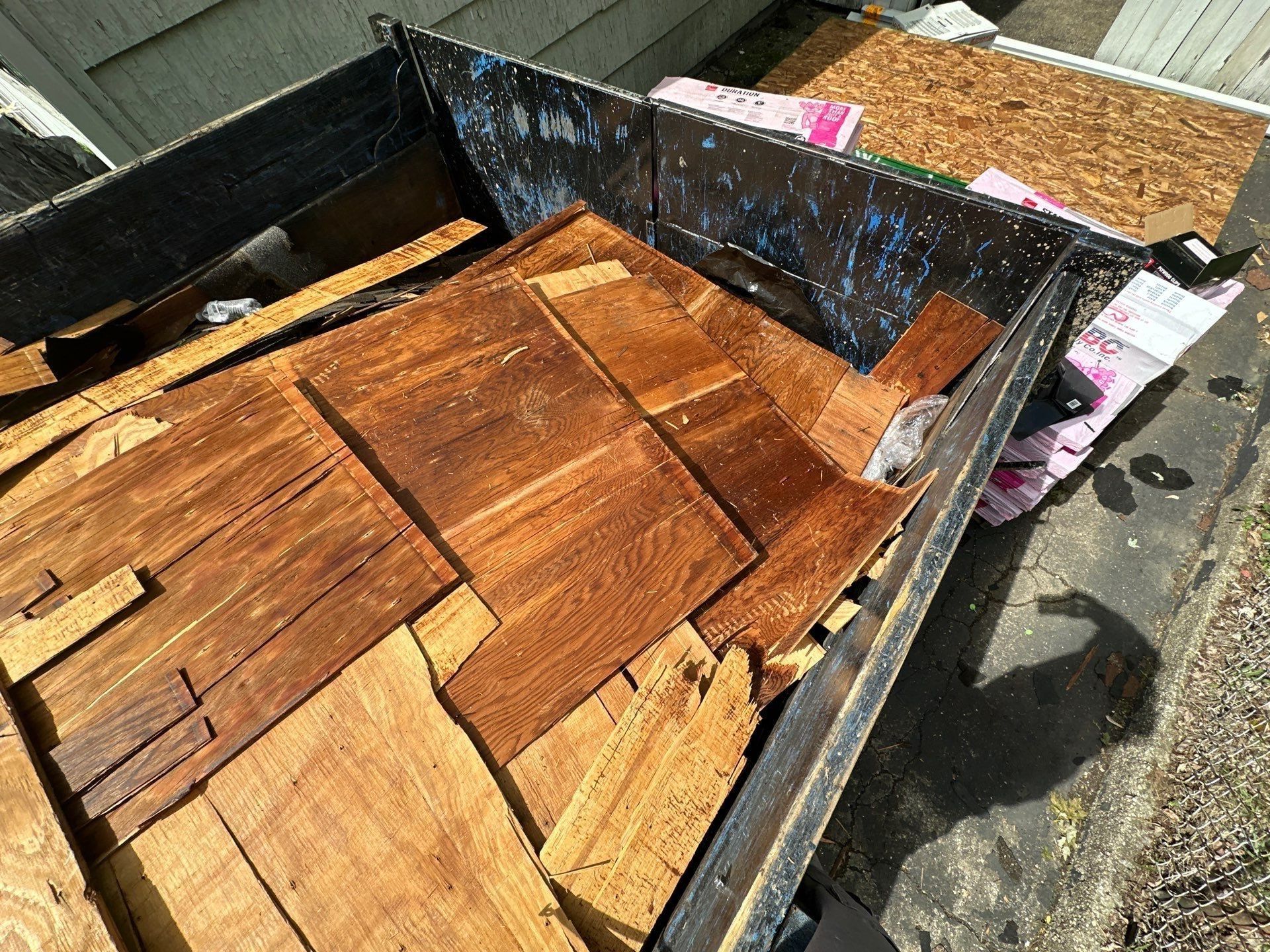

Pieces of the old delaminated sheathing in the dumpster, Dayton, Ohio.

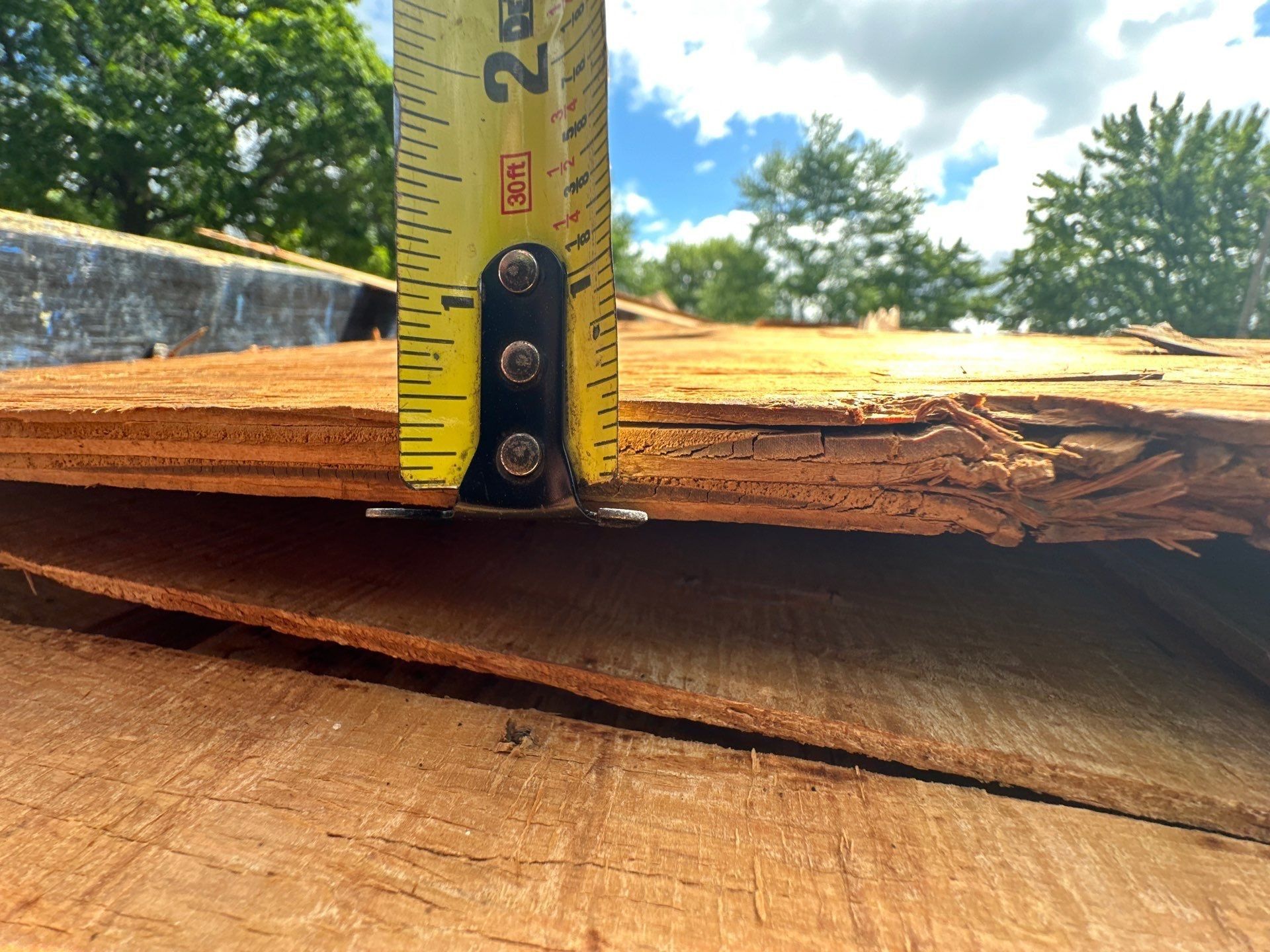

A tape measure against a piece of the old sheathing, too thin for a roof deck, Dayton, Ohio.

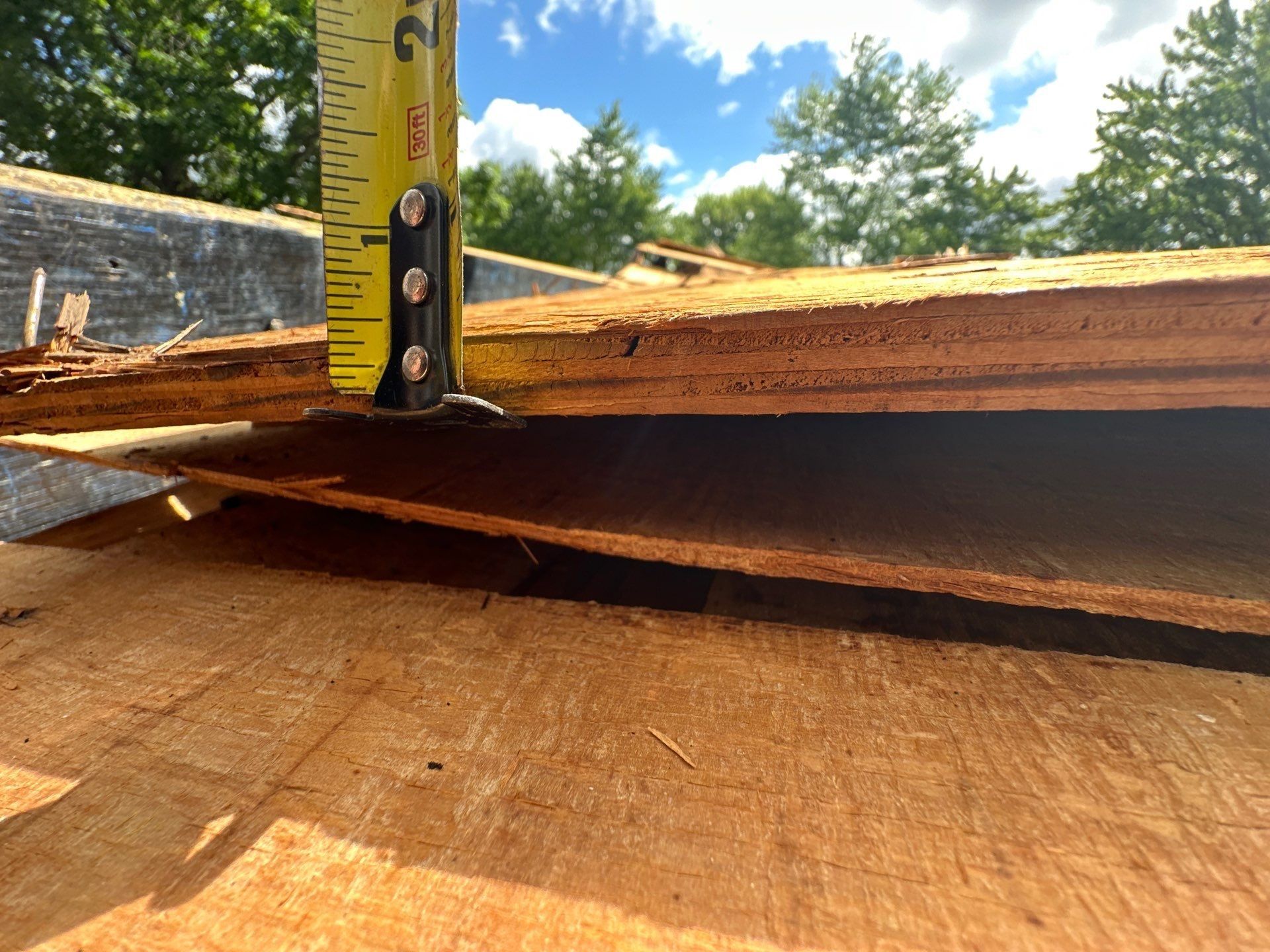

Measuring the thickness of the old plywood sheathing, Dayton, Ohio.

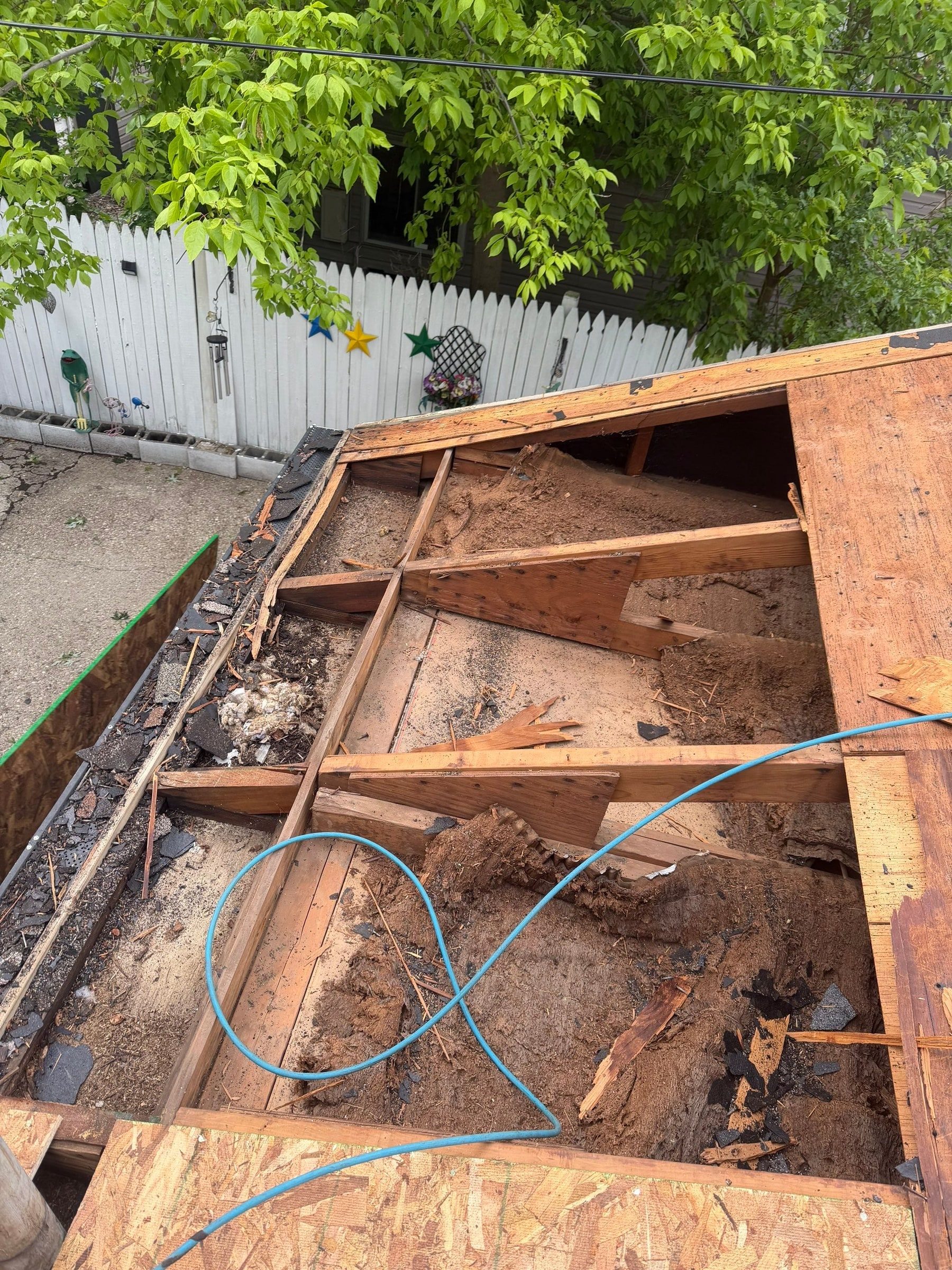

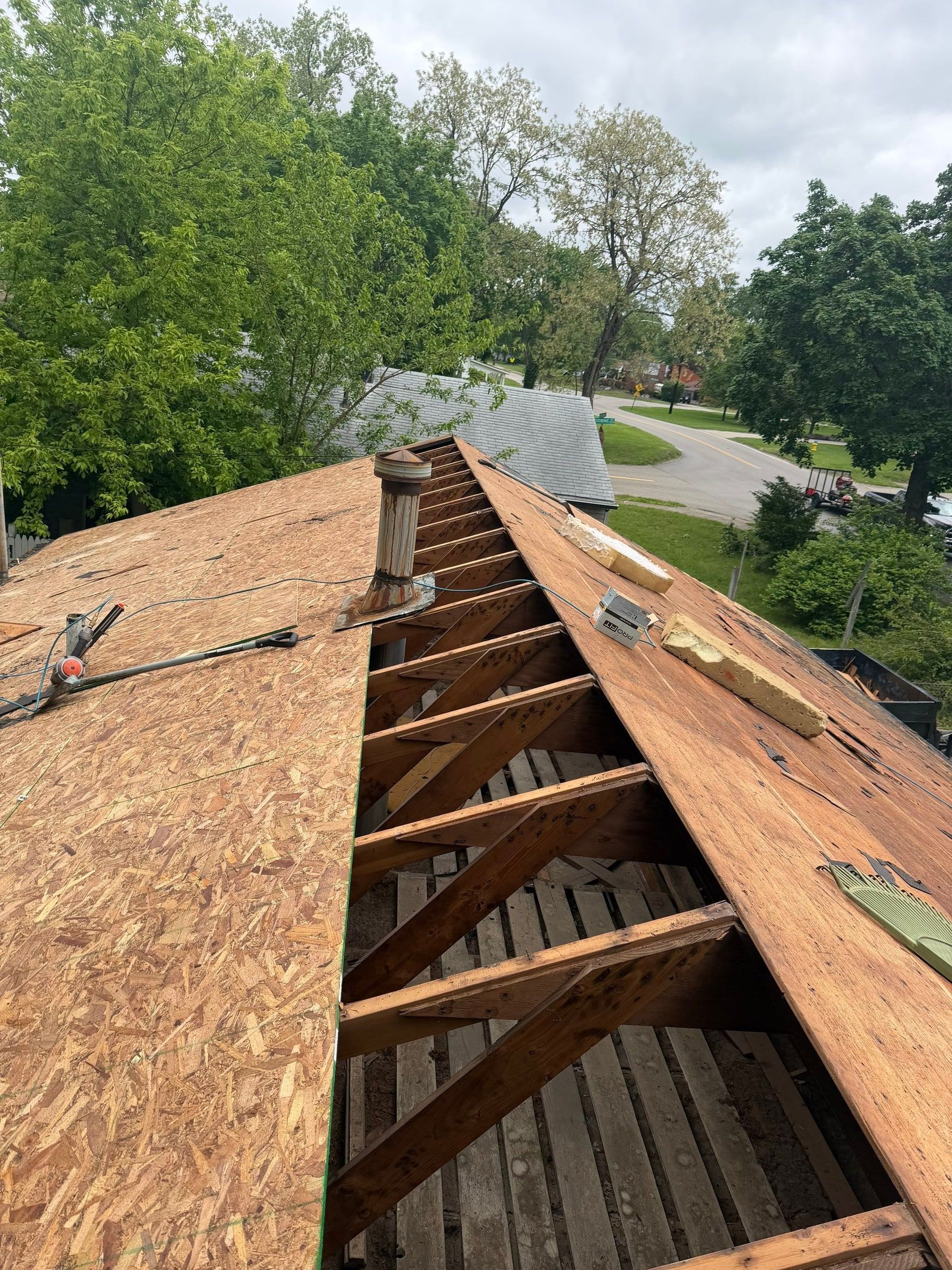

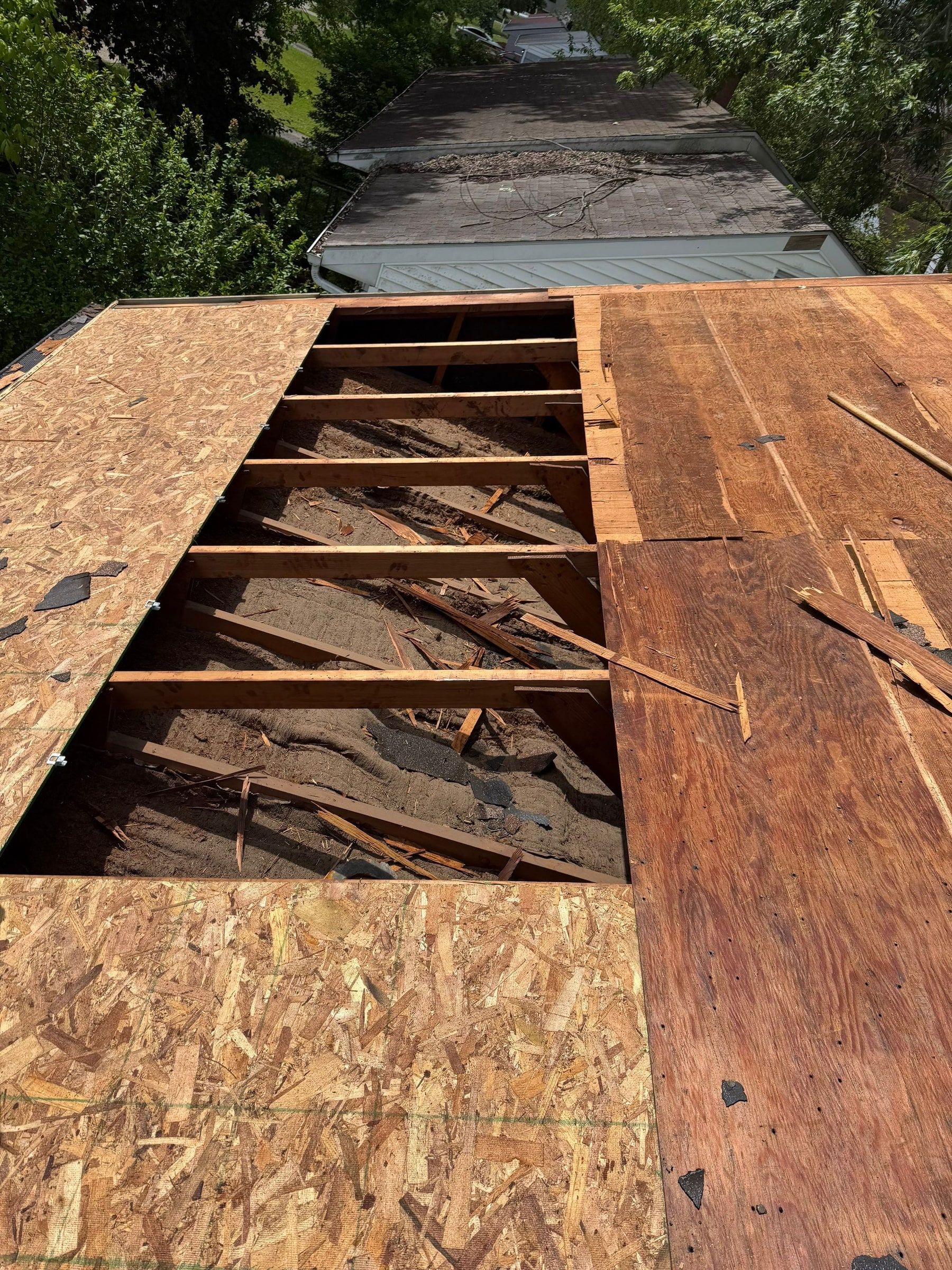

The rafters exposed where the old sheathing came off, between sheets of new OSB, Dayton, Ohio.
Open rafters where the old sheathing was taken off, Dayton, Ohio.

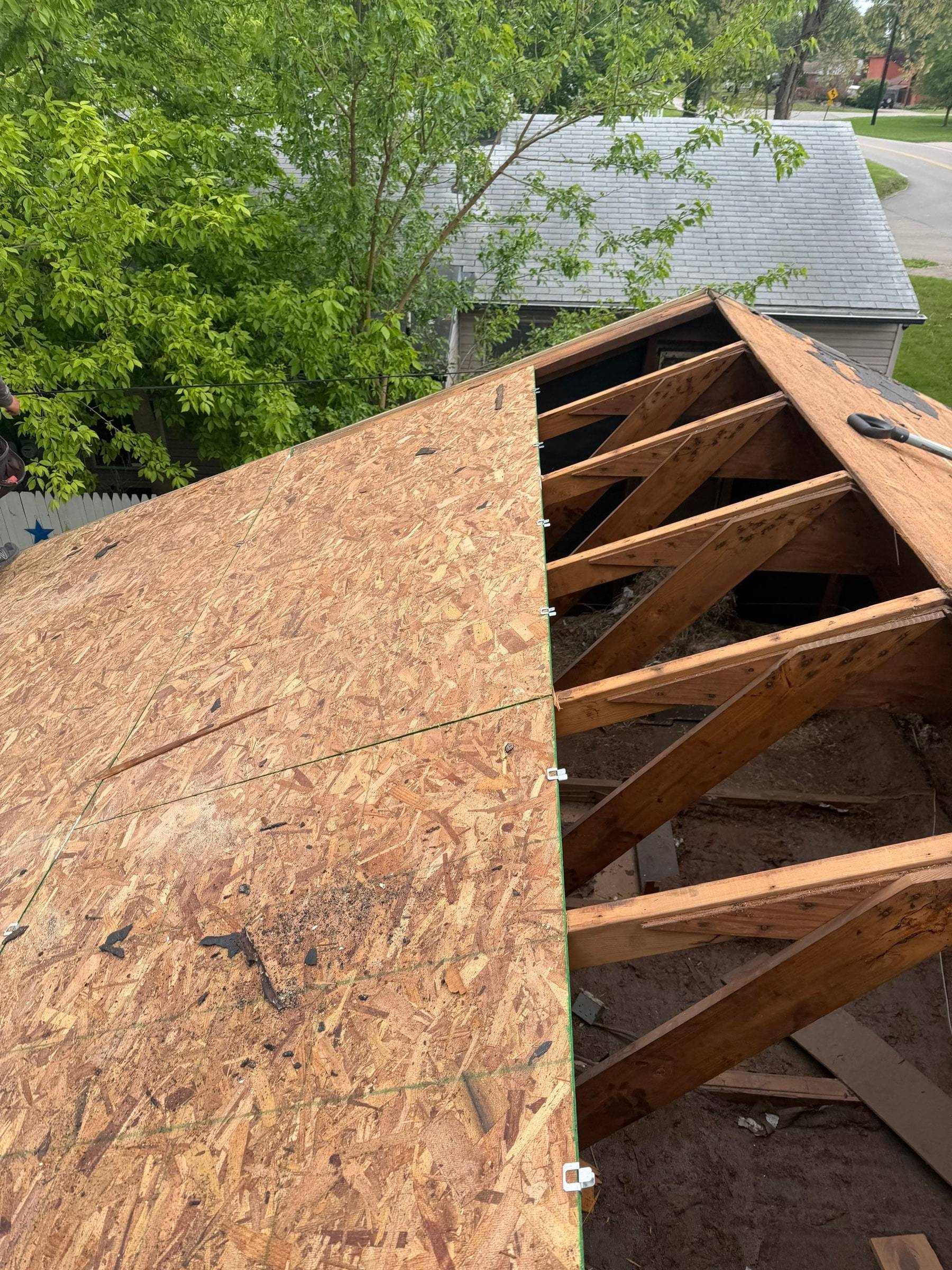

Old sheathing removed at the end of the roof, new OSB going on beside it, Dayton, Ohio.
The last row of old sheathing removed below the ridge, Dayton, Ohio.

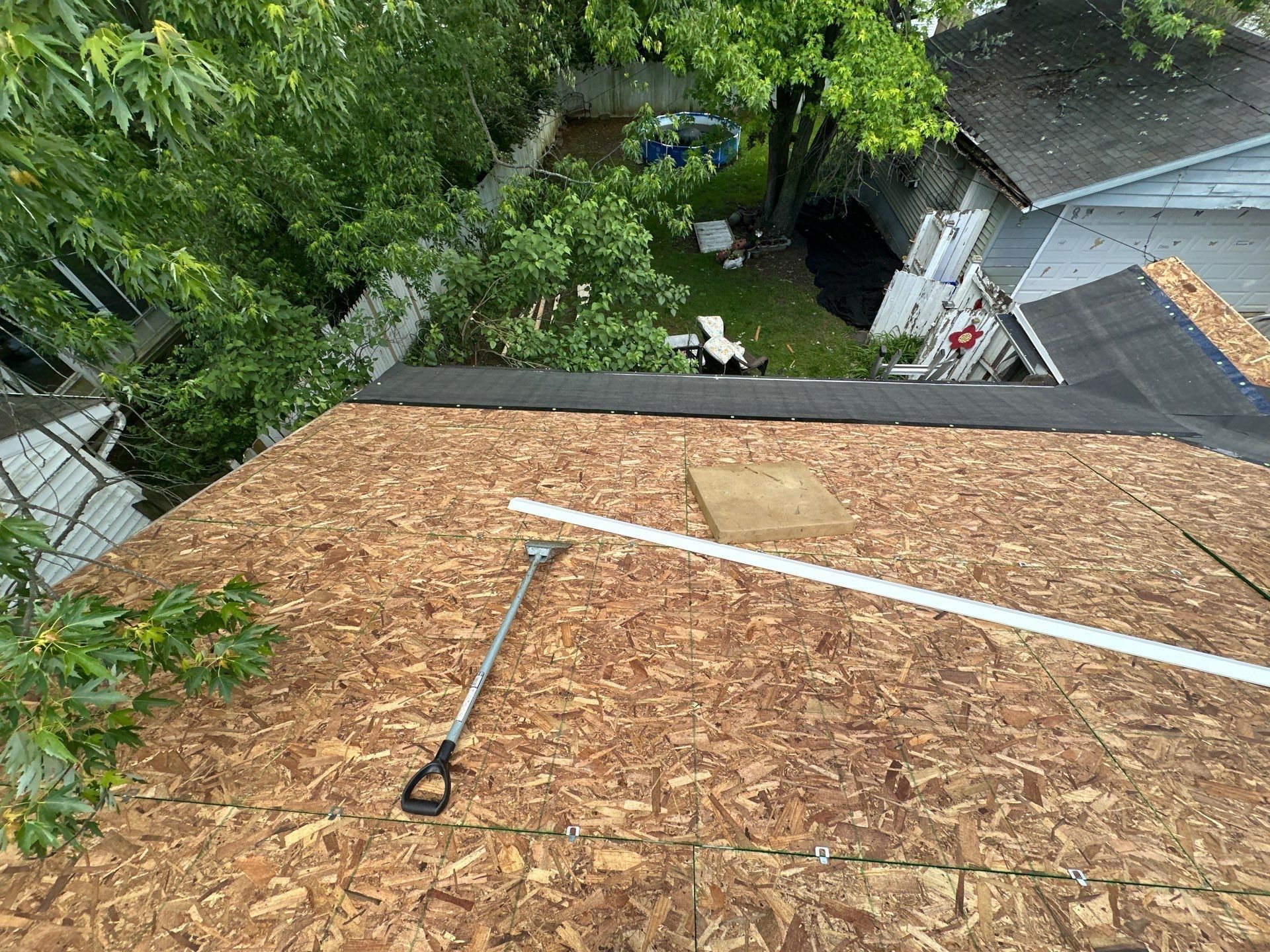

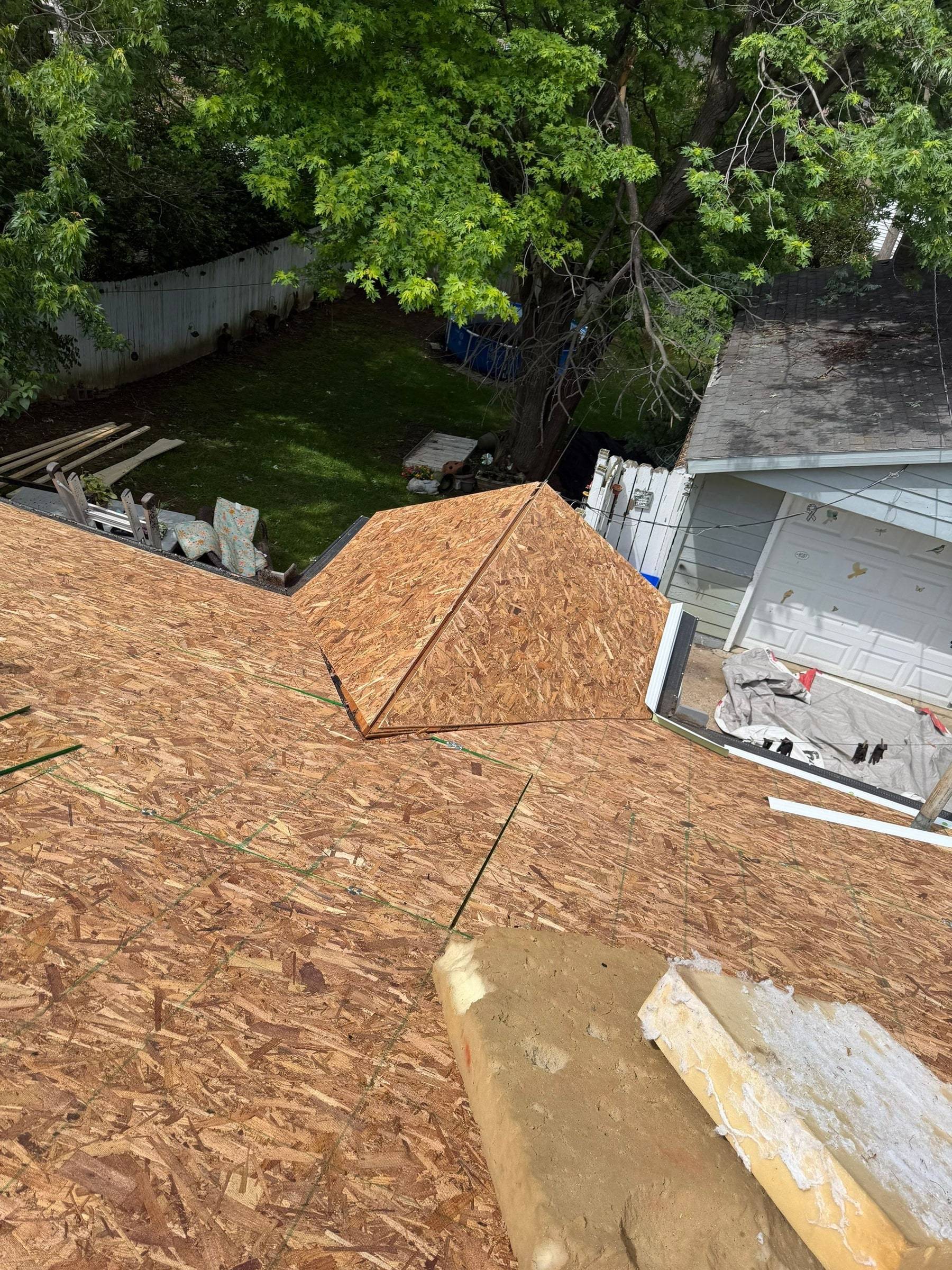

New OSB sheathing covering the roof up to a small gable, Dayton, Ohio.

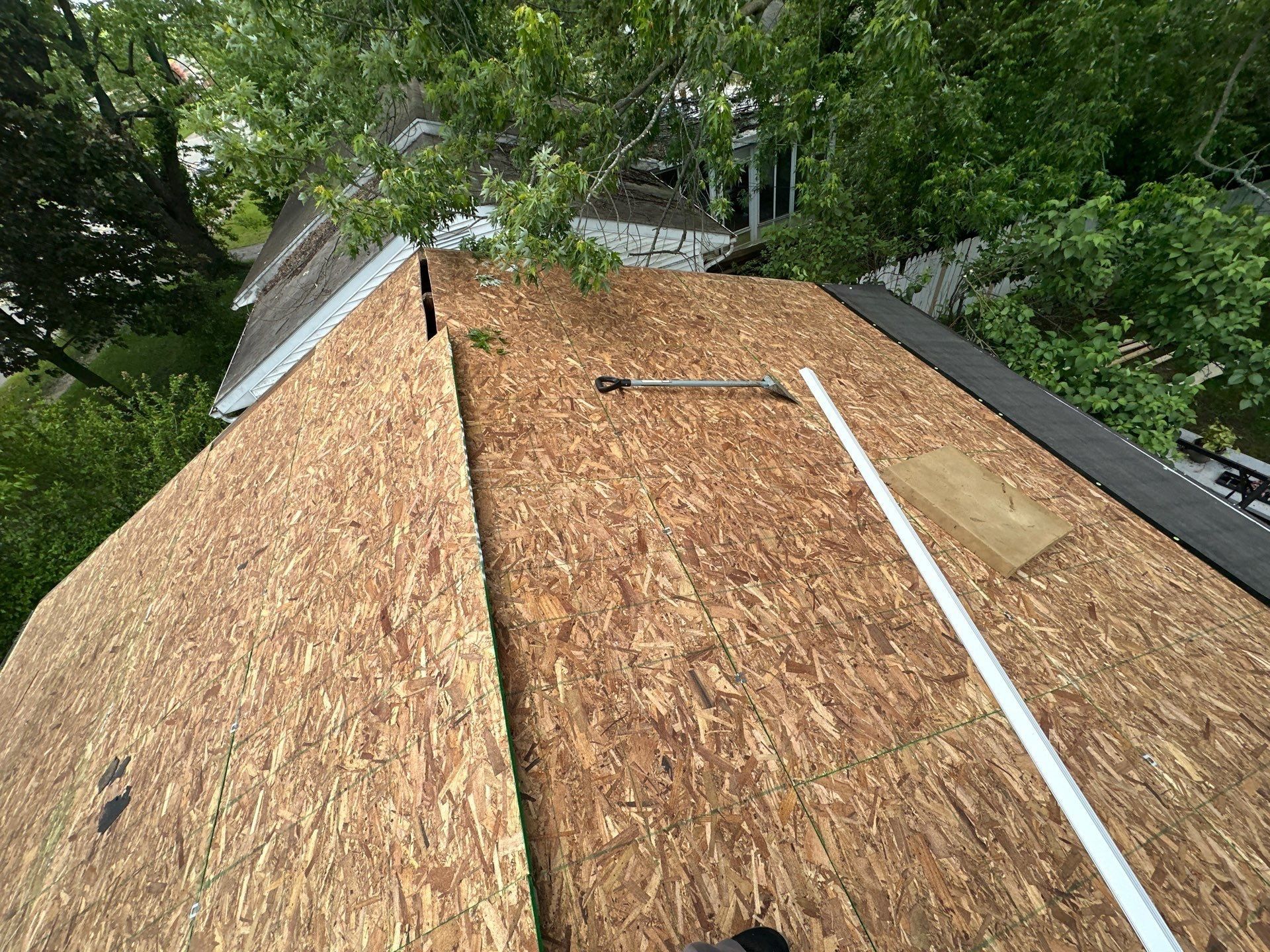

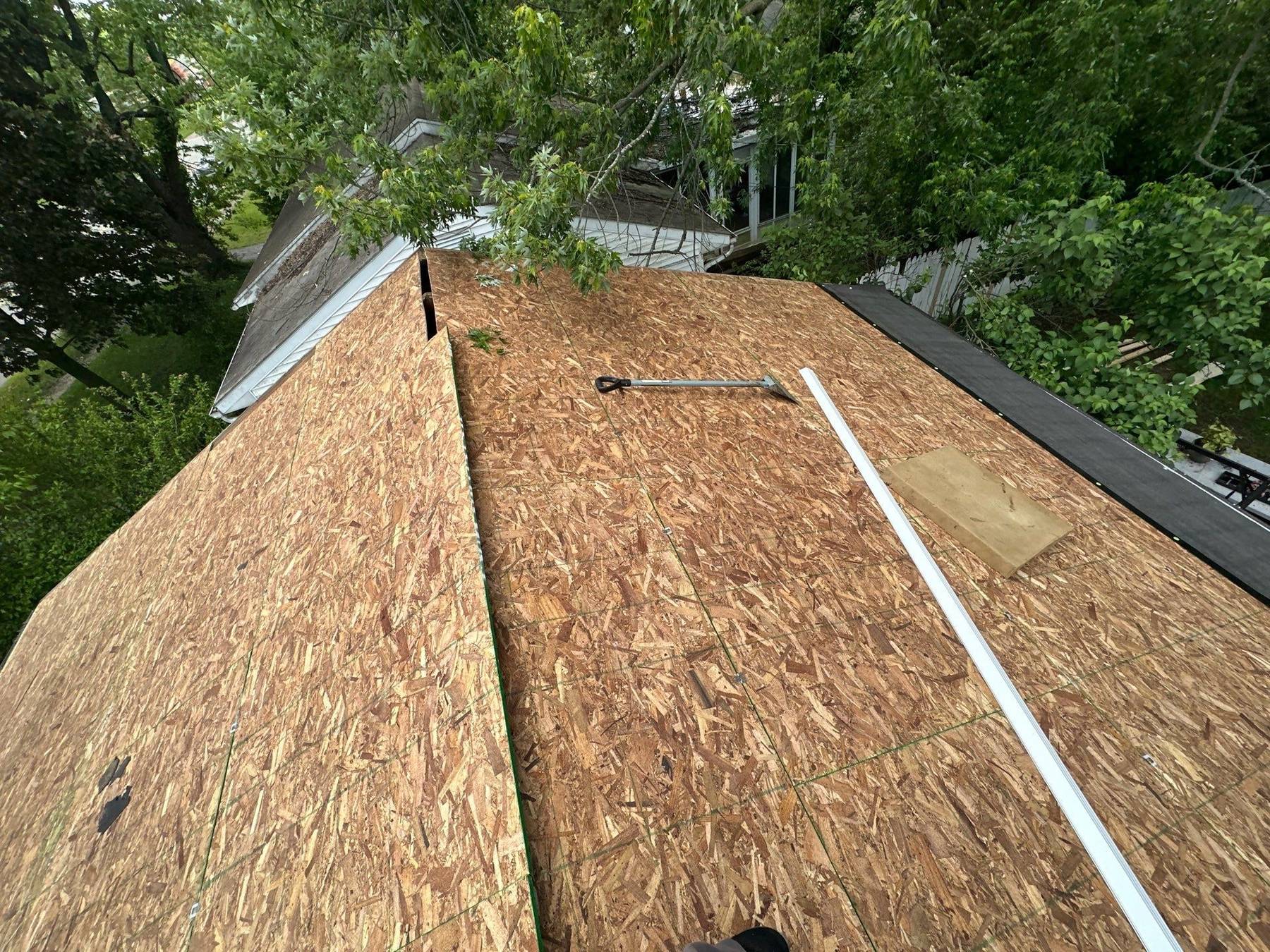

New OSB sheathing on both sides of the ridge, Dayton, Ohio.

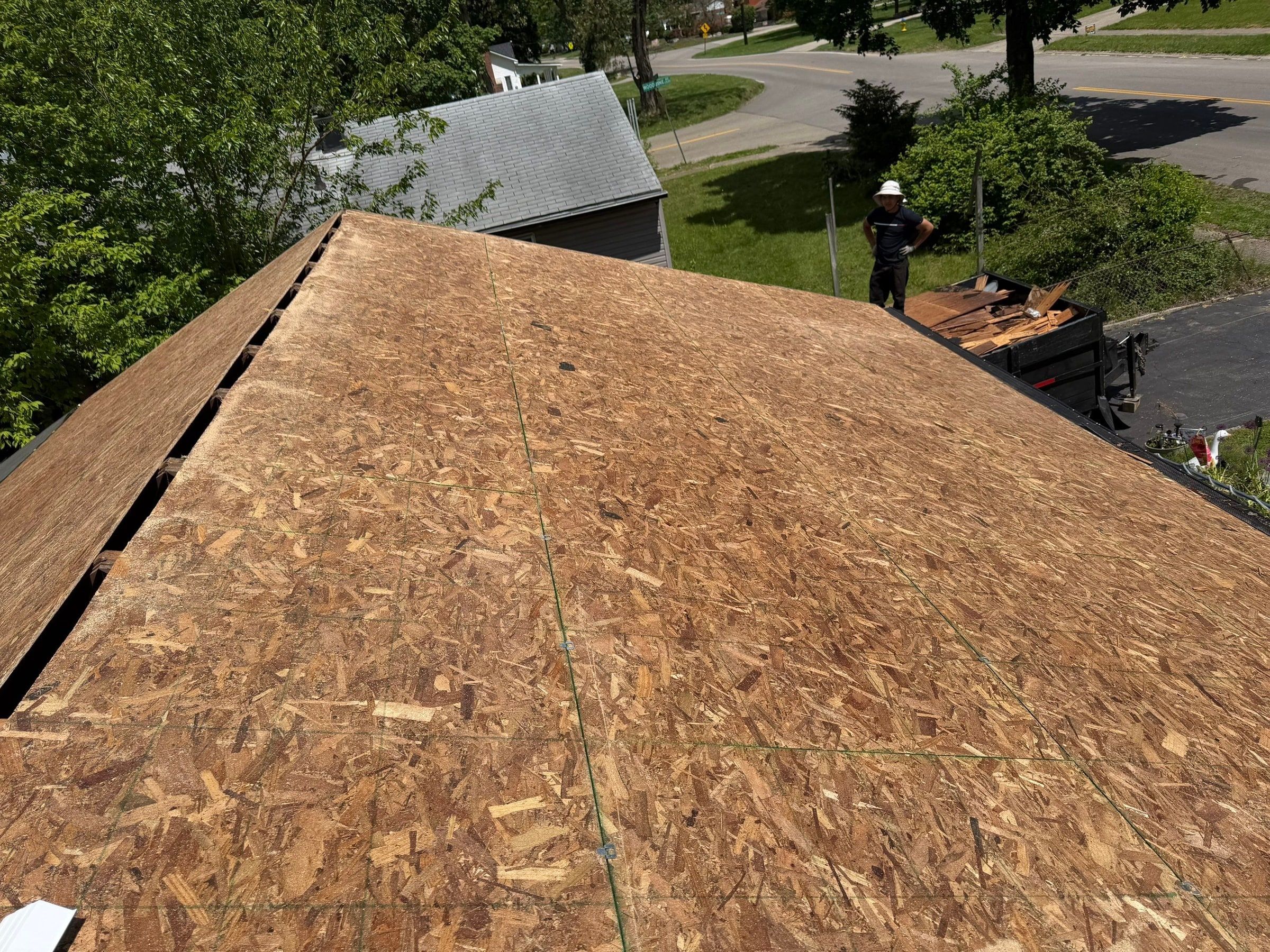

New OSB sheathing across the roof above the front yard, Dayton, Ohio.

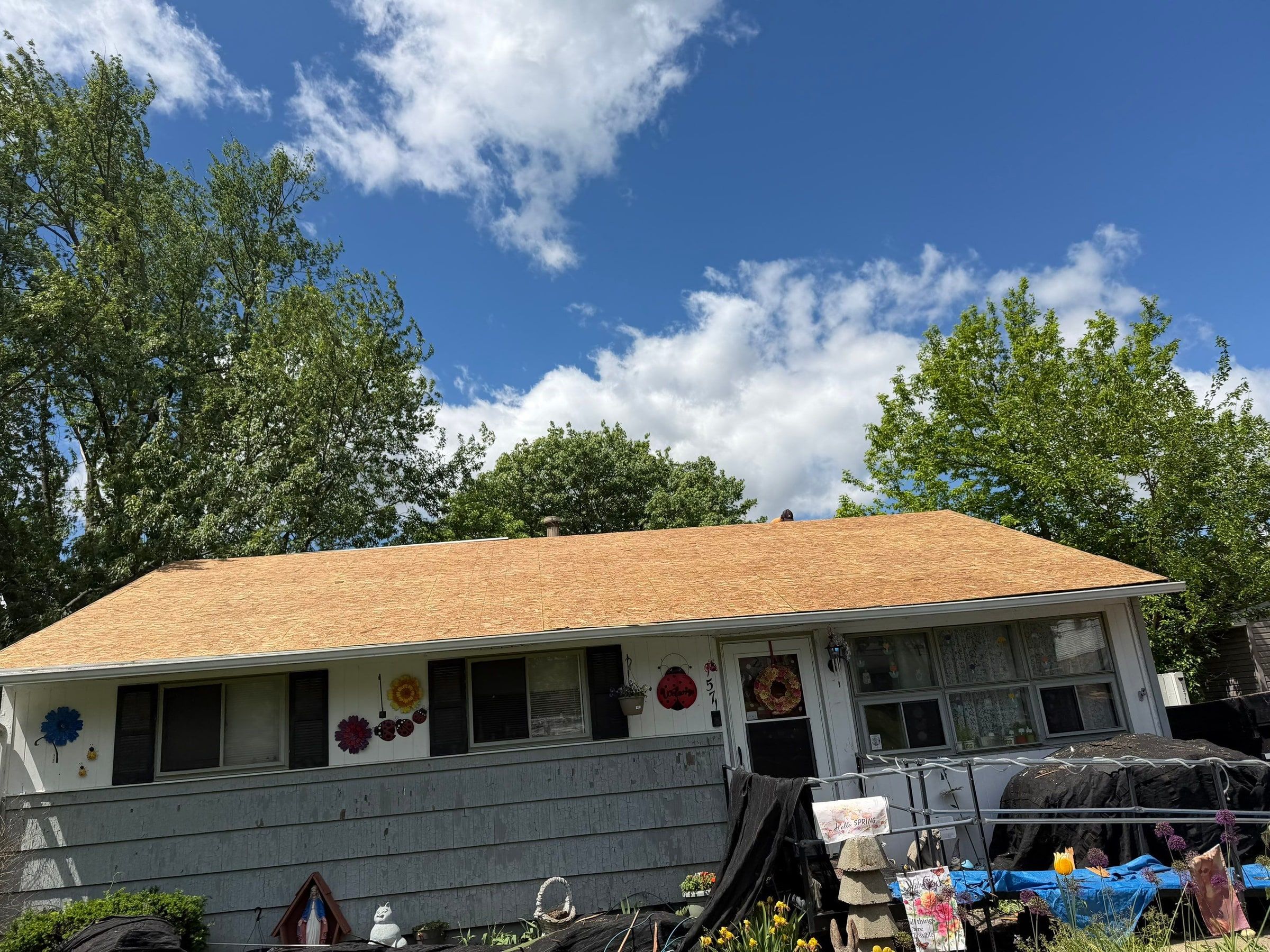

The house with its whole roof resheeted in new OSB, seen from the front lawn, Dayton, Ohio.

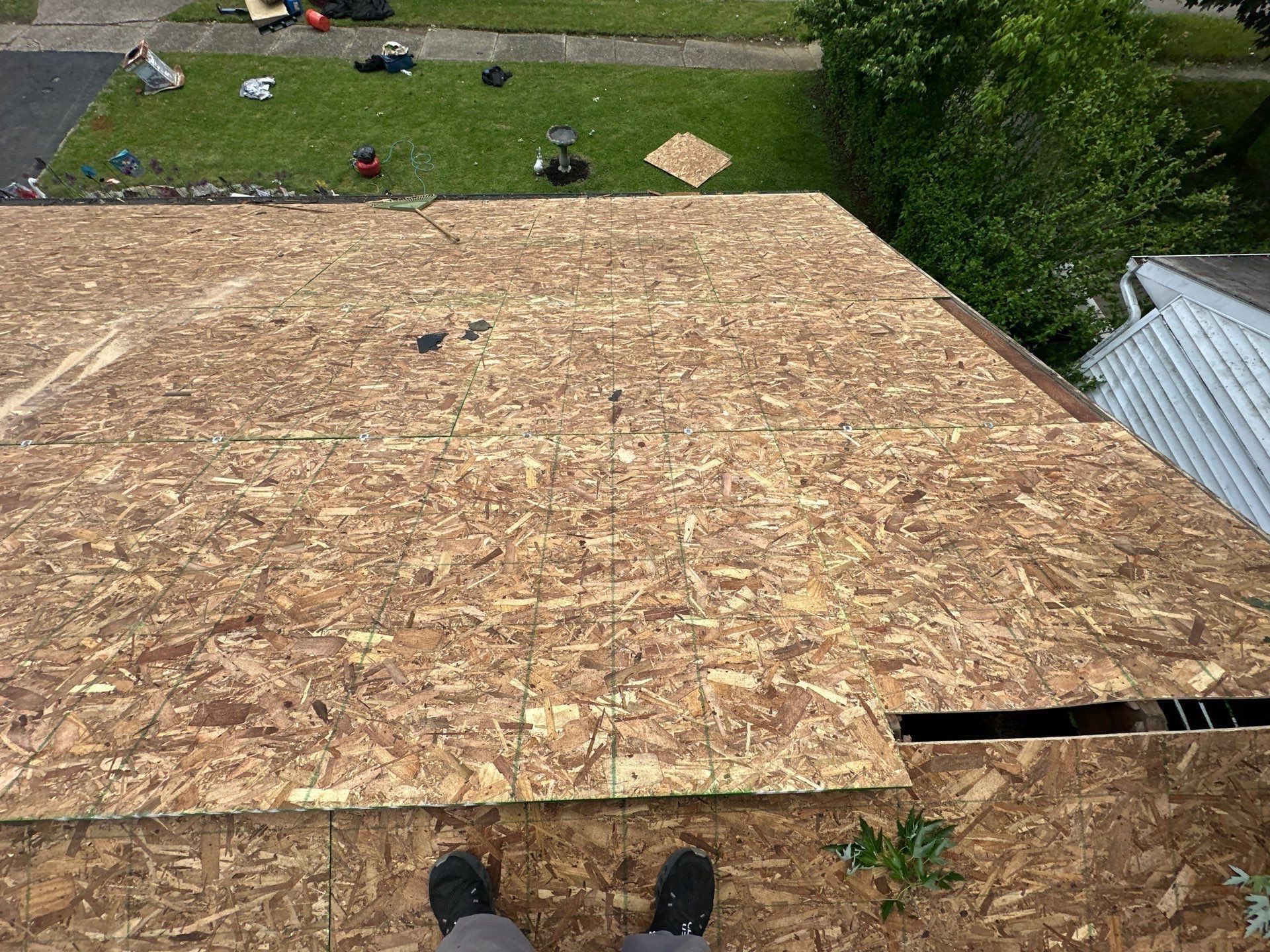

New OSB sheathing down the back of the roof, with the photographer's feet at the ridge, Dayton, Ohio.

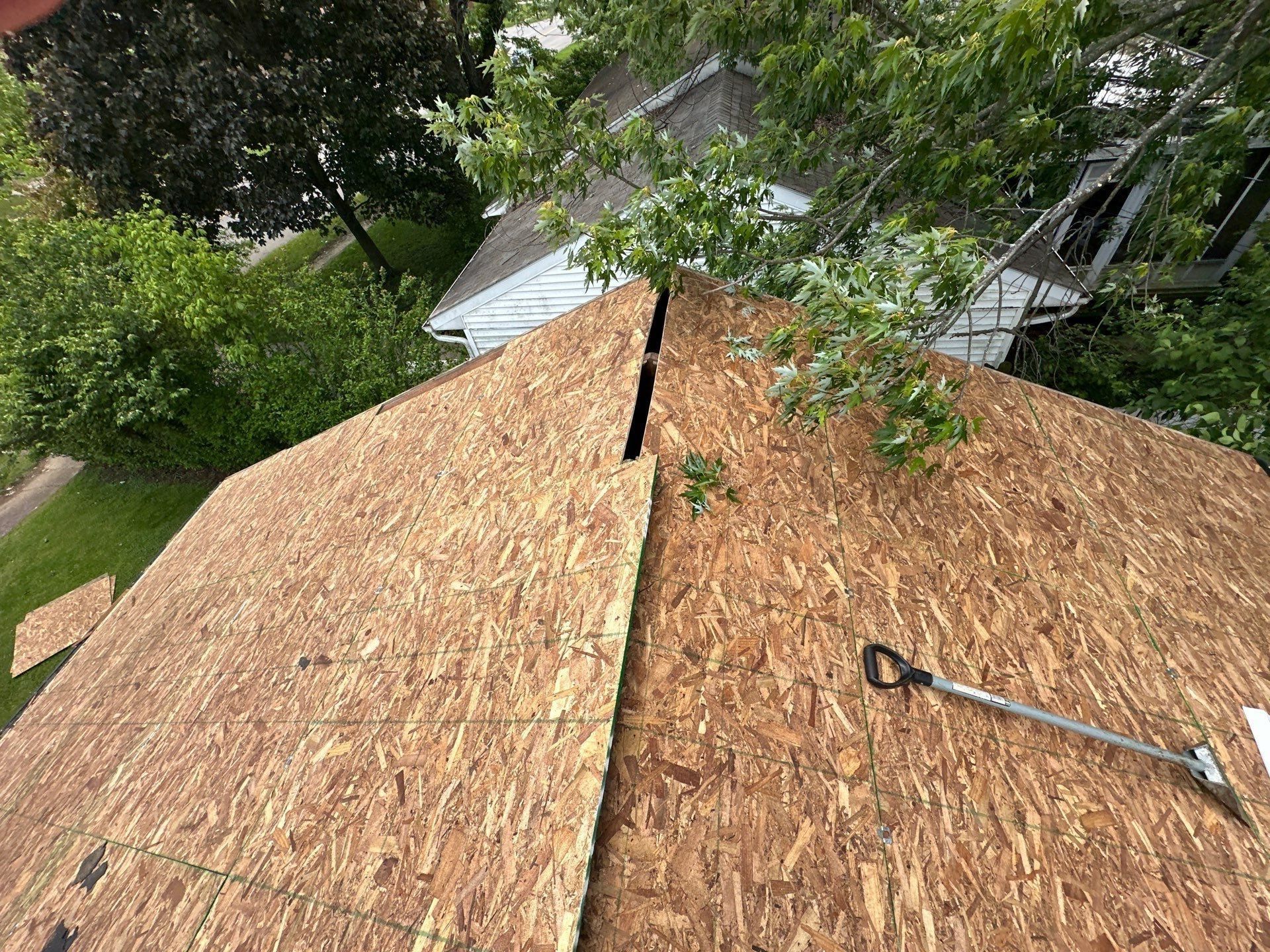

New OSB sheathing meeting at the ridge above the back yard, Dayton, Ohio.

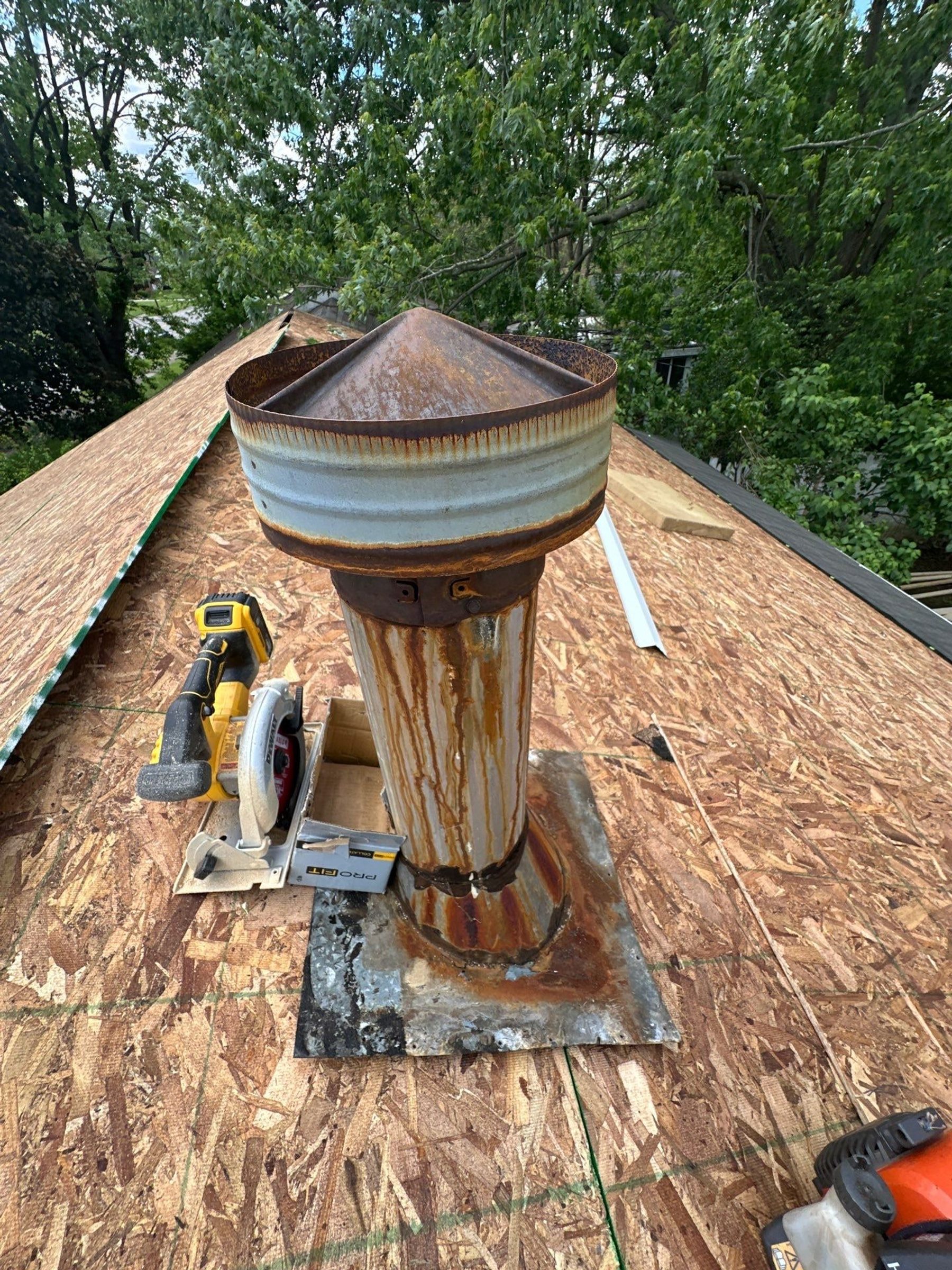

The furnace vent that sat under the faux chimney, standing on the new deck, Dayton, Ohio.

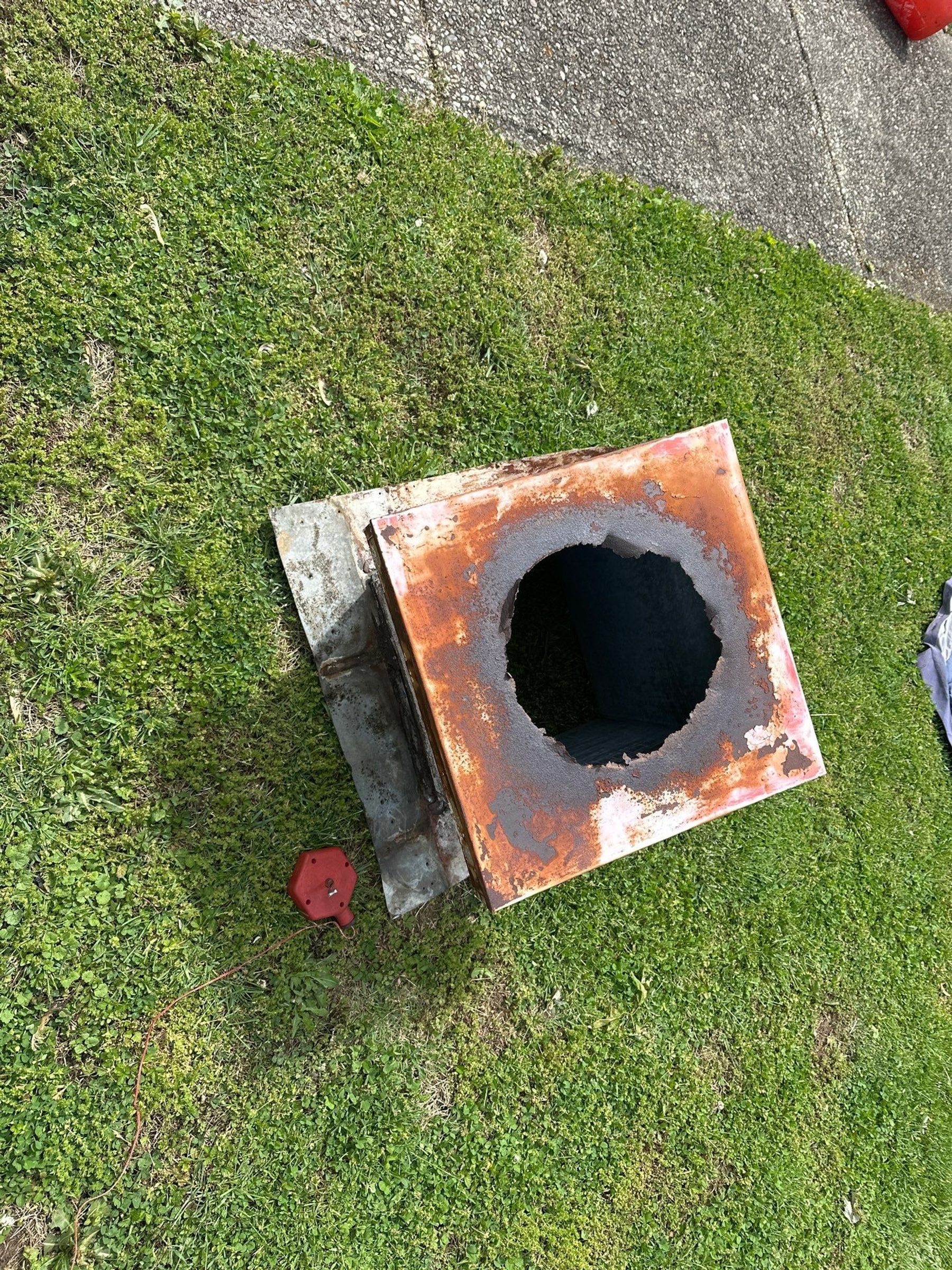

The faux chimney box, taken off the roof and set on the lawn, Dayton, Ohio.

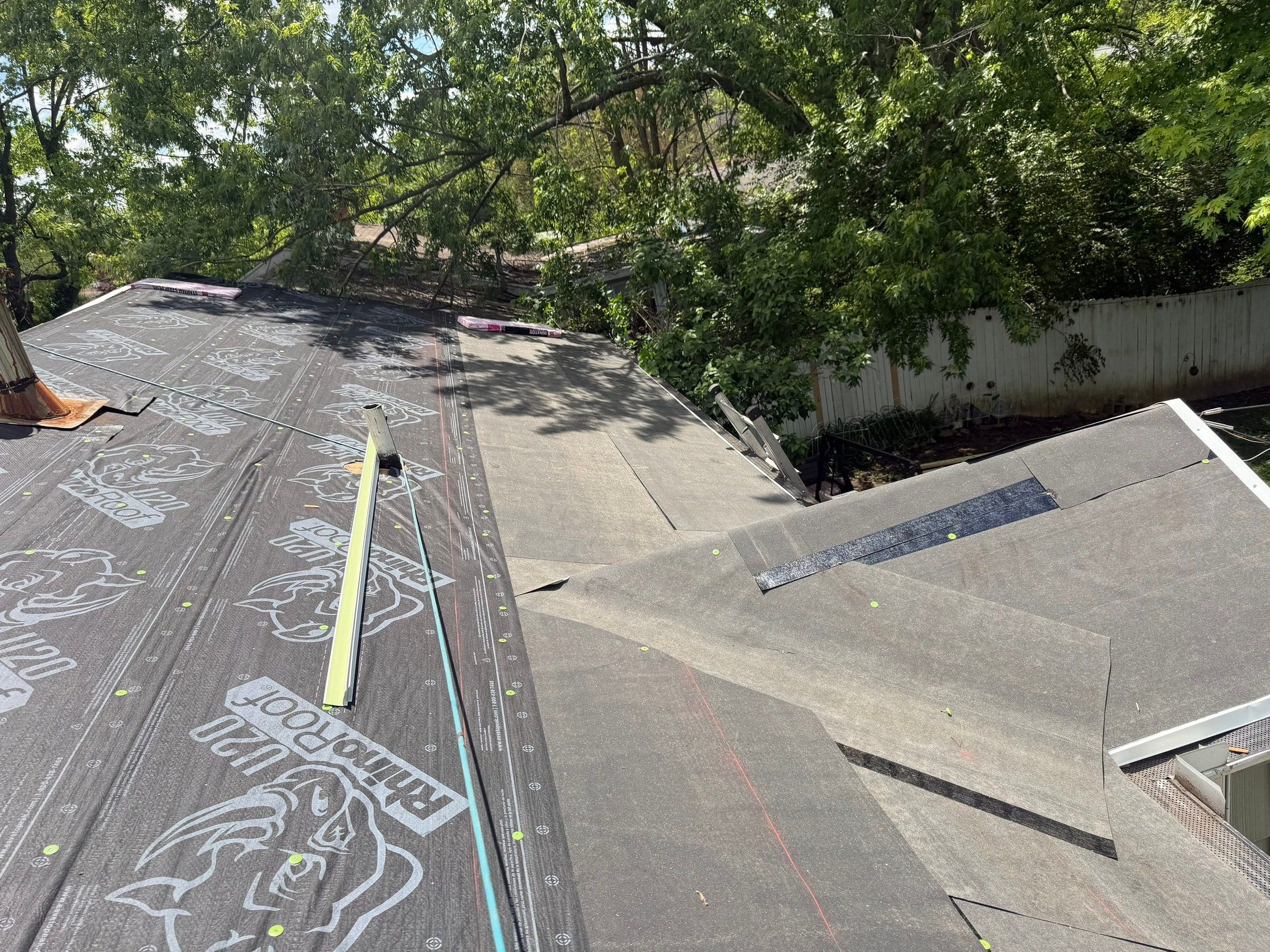

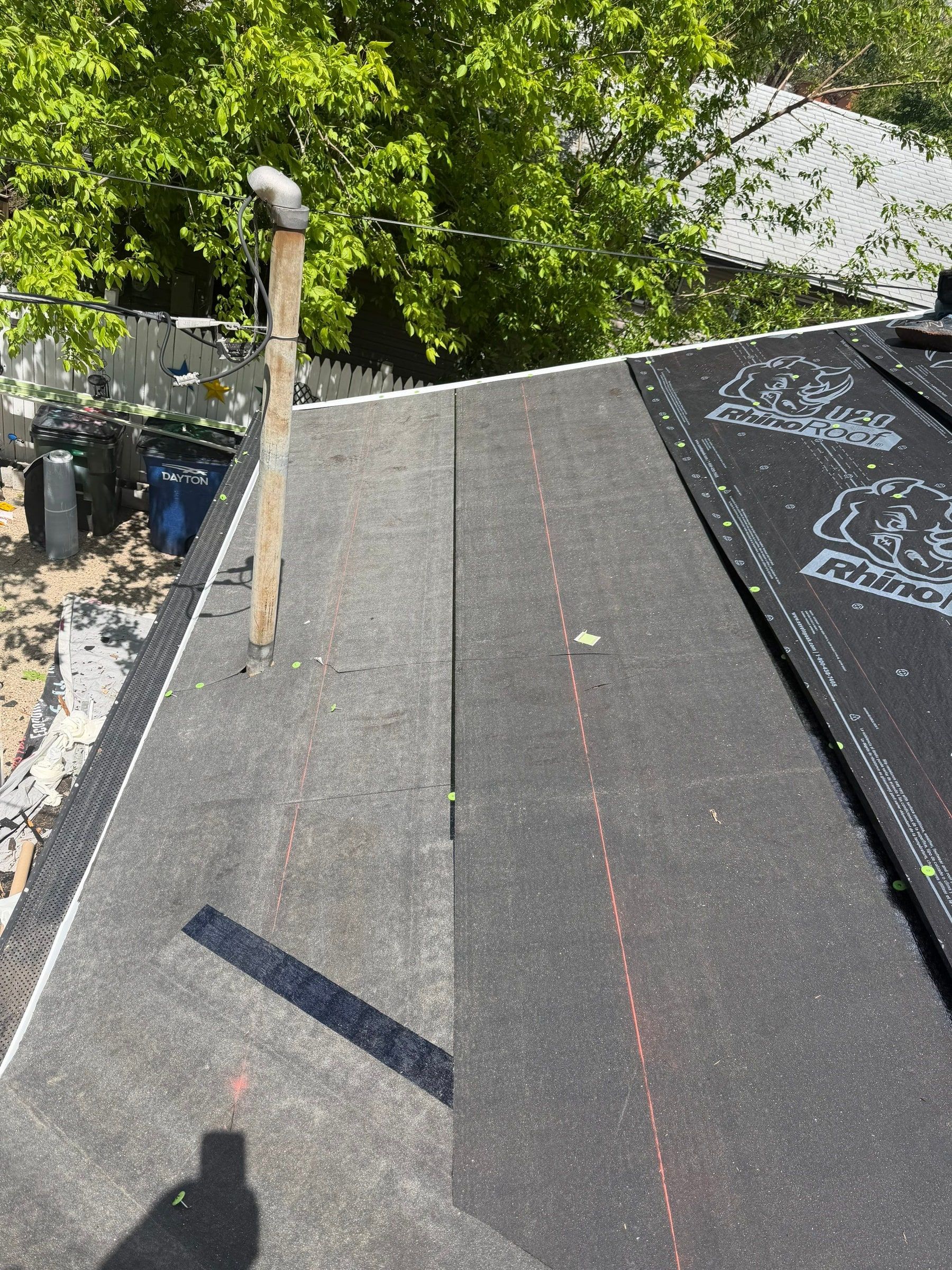

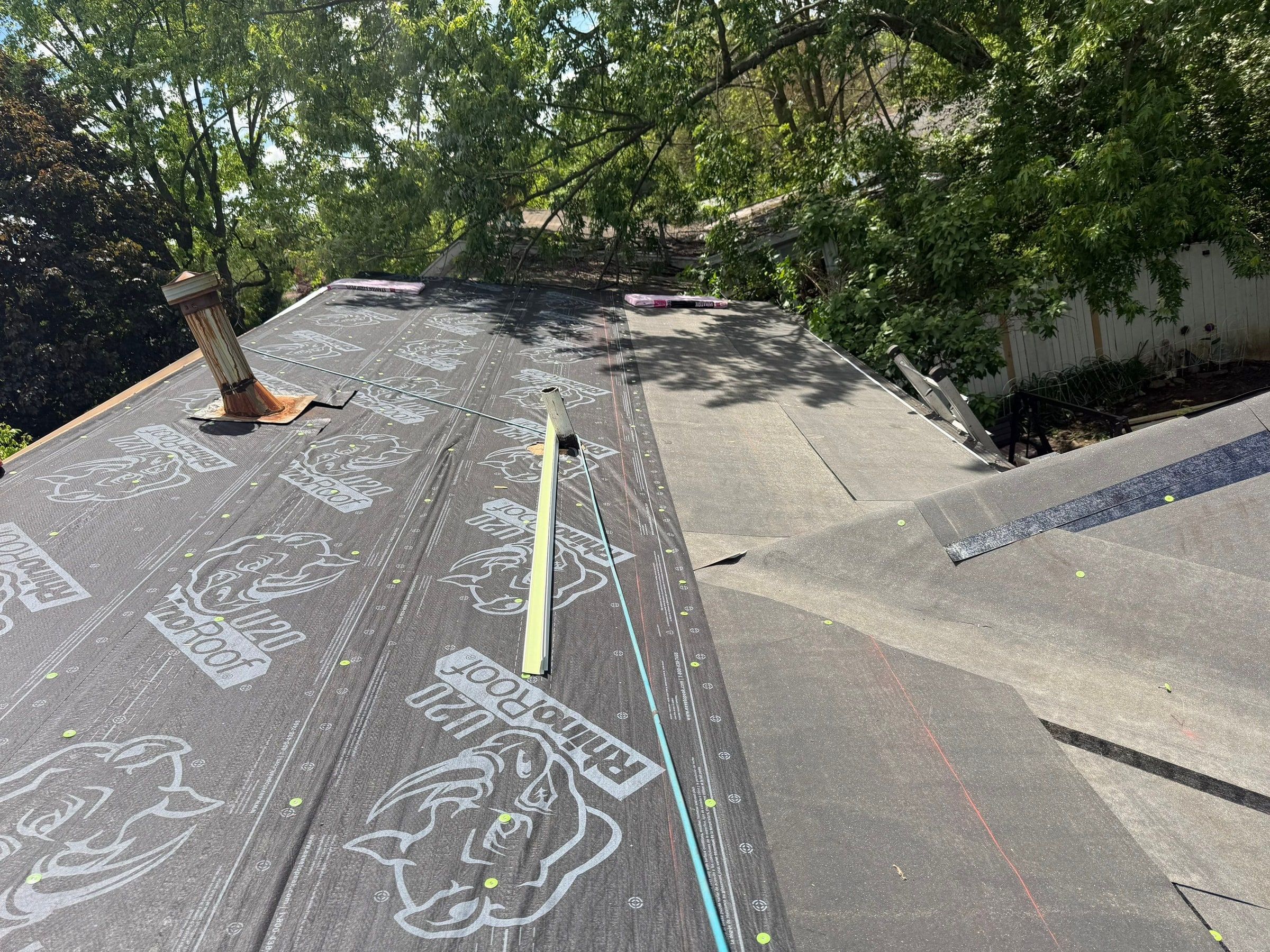

Ice and water shield at the edge and RhinoRoof underlayment on the deck, Dayton, Ohio.

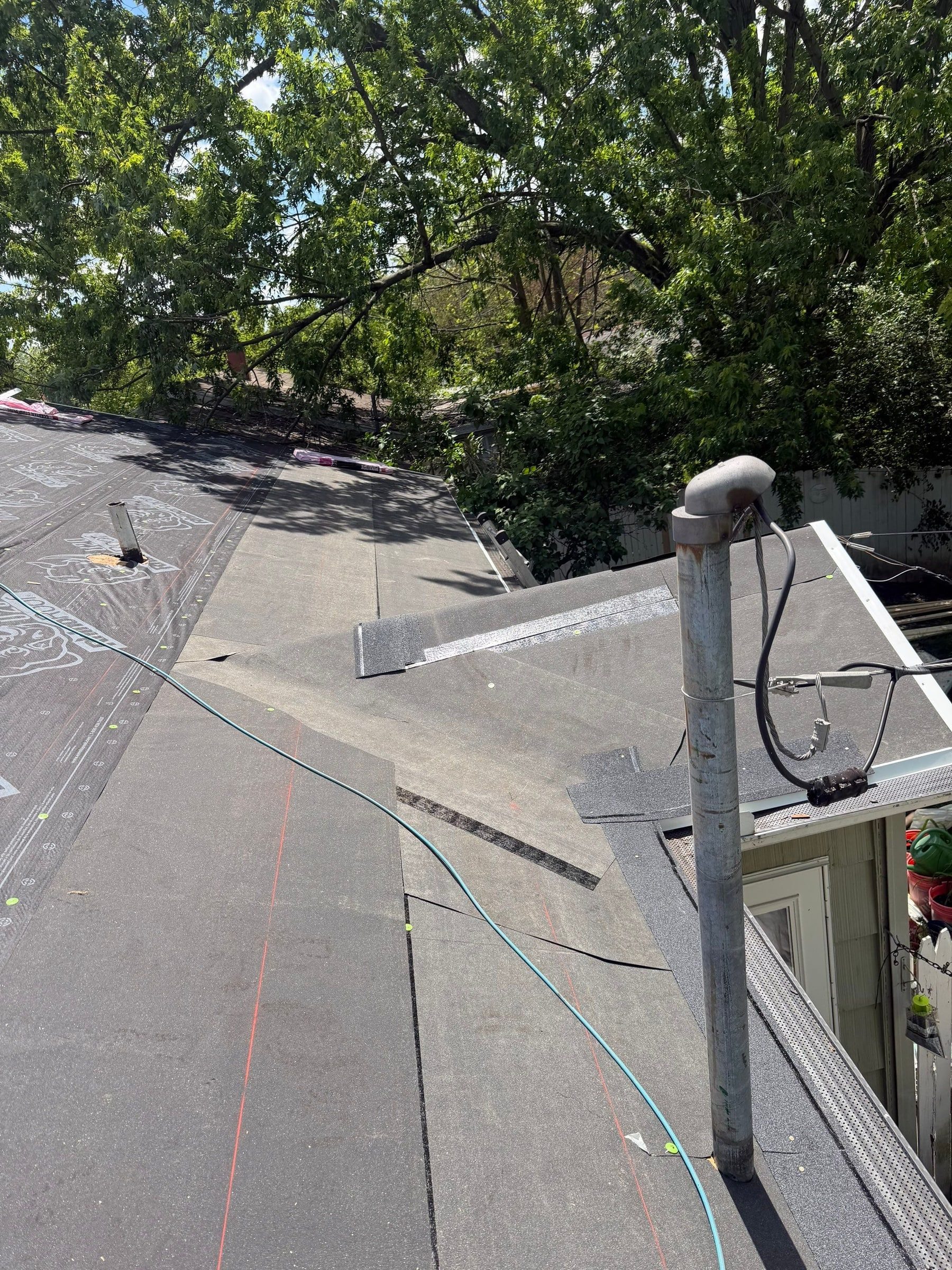

RhinoRoof synthetic underlayment over the new deck, with the furnace vent at the ridge, Dayton, Ohio.

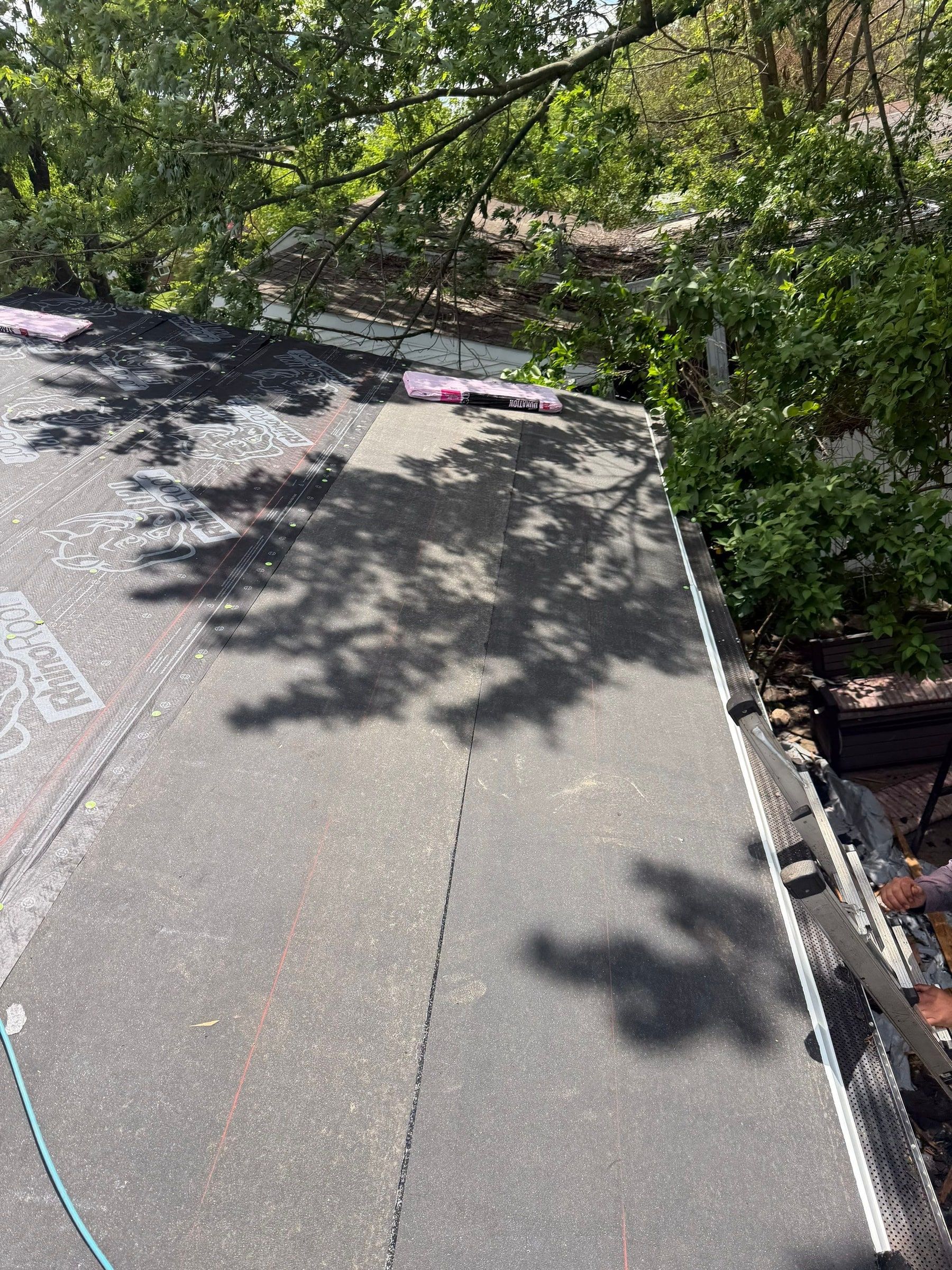

Ice and water shield along the eave above the gutter, Dayton, Ohio.

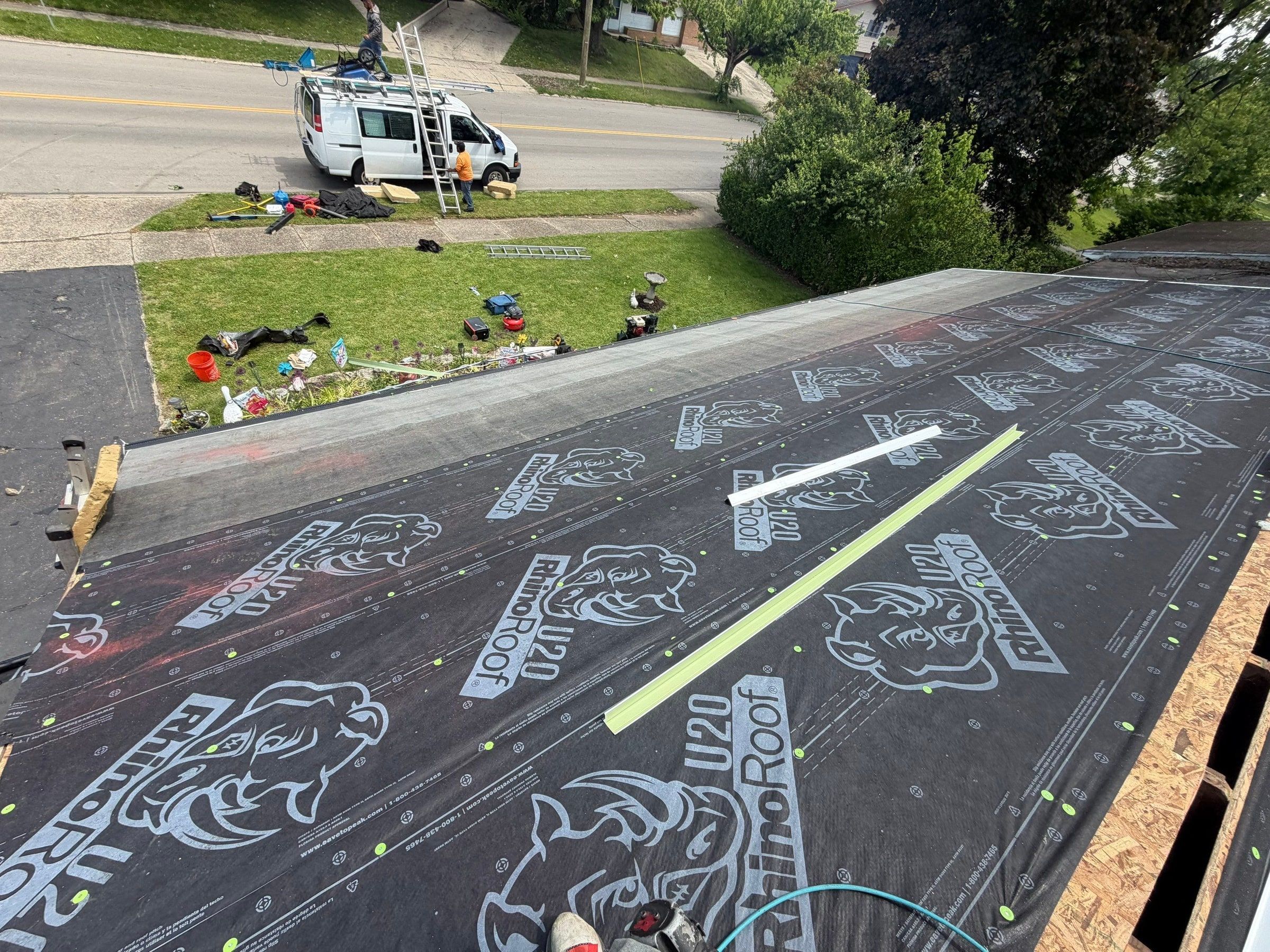

RhinoRoof underlayment on the roof above the front lawn, Dayton, Ohio.

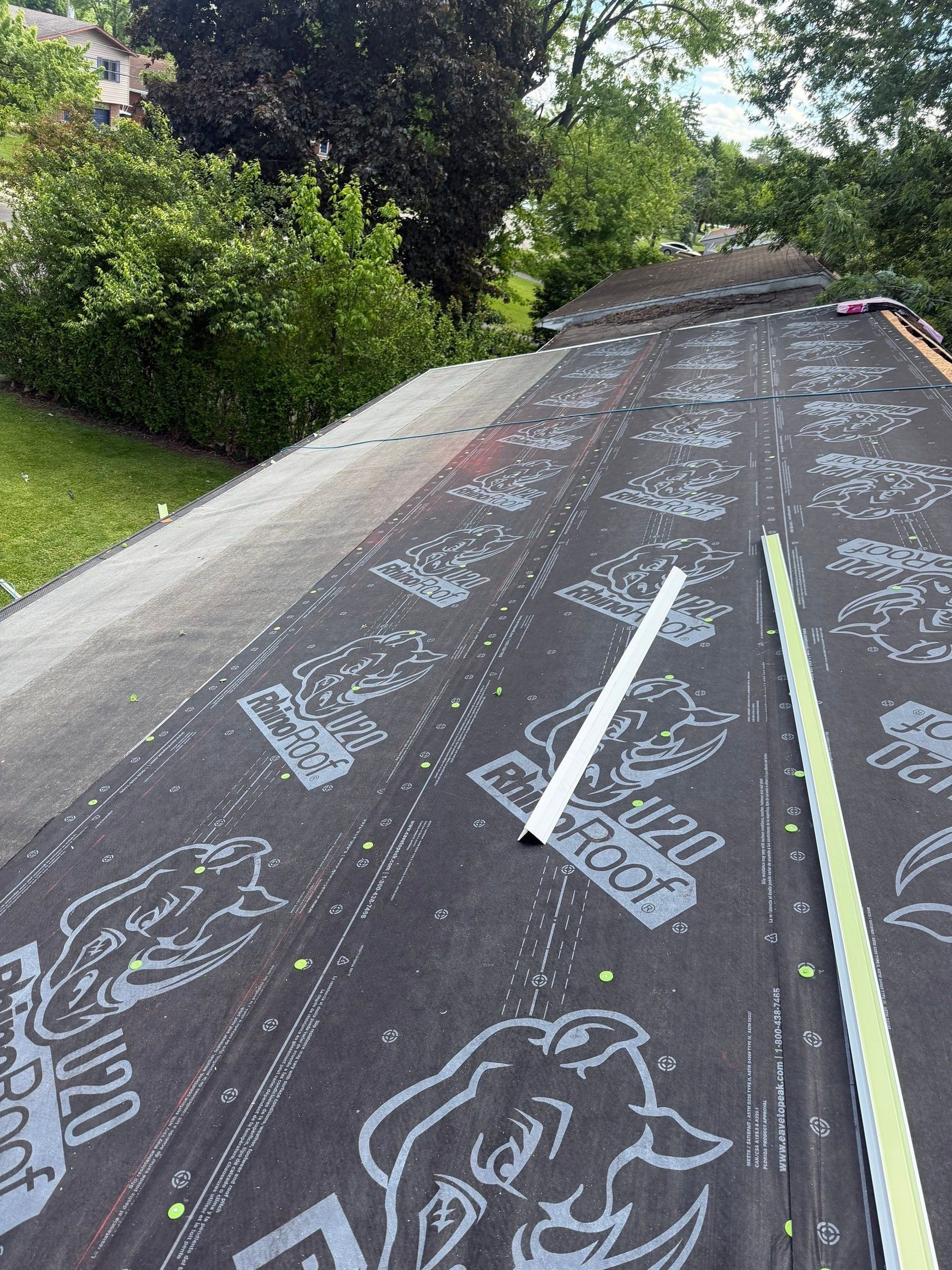

Synthetic underlayment over the ridge and the ice and water shield below it, Dayton, Ohio.

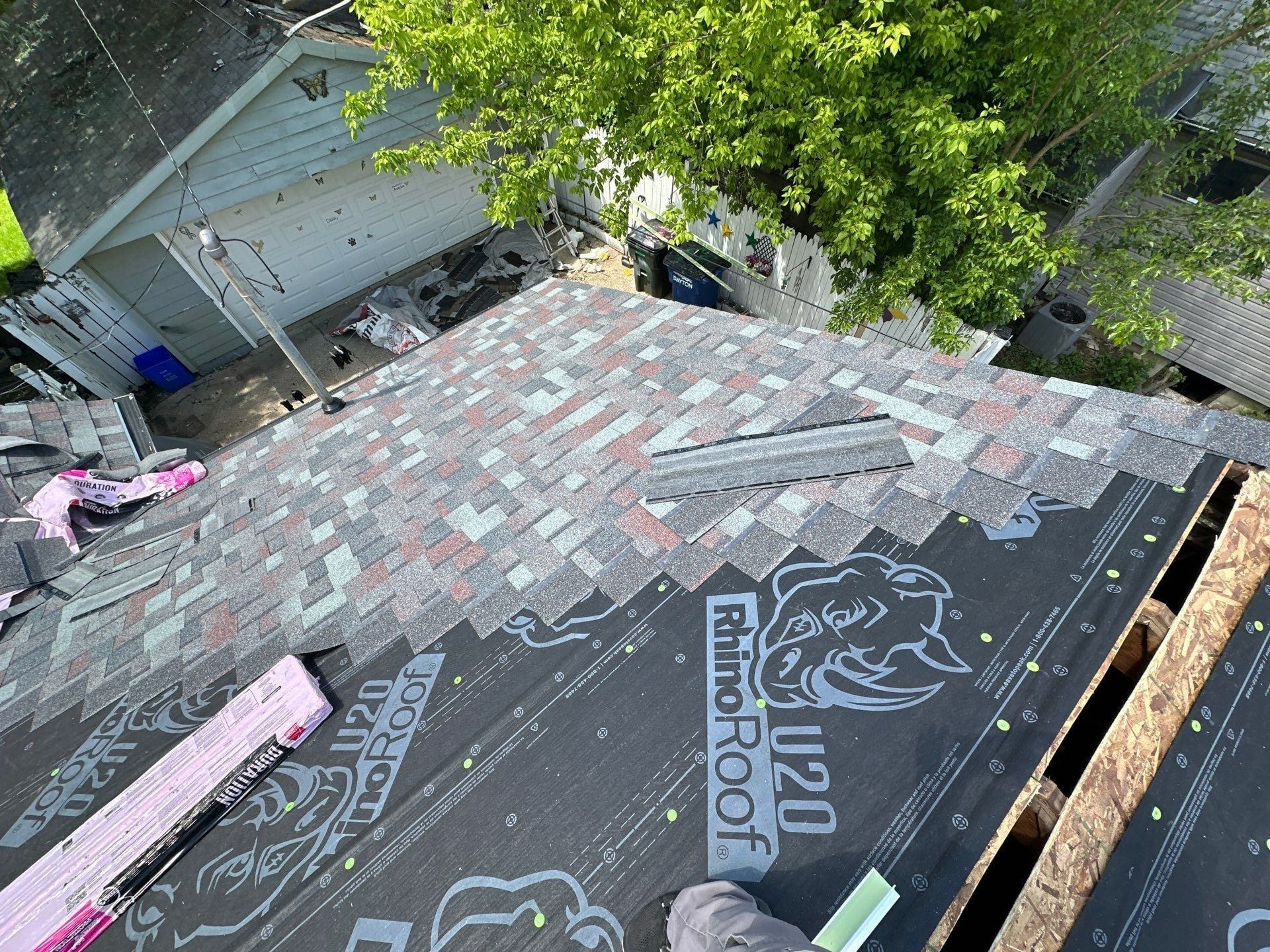

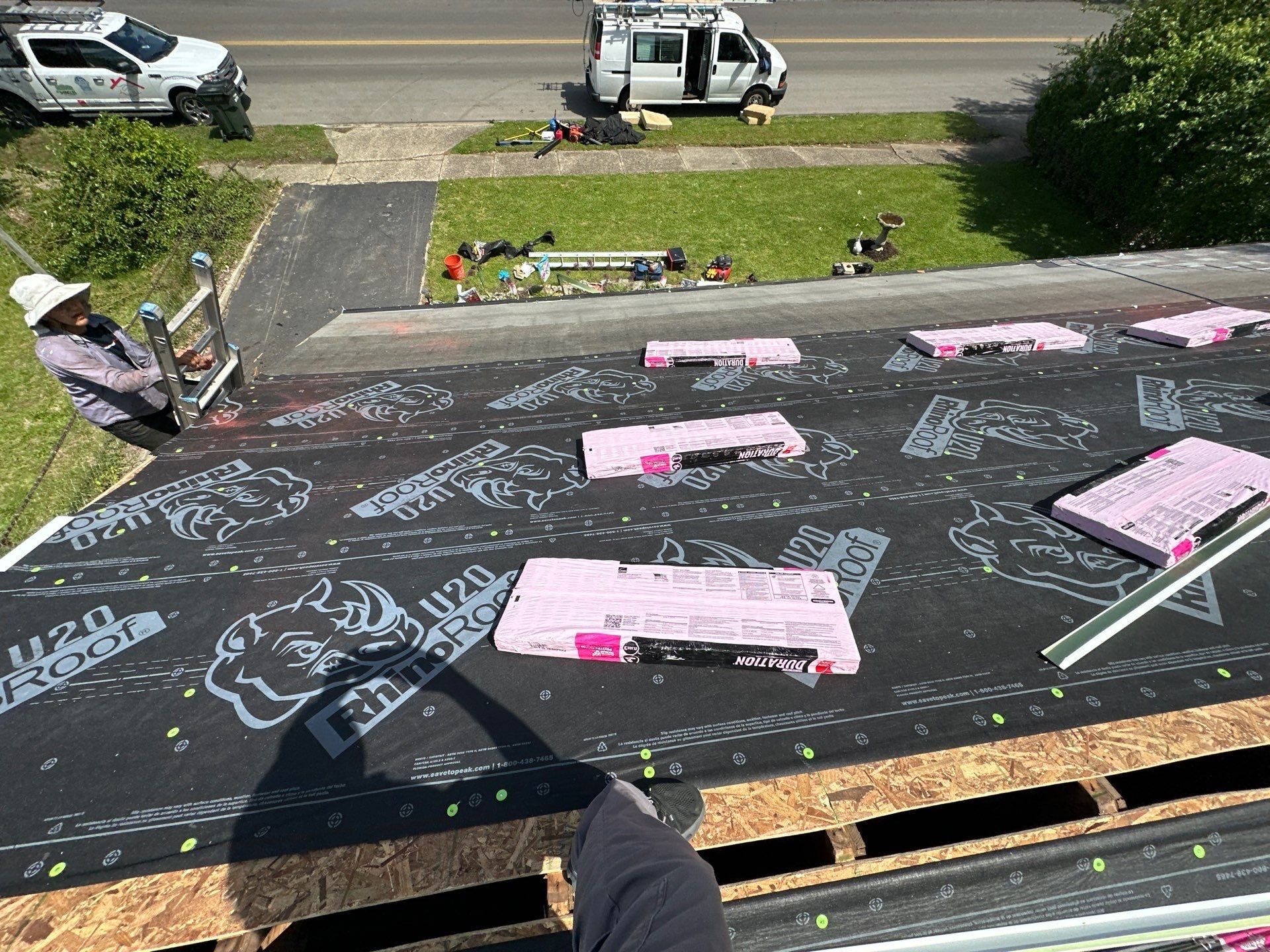

Shingle bundles staged across the underlayment, Dayton, Ohio.

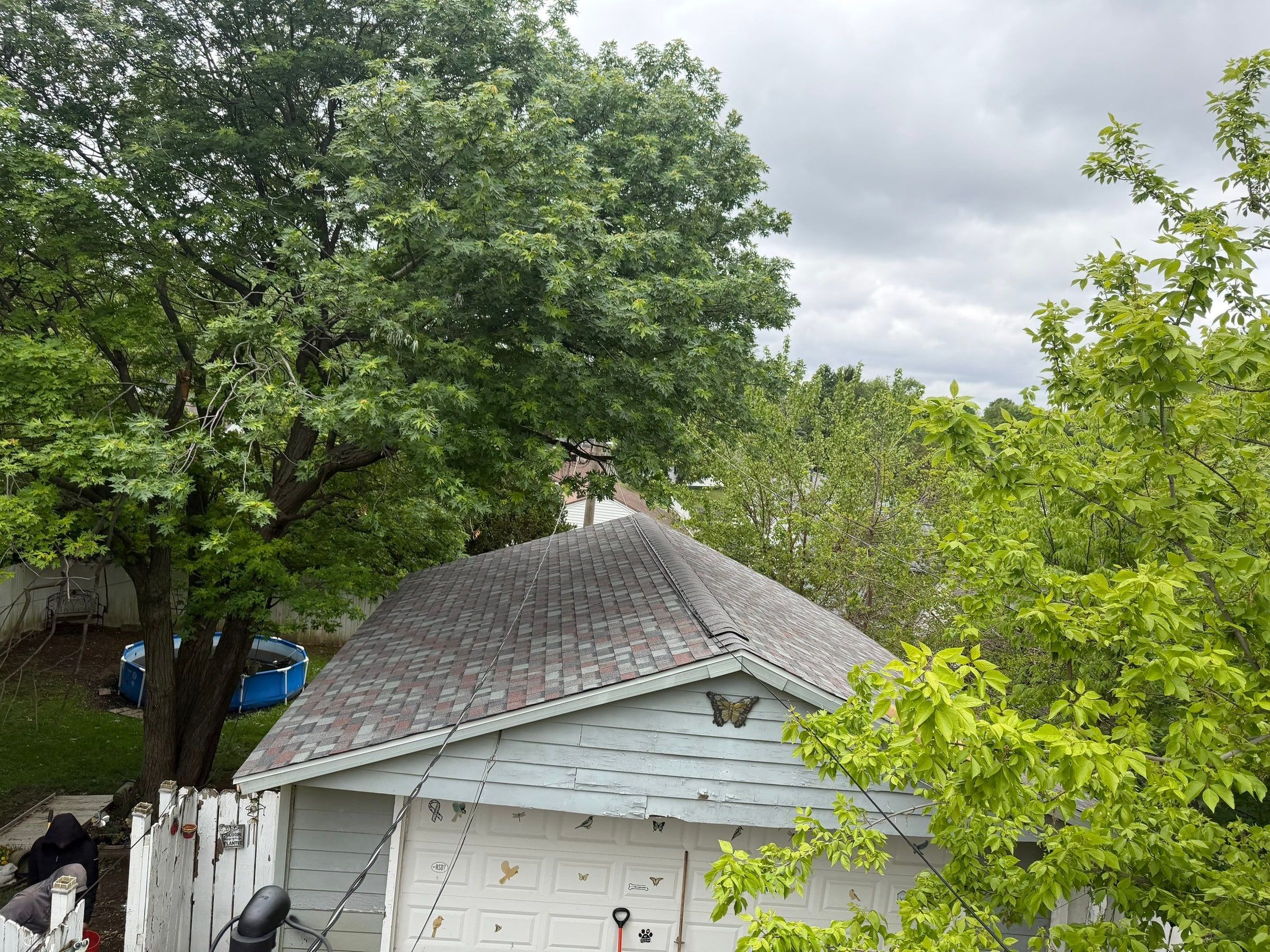

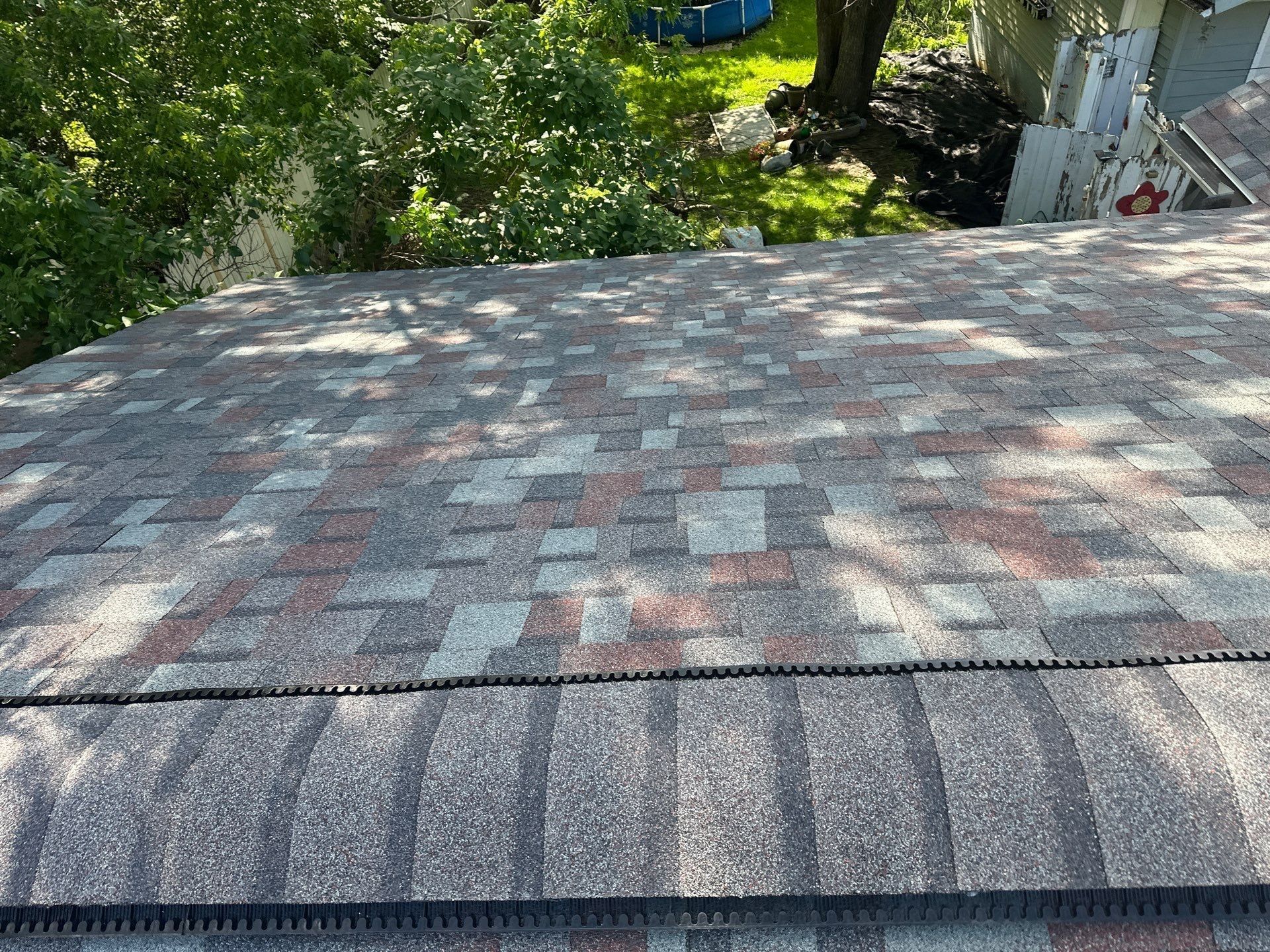

The finished garage roof and its ridge vent under the trees, Dayton, Ohio.

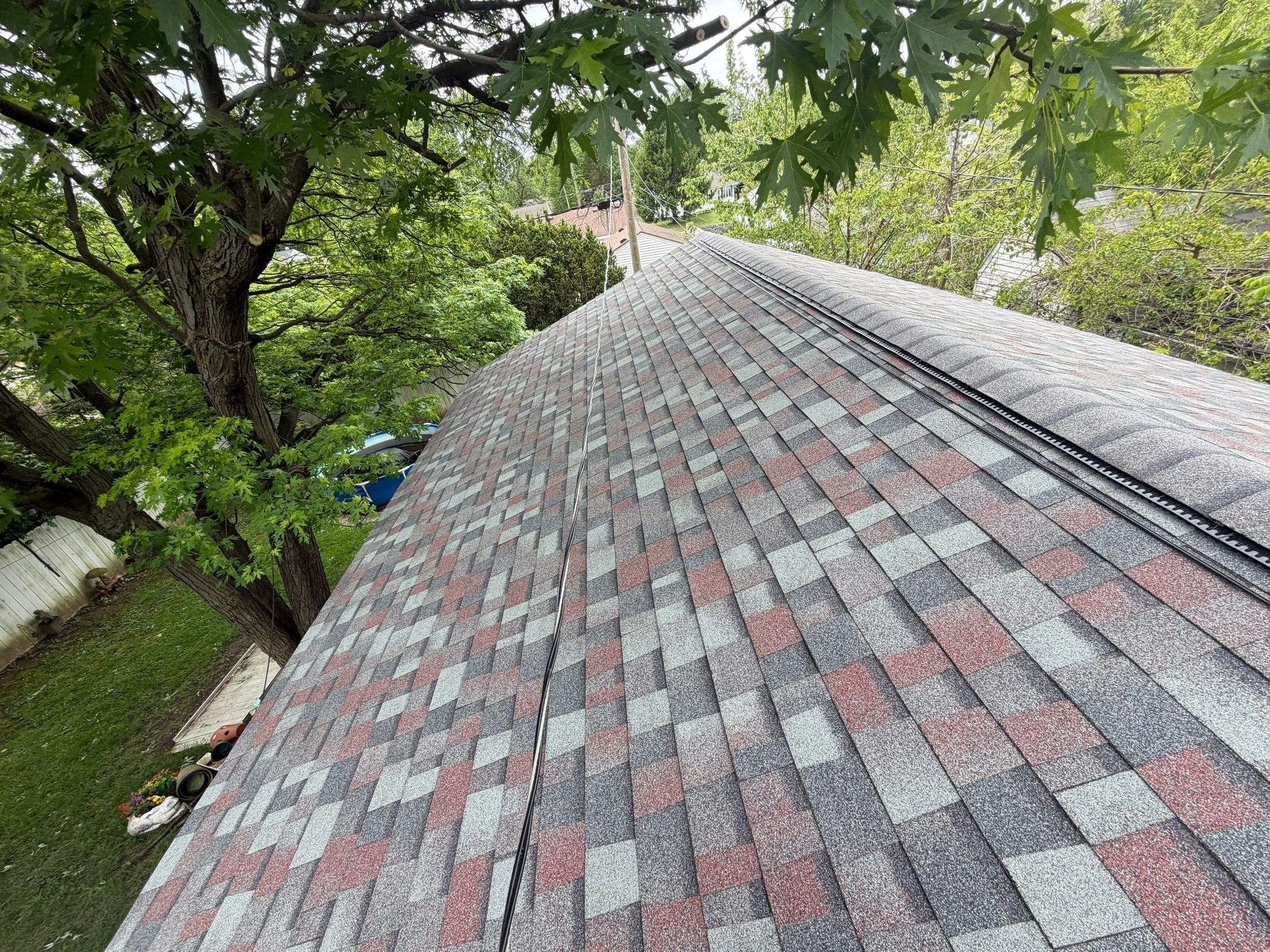

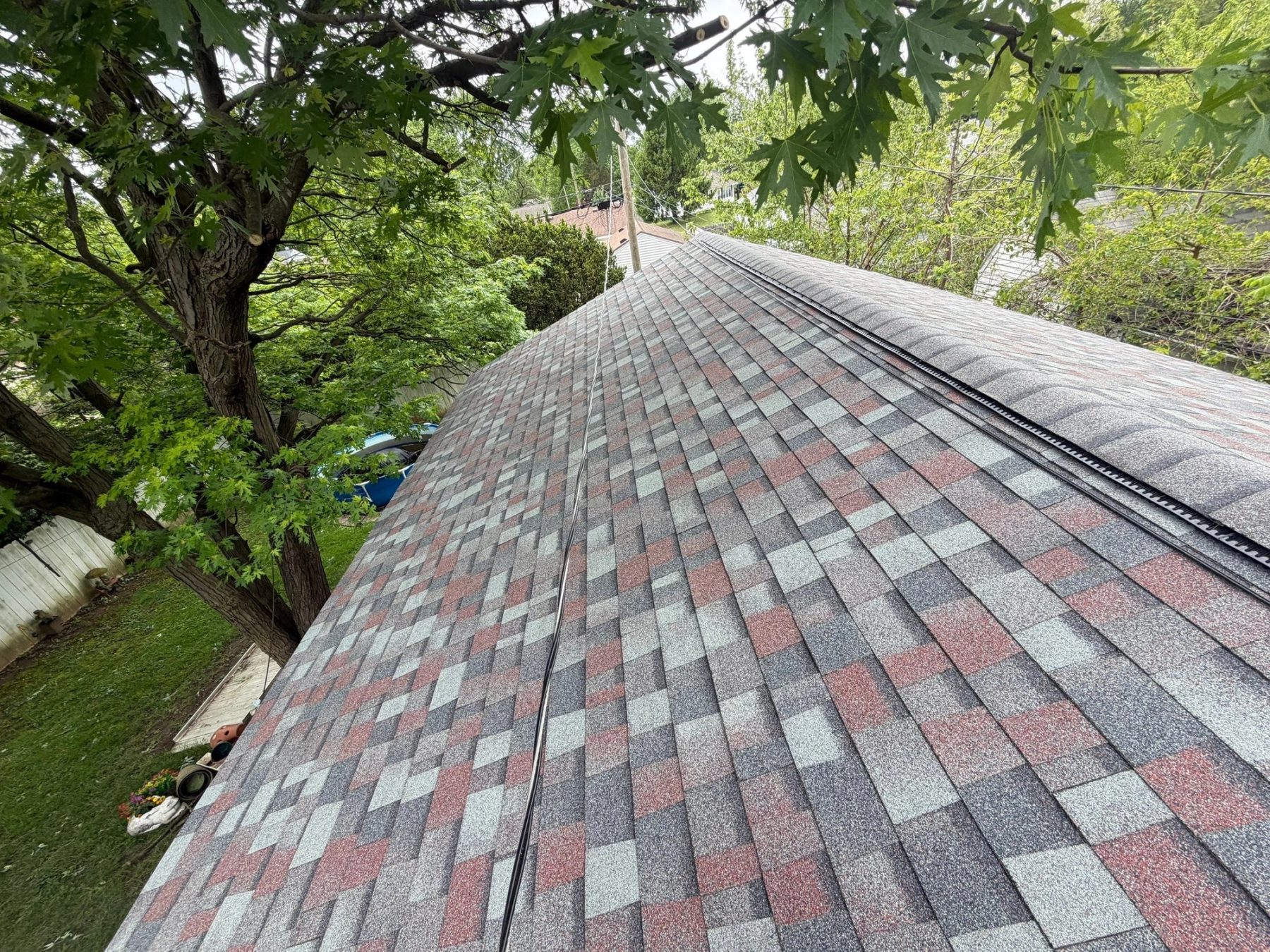

The finished garage roof running back toward the yard, Dayton, Ohio.

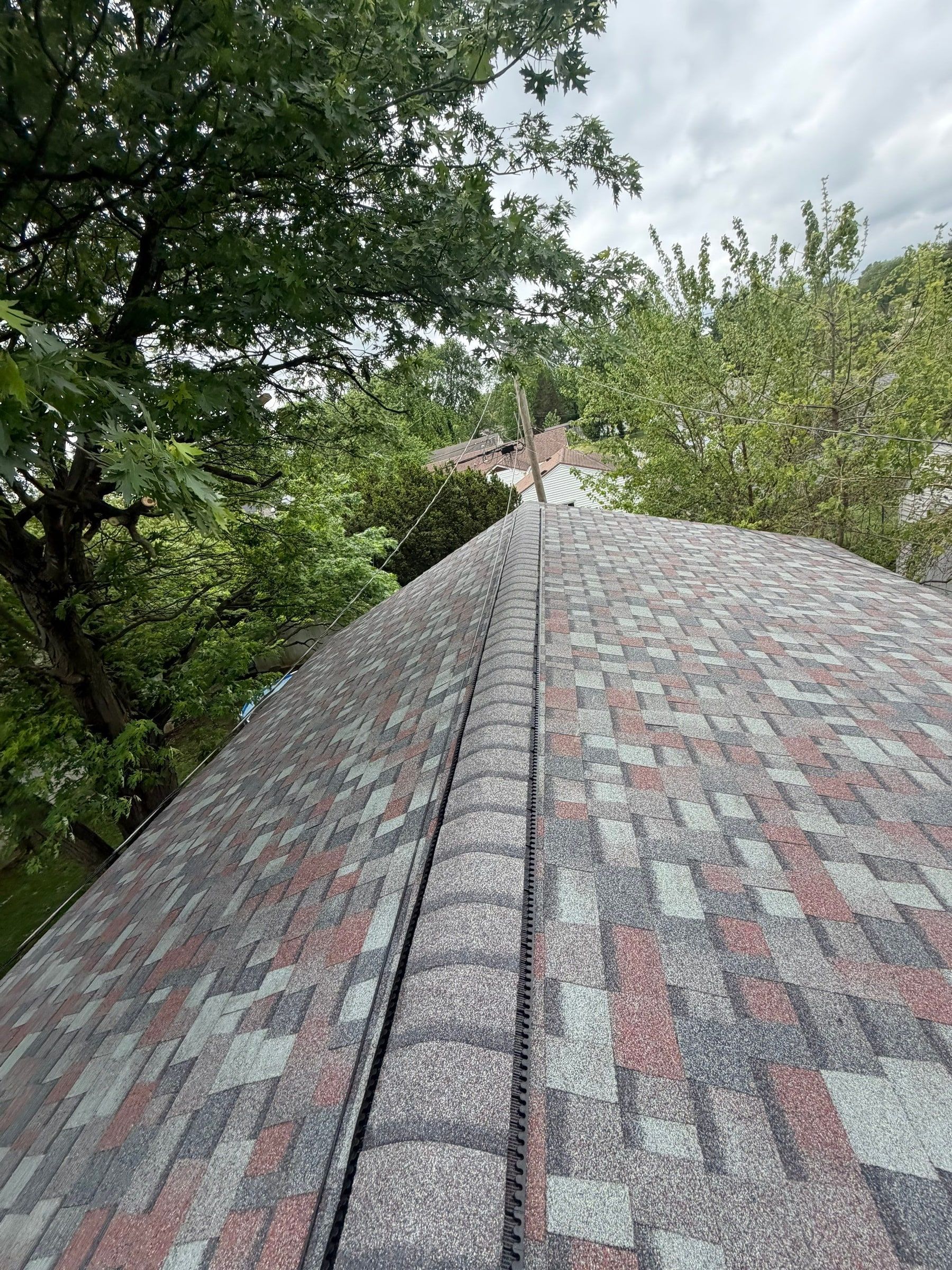

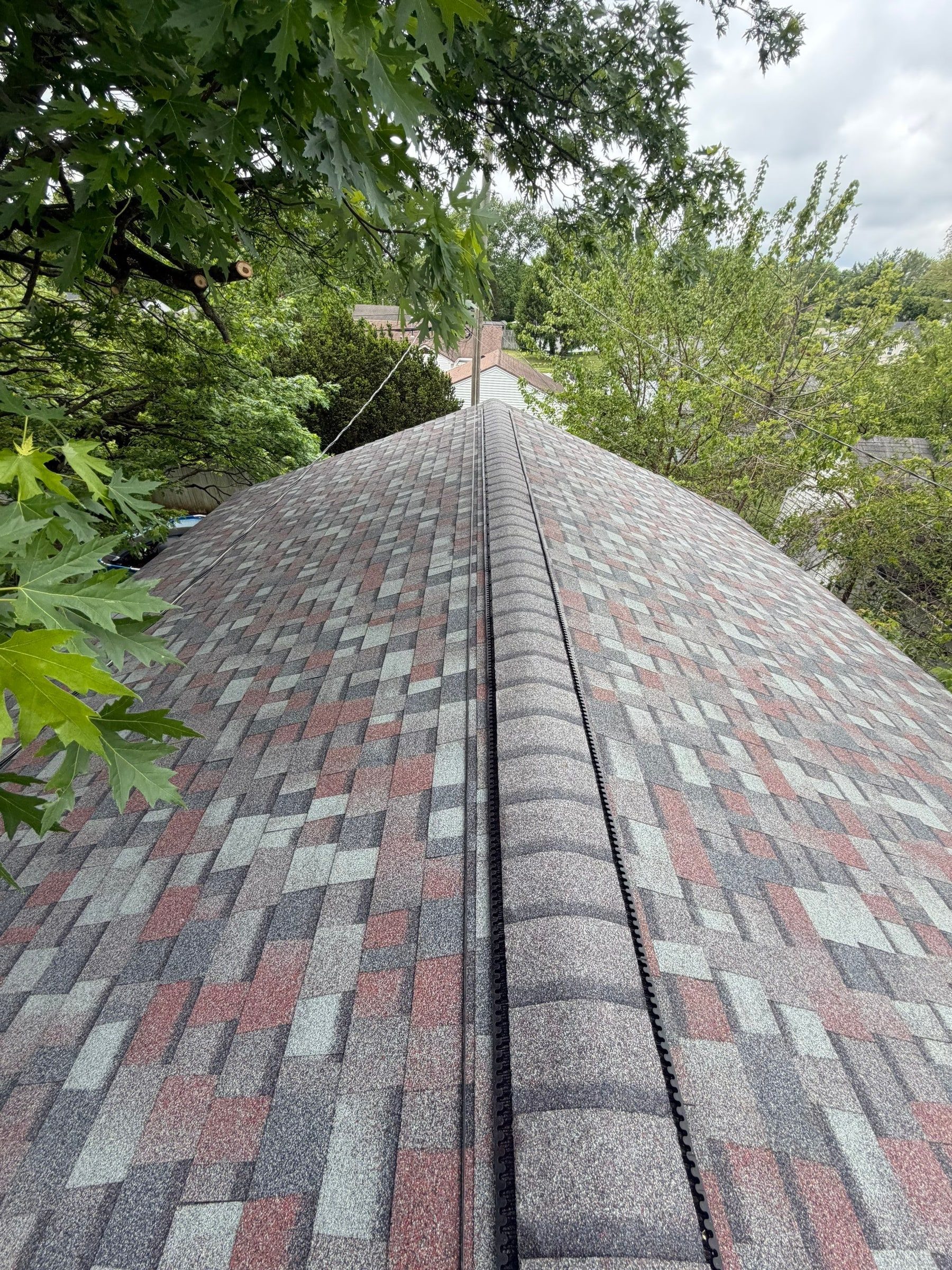

The new ridge cap on the finished garage roof, Dayton, Ohio.
The finished garage roof from the front edge, Dayton, Ohio.

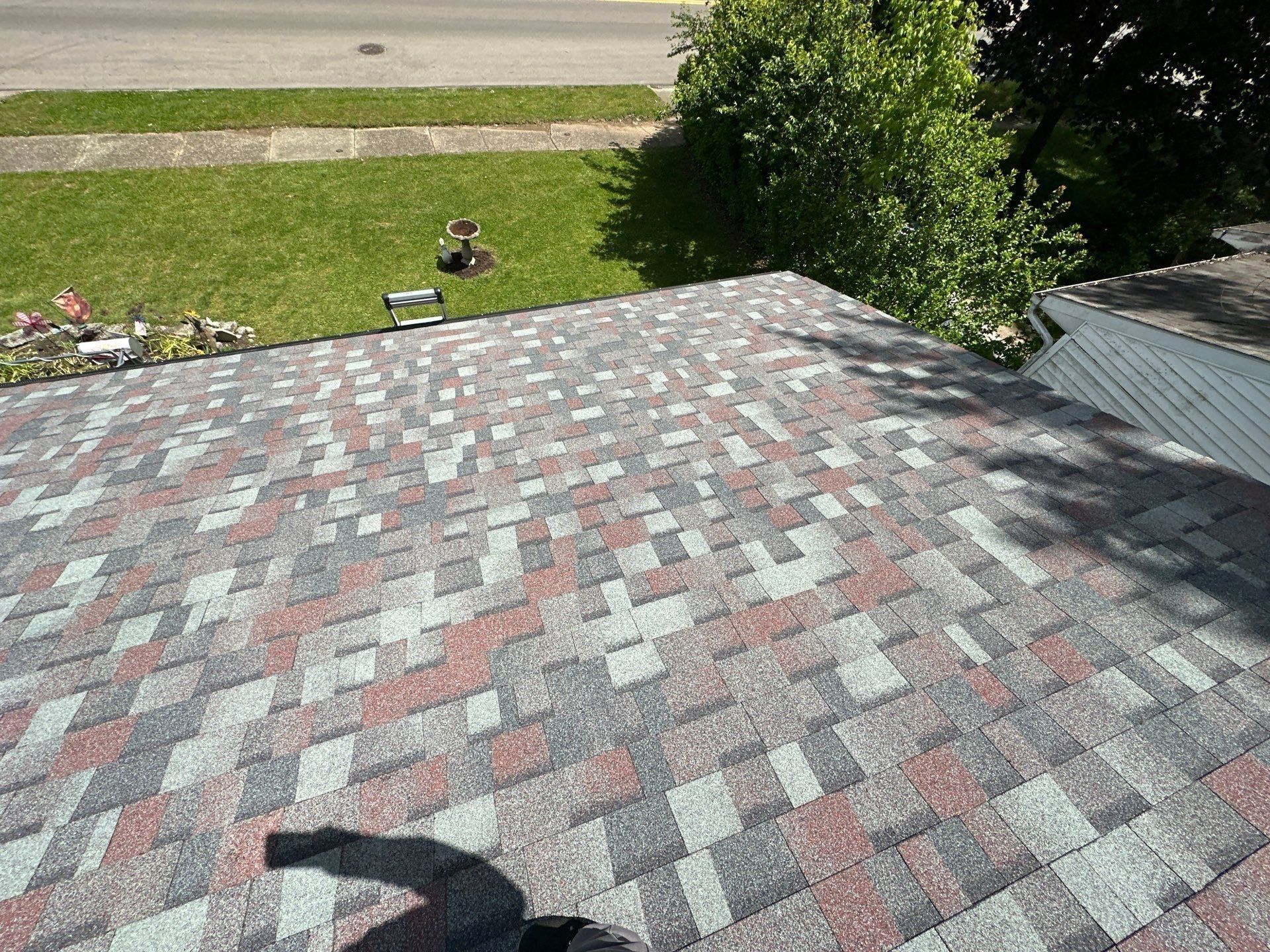

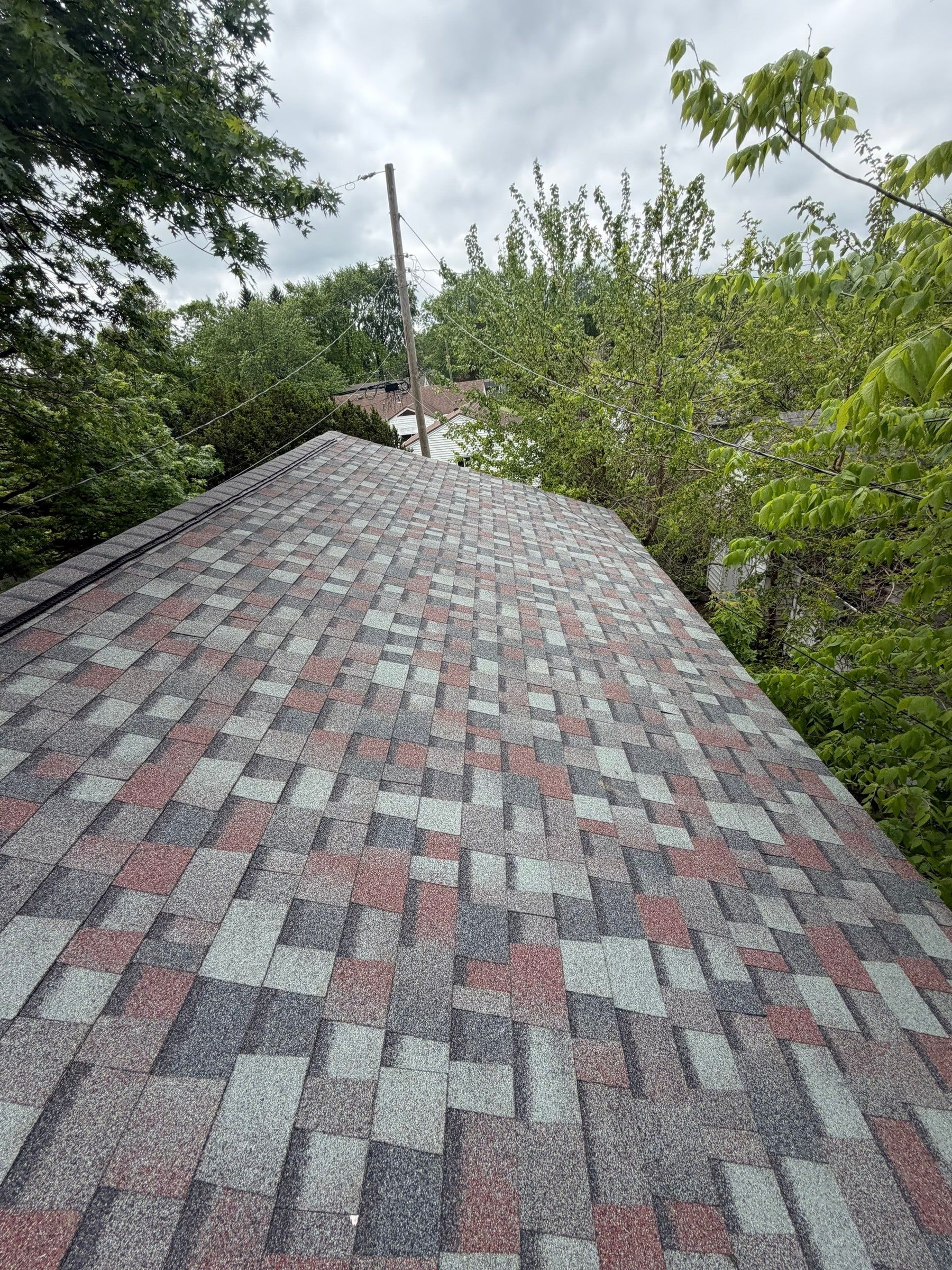

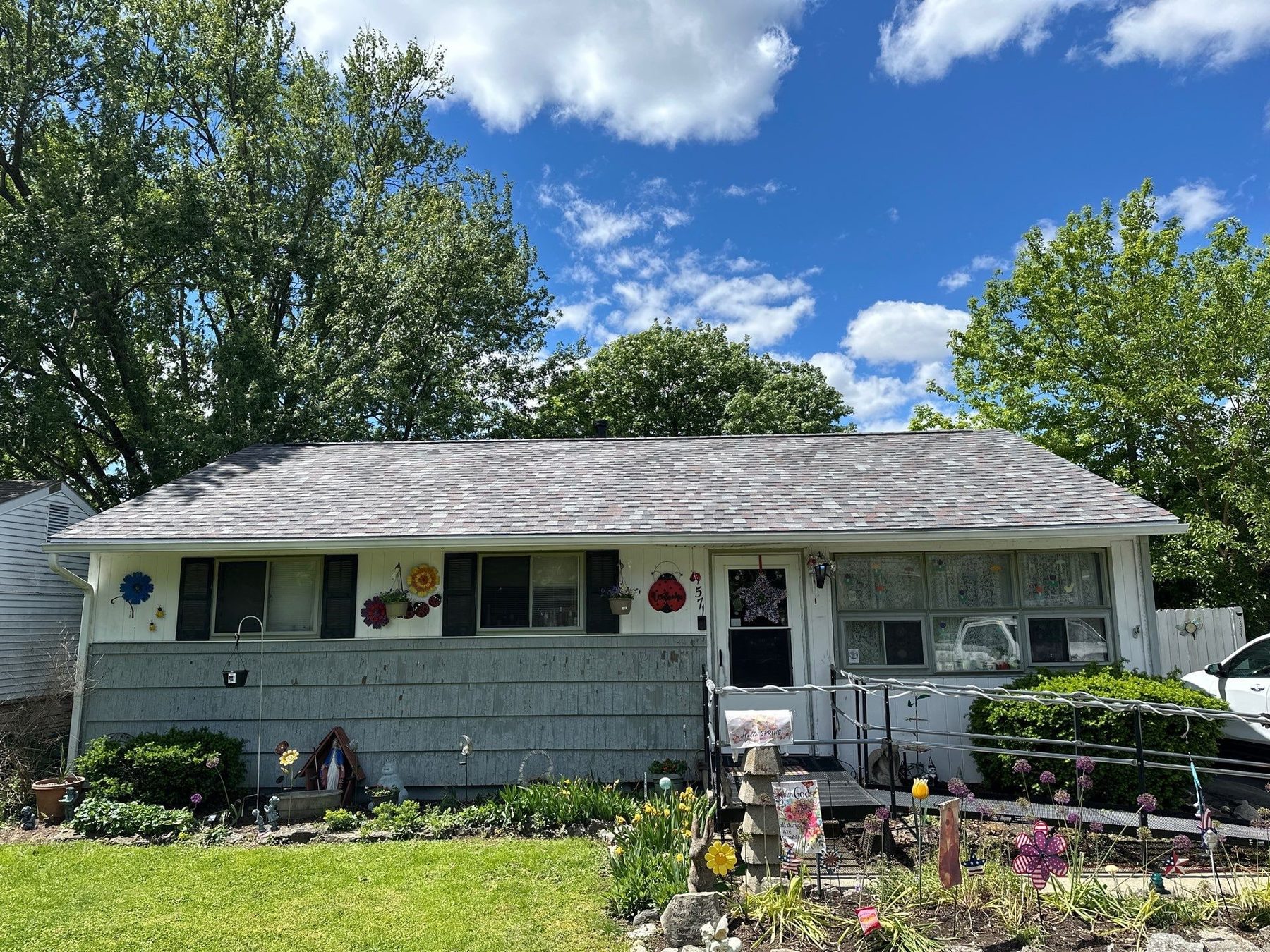

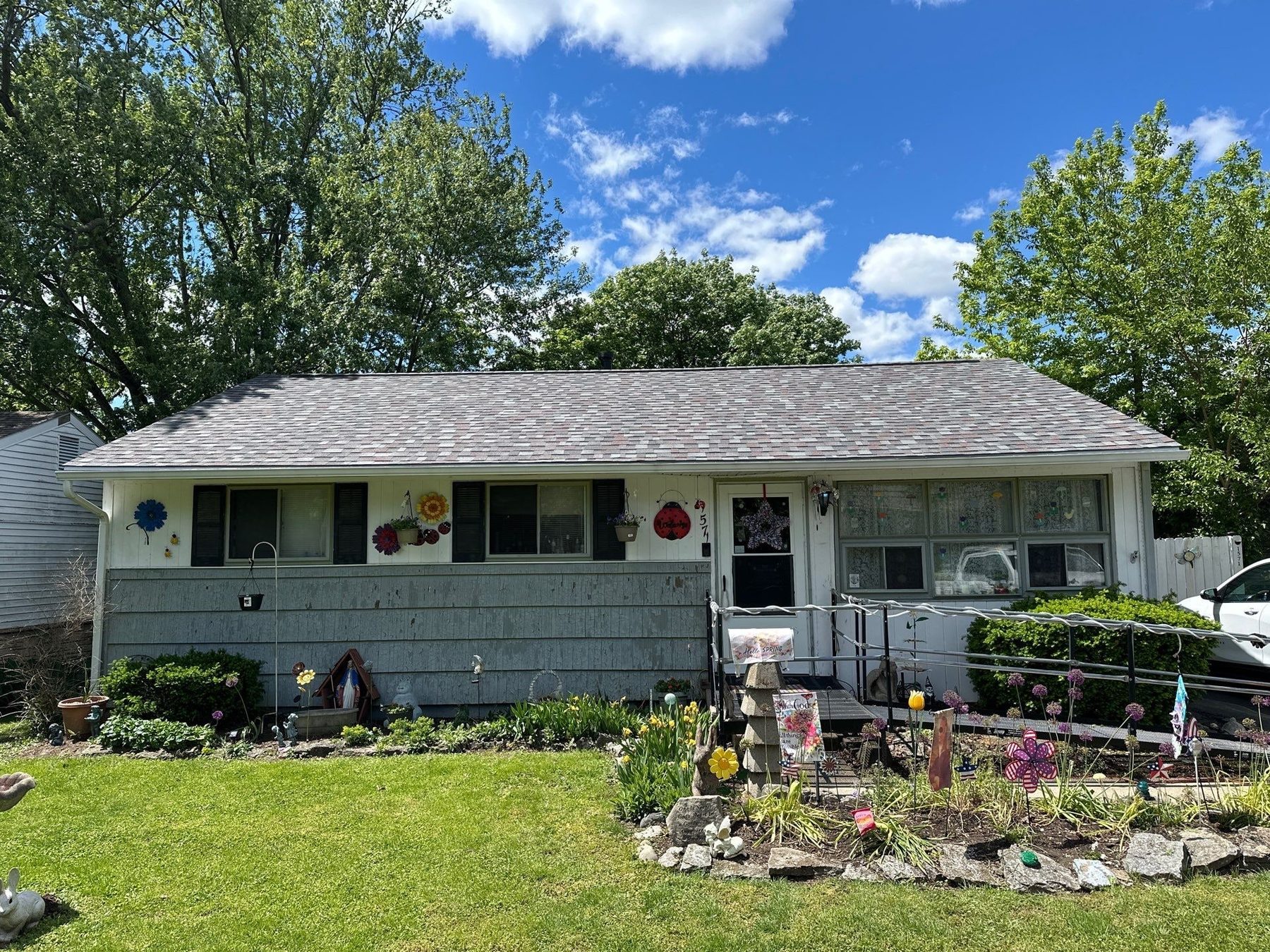

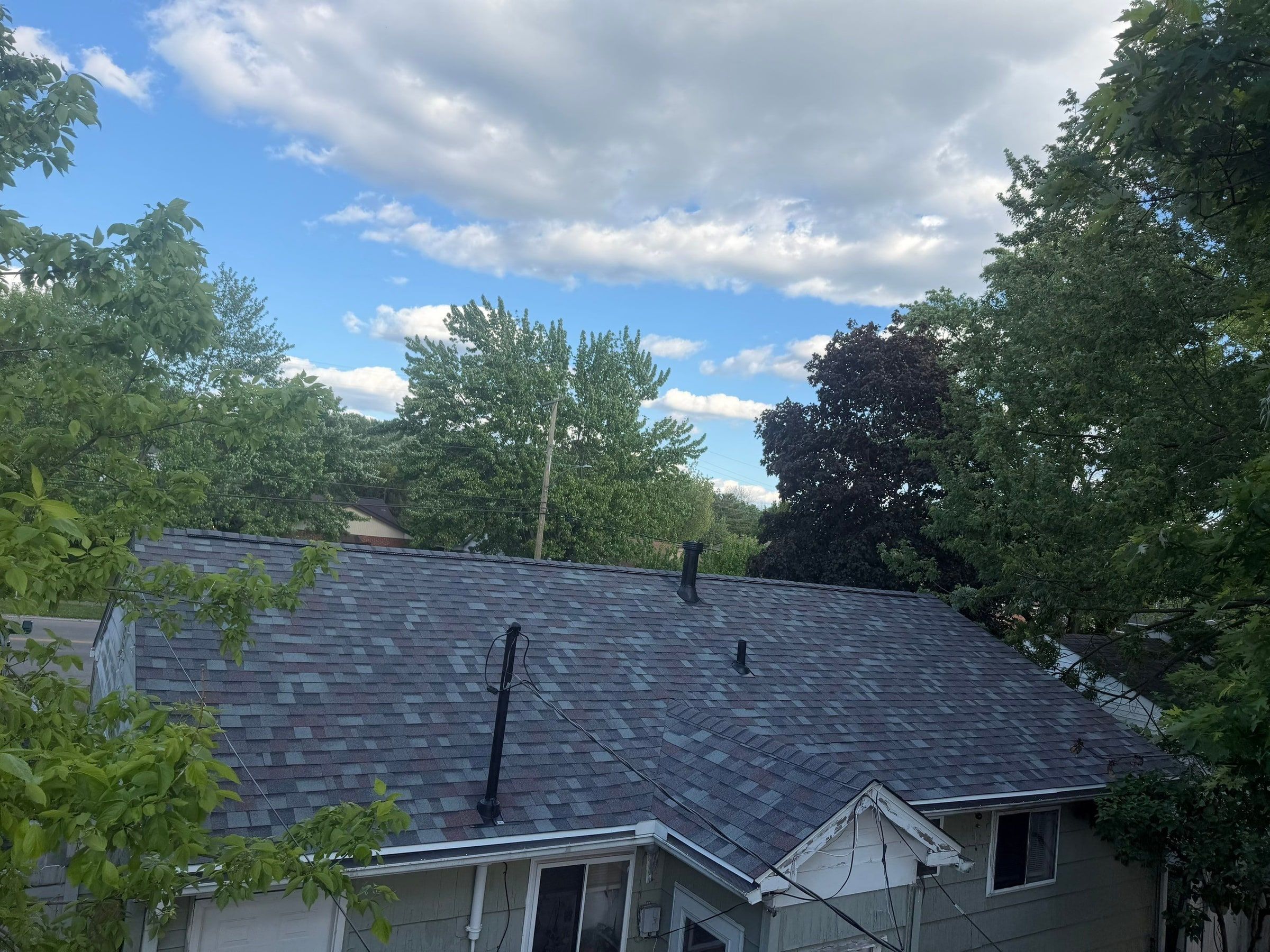

The finished roof on the house, seen from the front lawn, Dayton, Ohio.

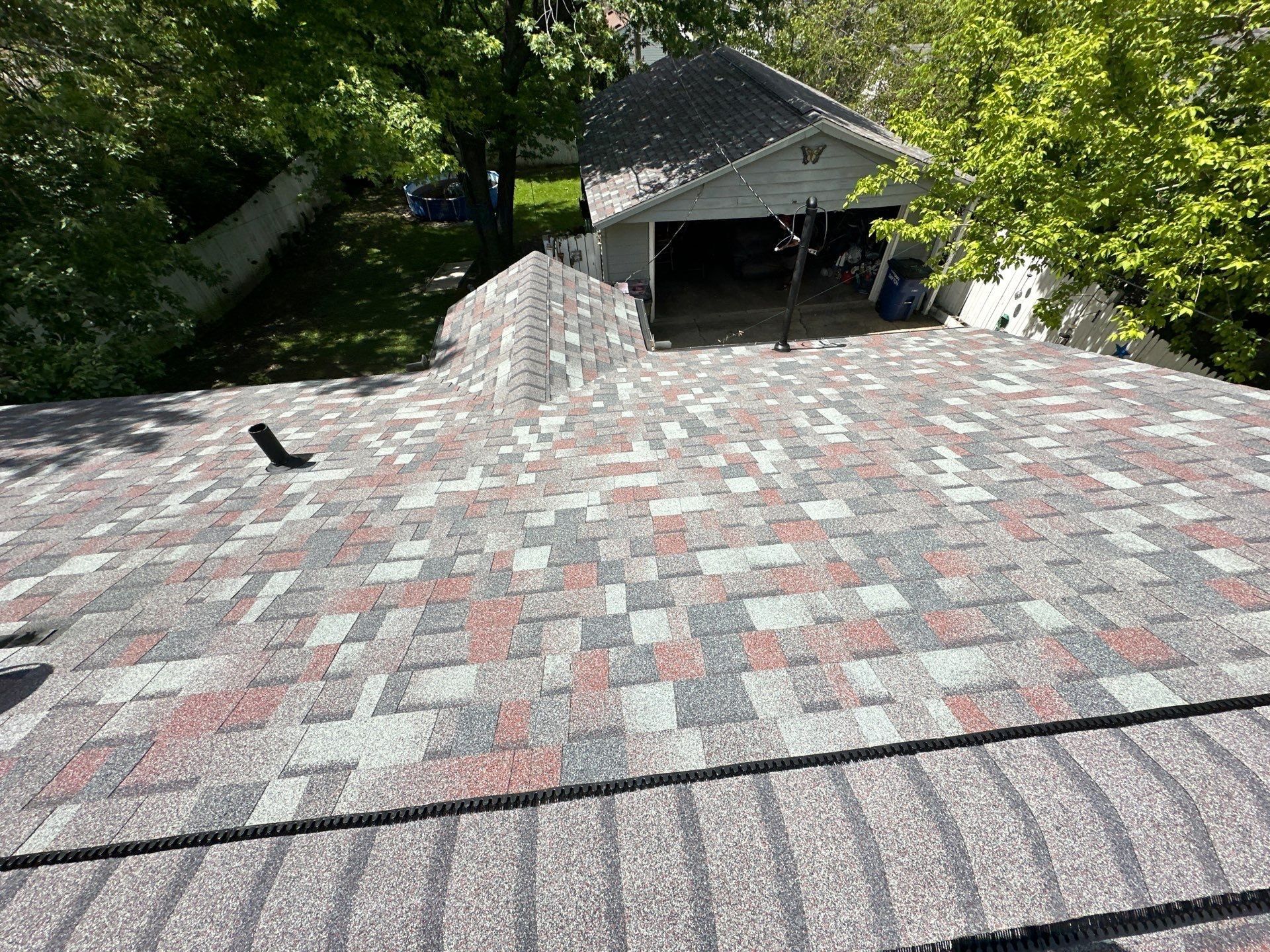

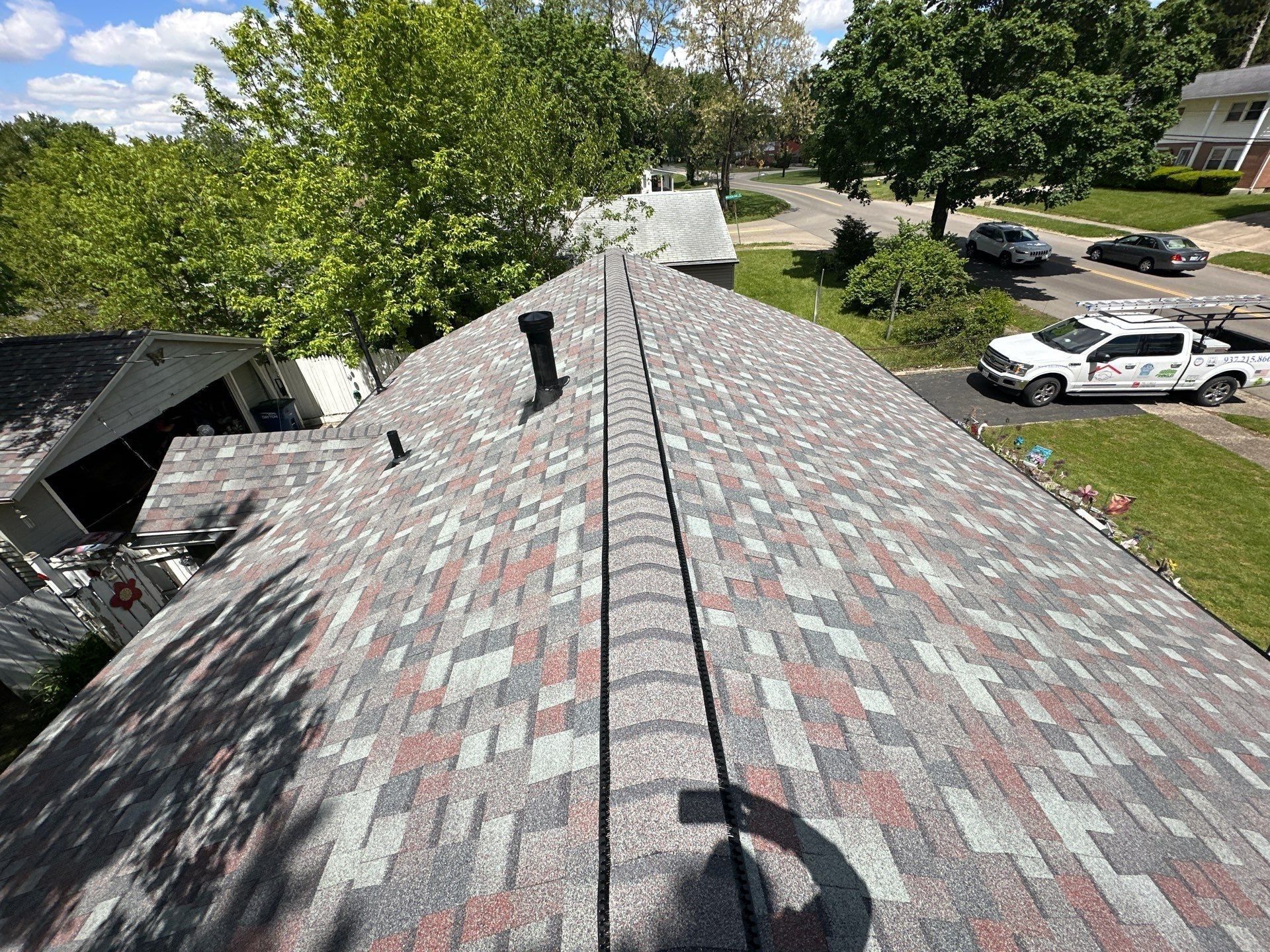

The finished ridge vent and new shingles seen past the front of the house, Dayton, Ohio.

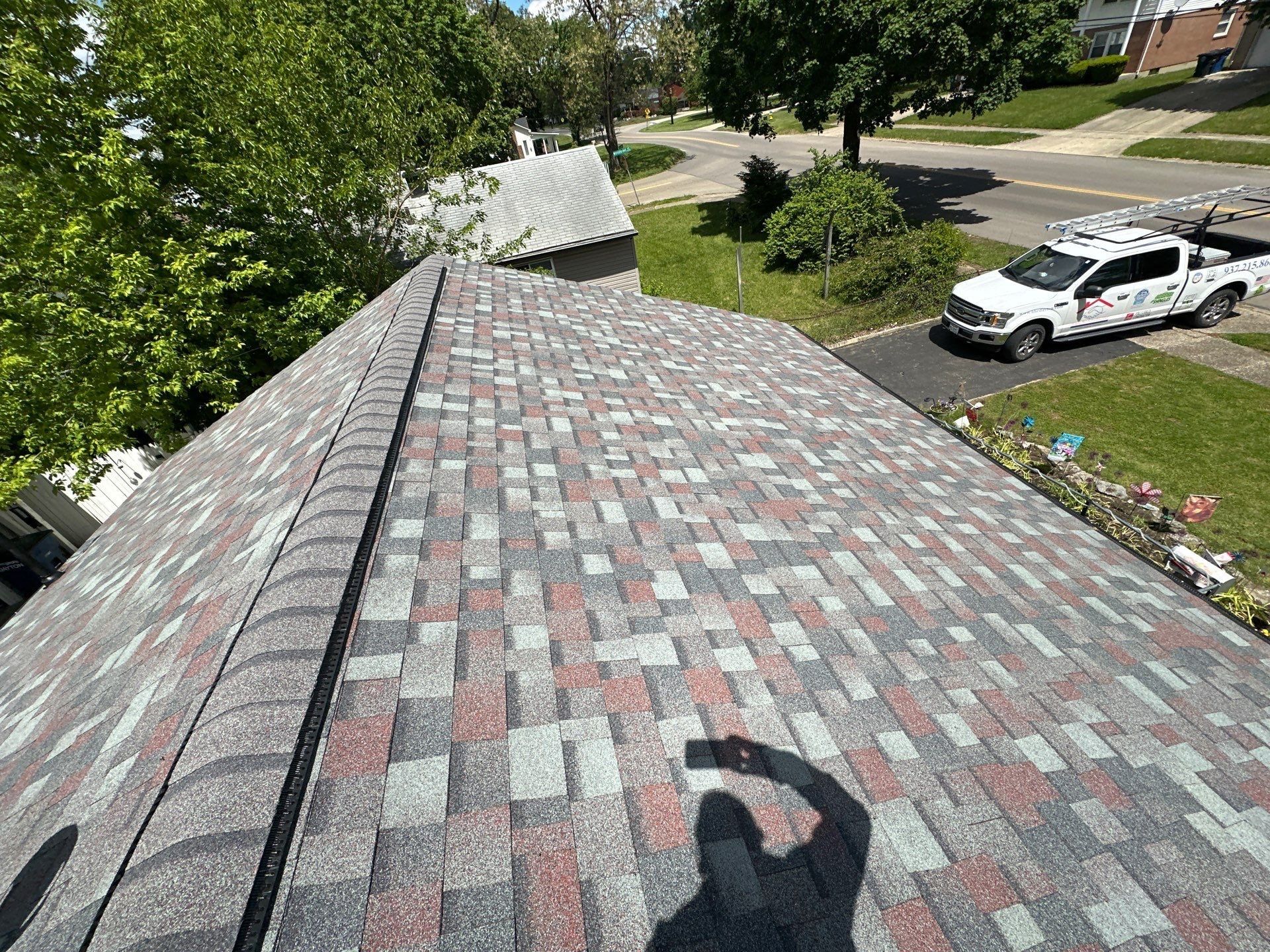

The finished ridge above the driveway and the work truck, Dayton, Ohio.

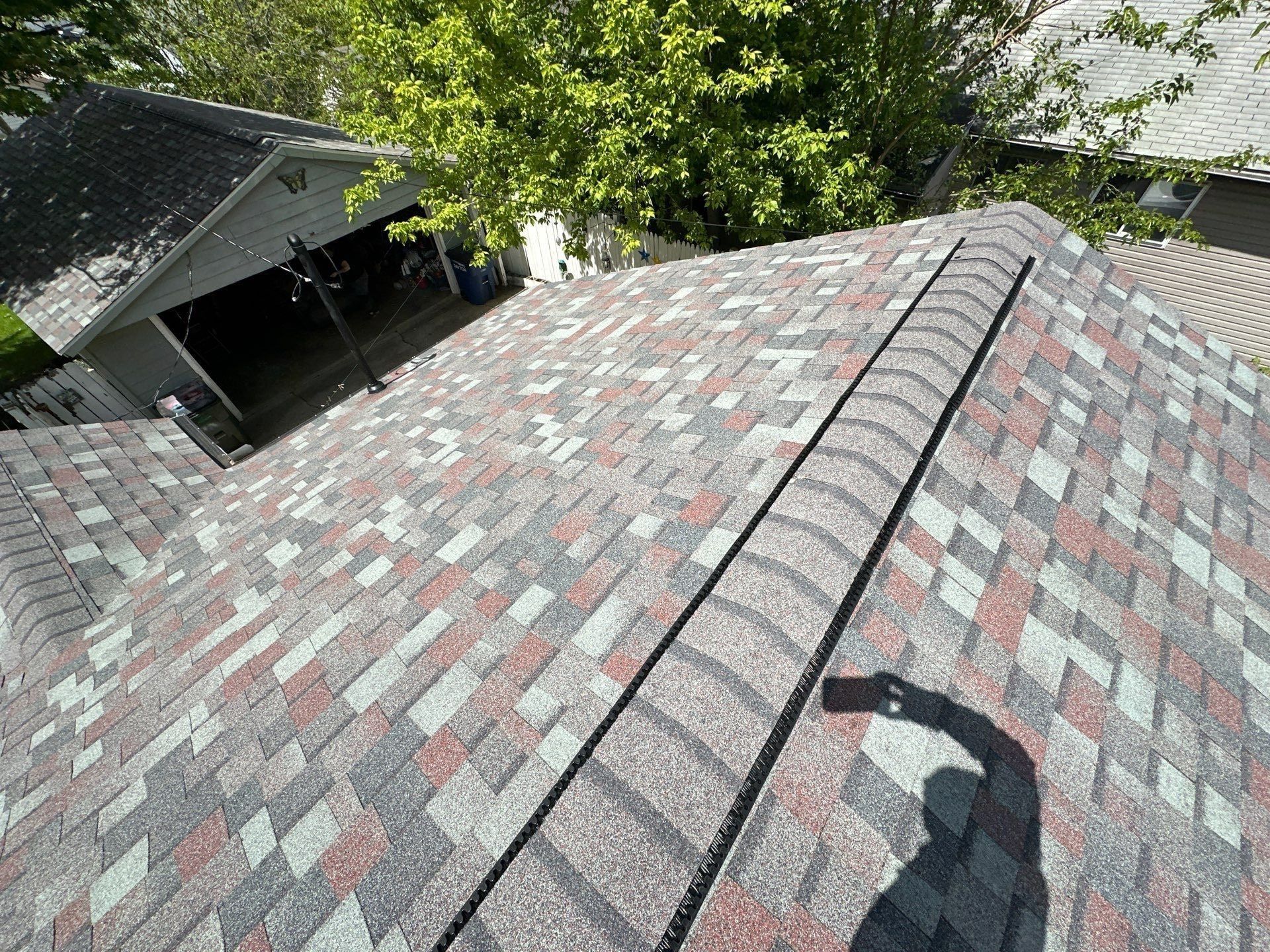

The finished ridge vent above the side yard, Dayton, Ohio.

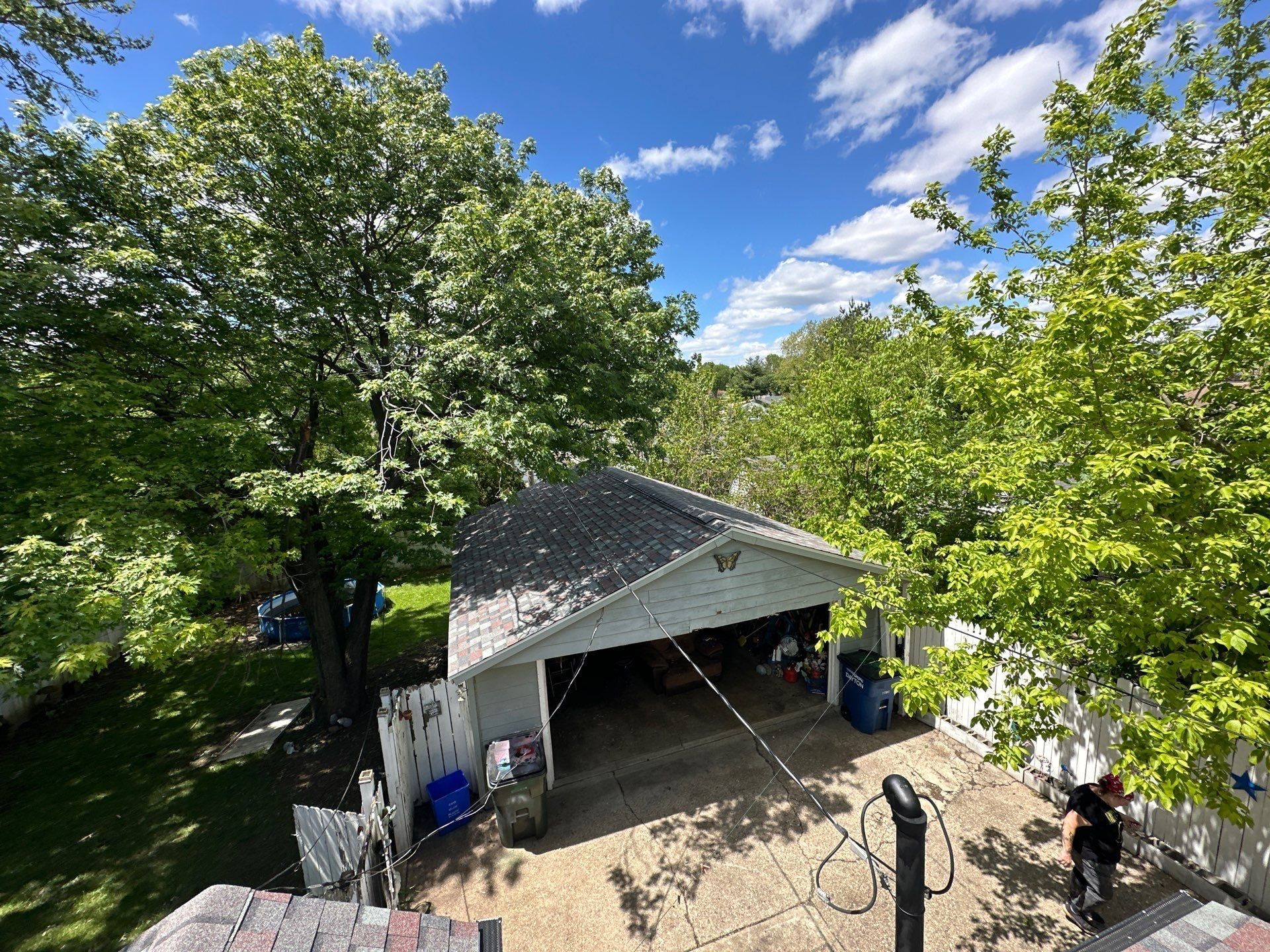

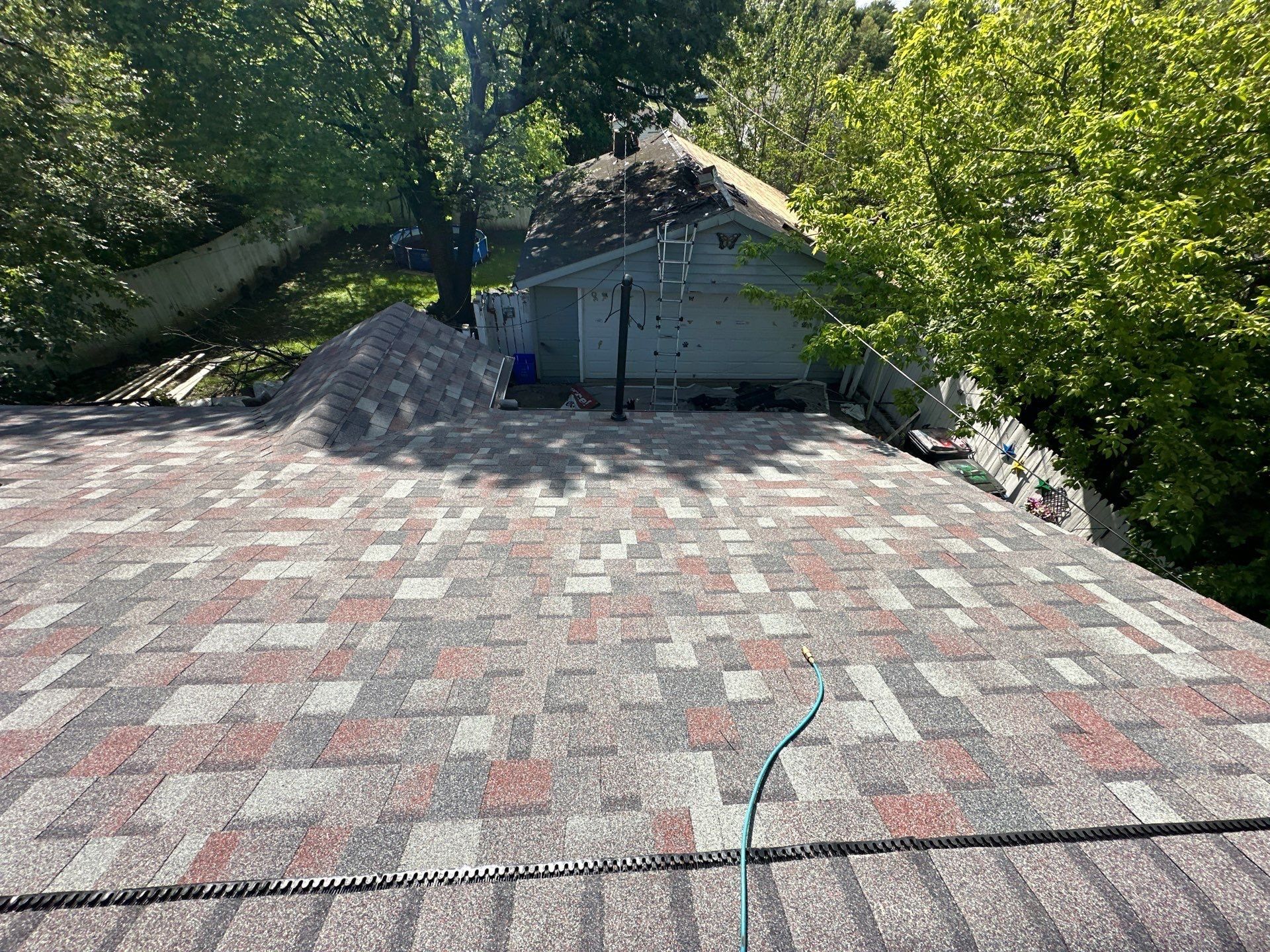

The finished roof with the detached garage beyond, Dayton, Ohio.

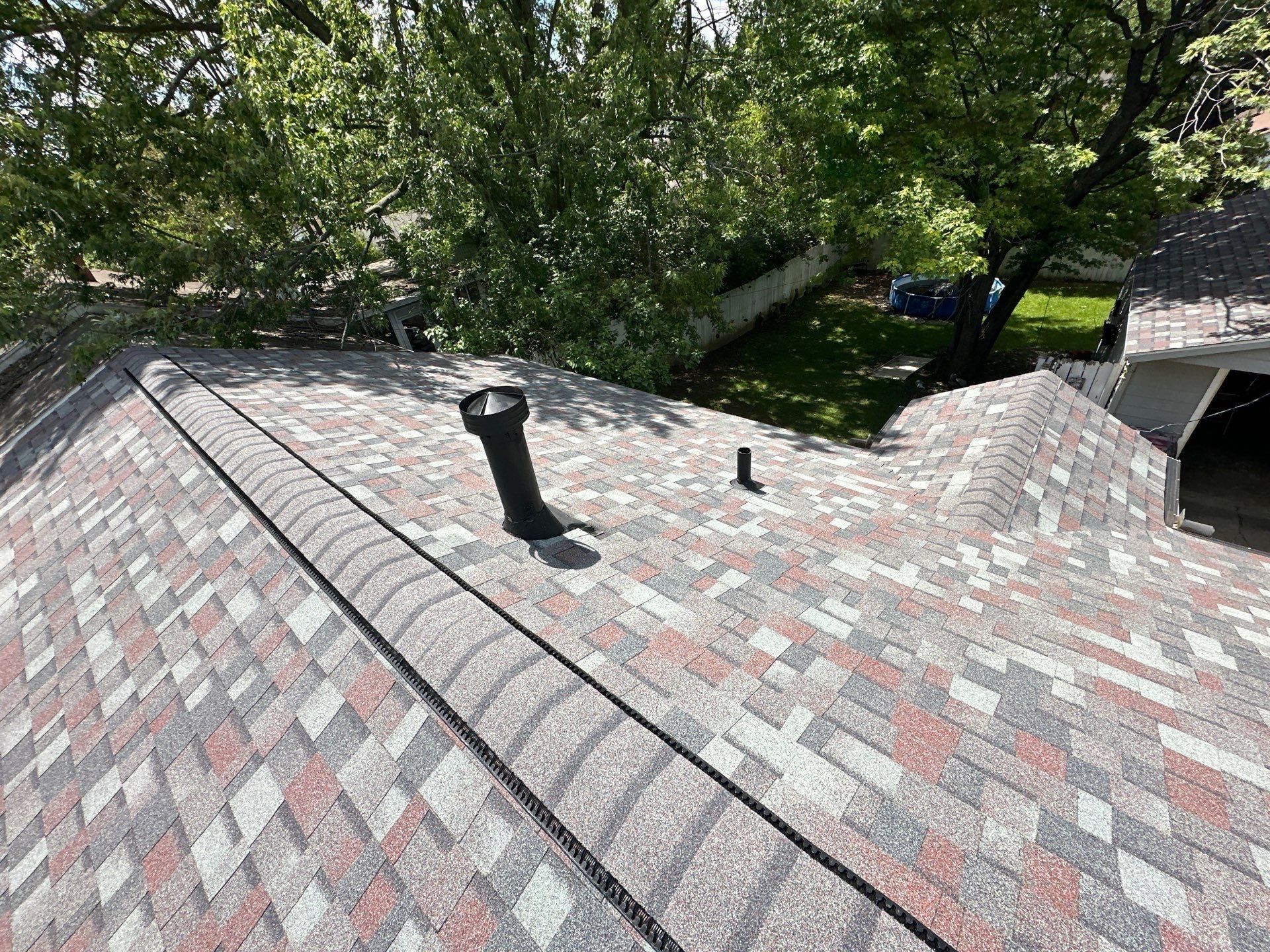

The furnace vent painted black on the finished roof, Dayton, Ohio.
